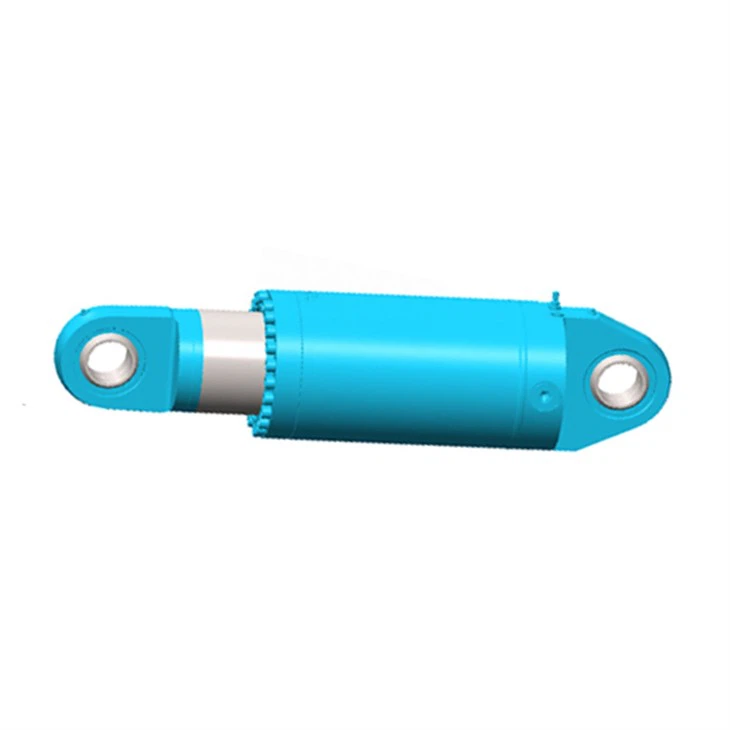

Cylinder Diameter: 180 mm Stroke Length: 600 mm Maximum Load Capacity: 150 tons Operating Pressure: 400 bar Material: Hardened Alloy Steel Surface Treatment: Chrome Plating Mounting Style: Clevis Mount Application: Rear Suspension System Certification: ISO 9001:2015

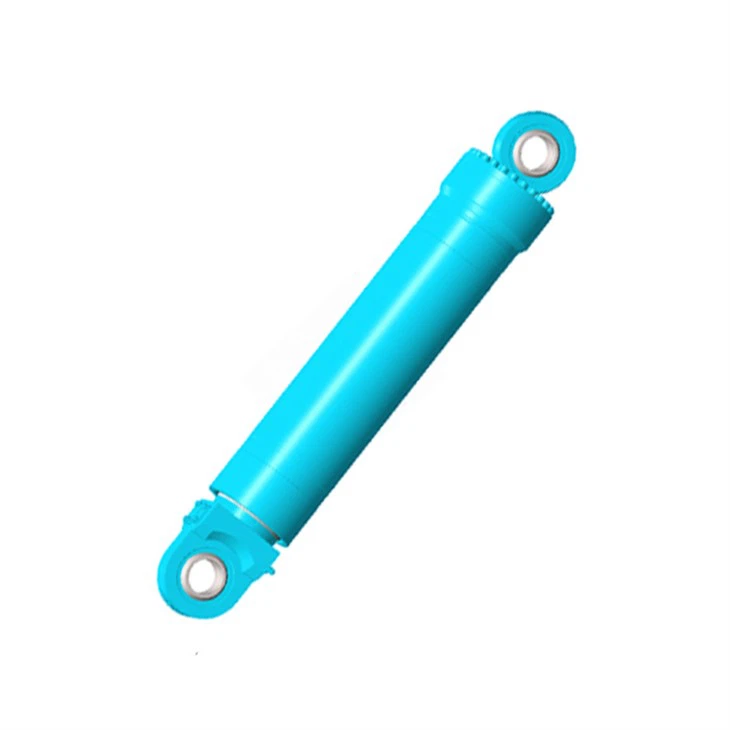

Cylinder Type: Telescopic Power Supply: 12V DC Maximum Lifting Capacity: 5 tons Stroke Length: 500 mm Operating Pressure: 250 bar Material: Stainless Steel Mounting Style: Clevis Mount Application: Mining Dump Trucks Certification: ISO 9001:2015

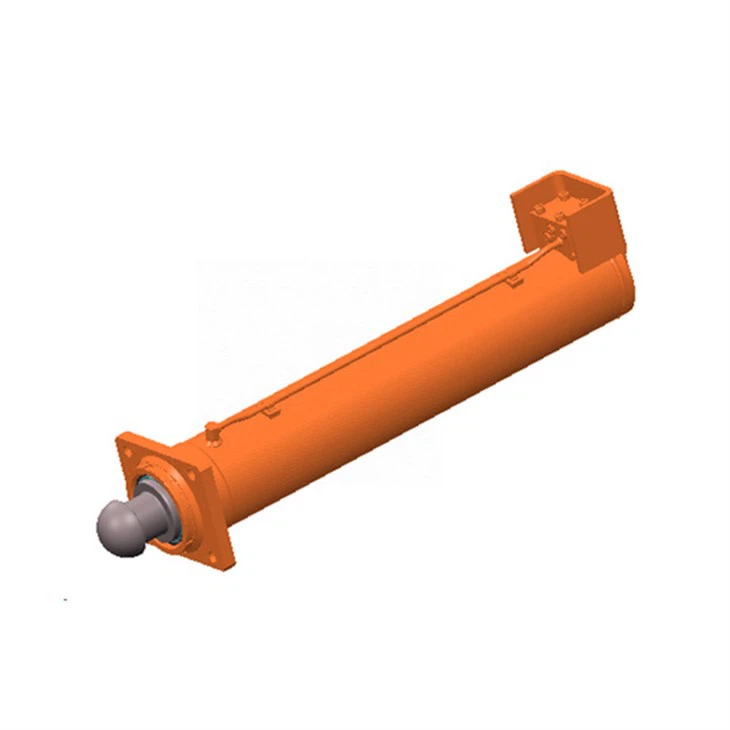

Function: In the crane lifting operation, support the weight of the entire equipment: cylinder diameter: 70mm ~ 360mm Rod diameter: 45mm ~ 320mm Travel: ≤800mm Pressure: Max. 42MPa

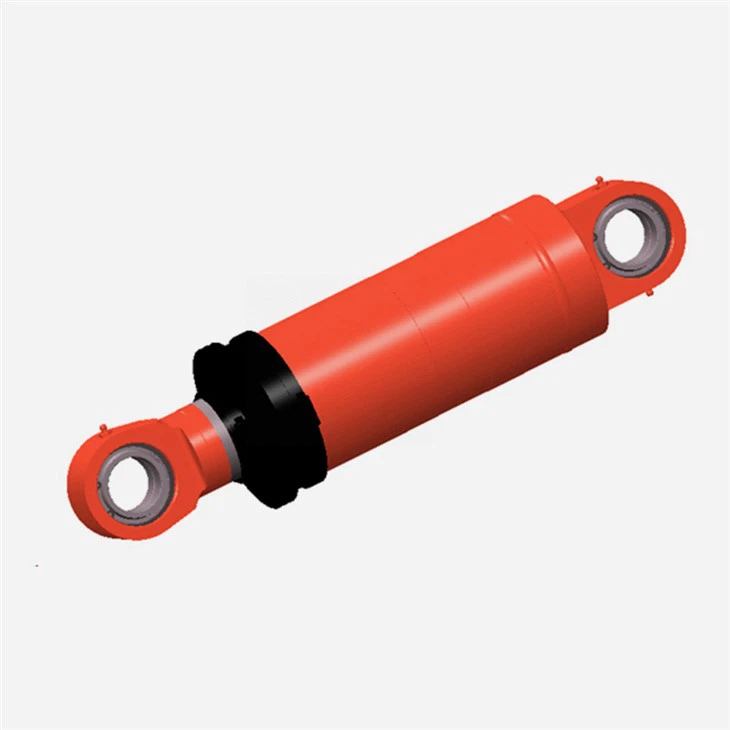

Function: Shock absorption system for crane chassis cylinder diameter: 85mm ~ 180mm Rod diameter: 50mm ~ 100mm Travel: ≤300mm Pressure: Maximum 35MPa
Function: Control the movement of the lower arm cylinder diameter: 50mm ~ 115mm Rod diameter: 25mm ~ 70mm Stroke: ≤1000mm Thrust: 305KN Max(Cylinder diameter 115mm/ pressure 29.4MPa)
