Built for strength and easy service, this CH Single Acting Telescopic Cylinder features cross-tube mounting, polished steel stages, and a primer finish. V-packing seals under high and low pressure, while external packing nuts add support and simplify maintenance.
Metric Hydraulics Introduction Maximum Stroke:30mm-4100mm Shaft Diameter:20mm-220mm Machinery Test Report:Provided Core Components:Barrel,pisotn,rod,seals,mountings,valves,end cap,head Structure:Piston Cylinder Color:Customer Requirement Working Pressure:16-25Mpa Working medium:Hydraulic oil Working Temperature:-20-80°C Weight (KG):20 Standard or Nonstandard:Standard Seal kits:According to customer requirements Quality:100% Tested

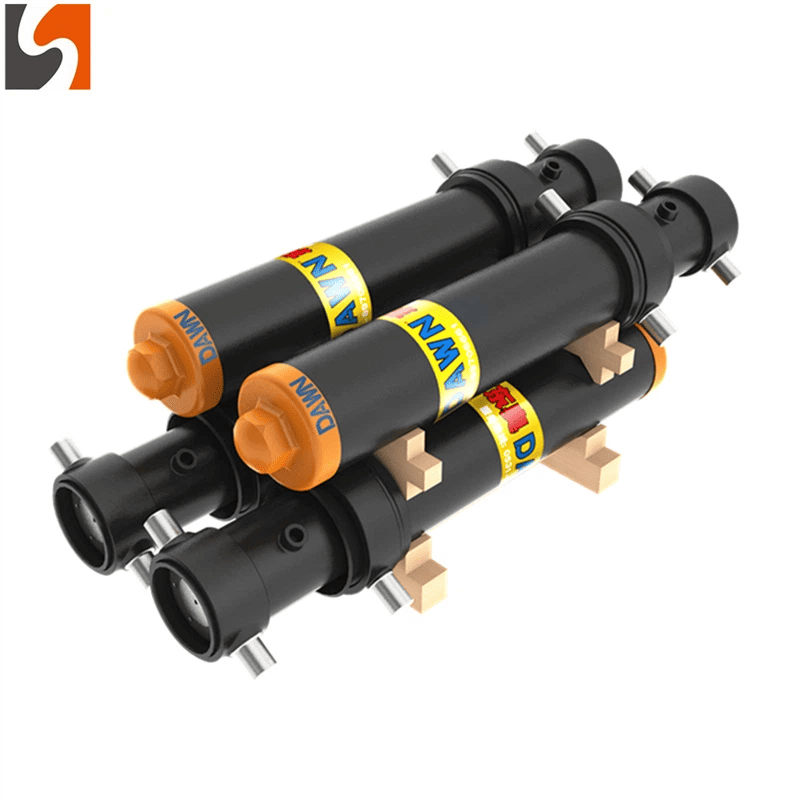

HCIC Single Acting Hydraulic Cylinders use hydraulic pressure to extend and gravity or external force to retract. This simple design makes them cost-effective and reliable for applications where controlled lowering is acceptable. Ideal for dump trailers, tipping vehicles, and lifting applications. Available with various bore sizes and stroke lengths. Each cylinder is 100% pressure tested before shipment.
HCIC TC Tie-Rod Hydraulic Cylinder – 2×4in, 1.125in Rod suits farm use. It features clevis mounting, strict testing, easy maintenance, steady performance, and supports reliable light to medium duty hydraulic work daily.
Rotary Lift Cylinder Introduction： Moving Type:Wheel Loader Core Components:piston rod, Guide sleeve, seal ring Structure:General Cylinder Body Material:Steel MOQ:10PCS Working medium:Hydraulic oil Application:Machinery Operating Pressure:25MPa Proof pressure:30MPa
Crane Boom Cylinders Introduction： Maximum Stroke：30-14100mm Shaft Diameter:20-320m Core Components:Motor, Gear, Pump Structure:Piston Cylinder, Piston cylinder Weight (KG):50 Water Glycol and Oil:Working Temperature Working Pressure:7Mpa~31.5Mpa Working medium:Water Glycol and Oil Material:20# 45# Warranty:12 Months Acting type:Double/ Single Acting Lead Time:3-7 weeks
