Telescopic cylinders supply a lengthy stroke from a very compact retracted length.HCIC has trip designingtelescopic for a quantity of industries and purposes and can work with you to format a single acting, a single acting/double performing combination, or a double appearing design.
Single-Acting Telescopic Cylinders
Single-acting cylinders use hydraulic stress to extend, and retract due to load from gravity or some different exterior force.
Hydraulic glide and strain extends the cylinder
Gravity or some different exterior pressure will retract the cylinder
Holds position
Long stroke in a compact closed length
Larger outer diameter than rod cylinders
Less complicated diagram than double acting
Double-Acting Telescopic Cylinders
Double-acting cylinders use hydraulic pressure for each extension and retraction.
Hydraulic energy retracts cylinder as hostile to gravity/force
Retract pressure is capable to pull load
Conventional telescopic cylinders
Both ports placed on rod end
Piston seals are generally solid iron rings
Cylinder is no longer designed to maintain load in actual positions (drifting)
Minimum go with the flow required to forestall stalling
Special elements can be designed into telescopic cylinders
Both ports on the barrel diagram avoids transferring hoses and put on patterns
Positive piston seals permit cylinder to keep the load and get rid of the minimal glide requirement
Less useless lengths per stage than a traditional double performing telescopic
OPTIONAL FEATURES
Up to 5000 PSI working pressure
2 to 5 working sections
Up to 20”barrel diameter
Alternative barrel tube stage coatings handy together with nitride, chrome over nickel, plasma spray
Stroke lengths up to 480”(40 feet)
Alternative rod substances reachable such as carbon steel, precision honed, tough chrome plated stages.
Optional built-in machined piston design
Steel or ductile internally threaded gland design
Optional cease mounts: trunnion, clevis, tang, move tube, spherical bearing, customized bushing, move drilled gap
Parker Double Acting Hydraulic Cylinder Introduction： Moving Type:Wheel Loader Marketing Type:Ordinary Product Power:Hydraulic Working Pressure:16Mpa-24MPa Seal kits::Halllite,Parker,NOK,Merkel etc Coating:Hard Chrome Stage:3,4,5, or 6 stages lift capacity:30-80 ton Material:E355 high quality Steel Application:Dump & Garbage truck
Front End Loader Cylinders Introduction： Moving Type:Wheel Loader Power:75kw Machinery Test Report:Provided Dimension:6230*2365*3752 mm Machine Weight:8200 kg Bucket capacity:1.0m3 Core Components:Engine, Motor, Pump, Gearbox Bucket Dumping Height:2650mm) rated loading:2500kg Backhoe Capacity:0.3m3 Digging Depth:52mm Min. ground clearance:300mm

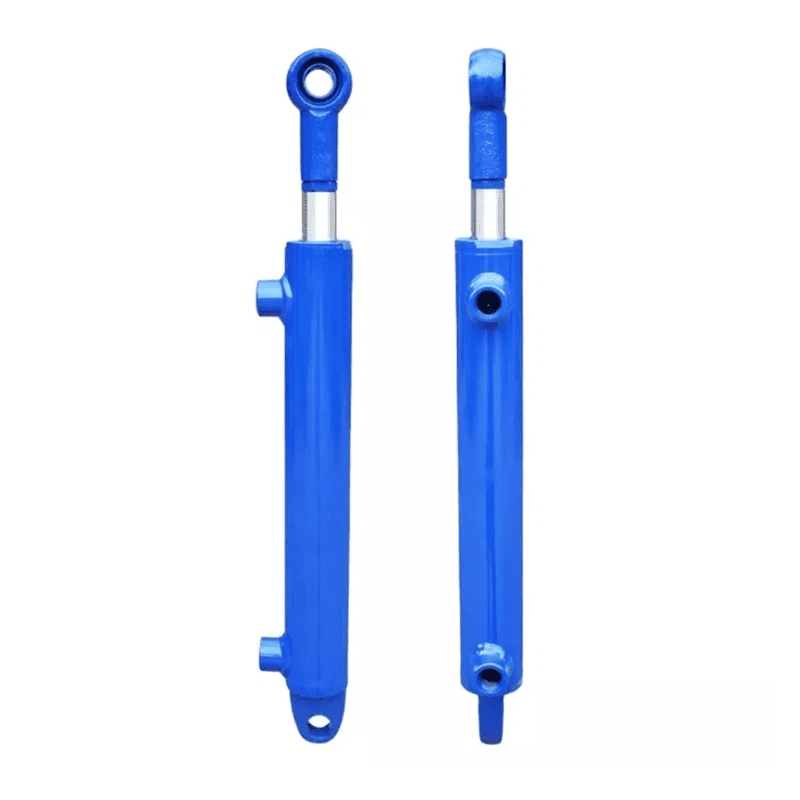

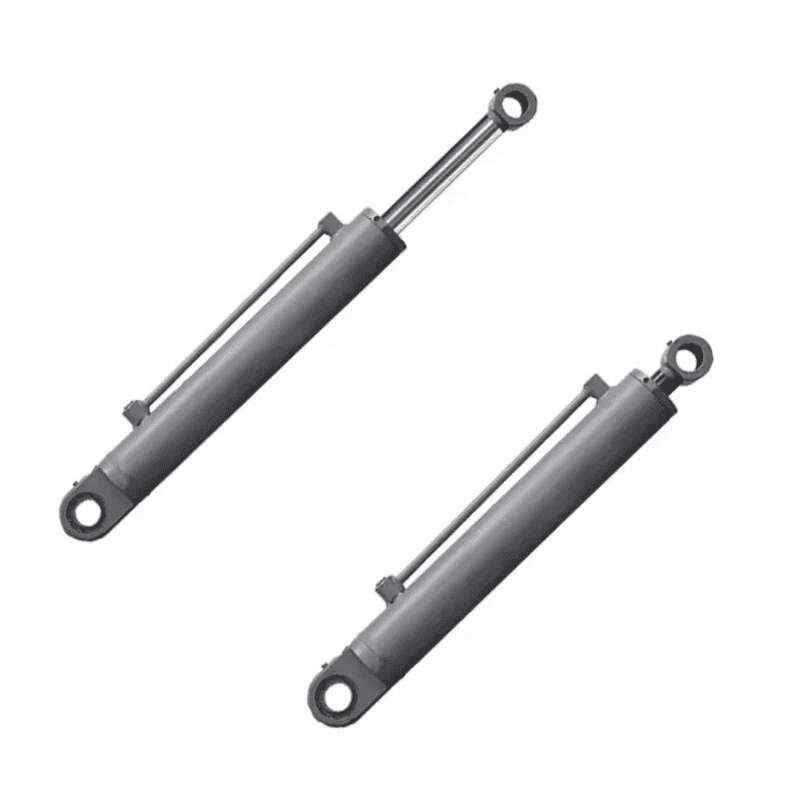

Loader Bucket Hydraulic Cylinder Introduction： Maximum Stroke：9030mm Weight:：680, 680KG Suitable Excavator(ton):12ton, 12T Bucket type:Thumb bucket Materail:Q355B//NM400 Color:Customzied Loader Bucket Capacity/m3:0.48 Bucket capacity:0.48m³ Marketing Type:New Product 2022

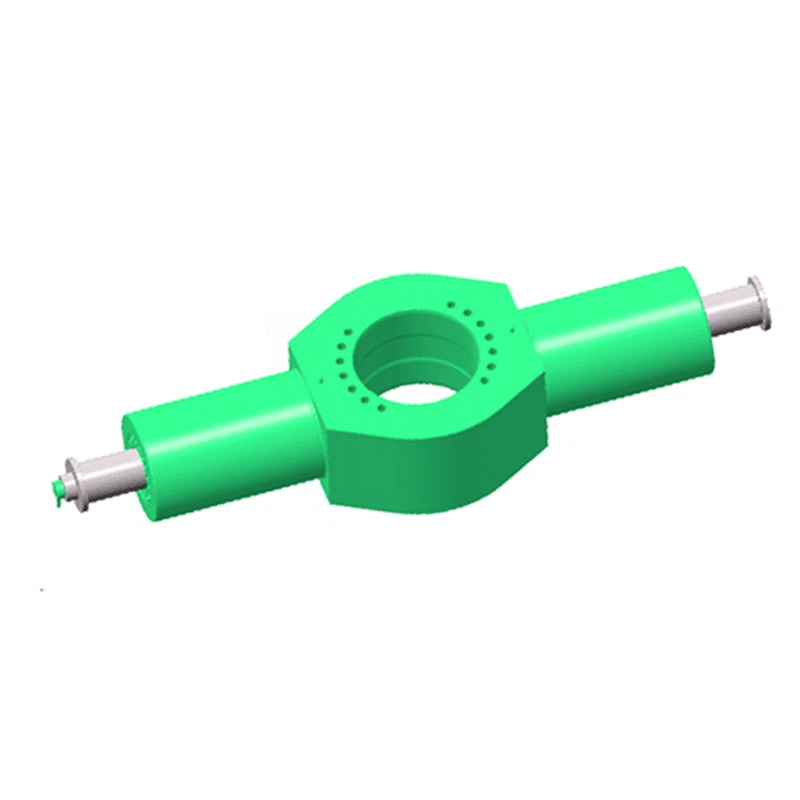

Double Acting Hydraulic Press Cylinder Introduction: Pressure:Hydraulic, High Pressure Weight (KG):70 Dimension(L*W*H):100x50x50cm Maximum Stroke:1000mm Inner Tube Diameter:450mm Material:45# Steel Lift capacity:500 ton Rod Diameter:200mm Outer Tube Diameter:500mm Application:Press Acting type:Double Stroke:15000 mm Max
The structure of the hydraulic cylinder has a variety of structures, and there are many classification methods: according to the exercise method, it can be divided into a straight line movement and rotary swing type; according to the actual situation of liquid pressure, it can Forms can be divided into piston, plunger, multi -level telescopic sleeve type, gear rack type, etc.; according to the installation form, it can be divided into trolley, earrings, bottom, hinge shafts, etc.
