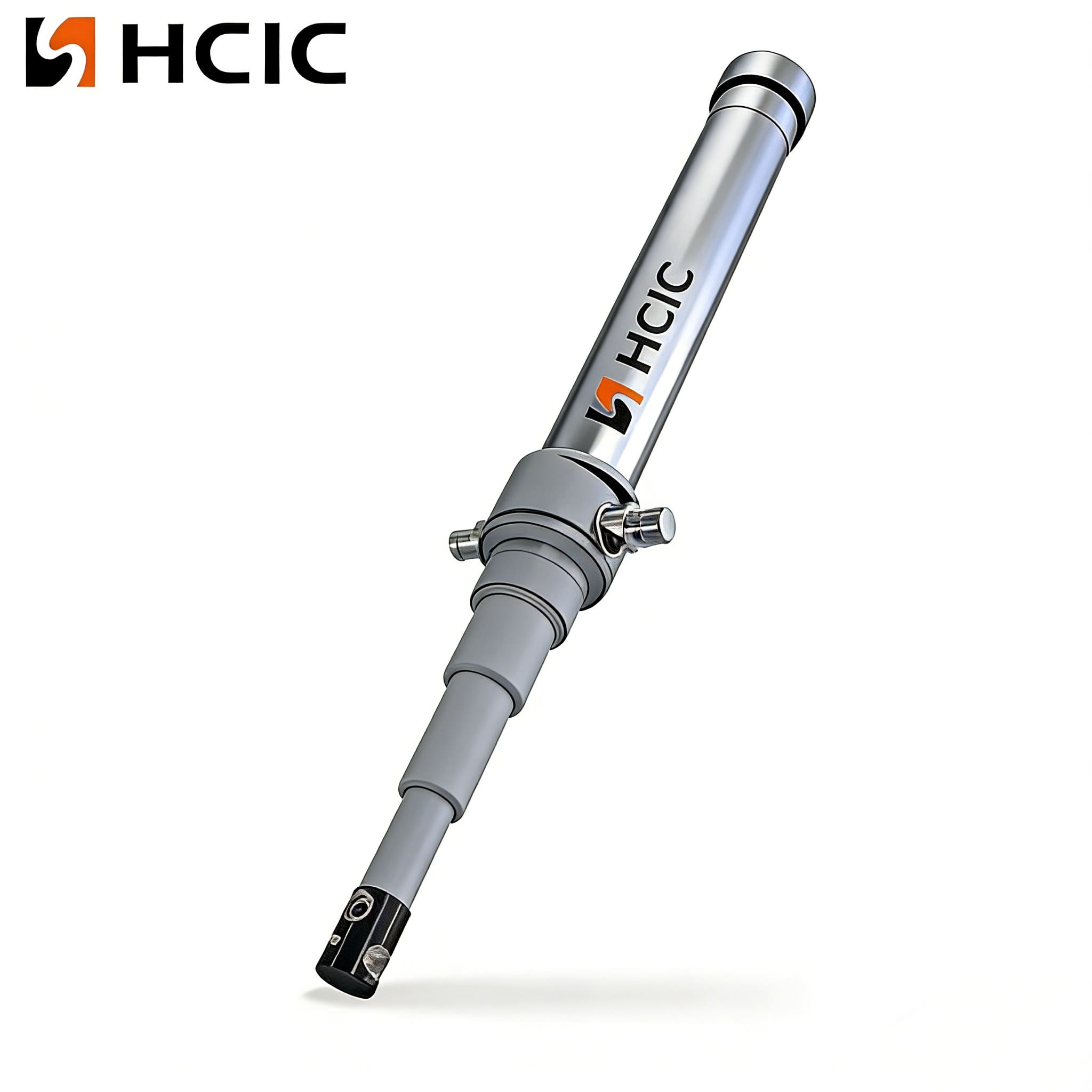

Telescopic cylinders supply a lengthy stroke from a very compact retracted length.HCIC has trip designingtelescopic for a quantity of industries and purposes and can work with you to format a single acting, a single acting/double performing combination, or a double appearing design.
Single-Acting Telescopic Cylinders
Single-acting cylinders use hydraulic stress to extend, and retract due to load from gravity or some different exterior force.
Hydraulic glide and strain extends the cylinder
Gravity or some different exterior pressure will retract the cylinder
Holds position
Long stroke in a compact closed length
Larger outer diameter than rod cylinders
Less complicated diagram than double acting
Double-Acting Telescopic Cylinders
Double-acting cylinders use hydraulic pressure for each extension and retraction.
Hydraulic energy retracts cylinder as hostile to gravity/force
Retract pressure is capable to pull load
Conventional telescopic cylinders
Both ports placed on rod end
Piston seals are generally solid iron rings
Cylinder is no longer designed to maintain load in actual positions (drifting)
Minimum go with the flow required to forestall stalling
Special elements can be designed into telescopic cylinders
Both ports on the barrel diagram avoids transferring hoses and put on patterns
Positive piston seals permit cylinder to keep the load and get rid of the minimal glide requirement
Less useless lengths per stage than a traditional double performing telescopic
OPTIONAL FEATURES
Up to 5000 PSI working pressure
2 to 5 working sections
Up to 20”barrel diameter
Alternative barrel tube stage coatings handy together with nitride, chrome over nickel, plasma spray
Stroke lengths up to 480”(40 feet)
Alternative rod substances reachable such as carbon steel, precision honed, tough chrome plated stages.
Optional built-in machined piston design
Steel or ductile internally threaded gland design
Optional cease mounts: trunnion, clevis, tang, move tube, spherical bearing, customized bushing, move drilled gap
