Sourcing the HCHJ-12KWP 12-ton self-contained hydraulic trailer jack with integrated 12V DC power unit? Check OEM specs: 2" bore, 20" stroke, 12V DC motor, 12T load.
Architecture Type:
Self-Contained Electro-Hydraulic Jack AssemblyIntegrated Power Unit:
Built-in 12V DC Electric Motor & Micro Gear PumpWorking Bore Diameter:
2.0 inches (50.8 mm)Induction-Hardened Piston Rod:
1.0 inch (25.4 mm)Net Lifting Stroke:
20.0 inches (508.0 mm)Commercial hotshot operators, equipment rental yards, and livestock transporters constantly swap trailers between different tow vehicles. Standard pickup trucks and light commercial flatbeds rarely have PTO hydraulic wet-lines installed. This leaves trailer operators with two bad options: back-breaking manual two-speed hand cranks or separate, bulky toolbox-mounted hydraulic power units with messy exposed external plumbing. The HCHJ-12KWP 12-Ton Self-Contained Hydraulic Trailer Jack with Integrated 12V DC Power Unit completely redefines drop-and-hook efficiency by integrating the electric motor, hydraulic pump, fluid reservoir, and lifting cylinder into a single bolt-on landing gear package.
With just a standard 12V deep-cycle onboard trailer battery connection, the HCHJ-12KWP 12-Ton Self-Contained Hydraulic Trailer Jack with Integrated 12V DC Power Unit delivers instant push-button lifting and lowering power. Rated for a massive 12-ton (24,000 lb) lifting and static holding capacity at 3,000 psi, it allows a single operator to uncouple and level a heavy 40-foot gooseneck trailer in less than 15 seconds without touching a manual crank handle.
| Engineering Parameter | Catalog Specification / Workshop Standard |
|---|---|
| Model Designation | HCHJ-12KWP |
| Architecture Type | Self-Contained Electro-Hydraulic Jack Assembly |
| Integrated Power Unit | Built-in 12V DC Electric Motor & Micro Gear Pump |
| Fluid Reservoir | Integrated Steel/Polymer Internal Oil Tank |
| Working Bore Diameter | 2.0 inches (50.8 mm) |
| Induction-Hardened Piston Rod | 1.0 inch (25.4 mm) |
| Net Lifting Stroke | 20.0 inches (508.0 mm) |
| Retracted / Closed Housing Height | 30.0 inches (762.0 mm) |
| Static & Dynamic Rated Capacity | 12.0 Metric Tons / 24,000 lbs |
| Maximum Hydraulic Pressure | 3,000 psi (20.7 MPa / 207 bar) |
| Operator Interface | Push-Button Rocker Switch & Corded Pendant Option |
| Housing Construction | High-strength square steel drop-leg outer tube |
| Base Footpad | Welded heavy-duty sand shoe with mud drainage |
Traditional hydraulic retrofits require mounting an external hydraulic power unit in the trailer A-frame toolbox, running high-pressure hydraulic hoses along the gooseneck frame, and installing remote directional valves. Every hose fitting is a potential leak point when dragging trailers through brush, gravel roads, and construction rubble.
The HCHJ-12KWP 12-Ton Self-Contained Hydraulic Trailer Jack with Integrated 12V DC Power Unit eliminates all external hydraulic plumbing. The electric motor, high-pressure mini pump, internal check valves, and fluid reservoir are mounted directly to the head of the heavy-gauge square outer housing. You run two heavy-gauge electrical power leads to the trailer battery, and the unit is fully operational.
To ensure rapid extension speed and prevent voltage drop under maximum 24,000 lb tongue loads, follow these basic electrical installation guidelines:
Battery Selection: Connect to a dedicated 12V Deep Cycle Marine / RV battery (Group 27 or Group 31, minimum 650 Cold Cranking Amps).
Power Cable Sizing: Use minimum 4 AWG copper welding cable for runs up to 6 feet, or 2 AWG for runs up to 12 feet from the battery box.
Overcurrent Protection: Install a 150A to 200A manual reset circuit breaker within 12 inches of the battery positive terminal to protect the 12V DC starter solenoid against dead-short overloads.
Auxiliary Charging: Connect the trailer onboard battery to the truck 7-way auxiliary power circuit or a 20W solar trickle-charge panel on the gooseneck deck to keep the battery perpetually charged during transit.
Under a full 10-ton tongue load, the HCHJ-12KWP extends its 20-inch stroke smoothly:
| Operating Parameter | HCHJ-12KWP Integrated 12V Jack | Standard Two-Speed Manual Jack |
|---|---|---|
| Full 20" Stroke Time | 12 – 15 seconds | 3 – 5 minutes (rapid hand fatigue) |
| Operator Physical Effort | Zero (Push-Button Pendant) | Extreme (50+ ft-lbs torque on low gear) |
| Retraction Method | Automated Hydraulic Return | Manual reverse cranking |
| Overnight Load Holding | Zero-Creep Pilot Check Valve | Mechanical gear backlash / shear pin wear |
| External Plumbing Needed | None (Self-Contained) | N/A (Mechanical) |
Mechanics servicing the HCHJ-12KWP 12-Ton Self-Contained Hydraulic Trailer Jack with Integrated 12V DC Power Unit in sub-zero winter regions should maintain three key items:

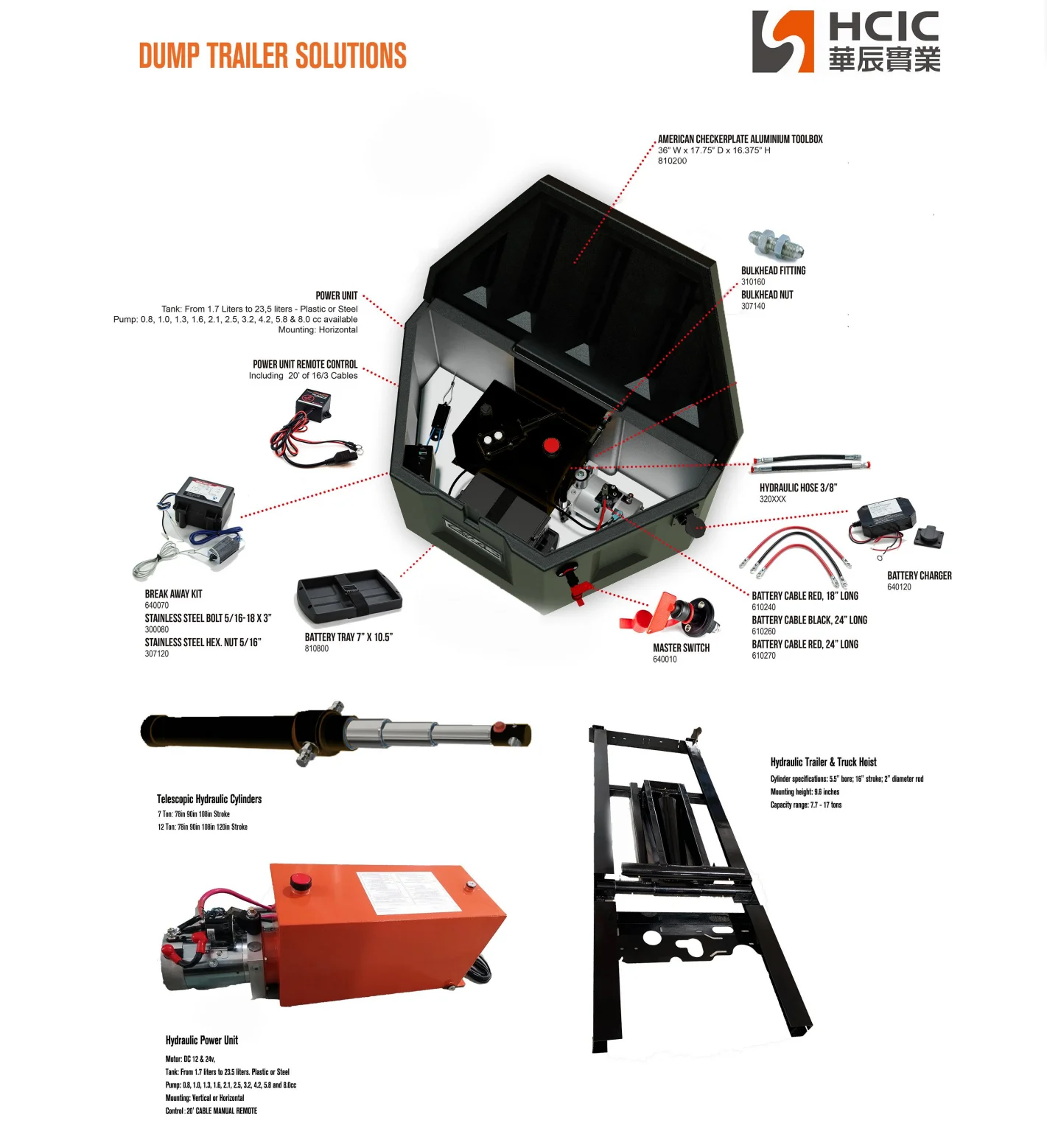

Specifications listed in this guide reflect the official HCIC 2026 Product Catalog (Page 16, Hydraulic Jack for Dump Trailer). Always check total gross tongue weight, trailer frame structural gusseting, and tongue clearance angles prior to welding or bolting mounting brackets to your chassis rails.
Looking to standardize the HCHJ-12KWP 12-Ton Self-Contained Hydraulic Trailer Jack with Integrated 12V DC Power Unit across your trailer production line?
Contact the HCIC engineering team with your trailer tongue dimensions, bracket preferences, and annual batch forecast. We provide full 3D STEP files within 24 hours, pre-wired prototype evaluation samples, and competitive factory-direct supply agreements for trailer builders worldwide.
