36-Inch Gantry Raise Hydraulic Cylinder for Automated Truck Tarp Systems

State DOT environmental regulations and municipal hauling ordinances mandate that commercial dump trucks, transfer trailers, and roll-off containers must be fully covered with heavy tarpaulins before traveling on public highways. To avoid driver climbing injuries, fleets rely on hydraulic gantry-style automated tarping systems that elevate a horizontal roller bar over heaped loads of crushed gravel, asphalt, or bulky demolition debris.

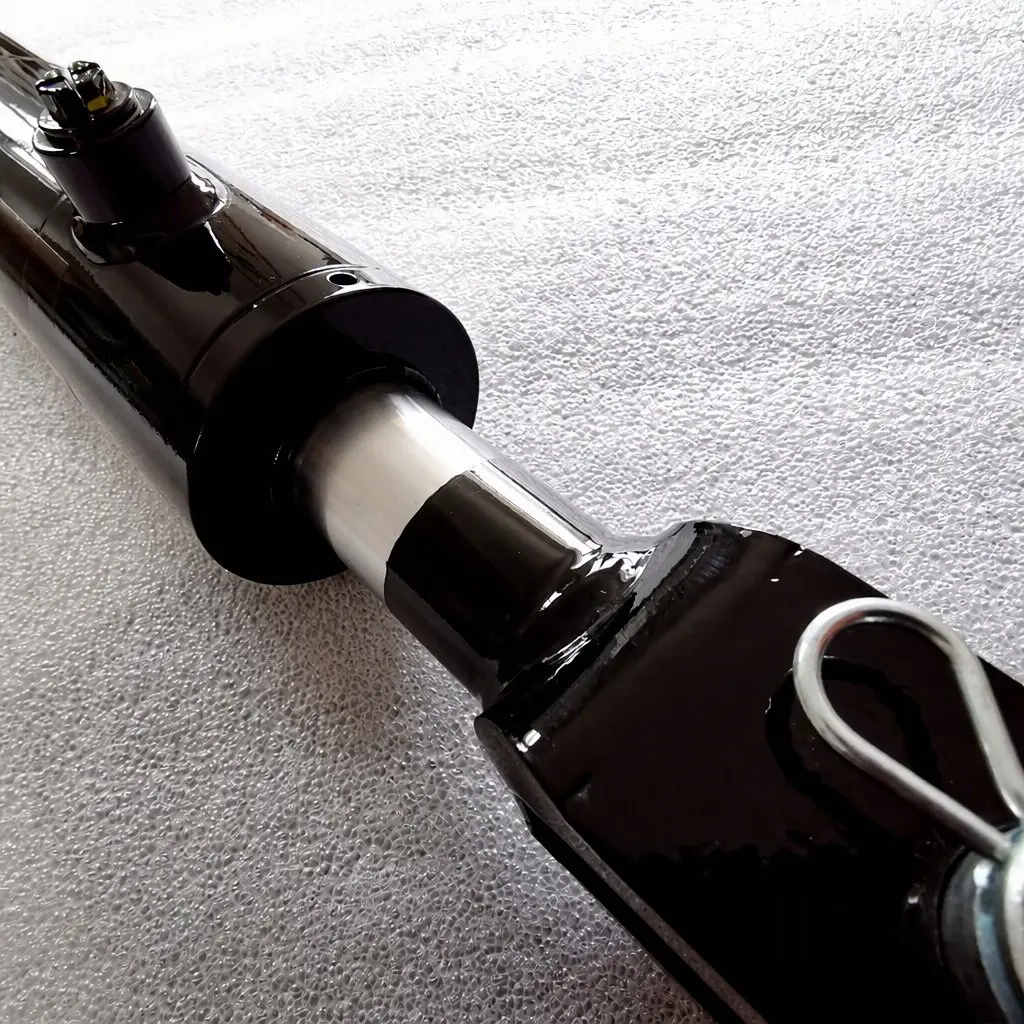

Operating an automated tarp system subjects hydraulic cylinders to extreme duty cycles. The gantry raise cylinder extends and retracts dozens of times per day, often operating in high-vibration environments, exposed to flying road stone impacts, acid rain, hot asphalt steam, and caustic de-icing salts. The HR4752 36-Inch Gantry Raise Hydraulic Cylinder for Automated Truck Tarp Systems is built specifically to survive this relentless punishment, delivering smooth vertical extension without rod binding or seal degradation.

---

I. Why QPQ Liquid Nitriding Outperforms Chrome on Tarp Rods

On automated truck bodies, conventional hard-chrome-plated cylinder rods frequently fail due to stone chipping. When a piece of flying gravel dings a chrome rod at 60 mph, the brittle chrome layer micro-cracks and flakes off. Moisture and road brine penetrate the exposed carbon steel underneath, causing rust bubbles that slice the rod seal lips during the next tarp deployment.

The HR4752 36-Inch Gantry Raise Hydraulic Cylinder for Automated Truck Tarp Systems features a proprietary QPQ (Quench-Polish-Quench) salt-bath liquid nitriding process on its AISI 1045 piston rod:

• Atomic Lattice Diffusion: QPQ is not an electroplated coating—it diffuses nitrogen and carbon atoms deep into the steel molecular lattice (0.015" to 0.025" depth), creating a surface hardness of HRC 58–62 that cannot chip, flake, or peel under stone impacts.
• Corrosion Resistance Exceeding 800 Hours: In ASTM B117 salt spray chamber testing, QPQ-treated rods exceed 800 hours without red rust, outlasting standard 100-hour commercial hard chrome by 8 to 1.
• Low Coefficient of Friction: The smooth black-satin nitrided surface reduces seal breakout friction, preventing jerky stick-slip motion during cold morning starts.

---

II. Ductile Iron Internal Gland: Absorbing Highway Inertial Bounce

When a dump truck travels at highway speeds with the tarp gantry elevated, the long mechanical steel arms bounce continuously against the cylinder mounting pins.

To absorb these dynamic lateral moments, the HR4752 36-Inch Gantry Raise Hydraulic Cylinder for Automated Truck Tarp Systems incorporates heavy-duty ductile iron guide sleeves and pistons. Ductile iron provides graphite nodule damping, preventing internal piston-to-barrel galling during cantilevered arm oscillation and extending cylinder fatigue life beyond 100,000 continuous cycles.

---

III. Fleet Maintenance Guidelines for Tarp Cylinders

Mechanics servicing automated truck tarp systems should follow these four operational best practices:

1. Verify Relief Valve Settings on Mini HPUs: Tarp systems are powered by 12V DC power units or truck air-over-hydraulic valves. Set relief valves between 2,000 and 2,500 psi. Over-pressurizing small 2" bore cylinders increases wear on gantry pivot bushings without improving tarp tension.
2. Inspect Gantry Arm Alignment: If the tarp gantry arm is bent from hitting low branches or loader buckets, realign the frame immediately. Side-loading a 36" stroke cylinder causes premature wear on the internal rod gland guide bands.
3. Check SAE Port Connections: Ensure hydraulic feed hoses have sufficient slack and abrasion sleeving to flex smoothly across the 36-inch vertical elevation stroke.
4. Clean Exposed Rod Surfaces: While QPQ is rust-proof, sticky asphalt splatter and hardened tree sap should be wiped clean with solvent to prevent wiper seal lip damage.

---

IV. FAQ：

---

V. Technical Disclaimer & Engineering Verification

Specifications cited above represent official HCIC 2026 Product Catalog parameters (Page 8, Tarp System Hydraulic Cylinder Series). Always verify gantry mounting pin centerlines, hydraulic fitting clearance, and arm geometry before welding mounting brackets to truck chassis cab guards.

---

VI. Direct Factory Sourcing for HR4752 Tarp Cylinders

Looking for reliable volume supply or replacement cylinders for the HR4752 36-Inch Gantry Raise Hydraulic Cylinder for Automated Truck Tarp Systems?

Contact HCIC’s specialized engineering desk with your annual production forecasts and mounting bracket specifications. We provide complete 3D STEP models within 24 hours, rapid sample dispatch, and competitive factory-direct supply agreements for commercial truck body builders worldwide.
