The HC-416 scissor hoist for dump trailer lifting syatems with a 5-inch bore, 16-inch stroke, 5–11.4 ton catalog capacity range and 229 lb approximate weight.

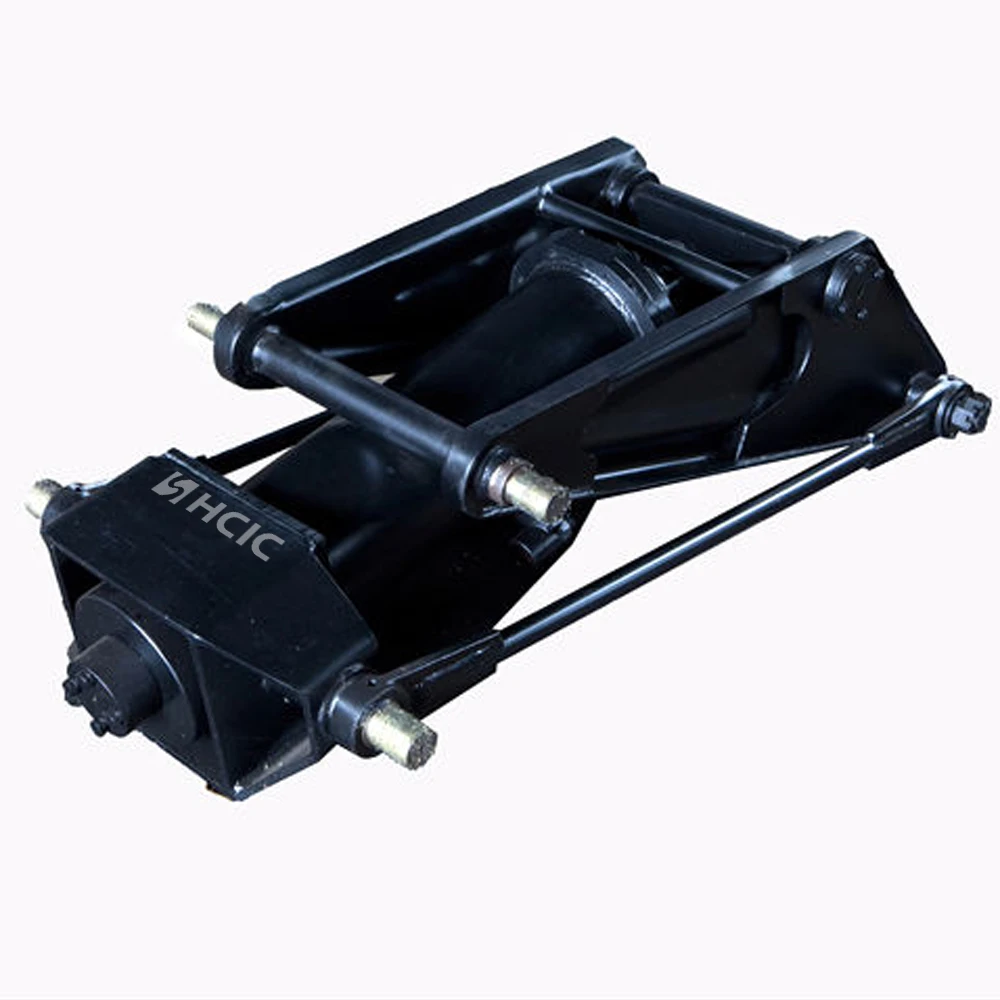

The HC-416 is a scissor hoist listed in the HCIC-2026 catalog for dump-trailer lifting systems. It combines a hydraulic cylinder with a scissor mechanism, frame and mounting components to turn cylinder movement into a controlled lift of the dump body.
This model is a practical starting point for trailer builders and replacement buyers who need a compact hydraulic dump trailer hoist with a defined dimensional envelope. Final suitability still depends on the trailer frame, body weight, hinge position, required dump angle and hydraulic circuit.
| Parameter | Catalog value |
|---|---|
| Model | HC-416 |
| Product type | Scissor hoist for dump trailer |
| Body length | 40.4 in |
| Bore | 5 in |
| Stroke | 16 in |
| Rod | 2 in |
| Mounting height | 4.97 in |
| Catalog capacity range | 5–11.4 tons |
| Approximate weight | 229 lb |
The values above are transcribed from the Scissor Hoist for Dump Trailer table in the supplied HCIC-2026 catalog, PDF page 15. The capacity range is a catalog reference for application review, not a universal payload rating for every trailer design.
A direct hydraulic cylinder does not always provide the best lifting geometry for a trailer frame. A scissor mechanism changes the relationship between cylinder travel and body movement, helping the lifting system work within a defined installation space.
The HC-416 is relevant when a builder needs a 5-inch-bore, 16-inch-stroke hoist package for a trailer in the catalog's 5–11.4 ton application range. The hoist should be reviewed as part of the complete lifting system rather than selected from the cylinder bore alone.
The scissor geometry, pivot positions and body hinge determine how much force reaches the dump body at different points in the lift. A trailer that is easy to start lifting may require a different force and angle near the top of the dump cycle. That is why frame drawings and movement checks matter before production approval.
The catalog lists a 40.4-inch body length and 4.97-inch mounting height for HC-416. Compare these values with the trailer frame, crossmembers and available space below the dump body. Also check clearance while the body moves from the closed position to the required dump angle.
The 5-inch bore, 16-inch stroke and 2-inch rod describe the main cylinder data, but they do not define the complete lifting result by themselves. The scissor arms, pivot pins, body hinge and mounting brackets all influence the actual force path.
The hoist must be installed squarely. Tight or misaligned pivots can create resistance that the hydraulic circuit cannot correct. Before testing, confirm that the pins are seated, the brackets are properly supported and the scissor arms can move through the intended arc.

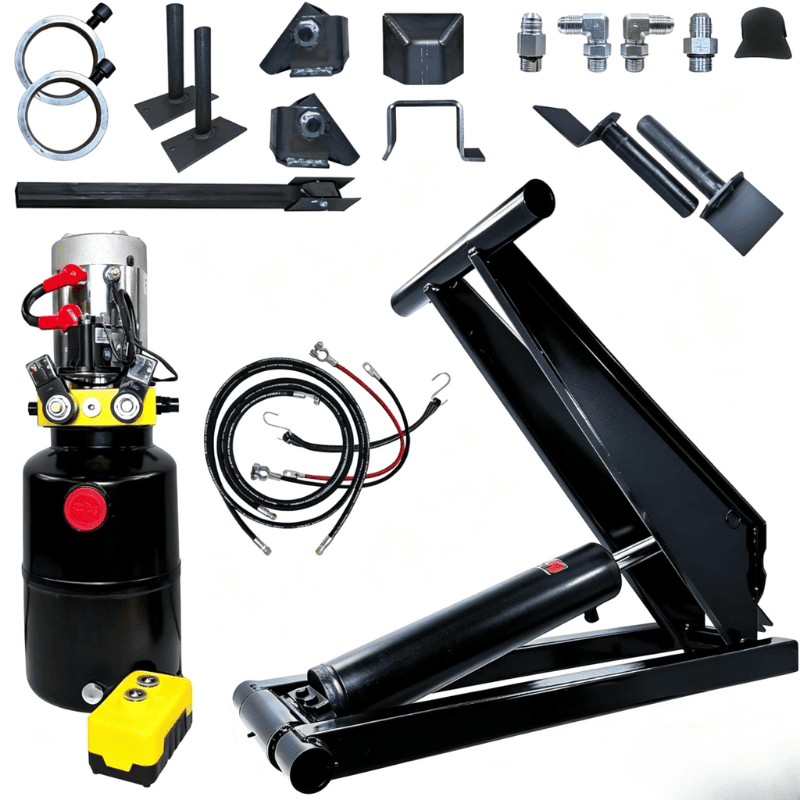

The catalog describes scissor-hoist kits with a pump, steel tank, hose, fittings, load-control valve, prop kit and battery cables. The exact kit configuration should be confirmed for the project. The pump, relief protection, hoses and control valve must match the cylinder and the trailer's operating requirements.
A load-control function is important in a dump-trailer system because the body must not drop uncontrolled if pressure or hose conditions change. The equipment designer should review the actual valve arrangement and installation instructions before commissioning.
The HC-416 can be considered for OEM dump-trailer builds, fleet replacement work and trailer upgrades where the available frame space and lifting requirement match its catalog data.

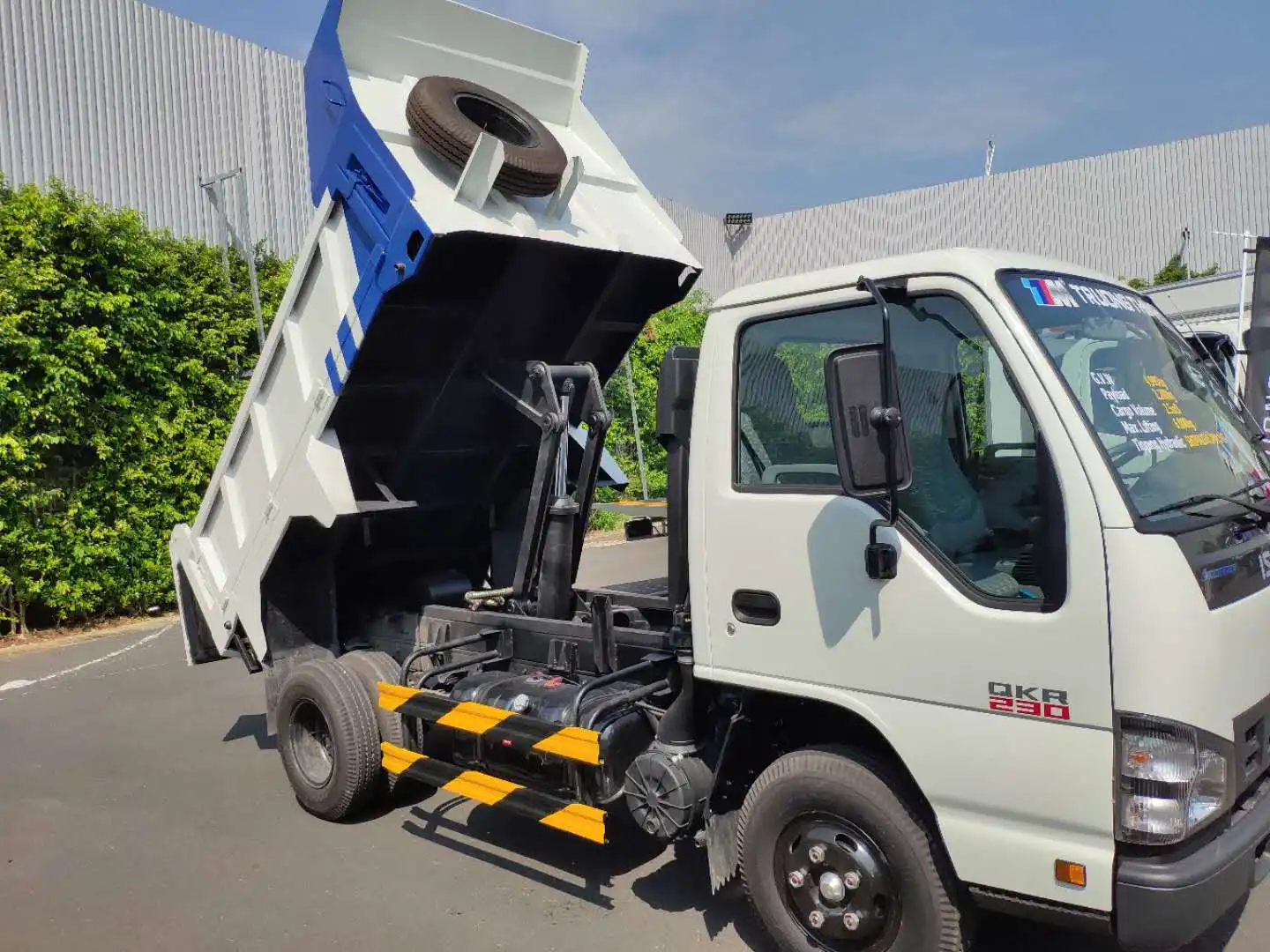

Typical project discussions include single-axle or tandem-axle dump trailers, utility trailers, agricultural trailers and light construction trailers. The correct choice depends on the actual body weight, payload, hinge geometry, desired dump angle and operating environment.
Do not use the 5–11.4 ton range as a stand-alone approval. Payload, body structure and load distribution can change the forces in the lifting system. A technical review should be completed before replacing a different hoist with HC-416.
For an HC-416 scissor hoist quotation or replacement review, send:
These details allow the hoist, cylinder and hydraulic power unit to be reviewed as one system.
The HC-416 gives dump-trailer builders a defined scissor-hoist model to evaluate: 40.4-inch body length, 5-inch bore, 16-inch stroke, 4.97-inch mounting height and a 5–11.4 ton catalog capacity range.
Send the trailer layout, lifting requirement and hydraulic data to HCIC for a project-specific review before ordering
