75lbThe HTC7T-90 is a 7-ton inverse hydraulic cylinder listed in the supplied HCIC-2026 catalog. It belongs to the HTC cylinder group developed for the North American dump-trailer market and is listed with a 90-inch stroke.
The model is a fitment candidate for trailer builders and replacement buyers who need long movement from an inverse cylinder arrangement. The catalog gives a defined dimensional reference, port connection, approximate weight and working volume. Those values are useful for the first engineering review, but they do not replace the trailer drawing, hinge geometry, load calculation or approved installation drawing.
This article focuses on one model only: HTC7T-90. It does not compare the model with other HTC variants or assign a universal payload rating.
| Parameter | Catalog value |
|---|---|
| Part number | HTC7T-90 |
| Catalog group | 7 tons inverse |
| Stroke | 90 in |
| Dimension A | 39.5 in |
| Dimension B | 3.75 in |
| Dimension C | 2 in |
| Dimension D | 1.063 in |
| Dimension E | 3.0 in |
| Dimension F | 1.25 in |
| Dimension G | 6.5 in |
| Dimension H | 1.25 in |
| Dimension L | 7 in |
| Port | SAE #8 (3/4-16 UNF) |
| Approximate weight | 75 lb |
| Volume | 1.8 gal |

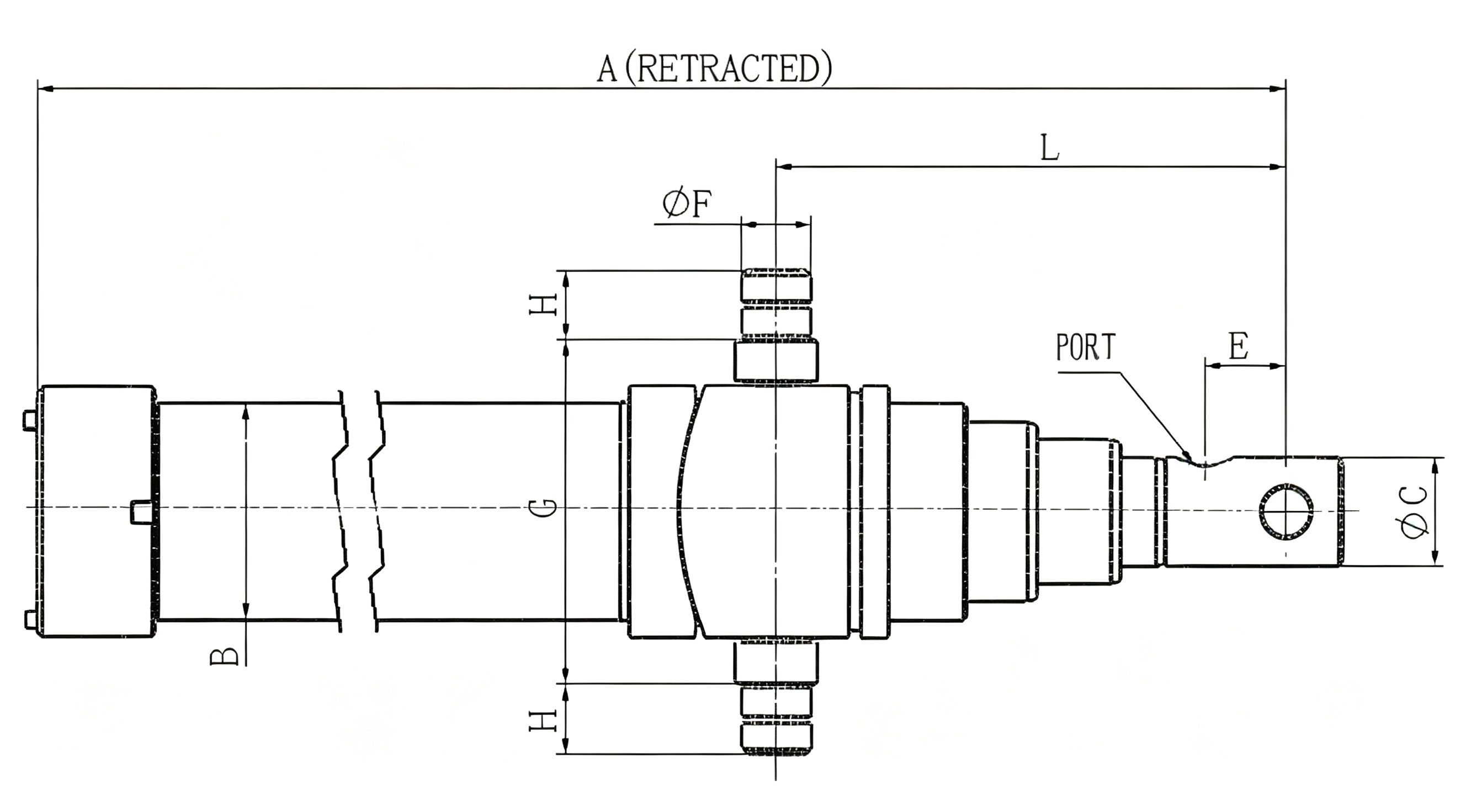

The table above is transcribed from the HTC-Model Hydraulic Cylinder table in the supplied HCIC-2026 catalog, PDF page 14. The catalog presents the dimensions as drawing reference fields labelled A through L. Because the extracted catalog page does not define each letter in prose, the article keeps the original field names rather than guessing whether a field represents a pin center, mounting height, connection position or another drawing dimension.
The approximate-weight wording is intentional. 75 lb is a catalog reference, not a shipment weight or a promise that every finished configuration will have the same mass.
A long-stroke cylinder is not selected by stroke alone. On a dump trailer, the closed and extended positions must work with the body hinge, chassis, cylinder mounts, hydraulic hose route and required tipping angle.
The HTC7T-90 gives the buyer a clear starting point: a 90-inch stroke within the catalog's 7-ton inverse group. The next question is whether the cylinder can move through the complete body cycle without binding, bottoming out or contacting the frame.
A useful review looks at three positions:
1. Body closed: confirm the available installation envelope, mounting interfaces and hose clearance.
2. Early lift: check the starting angle and the force required to break the loaded body away from the frame.
3. Target dump angle: confirm that the cylinder still has usable movement and does not reach a mechanical limit before the body reaches its intended position.
This is a more reliable approach than comparing a replacement cylinder by stroke or outside appearance only.
The catalog dimensions A through L should be checked against the current HTC drawing and the buyer's trailer layout. Do not scale a catalog image and treat the result as a manufacturing dimension.
The approved drawing should identify the actual mounting centers, pin or connection details, orientation and allowable clearances. If the replacement cylinder is being installed into an existing trailer, measure the old unit and the trailer mounts separately. A mismatch can come from the bracket, hinge or frame rather than from the cylinder itself.
The cylinder must be assessed in the closed, initial-lift and target-angle positions. Check interference with crossmembers, body supports, hydraulic hoses, wiring and adjacent structures.
The 90-inch stroke describes available cylinder movement. It does not by itself establish the trailer's dump angle. Hinge location and the distance between the cylinder mounts determine how cylinder movement becomes body movement.
The catalog lists an SAE #8 (3/4-16 UNF) port for HTC7T-90. Confirm the mating fitting, hose end, routing, bend radius and service access on the actual trailer.
Do not convert the port to another connection standard by assumption. The fitting, hose and valve arrangement must be confirmed on the project drawing and matched to the hydraulic circuit.
The catalog group is labelled 7 tons inverse. Actual cylinder loading depends on body weight, payload distribution, hinge position, cylinder angle, friction, structural stiffness and the pressure available from the power unit.
A 7-ton label should therefore be treated as a selection reference, not as permission to load every trailer to the same value. The vehicle or trailer engineer remains responsible for the complete lifting calculation and safe operating limits.
A replacement that fits physically may still be difficult to maintain if the port, rod area or connection hardware cannot be reached. Leave practical access for hose inspection, pin service, cleaning and future removal.
The catalog lists an approximate weight of 75 lb and a 1.8-gallon volume. Those values can help with handling and system planning, but the lifting method and fluid requirement should be confirmed against the final drawing and installed orientation.
For a first-pass quotation, send the supplier enough information to separate a standard fitment from a custom installation:
A photograph of the cylinder alone is not enough for a reliable fitment decision. A side view of the trailer with measured reference points is usually more useful.
The supplied catalog establishes that HTC7T-90 is listed in the 7-ton inverse group with a 90-inch stroke and the reference data shown above. It does not establish a universal trailer payload approval, a guaranteed dump angle, a guaranteed cycle time, a specific seal material, a pressure rating for this exact model or direct interchangeability with another cylinder.
Those items require the current product drawing, hydraulic schematic, trailer geometry and project requirements. They should not be inferred from the model name or from another HTC variant.
This article is a catalog-based product and fitment guide. It does not replace the current HTC7T-90 drawing, a trailer structural calculation, a hydraulic-circuit review, an installation procedure or a safety assessment. Final suitability must be confirmed for the actual trailer, body, load, hinge geometry, mounting arrangement and operating conditions.
The supplied company catalog identifies Jinan Huachen Industrial Co., Ltd. as a hydraulic manufacturer founded in 1998, with hydraulic cylinders and power units serving vehicle and industrial applications. For an HTC7T-90 inquiry, provide the trailer drawings, measured installation points and hydraulic data so the model can be reviewed against the actual build.
Send the trailer layout, hinge position, cylinder mounting measurements, hydraulic connection information and required dump angle to HCIC for a project-specific review before ordering.
