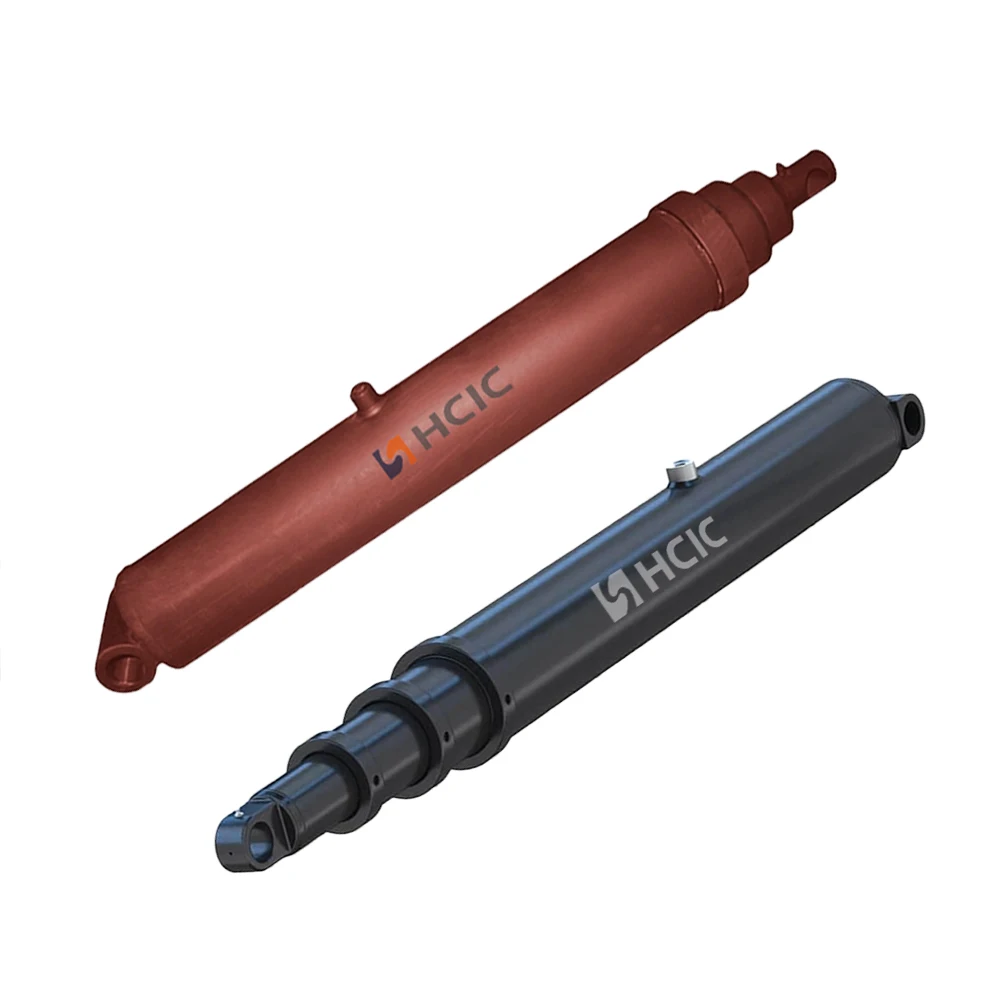

Are you struggling with ill-fitting, leaky hydraulic cylinders that slow down your operations? HCIC, a 25-year expert in hydraulic cylinder manufacturing, offers custom double-acting telescopic cylinders tailored to your equipment—whether for garbage trucks, farm tractors, small trailers, excavators, or power units. If you're looking to buy durable, high-performance hydraulic cylinders that fit perfectly, HCIC's full-process customization and fast delivery will solve your problems.
Many businesses encounter a similar problem: standard hydraulic cylinders do not fit their specialized equipment, resulting in slow operation, oil leaks, or frequent breakdowns. We are well aware that various customers' agricultural machinery, garbage trucks, small trailers, and other equipment differ in model, operating conditions, and performance requirements. Consequently, we offer personalized customization services for our hydraulic cylinders. From parameter confirmation to structural design, optimization is conducted in accordance with the specific needs of customers to ensure perfect compatibility between products and equipment. Should the customization process require special parts that the factory has not yet stocked, we will communicate with the customer promptly, clearly informing them of the procurement cycle and potential extended production time. Simultaneously, we will initiate an expedited procurement process and provide customers with alternative solution proposals. While ensuring product quality, we will endeavor to assist customers in resolving issues and ensuring that the final product is delivered on time and meets usage requirements.
| Sleeve orPlunger O.D. (in inches) | Bore of Main or Sleeve (in inches) | Effective area (sq. inches) to extend | Effective area (sq. inches) to retract | Load capacity lbs @ 2000 p.s.i. extending | Load capacity lbs @ 2000 p.s.i. retracting | per inch of stroke Displacement (in gallons)* to extend | per inch of stroke Displacement (in gallons)* to retract |
| 1.75‘’ | 2.25’’ | 3.98’’ | 1.57’’ | 7,952 | 3,142 | 0.017 | 0.007 |
| 2.75" | 3.25’’ | 8.29’’ | 2.35’’ | 16,592 | 4,712 | 0.036 | 0.010 |
| 3.75’’ | 4.25’’ | 14.18’’ | 3.14’’ | 28,372 | 6,283 | 0.061 | 0.014 |
| 4.75’’ | 5.25’’ | 21.64’’ | 3.92’’ | 43,296 | 7,854 | 0.094 | 0.017 |
| 5.75’’ | 6.25’’ | 30.68’’ | 4.71’’ | 61,360 | 9,426 | 0.133 | 0.020 |
| 6.75’’ | 7.25’’ | 41.28’’ | 5.49’’ | 82,564 | 10,994 | 0.179 | 0.024 |
| 7.90’’ | 8.44’’ | 55.68’’ | 6.97’’ | 111,360 | 13,946 | 0.242 | 0.030 |
| 9.38’’ | 9.88’’ | 76.59’’ | 7.56’’ | 153,180 | 15,120 | 0.332 | 0.033 |
| 10.75’’ | 11.50’’ | 103.87’’ | 13.11’’ | 207,738 | 26,213 | 0.450 | 0.057 |
| 12.50’’ | 13.00’’ | 132.73’’ | 10.01’’ | 265,465 | 20,028 | 0.575 | 0.043 |
| 14.00’’ | 14.50’’ | 165.13’’ | 11.19’’ | 330,261 | 22,384 | 0.715 | 0.048 |
As a company that has been dedicated to the production of hydraulic cylinders for 25 years, we are well aware that quality is the key to winning the trust of our customers. Over the years, we have established long-term and stable cooperative relationships with customers from dozens of countries around the world. From garbage trucks, agricultural machinery to small trailers and other different fields, our products have won unanimous recognition from overseas customers due to their stable performance and durable quality.
The hydraulic cylinders previously used on a small farm in North America often had problems such as slow lifting speed and oil leakage during the harvesting season, which seriously affected the harvesting progress and caused the crops to miss their optimal harvest time. Later, the farm owner learned about our double-acting multi-stage cylinder through an industry platform and contacted us. They provided us with the model parameters of the agricultural machinery, the daily operation duration, the humidity and dust conditions of the farm, and other working environment data.Based on this information, we customized a dirt-resistant and highly-sealed double-acting multi-stage cylinder for them, optimized the internal oil circuit design, and improved the lifting efficiency. After the farmers received the product installation, they reported that the lifting speed was 10%-15% faster than before, which was able to fully keep up with the harvesting rhythm. Moreover, after 8-10 months of use, the hydraulic cylinder did not experience any oil leakage or malfunction, significantly reducing maintenance costs and downtime. The farmer said during the follow-up visit: "Your customized hydraulic cylinder has solved my big problem. Now during the harvest season, I no longer have to worry about the equipment, and the cost-performance ratio is very high!"
For customers with testing requirements, we can provide reports from authoritative third-party testing institutions at any time. The reports cover multiple key indicators such as raw material composition, dimensional accuracy, and pressure tests, ensuring that each batch of products complies with international standards. With 25 years of industry experience, we have greater confidence in quality control and are capable of quickly responding to the individualized needs of customers from different countries. Whether it's product customization or after-sales support, we strive to satisfy every customer."
Our hydraulic cylinders are all custom-produced according to the specific requirements of our customers. Therefore, the delivery date will be determined by combining your custom requirements, equipment parameters, and production schedule. However, please rest assured that we will optimize the production process while ensuring product quality, and do our best to shorten the delivery period to guarantee that the products are delivered to you in perfect condition.
Starting from your first consultation and providing us with the equipment data and requirements, we will assign dedicated liaison personnel to follow up throughout the process. After placing the order, we will proactively inform you of the production progress of the product, such as the completion of raw material procurement, entering the processing stage, passing quality inspection and being ready for shipment, etc., allowing you to keep track of the product at each stage. Whether it's the initial scheme communication, progress feedback during the production process, installation guidance after product delivery, or any questions regarding usage, we will answer each question for you one by one, and our after-sales support will not be interrupted, ensuring that you can feel at ease, worry free, and happy during your cooperation with us.
HCIC is a professional hydraulic manufacturer, mainly engaged in hydraulic system design, manufacture, installation, transformation, commissioning and hydraulic components brand sales and technical services.We hope that our product can help to save your cost and improve your quality. For More details please email us "davidsong@mail.huachen.cc" or google search "HCIC hydraulic"
