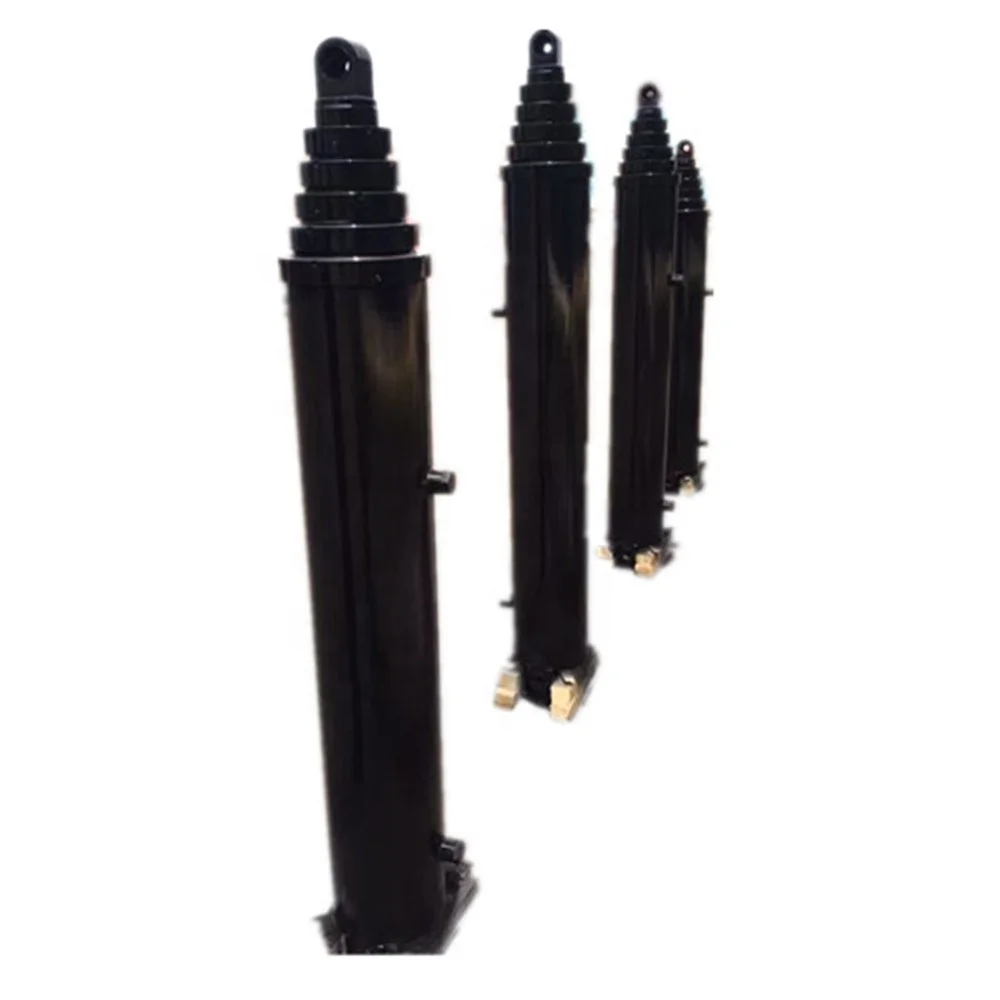

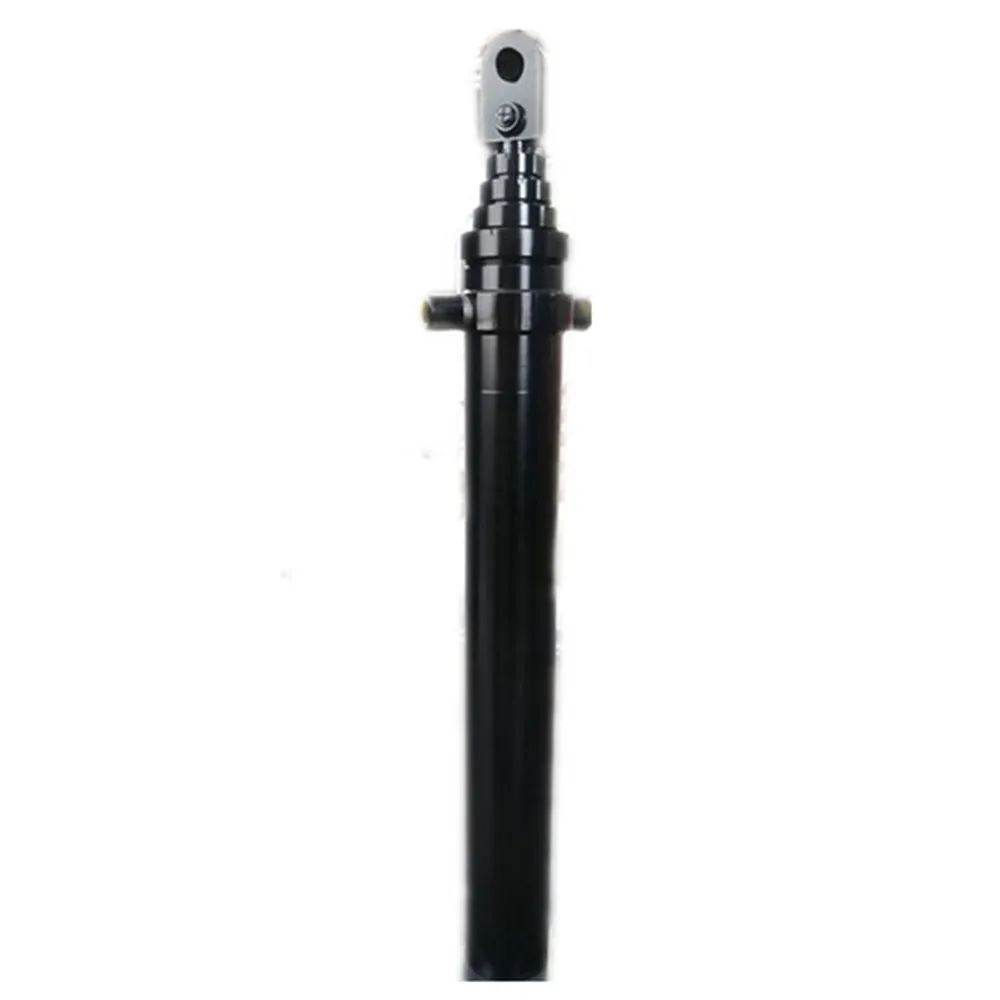

Hydraulic Cylinder 64-35-135 Type Single Acting Telescopic Stroke 134.88 Closed 47.13 Rod Pin 1.5 Rod Width 2.69 Base Pin 1.75 LMSD 6 Stages 4 Stroke 134 Extended 275
The Hydraulic Cylinder 64-35-135 from HCIC is available as a direct OEM replacement or custom-engineered solution. Built with precision-machined components and high-performance seals, this cylinder delivers reliable performance.
Manufactured to ISO 9001:2015 standards and 100% pressure tested before shipment.
| Part Number | 64-35-135 |
| Type | Double-Acting |
| Working Pressure | 2,500 – 3,500 PSI |
Hydraulic Cylinder 64-35-135 Number of Stages 4
Largest Moving Stage Diameter 6 inches
Stroke Length (A) 134.75 in (3423 mm)
Closed Length (B) 47.13 in (1197 mm)
Extended Length (C) 181.88 in (4620 mm)
Rod Mount Width (D) 2.69 in (68 mm)
Rod Mount Pin Hole (E) 1.56 in (40 mm)
Base Mount Width (G) 8 in (203 mm)
Base Mount Pin Hole (J) 1.88 in (48 mm)
Port (L) 1" NPTF
Gallons of Oil (Retracted) 2.5
Gallons of Oil (Extended) 9.7
