Roll off Truck Cylinders
  • Roll off Truck CylindersRoll off Truck Cylinders

Roll off Truck Cylinders

All parameters of roll off truck cylinders can be customized
Parameters of the sample

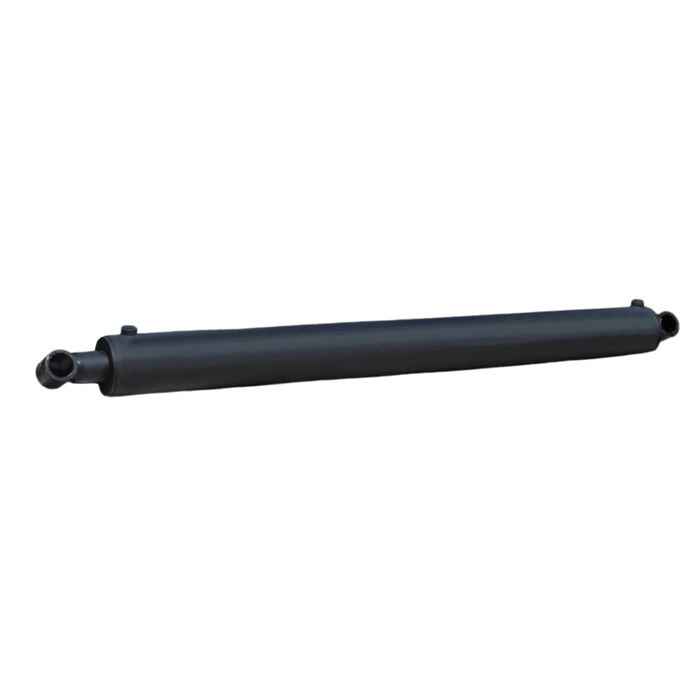

Hydraulic Lift and Winch Cylinder 7" x 4" x 79"
Galbreath hydraulic lift and winch cylinders perfect for Roll Off Hoist.
Exceptional for mobile use.
Fits Galbreath/Accurate Roll-off Hoist models AH75, AH75T, SS75 and REV
Replaces items 162227, A3975, A3447, A4991, 22003874

Send Inquiry

Product Description

The hydraulic cylinder can convert hydraulic energy into mechanical energy and perform straight movement. Its simple structure and stable work can bring more convenience to reduce the use of other foreign objects. Therefore, the hydraulic cylinder is widely used in various machinery.

Equipment Design:

Roll-Off Hoist

Manufacturer:

Galbreath

Usage Dating Information:

All - Current

Model Usage:

Lift/Winch Cylinder

Cylinder Bore (IN):

7

Cylinder Rod (IN):

4

Cylinder Retracted (IN):

96

Base Pin Size (IN):

3

Rod Pin Size (IN):

3

Connection Type:

Pin-Eye

Max Operating Pressure:

2500 PSI

Weight (LBS):

470

Seal Kit:

A4546

Counterbalance Valve:


Directly Replaces:

A3975/A3447/A4991/22003874


It is widely use in many fields like the following:

Hydraulic cylinder application field:

1. Applicable to machine tool industry

2. Suitable for family use

3. Applicable to metallurgical industry

4. Applicable to engineering industry

5. Applicable to agricultural machinery

6. Applicable to the automobile industry

7.Applicable to light textile industry

Feature of roll off truck cylinders:

Compared with mechanical and power transmission methods, the hydraulic system is not only small and light in size, light weight, but also the same power as large -scale mechanical transmission output, which means that the weight of its unit power is light, which makes the system layout and connection of connection and connection The installation flexibility is very large, so it can constitute a complex system that is difficult to form in other methods. The hydraulic system drives the pressure of mechanical energy into hydraulic oil by the engine to drive the hydraulic oil cylinder and motor. Therefore, it transmits the way of motion more evenly and stable, and it will not have a large vibration. Besides It is the second largest advantage that enables the machine to achieve rapid startup, braking, and frequent direction, and it can be adjusted without speed adjustment during operation. The control operation of the hydraulic system is relatively convenient and efficient, and can achieve automatic control and overload protection, especially when it is combined with electrical control and electronic control, it can easily achieve automatic work circulation and automatic overload protection.

Production of roll off truck cylinders:

The most acute form of accurate and flexible. In our Jinan factory, we have many control machine tools, automatic exchange tools, and up to five axes, allowing a reasonable processing of all six faces of the workpiece at a time. Our proficient operator's parts of component tolerance requirements have been reduced to a few millimeters, which is a prerequisite for our own development of hydraulic components. If we develop, design, and manufacture most components, then obviously we are the best choice for assembling them. The assembly of hydraulic elements and systems has high requirements for accuracy, accuracy and hygiene. In HCIC, you will find professional and technical personnel who have rich knowledge and experience in hydraulic assembly

Our Service:

HCIC is a well -known hydraulic system manufacturing enterprise in China. Our main businesses include the design, manufacturing, reconstruction, commissioning, installation, and technical service support of hydraulic equipment. We are also one of the most recognized suppliers of the large OEM equipment manufacturers in the domestic hydraulic industry. They have absolute core technology and service skills. We mainly serve North America, Europe, Asia and other regions, providing high -quality products and reasonable prices. We are based on a flexible delivery plan and provide competitive after -sales service. Please rest assured, we support our products.

Why choose us?

We are the top machinery production and processing factory in China, with 30 years of export experience, and our after-sales service satisfaction ratio is always 100%. Due to our advantages in product quality, price and service, our sales are all from old customers'place the order again and again. We want to cooperate with medium and large buyers, our service will make you satisfied, to achieve a win-win situation.

FAQ:

1.Whether you could make our brand on your products?

A:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

2.Whether you could make your products by our color?

A:Yes, The color of products can be customized if you can meet our MOQ.

3.How to guarantee the quality of your products?

A:1) Strict detection during production.

2) Strict sampling inspection on products before shipment and intact product packaging ensured.

4.How about your delivery time?

A:Generally, it will take 25 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

5.Can you produce according to the samples?

A:Yes, we can produce by your samples or technical drawings.

6.Do you test all your goods before delivery?

A:Yes, we have 100% test before delivery


Packing & Shipping:




Hot Tags: Roll off Truck Cylinders, Manufacturers, Suppliers, Wholesale, Customized, In Stock, Refused Truck, China, Snow Plow
