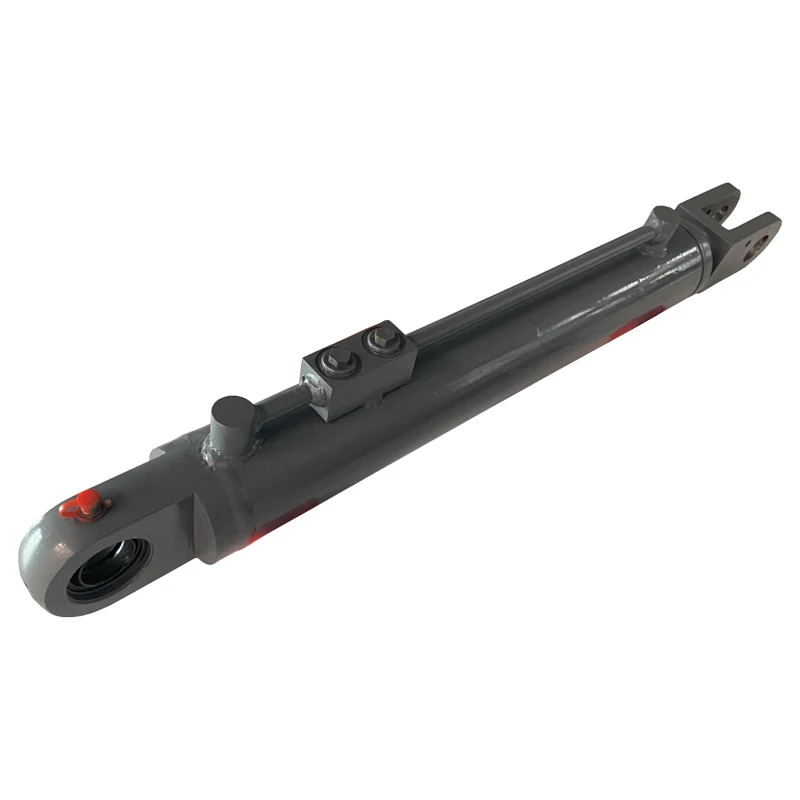

Reviewing OEM specifications and hydraulic circuitry for the H-001-7041 3-Stage 181.69-Inch Double Acting Telescopic Cylinder for Commercial Garbage Trucks, featuring 181.69-inch continuous stroke, rod-head integrated oil ports, internal dual-chamber relief valves, and 16–25 MPa high-pressure compaction capability for 28-yard front loaders and 33-yard side loaders.
Primary Applications:
H Pack/Eject CYL for 28YD Front Loader / 33YD SLNumber of Telescopic Stages:
3 Active Precision-Machined Expansion StagesTotal Working Stroke:
181.69 inches (4,615 mm continuous travel)Rated Operating Pressure:
16 to 25 MPa (2,320 to 3,625 psi working range)Maximum Forward Thrust (Cap Side):
50 to 800 kN (matched to compaction blade load)On large-capacity commercial refuse collection vehicles—especially 28-yard front loaders and 33-yard automated side loaders—the packing and ejection blade must traverse the entire length of the truck body to compress dense commercial waste and discharge it cleanly at the landfill.
Standard single-acting cylinders cannot generate the controlled hydraulic retraction force required to pull a heavy steel blade back through jammed cardboard, wet food waste, and compacted debris.
The H-001-7041 3-Stage 181.69-Inch Double Acting Telescopic Cylinder for Commercial Garbage Trucks provides full-power hydraulic force in both directions. Delivering 181.69 inches (4,615 mm) of continuous stroke from a compact nested retraction length, this heavy-duty multi-stage actuator provides up to 800 kN of forward compaction thrust and up to 500 kN of powered retraction pull at operating pressures between 16 and 25 MPa.
| Technical Parameter | Catalog Specification / Workshop Baseline |
|---|---|
| Part Identification | H-001-7041 |
| Equipment Classification | Double-Acting Telescopic Hydraulic Cylinder |
| Primary Applications | H Pack/Eject CYL for 28YD Front Loader / 33YD SL |
| Number of Telescopic Stages | 3 Active Precision-Machined Expansion Stages |
| Total Working Stroke | 181.69 inches (4,615 mm continuous travel) |
| Rated Operating Pressure | 16 to 25 MPa (2,320 to 3,625 psi working range) |
| Maximum Forward Thrust (Cap Side) | 50 to 800 kN (matched to compaction blade load) |
| Maximum Retraction Pull (Rod Side) | 30 to 500 kN (powered recovery against debris jam) |
| Oil Port Architecture | Integrated into final piston rod head (SAE #12/#16) |
| Internal Relief Valve Protection | Dual-chamber (Cap side 1.2-1.5x / Rod side 1.1-1.3x) |
| Relief Valve Response Speed | ≤ 50 milliseconds (absorbs road bounce spikes) |
| Environmental Rating & Seals | IP65 / -45°C to +80°C Arctic-to-Desert compound |
| Catalog Page Reference | HCIC 2026 Master Product Catalog, Page 7 |
In conventional telescopic cylinders, long hydraulic hoses must flex and drape along the moving stages, creating high risk of snagging on compacted tree branches or metal scrap. The H-001-7041 3-Stage 181.69-Inch Double Acting Telescopic Cylinder for Commercial Garbage Trucks routes fluid internally through the central telescoping core, terminating all hydraulic supply ports directly at the final piston rod head. This clean layout reduces hose clutter by over 60% and protects fluid lines inside the truck's structural guide channel.
When a garbage truck hits an unyielding solid obstruction (such as an engine block or concrete pillar hidden inside a dumpster), fluid pressure spikes instantly. The H-001-7041 features internal pilot relief valves calibrated for both chambers with a lightning-fast response time of 50 milliseconds or less. The rodless cavity valve unloads excessive compaction pressure before the cylinder barrel fractures, while the rod cavity valve prevents crushing the guide sleeve seals during high-speed blade retraction.
Refuse bodies generate harsh chemical slurries combining organic acids, road brine, and crushed glass particles.
The H-001-7041 3-Stage 181.69-Inch Double Acting Telescopic Cylinder for Commercial Garbage Trucks incorporates four structural barriers against environmental degradation:
1. High-Yield Alloy Steel Stages: Manufactured from high-tensile seamless alloy tubing with surface induction hardening to prevent stage bending under asymmetric blade packing.
2. Dense Hard Chrome Barrier: All three expansion stages are electroplated with a minimum 25 μm micro-crack-free hard chrome layer exceeding 500 hours ASTM B117 salt spray testing.
3. Severe-Duty Polyurethane Wiper Packages: Heavy-lip scrapers physically eject dried garbage crust and fine glass dust before they can reach internal seals.
4. Sub-Zero to Desert Temperature Stability: High-modulus seal compounds ensure leak-free operation from -45°C winter routes in northern climates to +80°C summer landfill operations.
To maximize cylinder service life on Heil, McNeilus, and Labrie style front and side loader bodies:
Daily Rod Inspection: Visually inspect extended stages for deep mechanical scoring caused by loose metal debris in the packer track.
Purge Air After Hose Replacement: Cycle the cylinder through full stroke 3 to 4 times at low engine idle. The internal porting design automatically sweeps trapped air pockets back to the hydraulic reservoir.
Inspect Relief Valve Pressure Settings: Annually verify relief valve cracking pressure using a calibrated digital pressure transducer to ensure instantaneous overload release.
Looking to upgrade your fleet's packing performance with the H-001-7041 3-Stage 181.69-Inch Double Acting Telescopic Cylinder for Commercial Garbage Trucks?
Contact HCIC’s specialized refuse equipment engineering team in Jinan. We provide direct OEM container pricing, comprehensive seal replacement kits, and certified 3D STEP CAD models for chassis integration within 24 hours.
