The "Ghost Leak": Why Your Cylinder Drifts When There’s Zero Oil on the Ground

I. The Mystery of the Sinking Load

1.1 Where Did the Disappearing Pressure Go?

You’ve seen it before: a dump trailer or a crane arm starts to slowly "drift" down while under load. You check the ground—dry as a bone. You check the fittings—no misting. This is what we call a "Ghost Leak" or internal bypass. It’s a silent profit killer because it’s invisible. At HCIC, we don't just look for puddles; we look for the thermal signatures of oil forcing its way past a compromised piston seal.

II. What’s Actually Happening Inside the Iron?

2.1 In-Depth Breakdown: The Truth Inside the Cylinder Housing

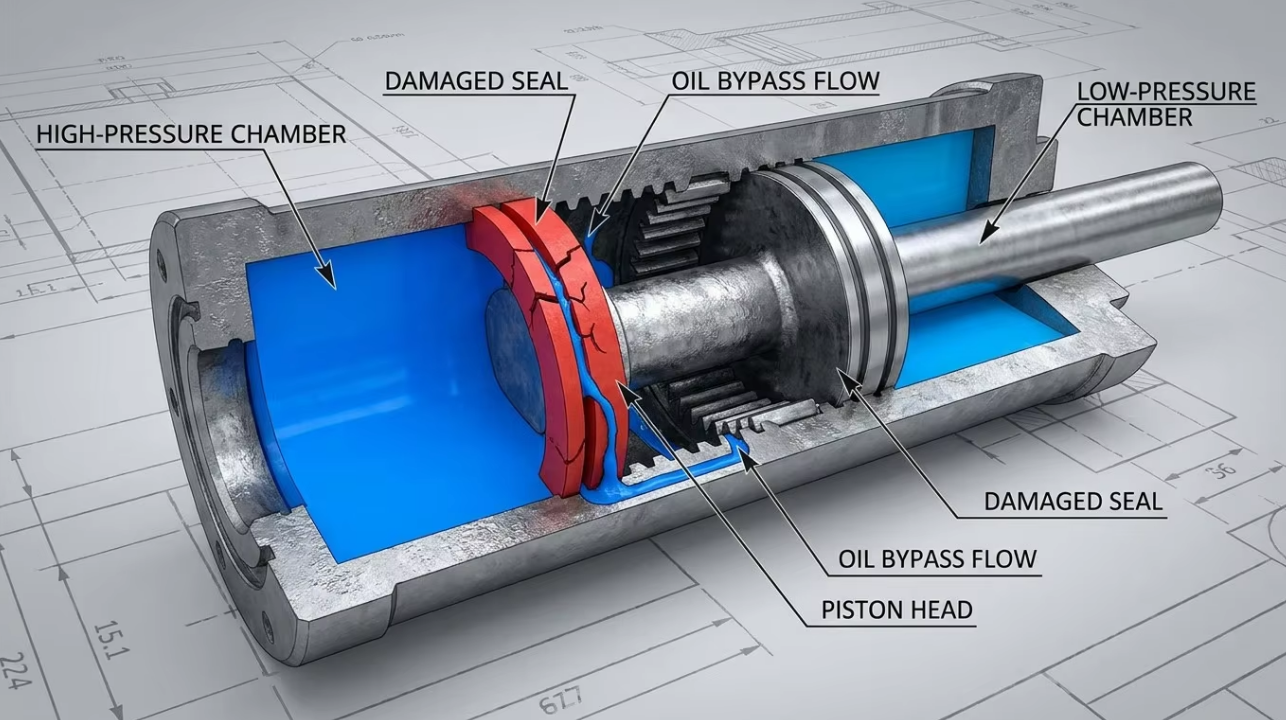

If there’s no oil on the dirt, the oil is simply moving from the high-pressure side to the low-pressure side inside the barrel.

• Piston Seal "Nibbling": High-pressure spikes can literally take tiny bites out of the seal lips. This allows a microscopic stream of oil to bypass the piston.
• Barrel Ballooning: Under extreme stress, cheap thin-walled barrels can slightly "swell" in the middle. The piston seal loses contact for just a millisecond—that’s all gravity needs to pull your load down.
• Contamination Scars: A single speck of grit trapped in the piston seal acts like a permanent open door for pressurized fluid.

III. The HCIC Defensive Strategy

3.1 HCIC’s Defensive Strategy: Defend with High-Modulus Seals and Thick-Walled Tubes

• High-Modulus Seals: We use seals with higher shore hardness and anti-extrusion rings that refuse to "nibble" even at 5,000 PSI.
• Oversized Wear Bands: Our custom hydraulic solutions include extra-wide guide rings to prevent the piston from ever touching the barrel wall, even under severe side-loads.
• Zero-Drift Bench Testing: Every HCIC unit stays on the test bench for an extended hold-test. If it drifts a single millimeter, it doesn't ship.

IV. Conclusion:

Get a Lift That Actually Stays Put

Stop fighting "ghosts" in your hydraulic system. If your current fleet is suffering from mysterious load-drift, swapping the seals is often just a Band-Aid. You need a cylinder engineered with the material integrity to handle real-world abuse. At HCIC, we provide the technical audit you need to fix the root cause. Don’t let a sinking load sink your business—Contact our engineers for a high-performance spec sheet today.
