​Popular High-Demand Hydraulic Cylinder Selection Guide

I. Preface: Common Hydraulic Cylinder Selection Mistakes Made By Overseas Buyers

1.1 Real Problems Caused By Wrong Cylinder Selection

Buyers across North America, Europe and Australia often select cylinders only by length and barrel thickness, ignoring working condition matching.

Many install tie rod cylinders on tractors and dump trailers. Continuous bumpy work loosens tie rods and bends piston rods quickly. Cheap thin welded clevis cylinders crack under heavy load, triggering production halt and extra maintenance cost.

Four cylinder styles cover over 90% global replacement and OEM orders. This guide sorts out hot-selling models with practical selection references for purchasing staff and parts wholesalers.

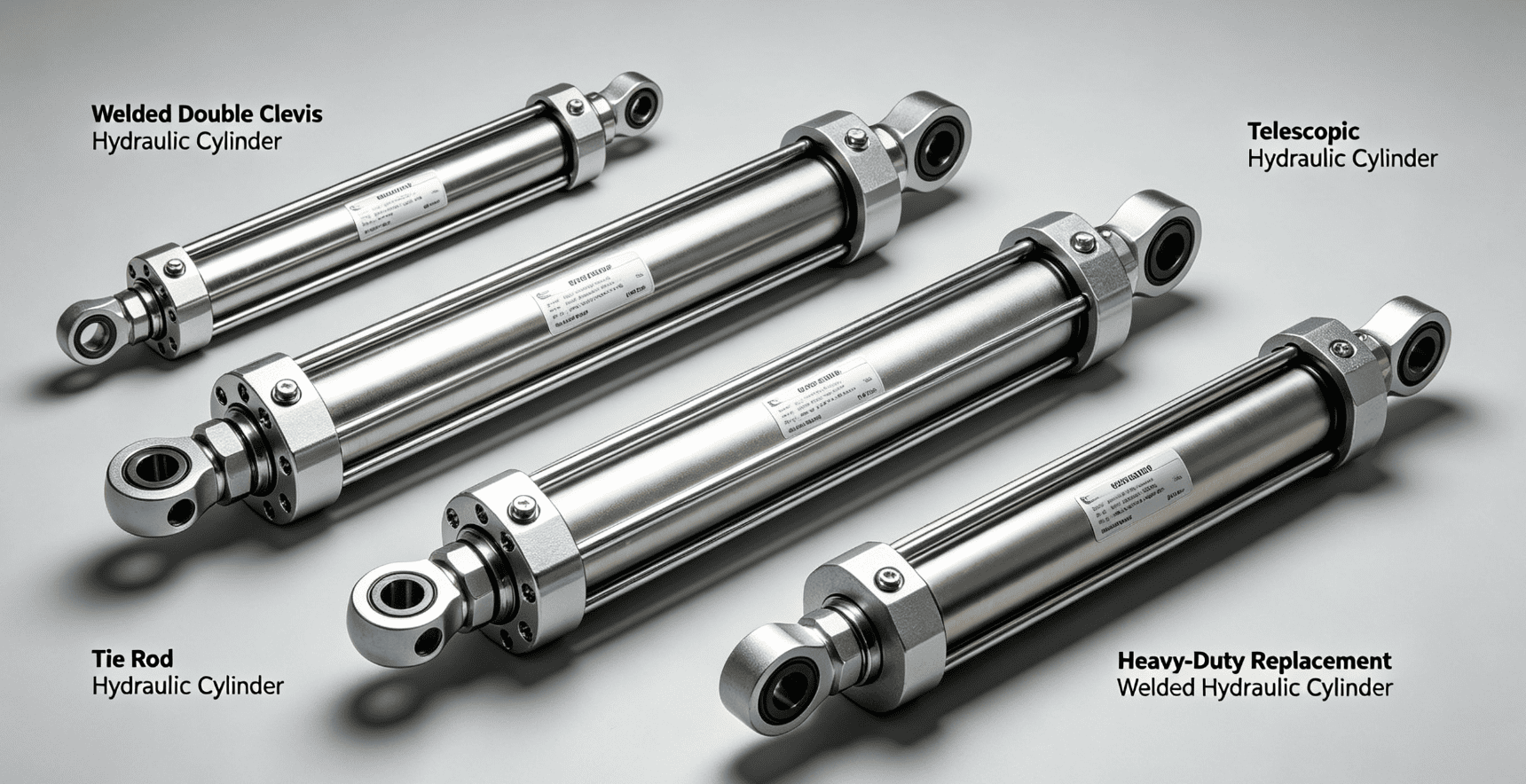

1.2 Four Best-Selling Hydraulic Cylinders For Overseas Market

Welded double clevis hydraulic cylinder — Farm machinery, log splitter, agricultural trailer

Tie rod hydraulic cylinder — Indoor machine tool & automation equipment

Telescopic hydraulic cylinder — Dump trailer and tipper truck exclusive

Heavy-duty replacement welded hydraulic cylinder — Mini excavator & loader aftermarket parts

II. Structure, Advantages, Disadvantages & Applicable Scenarios

2.1 Welded Double Clevis Hydraulic Cylinder (Top Pick For Mobile Equipment)

2.1.1 Core Structural Features

Barrel and end caps adopt submerged arc integral welding without outer tie rods. Two ends use one-piece forged double clevis for pin installation.

Standard working pressure 21MPa, upgraded high-pressure version reaches 35MPa, with outstanding anti-vibration and anti-side-load capacity.

Low-cost products adopt thin spliced clevis which cracks easily. Qualified products use 8–12mm full penetration welding, stable in muddy outdoor working conditions.

2.1.2 Matched Equipment & Target Clients

Fit tractor lifting arm, log splitter, farm trailer, small loader, tow truck.

Serving farm parts wholesalers, agricultural machinery factories and outdoor repair shops.

2.1.3 Pros and Cons

Pros: Compact, dust-proof, easy to install, customizable bore, stroke and clevis hole size

Cons: Troublesome internal disassembly, longer lead time for non-standard sizes

2.2 Tie Rod Hydraulic Cylinder (General Indoor Industrial Type)

2.2.1 Core Structural Features

Four tie rods fix two end caps, convenient to take apart and replace internal seals. It follows NFPA international standard with unified 21MPa pressure.

Exposed tie rods loosen under long-term vibration, and side force will bend piston rods, not fit outdoor mobile machines.

2.2.2 Matched Equipment & Target Clients

Fit machine tools, packaging automation lines, indoor hydraulic presses, fixed lifting platforms.

Serving automation factories, equipment maintenance suppliers and indoor hydraulic part dealers.

2.2.3 Pros and Cons

Pros: Sufficient spot goods, easy maintenance, low price, fast delivery of standard sizes

Cons: Poor vibration resistance, cannot be used on tractors and dump trailers

2.3 Telescopic Hydraulic Cylinder (Special For Dump Trailers)

2.3.1 Core Structural Features

Multi-stage nested sleeve design, short length after retraction and long lifting stroke after extension. Most are single-acting and retract by gravity, with 2–4 optional stages.

More extension stages bring weaker terminal thrust, not suitable for ultra-heavy load lifting.

2.3.2 Matched Equipment & Target Clients

Fit farm dump trailers, tipper trucks, sanitation garbage vehicles, aerial ladders.

Serving trailer refitting plants, freight part wholesalers and sanitation equipment manufacturers.

2.3.3 Pros and Cons

Pros: Small retracted volume, long stroke, simple oil circuit, low failure rate

Cons: Multi-layer seals need clean hydraulic oil, no active hydraulic retraction function

2.4 Heavy-Duty Replacement Welded Hydraulic Cylinder (Excavator & Loader Replacement Parts)

2.4.1 Core Structural Features

Made of thick honed seamless tube and reinforced anti-bend piston rod, matched with forged ball joint or single clevis, full penetration thick welds support max 35MPa pressure.

Sizes fully match CAT, Komatsu, Kubota mini excavators for direct replacement without modification.

2.4.2 Matched Equipment & Target Clients

Fit mini excavator boom/arm cylinder, loader tilt cylinder, small road roller.

Serving construction machinery exporters, field repair shops and small engineering equipment factories.

2.4.3 Pros and Cons

Pros: Accurate replacement size, impact resistant, durable on construction sites, high repeat orders

Cons: Various models, non-standard machines need customization based on old cylinder data

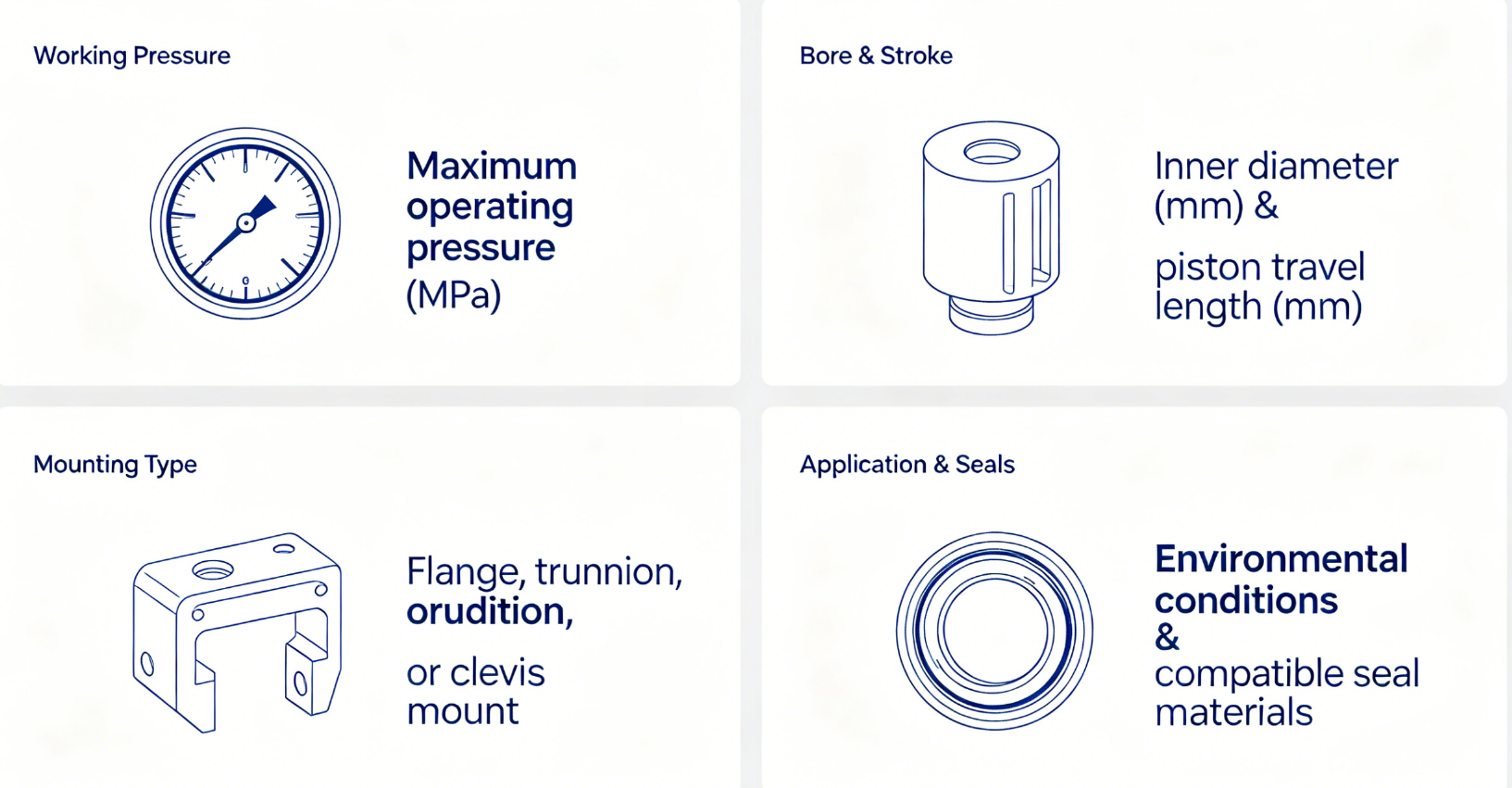

III. Universal Core Selection Parameters

3.1 Working Pressure Matching

21MPa (3000PSI) standard model suits most farm and indoor equipment, accounting for 90% orders with high cost performance.

25–35MPa thickened high-pressure version for excavators and mining impact working conditions.

3.2 Bore & Stroke Selection Rules

Lifting force only relates to bore and system pressure; longer stroke cannot improve load capacity.

Measure full retraction and extension length when replacing old cylinders, visual judgment easily causes stroke shortage and oil leakage.

Choose telescopic cylinders for long stroke with limited space; choose welded double clevis cylinders for multi-angle swing equipment.

3.3 Mount Type Quick Matching

Outdoor multi-angle lifting machines: Welded double clevis hydraulic cylinder

Stable indoor low-pressure equipment: Tie rod hydraulic cylinder

Dump trailer long-stroke lifting: Telescopic hydraulic cylinder

Excavator articulated arm: Heavy-duty replacement welded hydraulic cylinder

3.4 Seal & Anti-Corrosion Collocation By Working Environment

Normal indoor clean condition: NBR seals + black anti-rust paint

Muddy outdoor farm: Thick chrome piston rod + external dust cover

Coastal salt fog environment: Overall galvanized anti-corrosion layer

High-temperature hot oil condition: FKM fluorine rubber seals to avoid internal and external leakage

IV. Quick Selection Table By Industry

4.1 Agricultural Machinery

First choice: Double acting welded double clevis hydraulic cylinder

Avoid: Tie rod cylinders break easily under vibration; overlong stroke telescopic cylinders do not fit small farm equipment

4.2 Freight & Sanitation Dump Equipment

First choice: 2–4 stage single acting telescopic hydraulic cylinder

Alternative: Long stroke welded double clevis cylinder for light small trailers

4.3 Small Construction Machinery

First choice: Heavy-duty replacement welded hydraulic cylinder

Alternative: Thickened high-pressure double clevis cylinder for large farm loaders

4.4 Automation & Machine Tool

First choice: Standard tie rod hydraulic cylinder

Avoid: High-cost welded cylinders are unnecessary for fixed indoor equipment

V. Common Faults & Avoidance Suggestions

5.1 Welded Double Clevis Cylinder

Thin spliced clevis cracks under heavy load, thin welds cause oil seepage. Confirm forged integrated clevis and 8mm+ full penetration welds, thick chrome rod recommended for outdoor use.

5.2 Tie Rod Hydraulic Cylinder

Vibration loosens tie rods and bends piston rods, only allowed for stable indoor equipment.

5.3 Telescopic Hydraulic Cylinder

Control heavy load within the first two stages; full extension leads to sharp thrust drop. Replace hydraulic oil regularly to protect multi-layer seals.

5.4 Excavator Replacement Cylinder

Wrong size cannot be installed normally, provide old cylinder photos and machine models for confirmation before ordering.

VI. Custom & Replacement Consultation

Send the following information to our engineers to get matching plans within 24 hours:

Machine industry & complete model

Clear photos of old cylinder mounting ends

Measured bore, rod diameter, fully extended & retracted length

Working pressure and environment (high temperature, seaside, muddy site)

We support 1pc sample customization for all four cylinder types, each product with complete pressure test report and 12-month warranty.
