Double-Acting Telescopic Cylinders

Model:HCIC DA-Telescopic Series

Gravity is too slow. Get HCIC double-acting telescopic cylinders for total power-down control.

  • Number of Stages:

    2, 3, 4, or 5 Stages
  • Max Pressure:

    3,000 PSI to 3,500 PSI (250 Bar)
  • Bore Material:

    High-Tensile ST52-3, Precision Honed
  • Rod Finish:

    Dual-Layer Hard Chrome Plating (50+ Micron)

Send Inquiry

Product Description

I. The Gravity Problem: Why "Power-Down" is the 2026 Standard

Let’s be blunt: if you’re still relying on the weight of a load to retract your multi-stage ram, you’re working in the past. In applications like waste packers or horizontal ejectors, gravity simply isn't there to help you. Waiting for a massive cylinder to crawl back into its housing is a massive waste of operational time. At HCIC, we’ve perfected the double-acting telescopic cylinders for operators who need speed and force in both directions. We don't just lift; we pull back with the same level of engineering precision.

II. Technical Specifications

Feature HCIC DA-Telescopic Series
Number of Stages 2, 3, 4, or 5 Stages
Max Pressure 3,000 PSI to 3,500 PSI (250 Bar)
Bore Material High-Tensile ST52-3, Precision Honed
Rod Finish Dual-Layer Hard Chrome Plating (50+ Micron)
Seal Configuration High-Pressure Multi-Lip DA Specialized Kits
Retraction Force Up to 1,500 PSI (Customizable)

III. Engineering the Dual-Port Advantage

  • Forced Retraction: Our multi-stage hydraulic rams don't get stuck. Even in sub-zero temperatures where oil thickens, the secondary port provides the brute force needed to retract every sleeve fully.
  • No-External-Pipe Design: We’ve engineered internal oil transfer paths. This means you get a clean, double-acting setup without a mess of external hoses that can snag on debris.
  • Vibration Dampening: Built specifically for heavy-duty ejection cycles, our internal cushioning prevents the "slamming" effect when the final stage hits its stop, extending the life of your truck’s chassis.

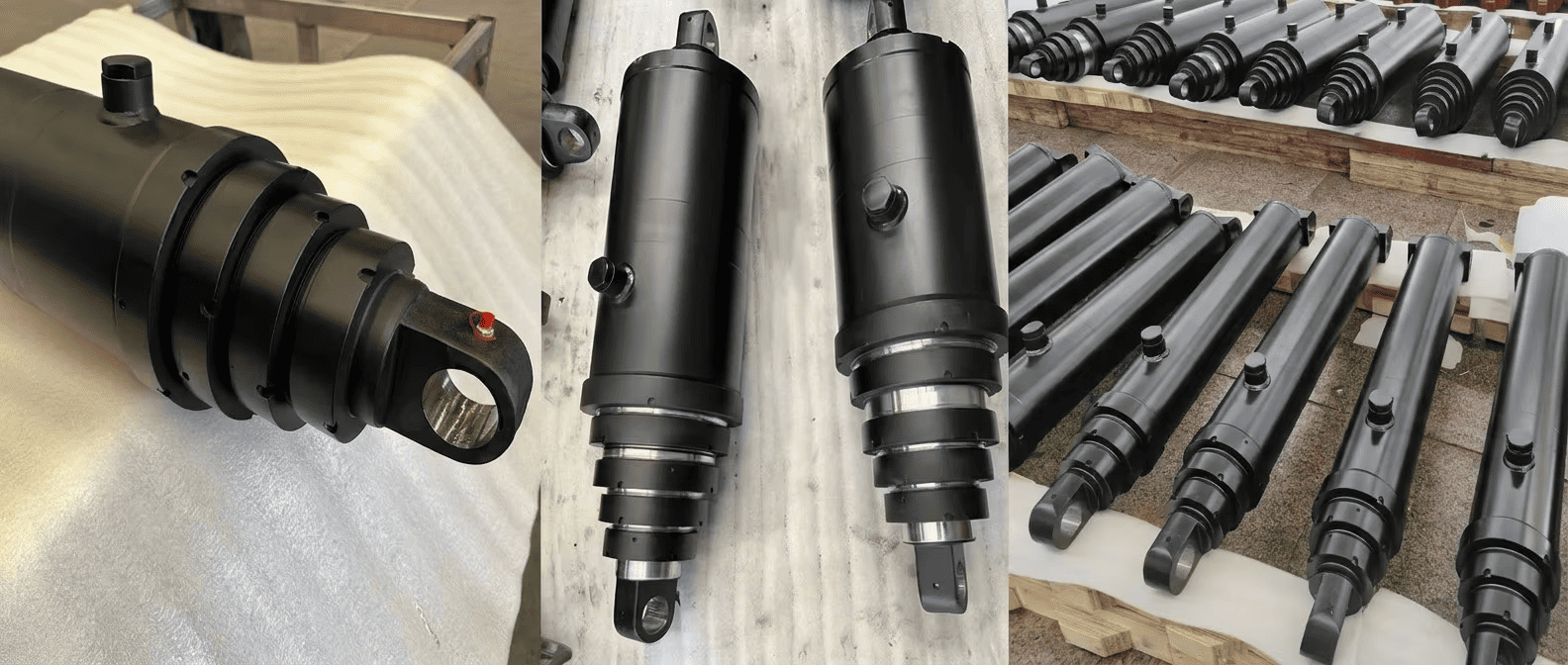

Double-acting telescopic cylinders

IV. Application Scenarios: Beyond the Dump Bed

These aren't your standard dump trailer parts. Our double-acting telescopic hydraulic cylinders are the gold standard for:

  • Waste Management (Refuse Packers): Ejecting compacted trash horizontally requires consistent power-back cycles.
  • Ejector Trailers: Used for hauling silage or aggregates where tipping isn't possible due to low overhead clearance.
  • Stationary Compactors: Industrial recycling units that need high-cycle reliability 24/7.

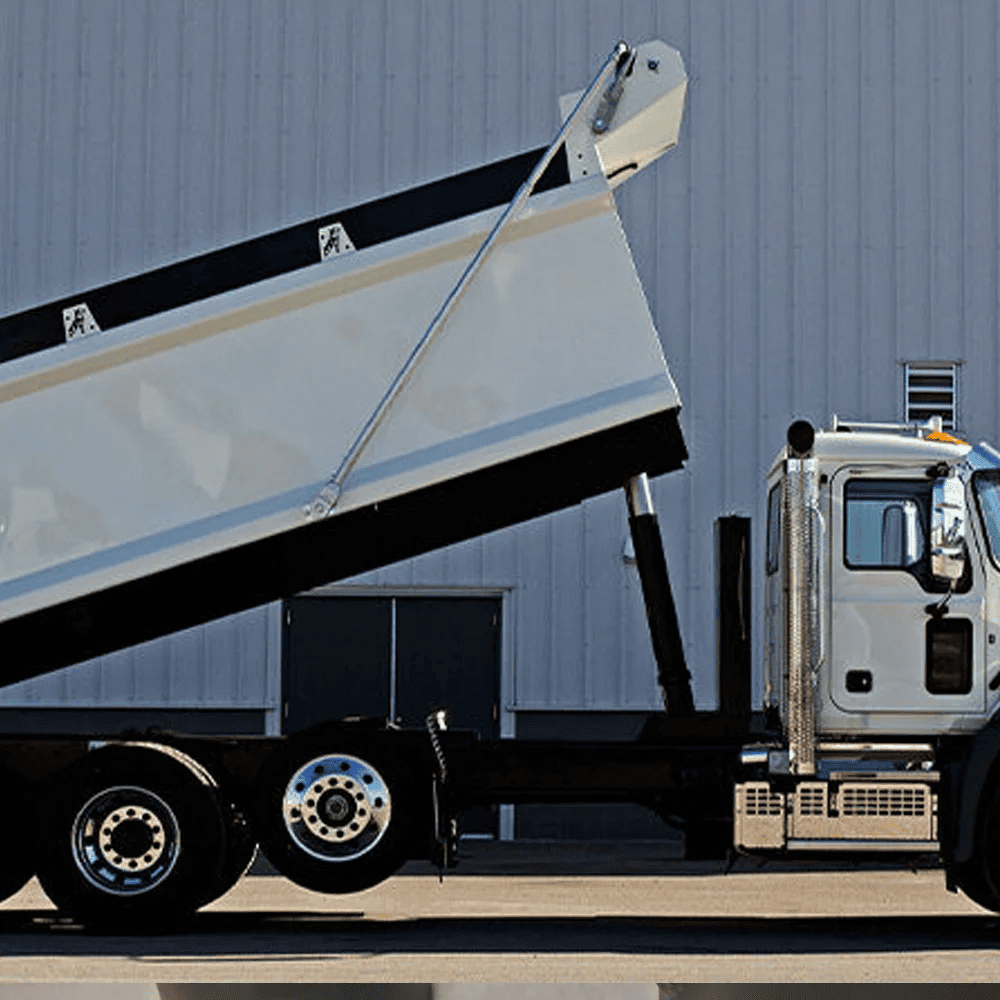

Double-acting multi-stage hydraulic

V. Product FAQ

Q: Can a double-acting cylinder replace my current single-acting ram?

A: Yes, but your hydraulic system needs a 4-way control valve and a second return line. Our engineers can provide a conversion kit schematic if needed.

Q: Why is the retraction force lower than the extension force?

A: This is due to the smaller surface area on the rod side (annular area). It’s a physical reality of double-acting multi-stage cylinders, but we optimize our bores to maximize that return force.

Q: How do you prevent internal bypass in a multi-stage DA setup?

A: We use oversized V-packings and specialized guide rings on every stage to ensure that pressurized oil doesn't "leak across" the piston, even after thousands of cycles.
