HCIC 5TG-109-1500 small telescopic hydraulic cylinder is built for 3.5m-3.8m tilting trailers. It has 15000mm stroke, 3.0-7.0 tons lifting capacity, DC12V/24V power, durable, leak-free—ideal for reliable, low-cost trailer lifting.
Model:
EZ/QTMax Storke:
1500mmTrailer Box Length:
3.5M-3.8MLifting Capacity:
3.0-7.0tonsPower Pack:
DC12V/24VFor users who own small tilting trailers or dump trailers, the key concerns are always stable lifting, sufficient load capacity, easy installation, and leak-free long-term use. The 5TG-109-1500 small telescopic hydraulic cylinder is specifically designed to solve the lifting challenges of trailer chassis, perfectly suited for various light-duty dump and transport scenarios.

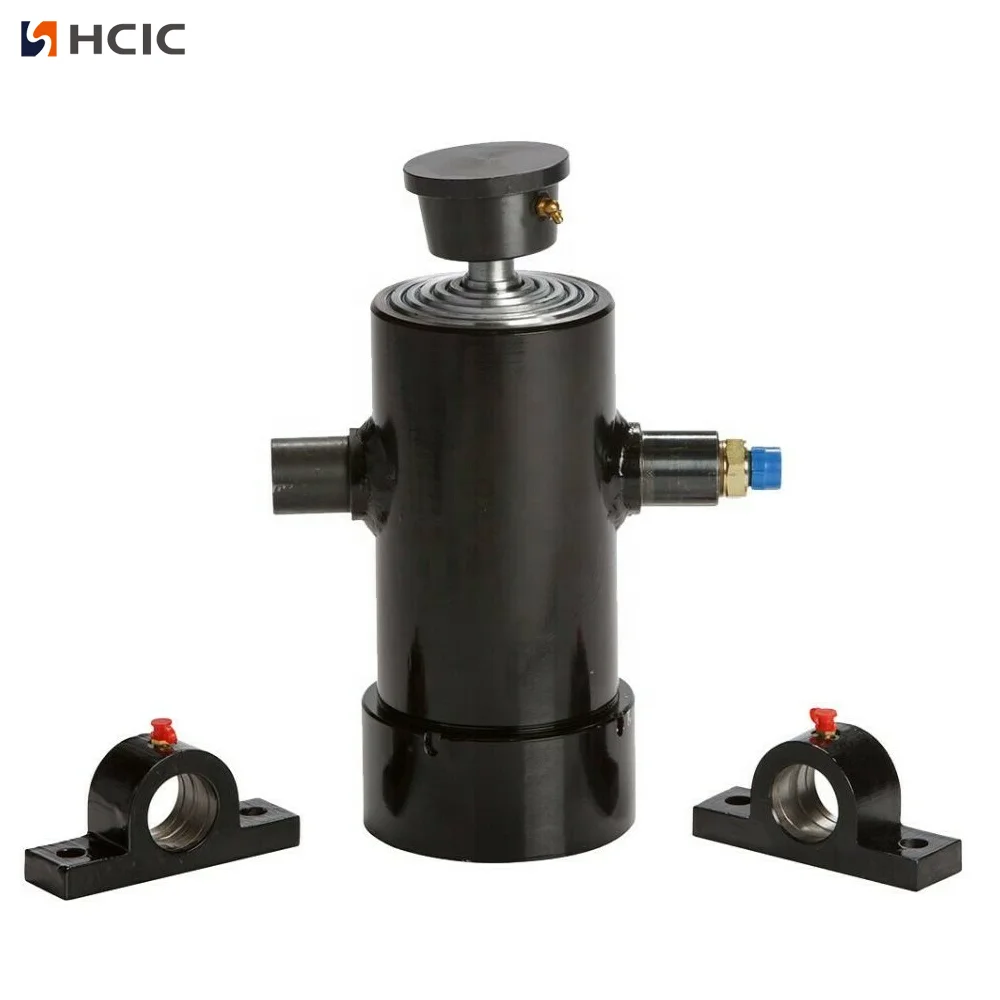

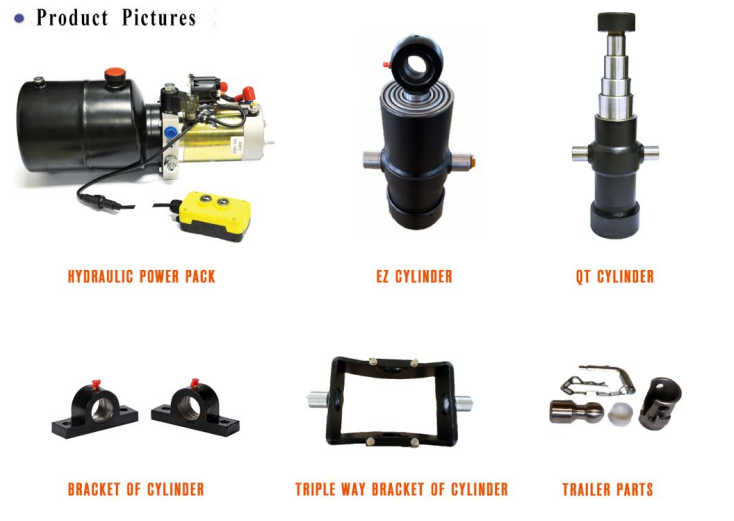

The 5TG-109-1500 telescopic hydraulic cylinder comes with an EZ/QT structure and a multi-stage telescopic design. It is built compact for tight spaces, making installation much simpler on standard tilting trailer chassis. The short retracted length saves room while keeping consistent, smooth movement during operation.
This cylinder delivers a maximum stroke of 15000mm, allowing the trailer bed to reach a higher dumping angle. With longer stroke, users can unload materials fully with no leftover waste or blockage inside the bed. Whether it’s sand, waste, or agricultural supplies, it can be dumped completely in one lift, greatly improving work efficiency.

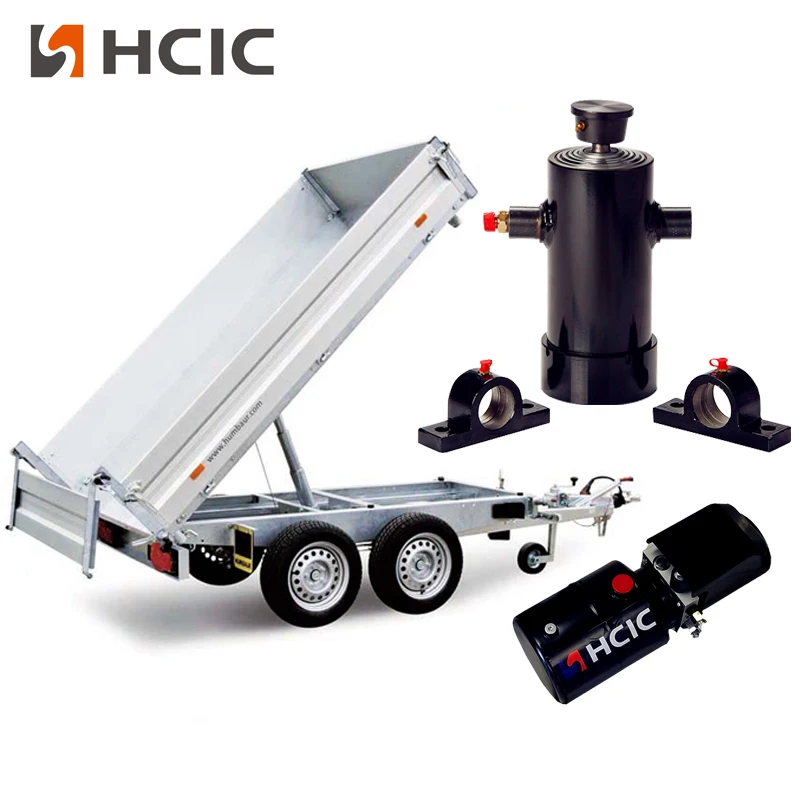

Tailored specifically for 3.5m–3.8m trailer beds, this cylinder features high size compatibility and standard installation points. No major chassis modifications or cutting/welding are required—it can be directly used for new trailer matching or old trailer upgrades, making installation simple and highly versatile.
Boasting a lifting capacity ranging from 3.0 to 7.0 tons, it meets different needs from light to medium-heavy load conditions. The lifting process is steady and uniform, without nodding, shaking, or sudden dropping, ensuring safer operation. It also resists deformation and damage even under long-term heavy-load use.
This unit works with both DC12V and DC24V power packs, drawing power directly from the trailer battery. No extra power equipment is needed, and the wiring setup is simple and fast. It runs steadily for outdoor use and on-site hauling, while keeping operating costs low.
Every cylinder tube and piston rod is built with strong, wear-resistant material. We only use quality seals that stand up to daily operation. This keeps oil leakage and pressure drop away, even with heavy and consistent use.The cylinder stays reliable over time, with less downtime and fewer repairs.
The 5TG-109-1500 telescopic hydraulic cylinder offers stable lifting, strong load capacity, easy installation, and long service life.It fits perfectly with 3.5m to 3.8m tilting trailers.If you want a strong, low-cost lifting cylinder for your trailer, this 5TG-109-1500 telescopic hydraulic cylinder is built for real work.For More details please email us "davidsong@mail.huachen.cc" or google search "HCIC hydraulic"
Our standard MOQ is 1 unit for most models, and we also accept small trial orders for new customers to test quality and fit.
Yes, we specialize in custom hydraulic cylinders. We can design and manufacture according to your required bore, stroke, pressure, mounting, and special environment (corrosion, high temperature, etc.).
Standard models: 7–15 days. Custom cylinders: 15–30 days, depending on complexity and quantity.
We accept T/T, L/C, and Western Union. For new customers, 30% deposit and 70% balance before shipment is standard.
Yes, we can provide samples. Sample cost and shipping will be charged, and they can be refunded or deducted from your first formal order.
Our cylinders are certified with ISO 9001, CE, and other industry standards to meet global quality and safety requirements.
Yes, we provide 24/7 technical support, on-site service (for bulk orders), and a 12-month warranty for all our hydraulic cylinders.
