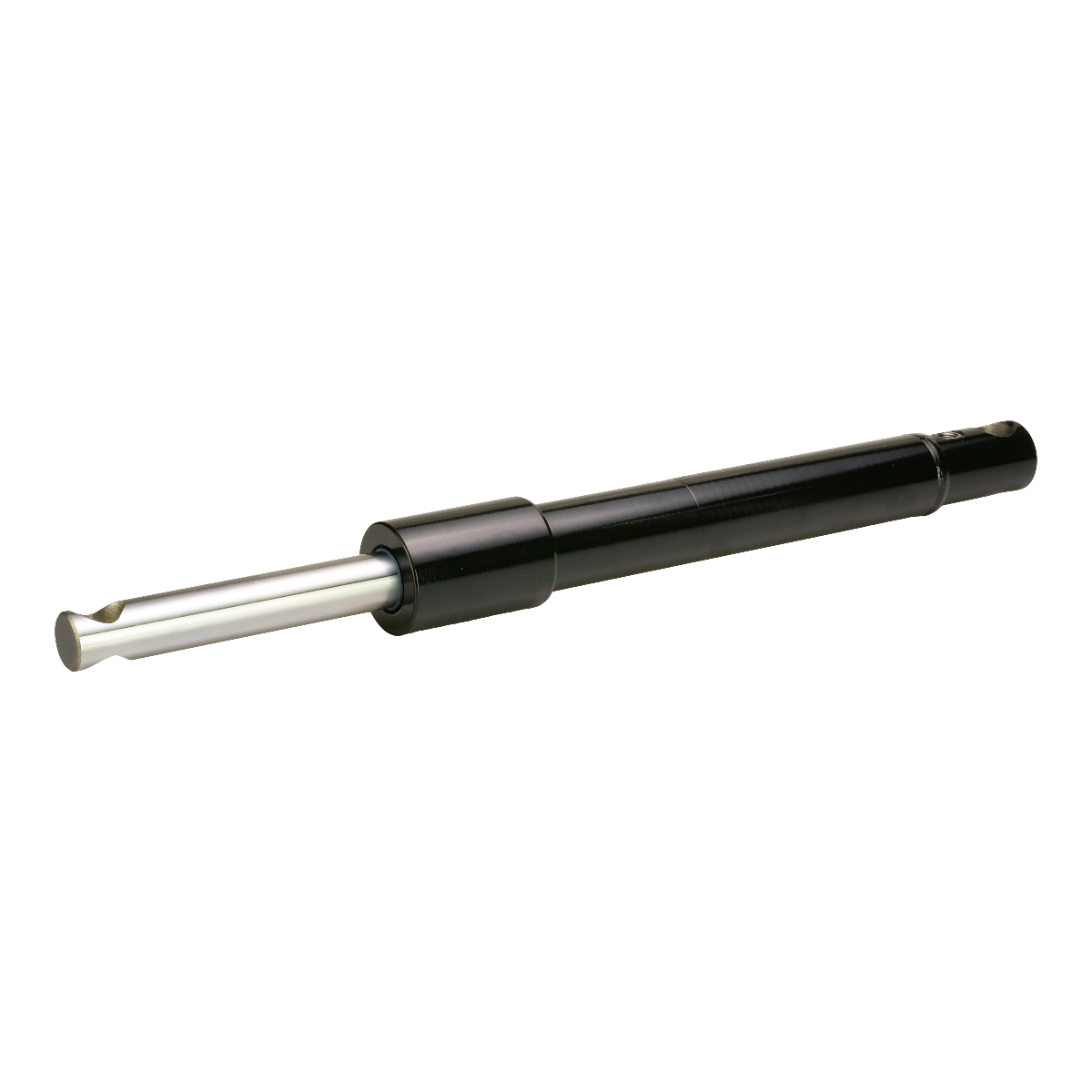

Snowplow Cylinder: 1.5″ Bore, 10″ Stroke, 1.25″ Rod

Cylinder Type: WeldedAction: Single-ActingBore (ID): 1.5″Stroke: 12″Rod (OD): 1.25″Mounting Type: HoleMounting Pin (OD): 1″Rod End Type: HoleRod End Pin (OD): 1″Work Ports: 1/4″ NPT(F)Max Working Pressure: 3,000 PSIRetracted Length: 19.25″ (pin to pin, center on center)Extended Length: 31.25″ (pin t......

Send Inquiry

Product Description

Cylinder Type: Welded

Action: Single-Acting

Bore (ID): 1.5″

Stroke: 12″

Rod (OD): 1.25″

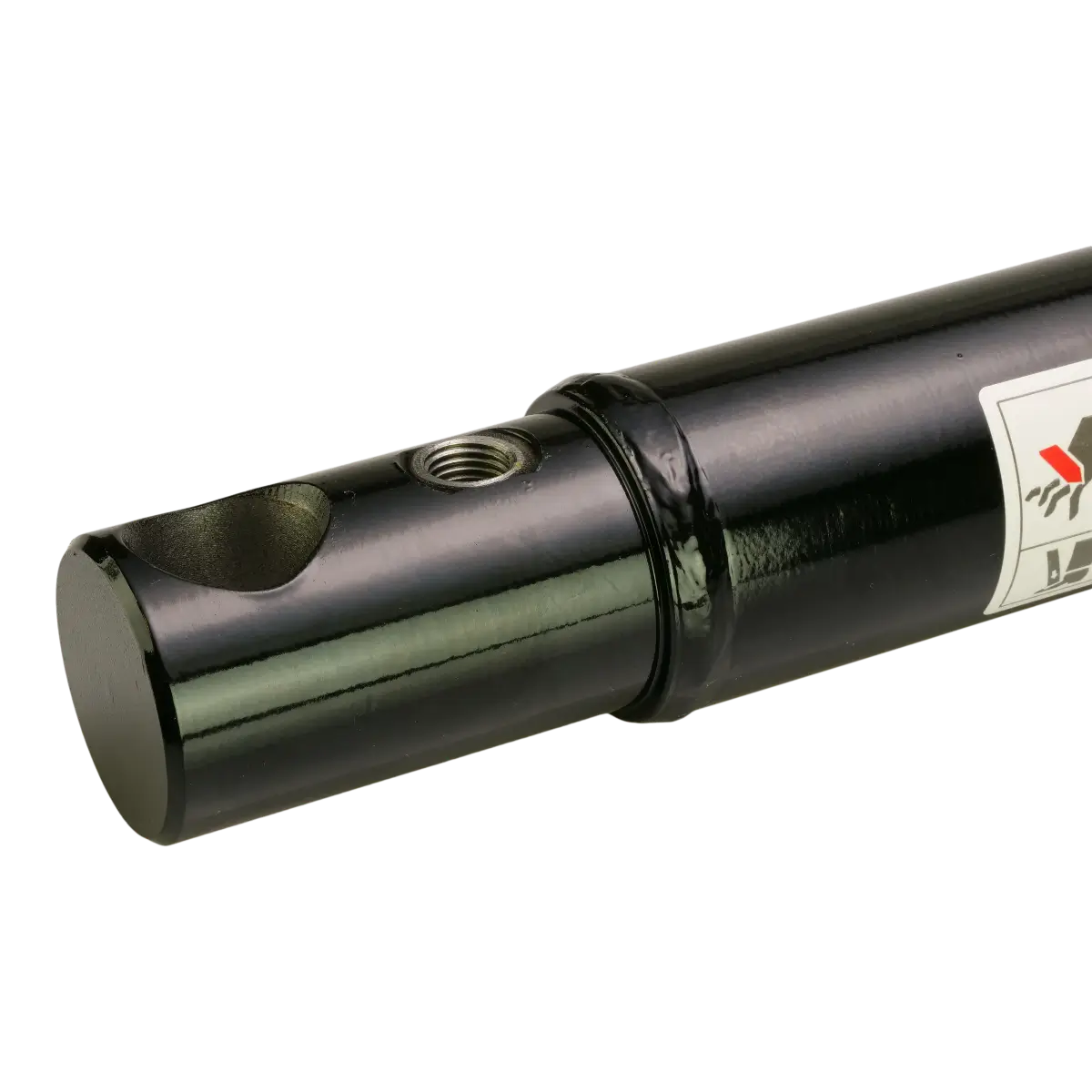

Mounting Type: Hole

Mounting Pin (OD): 1″

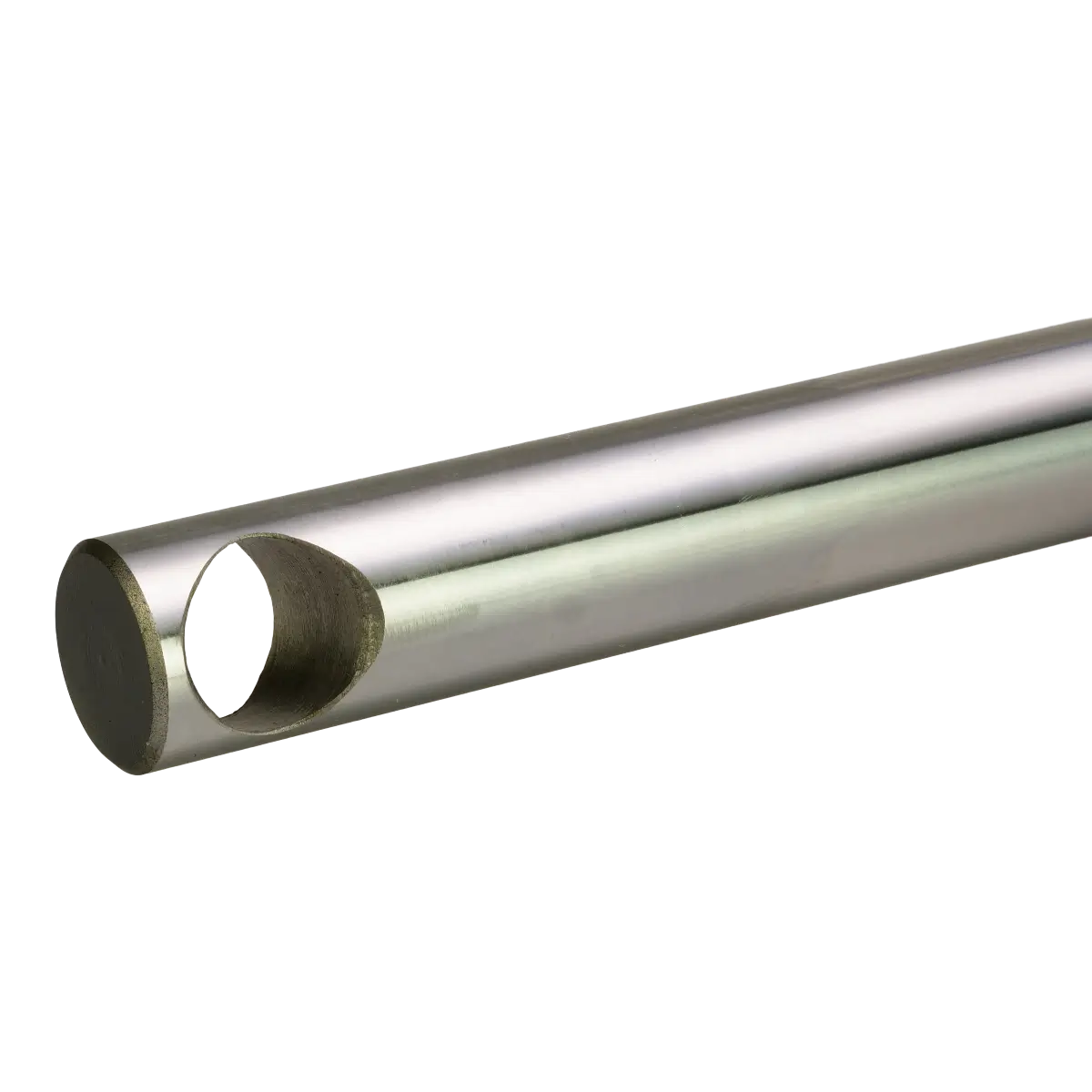

Rod End Type: Hole

Rod End Pin (OD): 1″

Work Ports: 1/4″ NPT(F)

Max Working Pressure: 3,000 PSI

Retracted Length: 19.25″ (pin to pin, center on center)

Extended Length: 31.25″ (pin to pin, center on center)

Cylinder Length: 20.75″ (retracted, edge to edge)

Column Load: 5306 lbs

Product Weight: 15.6 lbs

Barrel Material: Quenched and tempered steel (ASIS 1020)

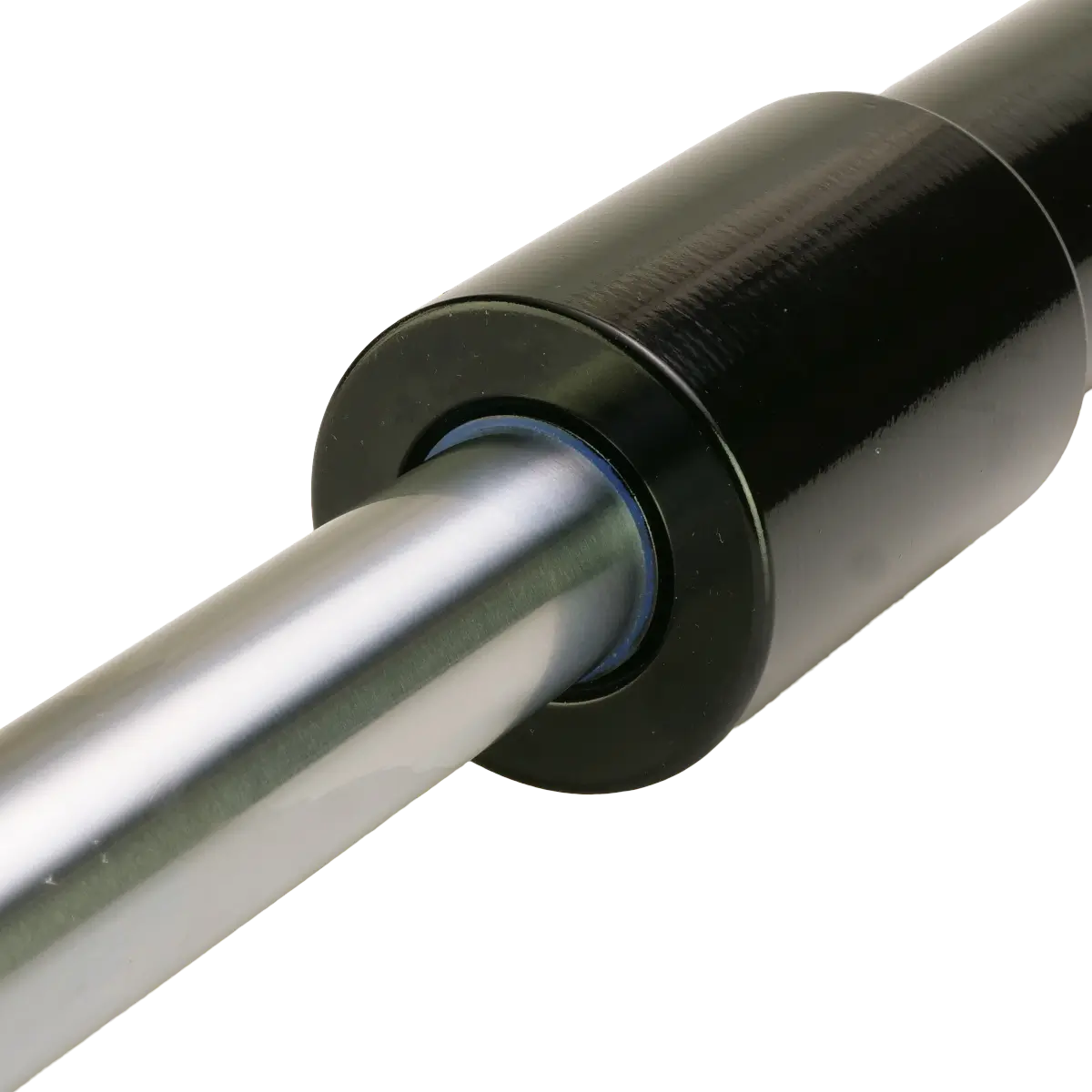

Rod Material: High tensile ground and polished chrome plated steel (ASIS 1045)

Gland Material: High tensile nodular cast iron (ASTM A536 grade 70-50-05)

Piston Material: High tensile nodular cast iron (ASTM A536 grade 70-50-05)
