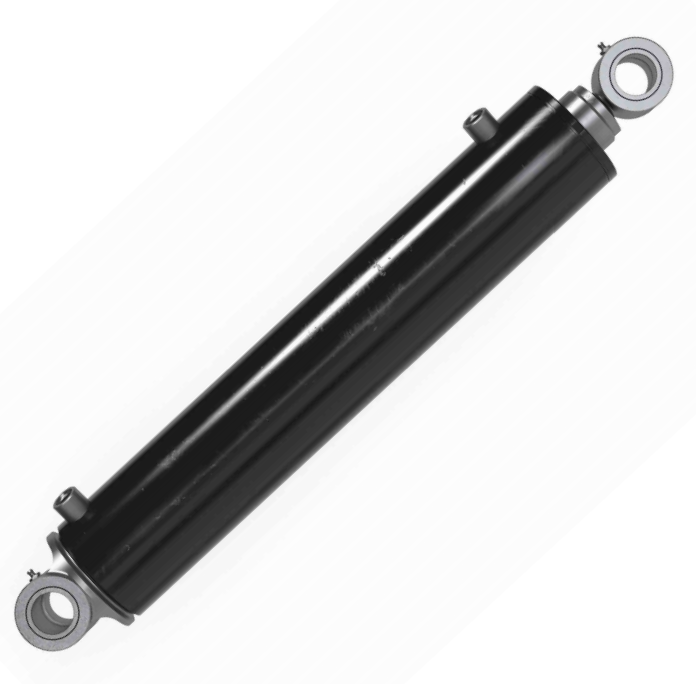

M-1419165 is a 5-inch bore, 4-inch rod slide hydraulic cylinder for rear loader garbage trucks with a 32.5-inch stroke for rear loader garbage truck applications.
Description:
Slide CylinderBore:
5 inRod diameter:
4 inStroke:
32.5 inThe M-1419165 slide hydraulic cylinder is listed in the HCIC-2026 catalog under rear loader garbage truck hydraulic cylinders. Its catalog description is a slide cylinder, with a 5-inch bore, a 4-inch rod and a 32.5-inch stroke.
A slide hydraulic cylinder works as part of a rear loader's internal material-handling mechanism. It should be evaluated together with the slide plate, guides, pins, body structure and hydraulic circuit. A hydraulic cylinder with the same nominal bore is not automatically a correct replacement if the stroke, rod size, mounting centers or motion path differs.
| Parameter | Catalog value |
|---|---|
| Model | M‑1419165 |
| Product category | Rear loader garbage truck hydraulic cylinder |
| Description | Slide Cylinder |
| Bore | 5 in |
| Rod diameter | 4 in |
| Stroke | 32.5 in |
| Source | HCIC‑2026 catalog, p. 11 |
The catalog entry does not list a model-specific working pressure, weight, port specification, closed length or material grade for M-1419165. These details must be confirmed for the actual machine and replacement configuration.
The M-1419165 uses the dimensional relationship of a 5-inch bore and 4-inch rod to produce controlled linear movement within a rear loader slide mechanism. The large rod diameter is an important fitment reference because it affects the rod-side area, guide arrangement, mounting connection and available clearance.
The 32.5-inch stroke describes the cylinder's linear travel. The slide plate's actual path depends on the guide rails, pivot or pin locations, mechanical stops and the shape of the rear-loader body. For that reason, a replacement review must measure the cylinder in both end positions, not only compare the catalog stroke.
The catalog places M-1419165 in the rear loader garbage truck section and identifies it specifically as a slide cylinder. This application description helps the buyer focus the inquiry on slide motion and guide alignment rather than treating the part as a general-purpose industrial cylinder.
Before ordering M-1419165, review:
A slide cylinder should not be expected to overcome a bent guide or seized slide plate. Excess mechanical resistance can affect the complete circuit and can make a sound replacement appear to be the wrong part.
The HCIC catalog lists the M-1419165 slide hydraulic cylinder for rear loader garbage truck hydraulic systems. It can therefore be considered for rear-loader OEM integration, replacement-cylinder sourcing and fleet maintenance where the model dimensions and slide mechanism are compatible.
The application label does not establish a universal fit. Rear-loader bodies can differ in guide arrangement, slide dimensions, loading sequence and hydraulic controls. These differences should be reviewed before purchase.
For spare-parts purchasing, “slide cylinder” is more useful than a generic hydraulic-cylinder label because it connects the component to a specific machine function. The buyer can use this description to organize the technical inquiry around:
This function-first approach reduces the risk of selecting a cylinder only because its bore looks similar to the existing part.
Send HCIC:
If the original cylinder has failed, include images of the rod, barrel, mounting points and guides. The surrounding mechanism may be relevant to the replacement review.
The M-1419165 slide hydraulic cylinder is a catalog-defined slide cylinder for rear loader garbage truck applications. Its key identification data are a 5-inch bore, a 4-inch rod, a 32.5-inch stroke and the catalog description “Slide Cylinder.”
Those values provide a practical starting point for OEM and replacement inquiries, but a reliable decision requires more than a bore comparison. Submit the slide mechanism drawing, mounting dimensions, hydraulic circuit information and guide condition so HCIC can assess M-1419165 against the complete waste-truck system.
