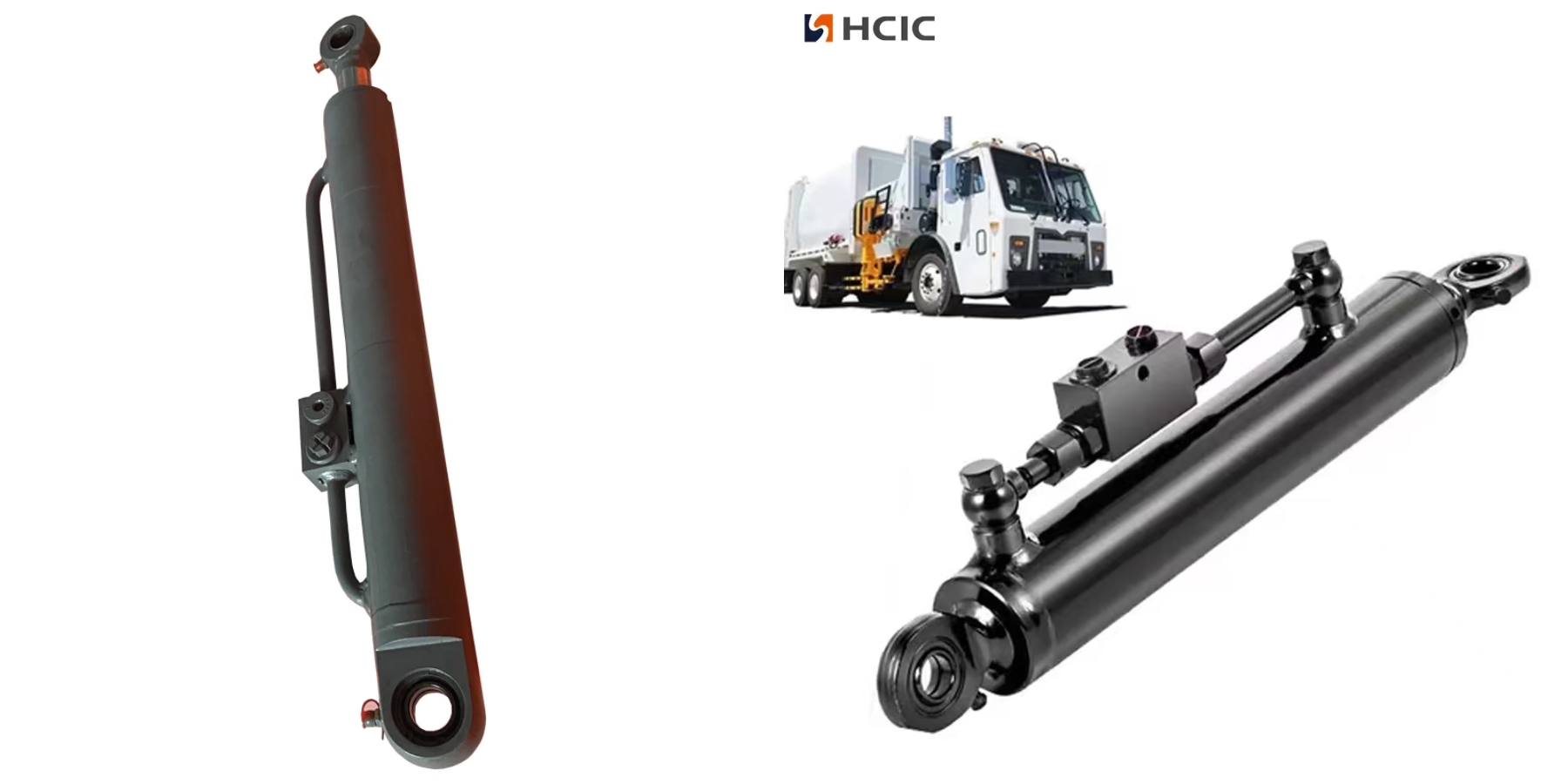

Rear Loader Garbage Truck Packer Hydraulic Cylinder

I. What This Cylinder Does

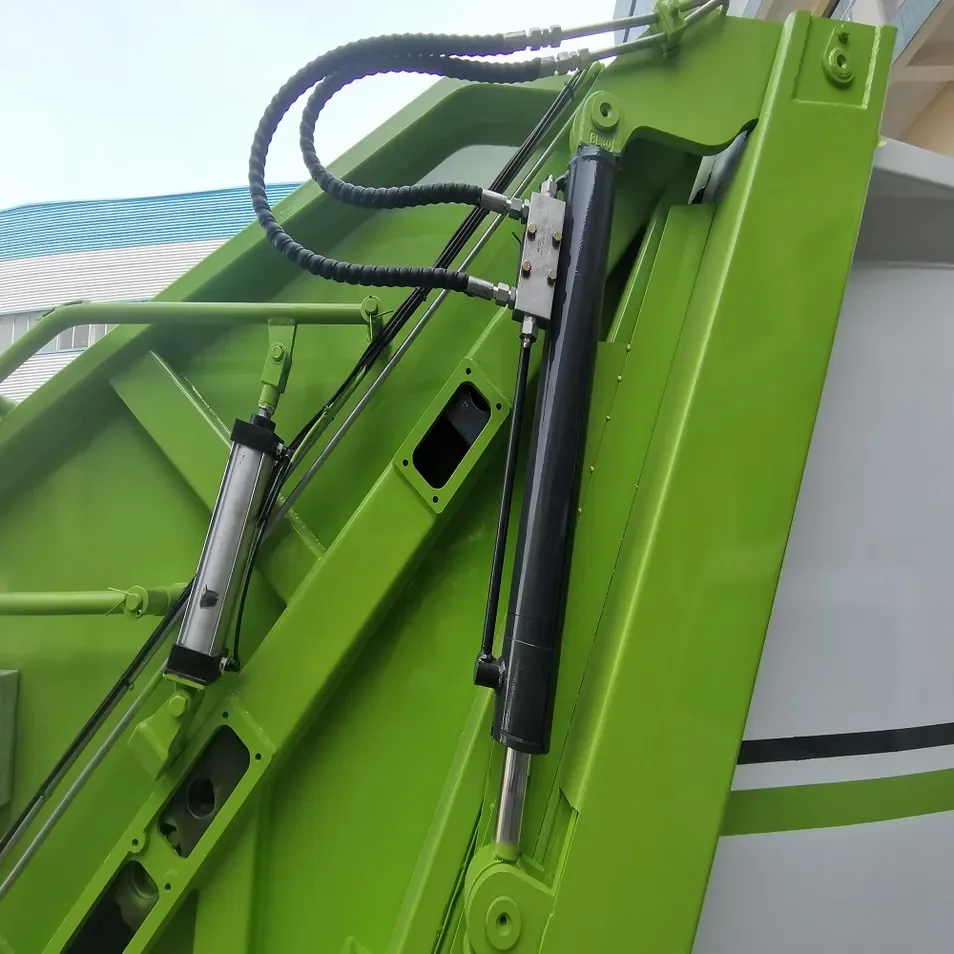

In a rear loader garbage truck, the packer blade does the heavy work: it sweeps refuse into the body and compacts it against the load. The rear loader garbage truck packer hydraulic cylinder---6617 is the cylinder that drives that blade.

The spec: 4-inch bore, 2.5-inch rod, 18.37-inch stroke. It is the short-stroke, high-force cylinder of the rear loader — built to swing the packing blade through its compaction cycle hundreds of times a day, in the dirtiest environment on the truck.

II. Verified Specifications

From the HCIC 2026 catalog:

---

III. What the Numbers Mean

• 4" bore.---- The compaction force. Working pressure on this piston area drives the packing blade against the refuse load. The 4-inch bore is the size class that pushes a blade full of garbage — cans, bags, wet waste — and compacts it.
• 2.5" rod.-----The column strength. The rod is in compression on every compaction stroke, pushing the blade into the load. It is also the pivot point of the blade mechanism. A rod that flexes here loses force and wears its bearings.
• 18.37" stroke.-----The compaction travel. Short and powerful — this is not a long-travel cylinder, it is a force cylinder. It swings the blade through its arc, compacts the load, and returns. The short stroke keeps the cycle fast, which is what high-volume routes need.

IV. Built for the Compaction Job

The packer cylinder has one of the hardest lives on a garbage truck:

• High cycle counts.Every load means multiple compaction strokes. A busy route truck runs the packer hundreds of times a day.
• Debris and dust.The blade works at the hopper opening — where refuse enters, and where grit and debris fly.
• Shock loads.The blade hits dense, uneven loads. The cylinder has to take the shock without failing seals or bending the rod.
• Moisture and leachate.Wet garbage and its liquid byproducts work their way around the blade.

What keeps the 6617 alive:

1. Seal quality.This is a force cylinder — if the seals bypass, the blade loses force and the truck cannot compact. We spec seals for the compaction duty, and every unit is pressure-tested before crating.
2. Rod surface. Hard and smooth to resist the debris it works around. A scored rod drags debris into the seal and fails fast.
3. Mounting strength.The blade mechanism pivots on this cylinder. Strong mounting eyes and pins keep the geometry true stroke after stroke.

V. Applications

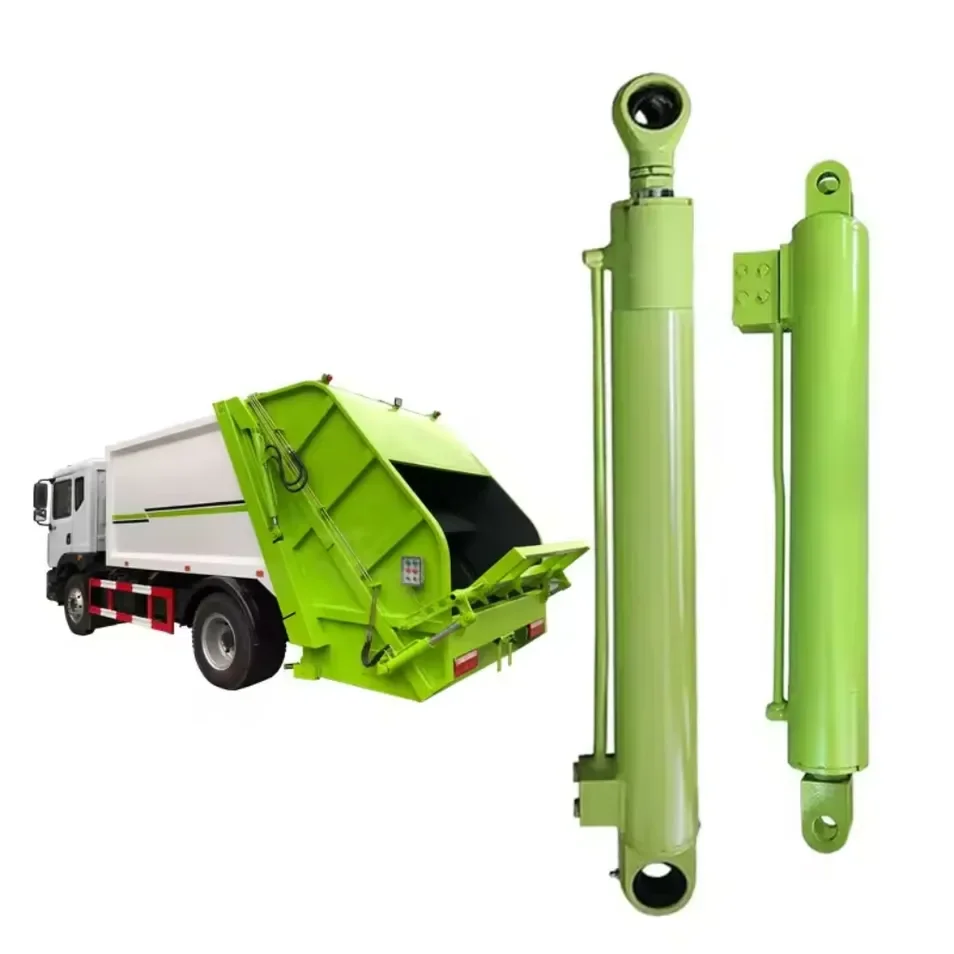

Rear loader refuse trucks.The primary application — the packing blade that compacts refuse into the body.

Compaction mechanisms in waste bodies.Any rear loader where a packing blade sweeps and compacts incoming refuse.

Fleet replacement programs. Municipal and private fleets replacing worn packer cylinders.

Body builders and rebuild shops.Stocking a proven packer cylinder for rear loader builds.

VI. Ordering — What We Need From You

To confirm fitment before production:

1. Your OEM part number or drawing

2. Mounting style — pin eye, clevis, or cross tube, with pin diameters

3. Port orientation and thread standard (SAE, NPT, BSP, ORFS)

Standard configuration MOQ is 10 units. Fleet and distributor programs get volume pricing.

VII. FAQ

VIII. About HCIC

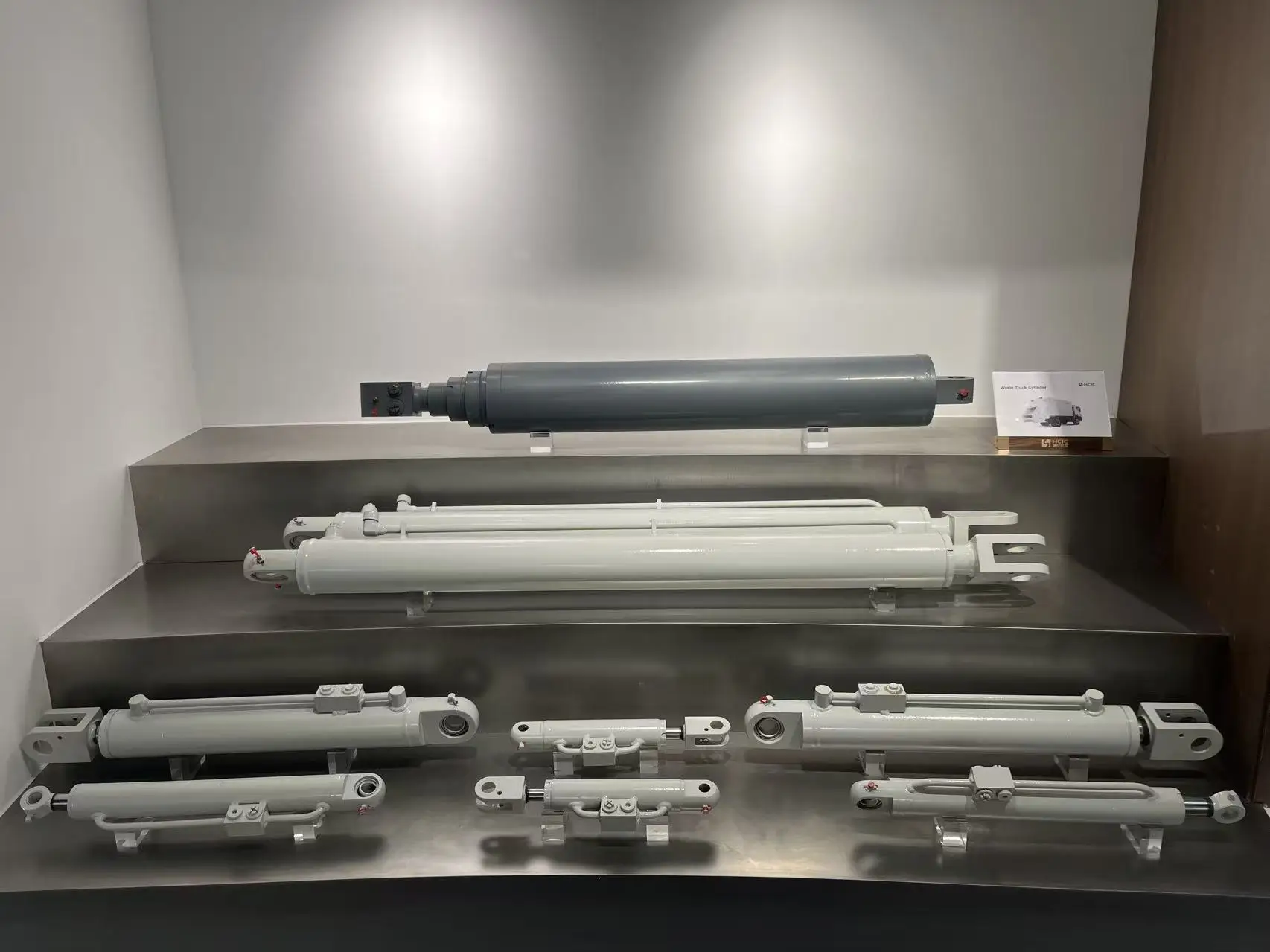

We have built hydraulic cylinders since 1998 — packer cylinders, slide cylinders, telescopic ejector cylinders, and front loader cylinders — in our own plant in Jinan, with in-house honing, QPQ treatment, and pressure testing. ISO 9001:2015. Exports to 50+ countries.

David Song — Export Department

-WhatsApp / Phone: +86 153 7619 8599

-Email: davidsong@mail.huachen.cc

-Website: http://jnhcic.com/

-Address: Building A9, Yinfeng International Biology City, No. 1177 Chunlan Road, High-tech Zone, Jinan City, Shandong Province, China

Send your part number. We reply with fitment confirmation and a quote within 24 hours on working days.
