Parker multi-stage cylinders suit heavy-duty applications. Key specs: 2-6 stages, 210 Bar pressure, -40~+120℃ tolerance. Check load/pressure for selection; inquiry via website filter for quote & delivery.
Stages:
2-6 stagePressure:
210 Bar (3000 PSI)Temperature:
from -40℃ up to +120℃Stroke:

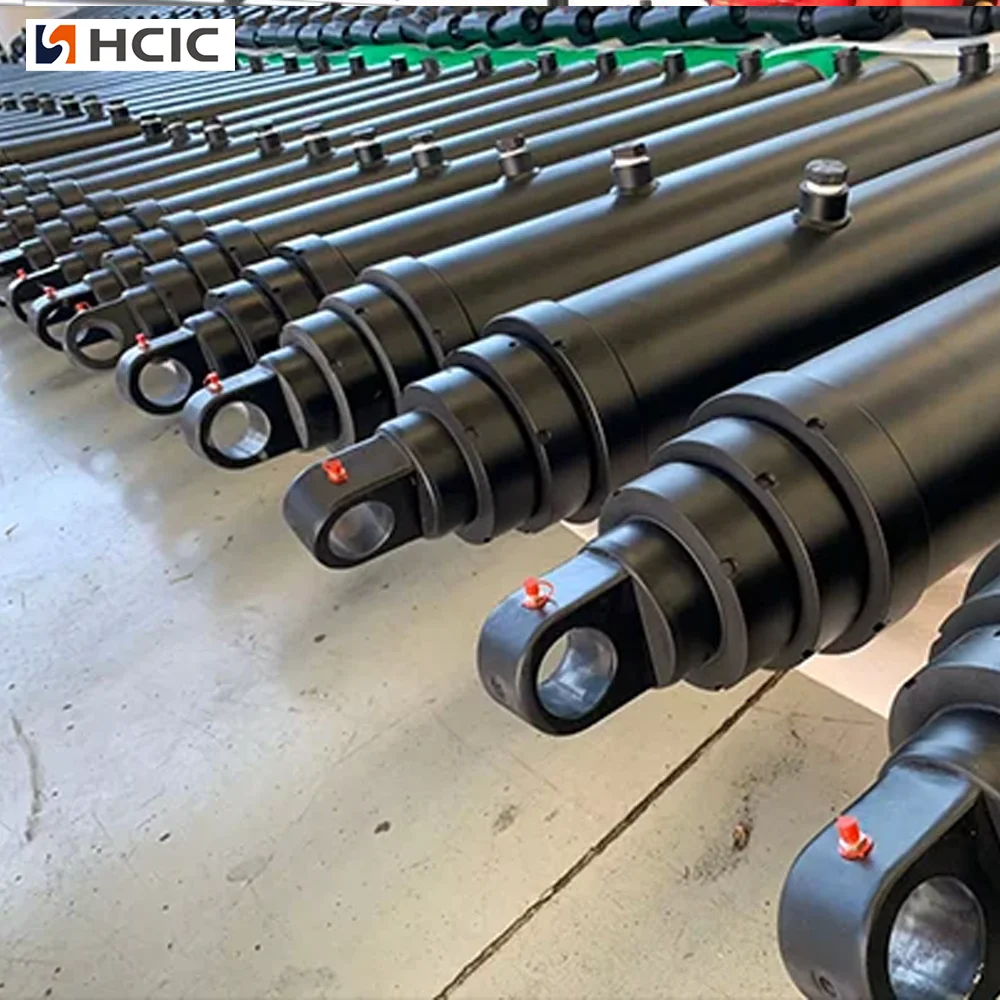

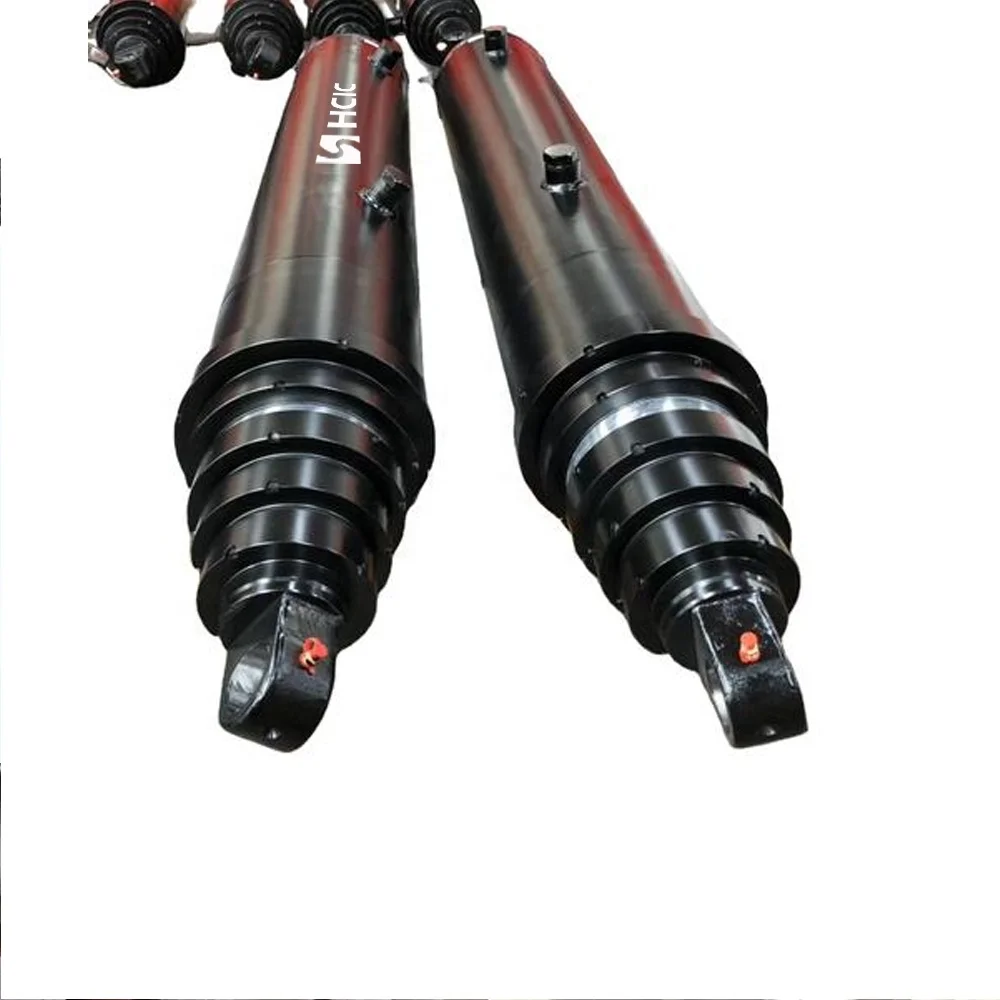

20” to 240”Parker multi-stage cylinders are professional telescopic hydraulic cylinders built for heavy-duty work like construction machinery, mining equipment and dump trucks. We use proven, reliable hydraulic technology to keep these cylinders performing consistently, so your heavy-duty machinery can run steadily for years.
Parker multi-stage cylinders are designed and built to meet global industry standards, with every core technical parameter backed by real-world testing and validation.
Stages & Stroke: 2-6 stage telescopic design, stroke range 20” to 240”, letting you achieve long travel distances even when installation space is tight.
Pressure & Temperature: Max rated working pressure hits 210 Bar (3000 PSI), and our sealing system works reliably from -40℃ up to +120℃, cutting down on leaks and premature wear of components.
Sealing & Wear Resistance: We build these cylinders with Tri-Lip rod seals and bidirectional piston seals. We also add a Global Shield coating that offers four times the hardness of standard hard chrome. This gives our products much better side-load resistance, better corrosion protection and longer wear life.
Action Types: Single-acting (load return) models are the best choice for dump trucks and trailers. Double-acting (bidirectional drive) models are made specially for marine engineering and metallurgical machinery.
Cover a broad range of heavy-duty industrial applications:
Dump Trucks & Semi-Trailers: These units excel at lifting cargo beds within compact chassis spaces. They feature strong impact resistance and perform reliably under heavy-load transportation.
Mining Machinery: They supply consistent telescopic power and operate reliably in harsh open-pit environments. They also provide excellent dust protection and corrosion resistance in daily operation.
Marine Engineering: These cylinders help lift offshore platforms and open or close hatches, while meeting strict industry safety standards.
Metallurgical Equipment: Seals designed for high temperatures keep the equipment running smoothly even under extreme heat.
Flexible Delivery: Standard models are available from stock and can be shipped within 7–20 days.Custom builds (special sizes, materials) need 2-4 weeks. We accept trade terms such as FOB and CIF.
Technical Support: We give free help with product selection, installation and problem-solving. Our engineers will suggest the right number of stages, pressure rating and stroke for your real working conditions.
After-Sales Warranty: We provide a 12-month quality warranty. During this time, we fix or replace any cylinder with factory defects at no cost. We also reply quickly to after-sales requests.
Selection Key Points: When you choose the right Parker multi-stage cylinder, you need to check these important points first:
Working condition type: single-acting or double-acting, and if you need lifting or push-pull function.
Core parameters: total load weight, working pressure, stroke length you need and installation space size.
Special environment needs: high-temperature resistance, corrosion protection, marine certification or other special requests.
Inquiry: Use the model filter on our website or send us a direct message to get an exact price and delivery time.
