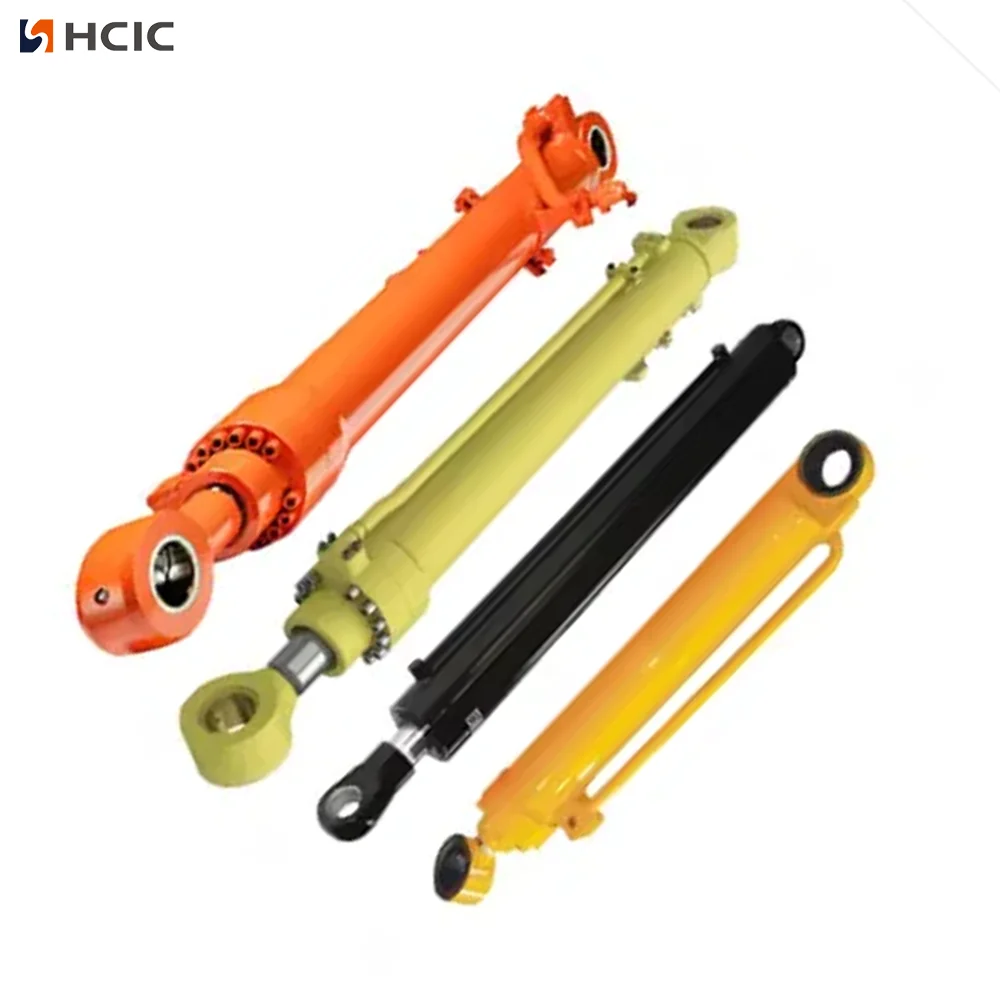

Hydraulic cylinders are essential for mechanical manufacturing—they’re the "muscles" that keep machines moving smoothly and accurately. But for OEM teams, standard cylinders are more trouble than they’re worth. Maybe they don’t fit right, or they’re overbuilt (wasting cash), or they break down quick in harsh work zones. HCIC’s been in hydraulics for years, so we know these annoyances firsthand. We make fully custom hydraulic cylinders, building a strong, perfect-fit "muscle" for every machine you turn out.
| Customization Dimension | Key Content | Application Scenario Examples | ||||||||||
| Bore/rod diameter/stroke | Determine the basic geometric dimensions of the hydraulic cylinder, directly affecting thrust/pull force and installation space. | Construction machinery boom cylinders (e.g., φ140/φ100/800mm), forklift lifting cylinders. | ||||||||||
| Operating pressure | Set rated and peak pressures, determining cylinder wall thickness, seal grade, and material strength. | High-pressure systems (e.g., 19MPa), conventional engineering applications (e.g., 7-16MPa). | ||||||||||
| Output force and speed | Calculated based on system pressure and flow rate, meeting load requirements and action timing. | Heavy lifting equipment (high thrust), automated production lines (precise speed control). | ||||||||||
| Cylinder structure | Choose tie-rod type (easy maintenance), welded type (compact and robust), monolithic type, etc. | Agricultural machinery (welded type, cost-effectiveness), frequent after-sales maintenance scenarios (tie-rod type). | ||||||||||
| Materials and surface treatment | Cylinder body, piston rod materials (such as 45# steel, stainless steel, aluminum alloy), piston rod coating (hard chrome, ceramic). | Outdoor harsh environments (anti-corrosion coating), food and pharmaceutical applications (stainless steel). | ||||||||||
| Sealing system | Select high-quality imported or domestic seal ring combinations, suitable for medium, temperature, and pressure. | High-temperature furnace equipment, high-frequency vibration environment, underwater operations. | ||||||||||
Every OEM machine has its own unique installation space and stroke needs. One-size-fits-all cylinders just don’t cut it. HCIC custom service fixes this: we calculate the exact bore, rod diameter, even stroke down to the millimeter, based on your machine’s load. We also make custom mounting parts—clevis, flange, pivot, whatever you’re after. Whether it’s farm gear or construction machines, we’ll get a perfect fit. No need to tweak your machine’s structure at all.
Machines run in all kinds of tough spots—hot workshops, freezing weather, dusty areas, corrosive zones. We don’t use cheap, generic seals here. High temps? We go with Viton seals. Extreme cold? Special polyurethane that won’t crack. We add ceramic coatings to piston rods to prevent wear, and stainless steel parts for corrosion resistance. That way, the cylinders hold up no matter how harsh the conditions get.
| Application Scenario Example | Custom Focus | Special Requirements | ||||||||||
| Construction Machinery (Excavators/Loaders) | High load capacity, shock resistance, longevity | Wear-resistant, dust-proof, vibration-resistant design | ||||||||||
| Industrial Manufacturing (Machine Tools/Injection Molding) | High precision, high responsiveness | Accurate positioning, smooth operation | ||||||||||

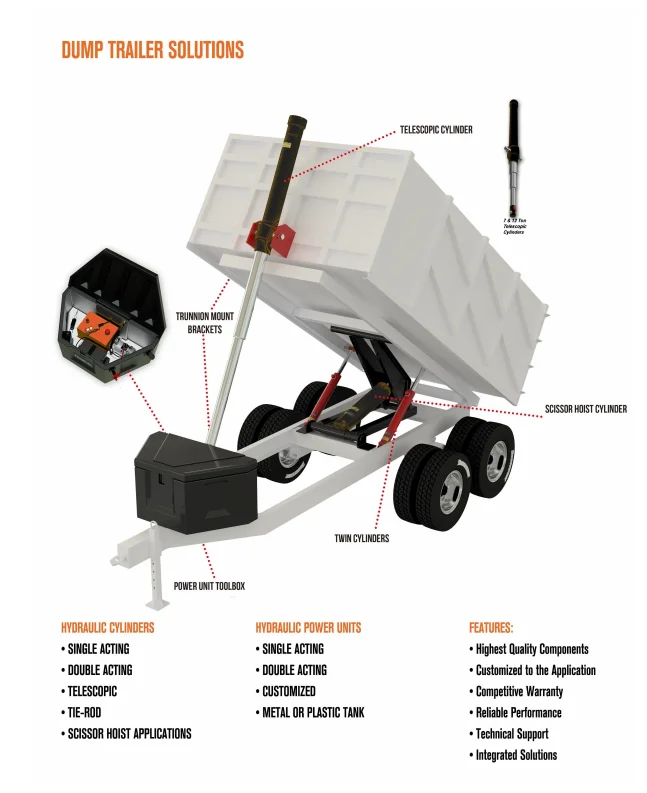

| Transportation (Dump Trucks/Lift Platforms) | Reliability, durability | Adapted for harsh conditions, frequent use | ||||||||||
| Specialized Equipment (Rescue/Metallurgy) | Extreme condition tolerance | High/low temperature, corrosion resistance, explosion-proof if needed | ||||||||||
We don’t just drop off the cylinders and leave. Tell us what you need, and our engineers will come to your site. They’ll run analyses and simulations, then send you 2D/3D drawings to approve. Once we build a prototype, we test it on our benches first, then even install it on your machine to make sure it works right. Only after all that checks out do we start mass production. It’s like getting a custom suit—we adjust until it’s perfect, so you don’t have to worry a bit.
OEMs care most about cost and delivery speed. We get that completely. We optimize designs with professional engineering analyses to cut material waste, keeping costs down. For long-term partners, we offer JIT delivery and safety stock—no more production delays, no more cash tied up in extra inventory. A good custom service should fit your budget and timeline, not the other way around.
We worked with an OEM that builds automated production lines once. Their new high-precision line needed hydraulic cylinders that responded fast, didn’t creep when moving, and hit exact positioning points. Standard cylinders couldn’t do it. So we made low-friction servo hydraulic cylinders for them, adding displacement sensors for precise closed-loop control. After installation, the line’s response time was 30% faster, positioning error stayed under 0.01mm, and overall efficiency went up 20%. Their project manager put it simply: "HCIC’s custom cylinders are exactly the precise partner we need."
We also teamed up with an agricultural machinery maker on their new harvester. The harvester was compact, so there wasn’t much space for hydraulic cylinders. Plus, working in fields, it needed to resist pesticides, fertilizers, dirt, and gravel. We made compact, lightweight cylinders for them, redesigning the structure to fit the tight space without losing pushing power. We added special anti-corrosion coatings, used chemical-resistant seals, and even picked food-grade grease to avoid crop contamination. The result was great: the cylinders fit perfectly, held up in field conditions, and cut the machine’s failure rate by 40%. They were really happy, and we’ve been long-term partners ever since.
HCIC is a professional hydraulic manufacturer, mainly engaged in hydraulic system design, manufacture, installation, transformation, commissioning and hydraulic components brand sales and technical services.We hope that our product can help to save your cost and improve your quality. For More details please email us "davidsong@mail.huachen.cc" or google search "HCIC hydraulic"
