Industry Non-Classified Hydraulic Cylinder 74-1-156 Type Single Acting Telescopic Stroke 155.75 Closed 52.63 Rod Pin 2 Rod Width 1.75 Base Pin 2 LMSD 6 Stages 4 Stroke 155 Extended 310
The Hydraulic Cylinder 74-1-156 from HCIC is engineered as a direct OEM replacement for mobile equipment. Manufactured to ISO 9001:2015 standards with precision-machined components and high-performance seals.
Each cylinder is 100% pressure tested before shipment. Low MOQ starting from 1 piece.
| Part Number | 74-1-156 |
| Type | Double-Acting |
| Working Pressure | 2,500 – 3,500 PSI |
| MOQ | 1 piece |

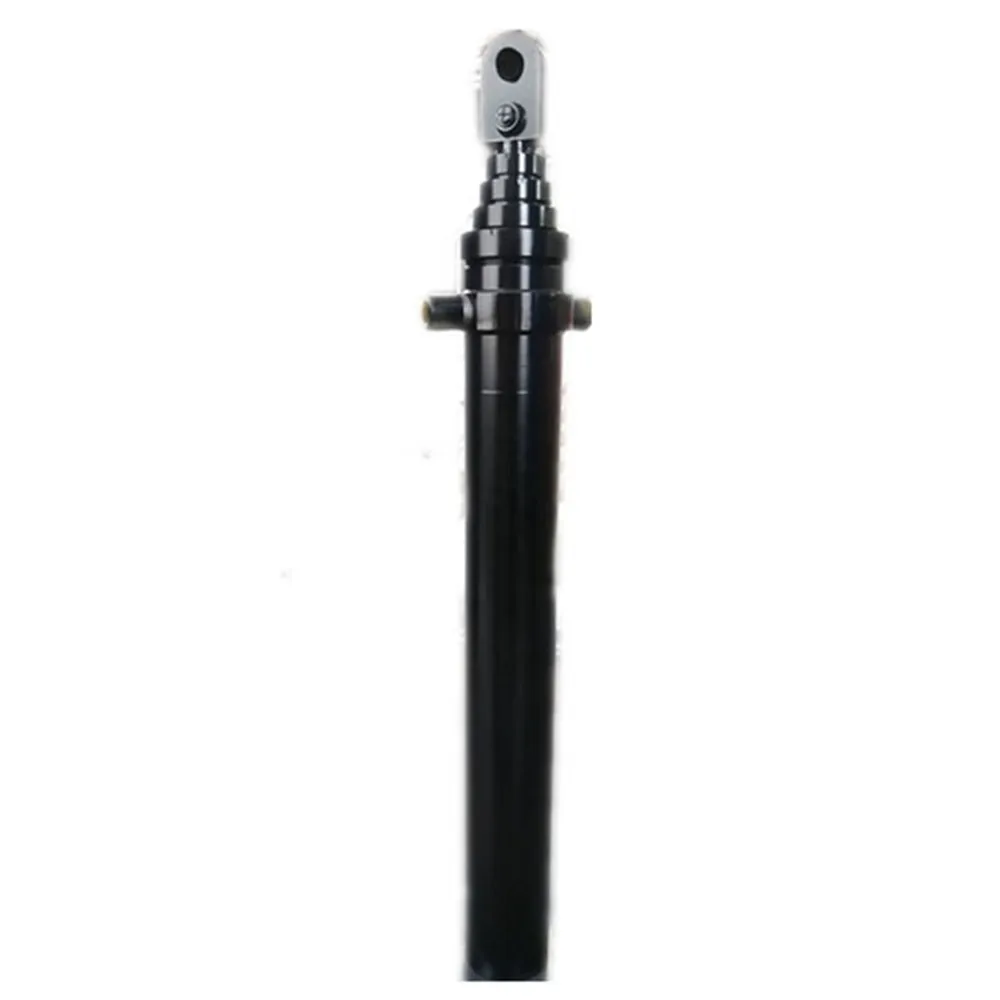

Hydraulic Cylinder 74-1-156
Number of Stages 4
Largest Moving Stage Diameter 6 inches
Stroke Length (A) 155.75 in (3956 mm)
Closed Length (B) 52.63 in (1337 mm)
Extended Length (C) 208.38 in (5293 mm)
Rod Mount Width (D) 1.75 in (44 mm)
Rod Mount Pin Hole (E) 2.03 in (52 mm)
Base Mount Width (G) 7.25 in (184 mm)
Base Mount Pin Hole (J) 2.06 in (52 mm)
Port (L) 1" NPTF
Gallons of Oil (Retracted) 2.8
Gallons of Oil (Extended) 11.2
