Hydraulic Cylinder 63-2-108 Type Single Acting Telescopic Stroke 108 Closed 49 Rod Pin 2 Rod Width 2 Base Pin 2 LMSD 6 Stages 3 Extended 256
The Hydraulic Cylinder 63-2-108 from HCIC is precision-engineered for mobile equipment applications. Built with quality materials and manufactured to ISO 9001:2015 standards, this cylinder delivers reliable performance at competitive pricing.
Each unit features a hardened chrome-plated rod, high-performance seals, and precision-machined barrel. 100% pressure tested before shipment.
| Part Number | 63-2-108 |
| Type | Double-Acting |
| Working Pressure | 2,500 – 3,500 PSI |
| Seal Type | High-performance polyurethane |

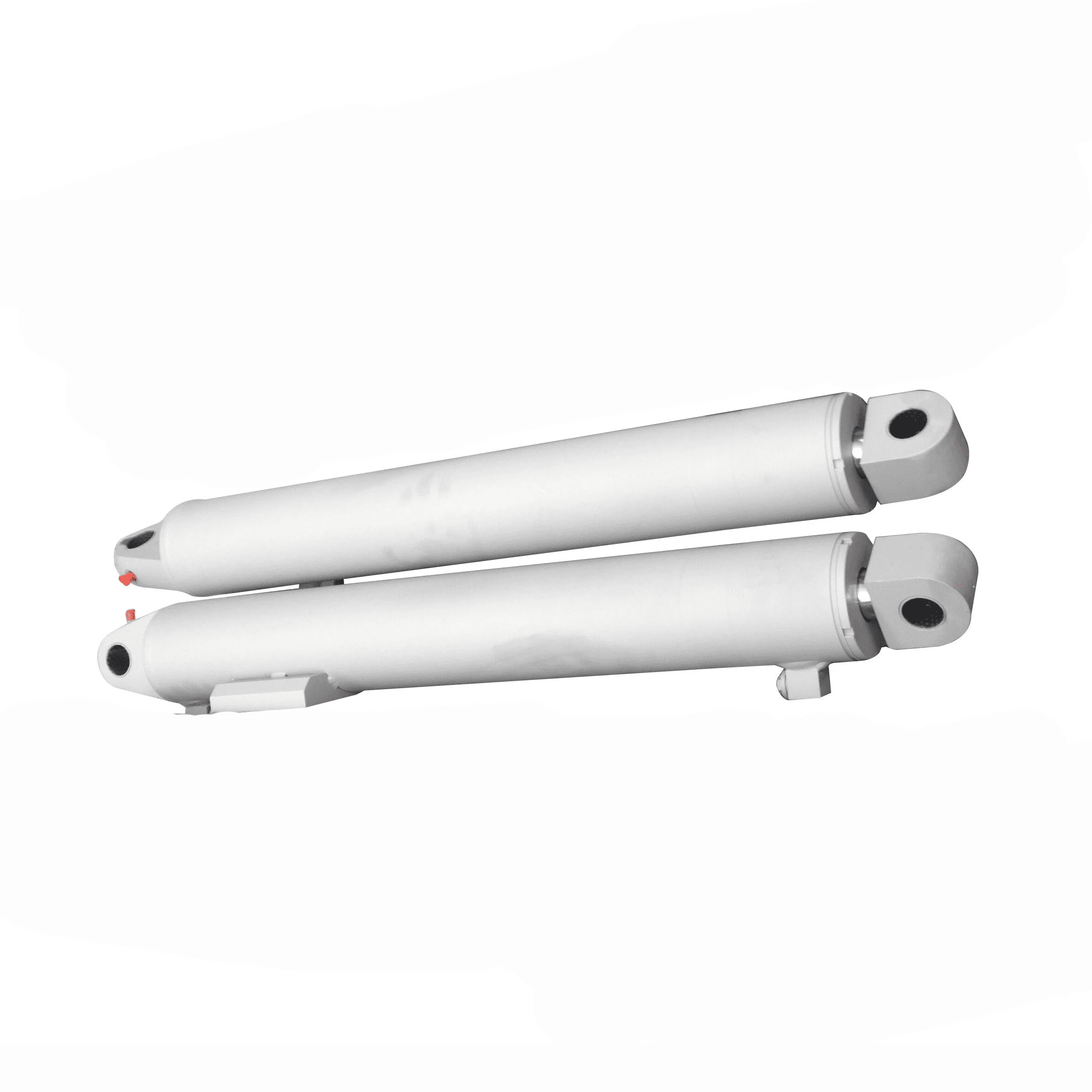

Hydraulic Cylinder 63-2-108
Number of Stages 3
Largest Moving Stage Diameter 6 inches
Stroke Length (A) 108.38 in (2753 mm)
Closed Length (B) 49 in (1245 mm)
Extended Length (C) 157.38 in (3997 mm)
Rod Mount Width (D) 2 in (51 mm)
Rod Mount Pin Hole (E) 2.06 in (52 mm)
Base Mount Width (G) 7 in (178 mm)
Base Mount Pin Hole (J) 2.13 in (54 mm)
Port (L) 1" NPTF
