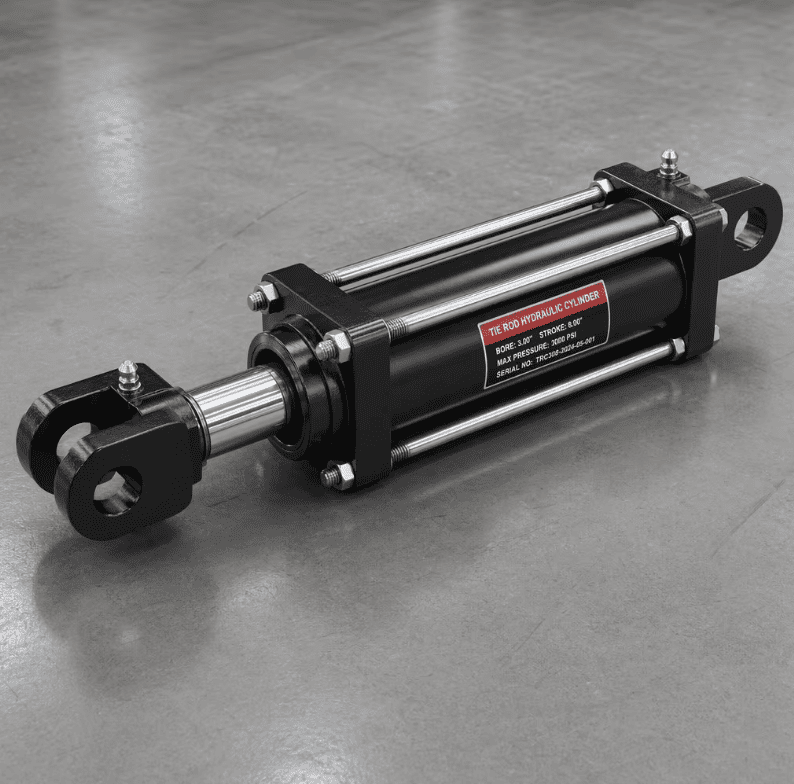

Tie Rod Hydraulic Cylinders

I. The Workhorse of the Heartland: Why Tie-Rod Design Still Wins

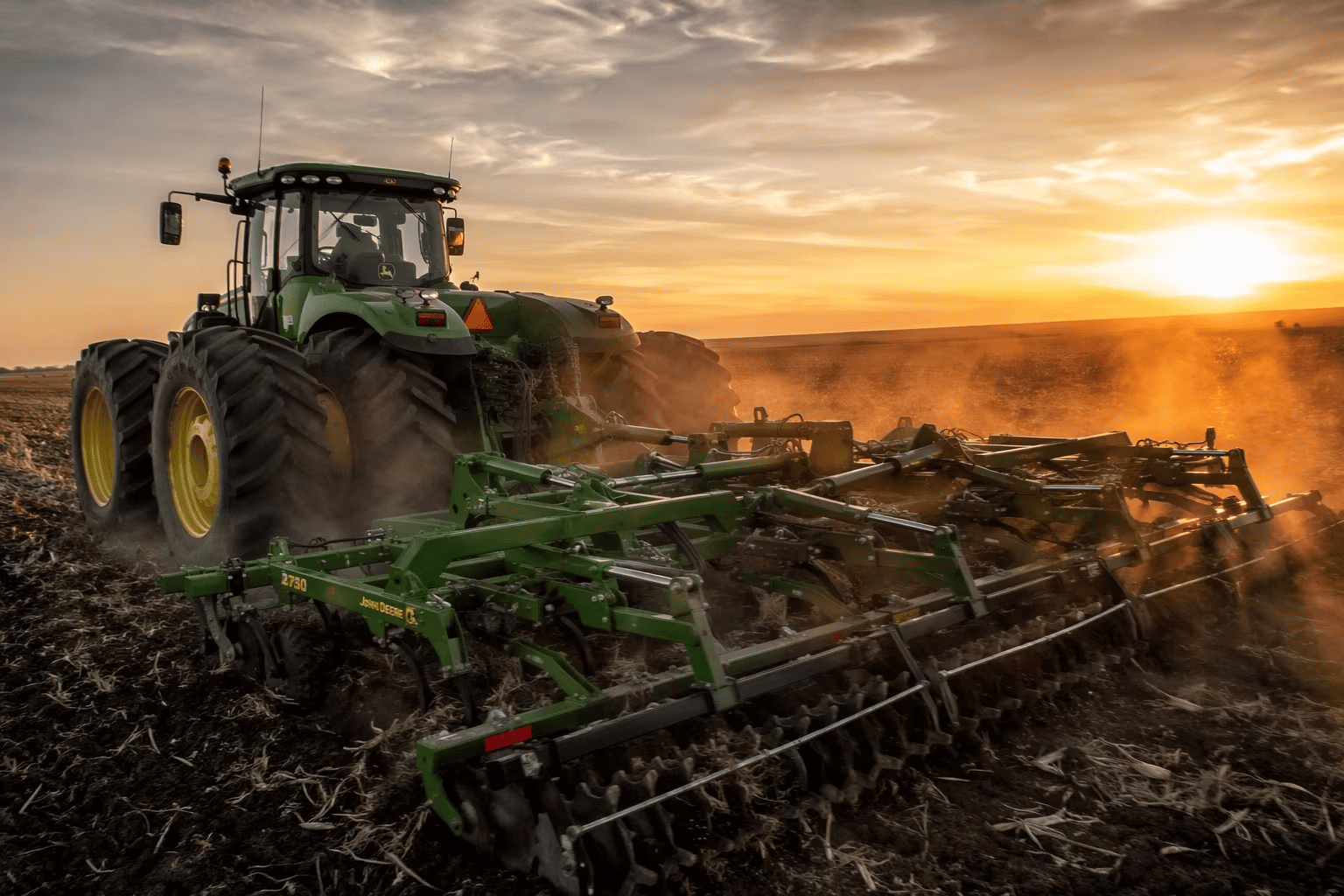

Let’s cut the fluff: in the North American agricultural belt, a tie rod hydraulic cylinder isn't just a part—it’s a lifeline. When a planter or a tillage tool goes down in the middle of a short planting window, you don't want a complex, non-repairable welded unit. You want the reliability and serviceability of a high-tensile tie-rod ram. At HCIC, we’ve optimized our 2026 series to exceed the standard ASAE dimensions. We don't just build them to fit; we build them to handle the frame-twisting stress that snaps cheaper alternatives.

II. Technical Specifications

III. Engineering the "Leak-Free" Seal: Core Features

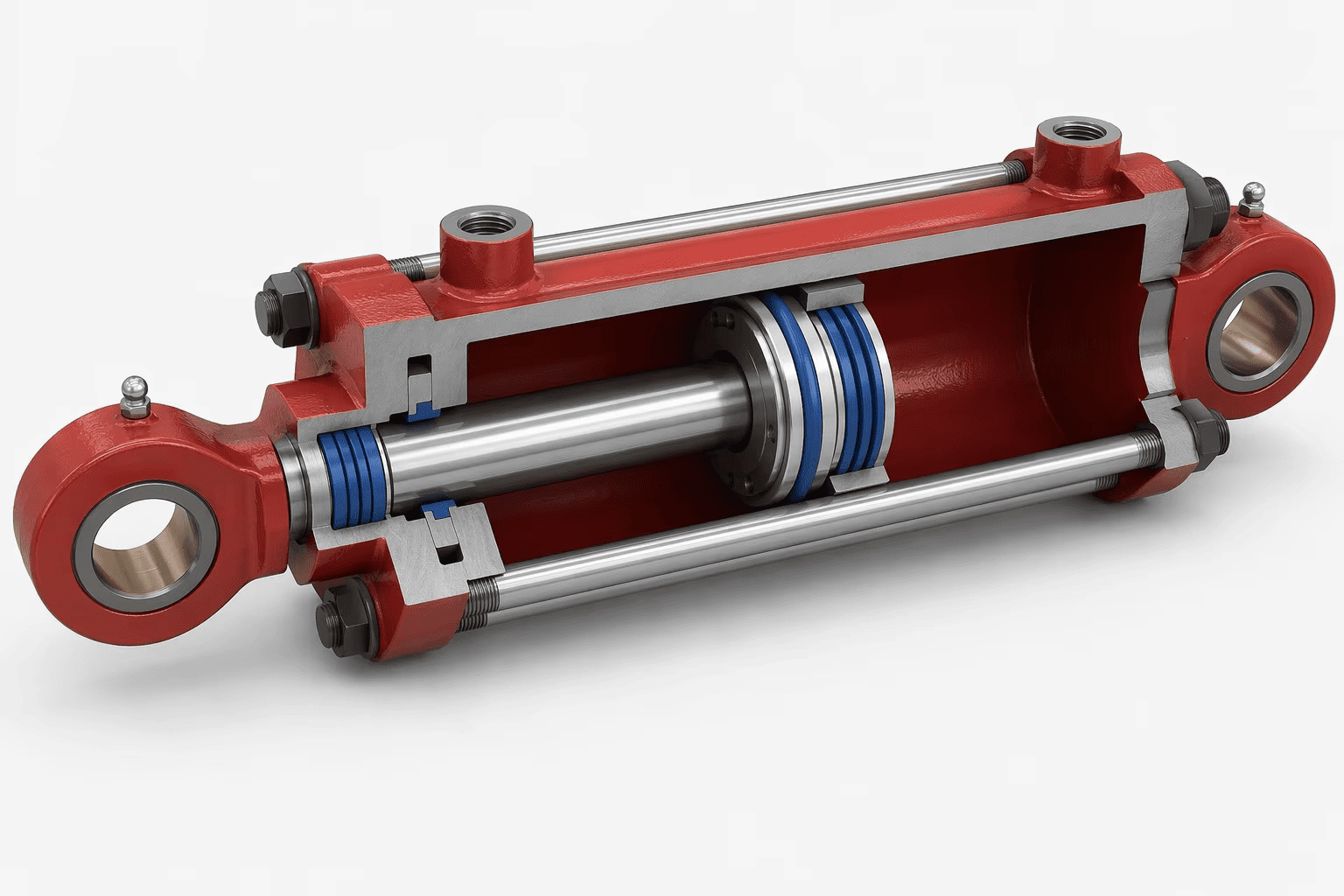

• The Quad-Ring Seal: Most generic tie rod hydraulic cylinders use cheap single-lip seals. We’ve moved to a dual-seal system with a primary U-cup and a secondary buffer ring. Even under rapid pressure spikes, your tractor stays dry and your soil stays clean.

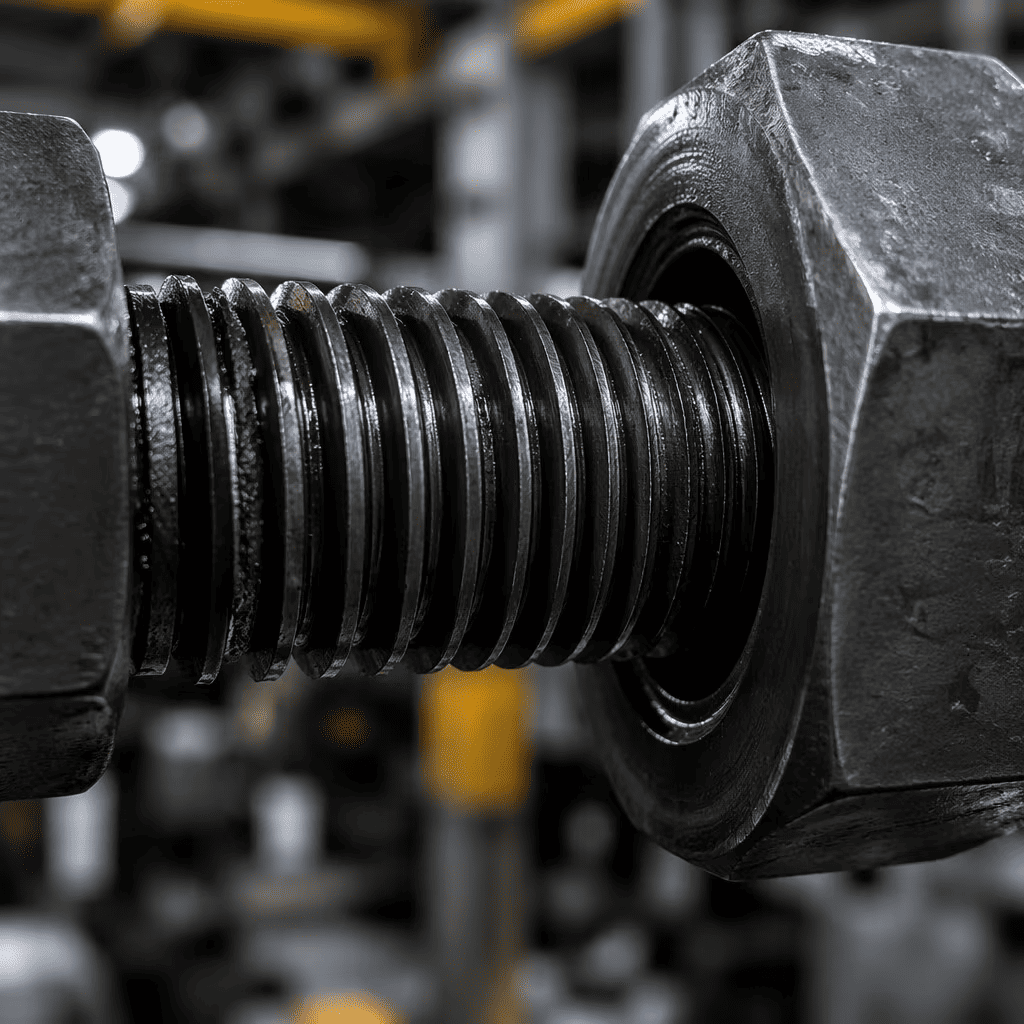

• Precision Threaded Rods: A common failure point is the tie-rod nut backing off. We use vibration-resistant, precision-rolled threads that maintain constant tension, preventing the "gland-gap" that triggers massive field leaks.
• Cast Iron End Caps: No cheap stampings here. Our head and base are high-ductile cast iron, absorbing the shock loads that would crack aluminum components during a rough transport cycle.

IV. Field Applications: Beyond the Tractor

While agriculture is our focus, our high-pressure tie rod rams are currently powering:

• Waste Compactors: For horizontal compression cycles where maintenance access is tight.
• Log Splitters (Standard Duty): Providing a cost-effective alternative for vertical wood processing.
• Industrial Lifts: Handling material pallets with consistent, linear precision.

V. Tie-Rod FAQ

Q: My tie rods are stretching under high load. What should I do?

A: This usually means you’re exceeding the PSI rating or the nuts aren't torqued to spec. At HCIC, we use Grade 8 equivalent rods to minimize elongation, but always check your system's relief valve setting.

Q: Can I replace just the seals in the field?

A: Yes. That’s the beauty of tie rod hydraulic cylinders. With standard shop tools, you can swap the seals in under an hour without specialized welding gear.

Q: Are your ports compatible with North American hoses?

A: 100%. We provide standard SAE O-Ring ports as a default for our export line to ensure a zero-leak connection with standard hydraulic fittings.

VI. Conclusion:

Build a Stronger FleetDon't let a 50cylinderkilla50cylinderkilla5,000 day of production. HCIC provides the documented quality and technical backup that global distributors rely on. If your current supplier is cutting corners on steel grade, it's time to switch to an engineered solution. Contact our technical sales team today for bulk OEM pricing and technical drawings.
