HCIC HTC7T telescopic hydraulic cylinder for dump trailers: 7-ton class, 60-108 inch strokes, SAE #8 ports, hard-chromed stages with multi-stage wipers. Built for North American dump trailers. OEM specs welcome.
Stroke:
35.5"Port:
SAE #8Weight:
50lbsOil Volume:
1.2galIf you build or maintain dump trailers, you know the lift cylinder is the one part that cannot fail quietly. It either dumps the load or it does not.

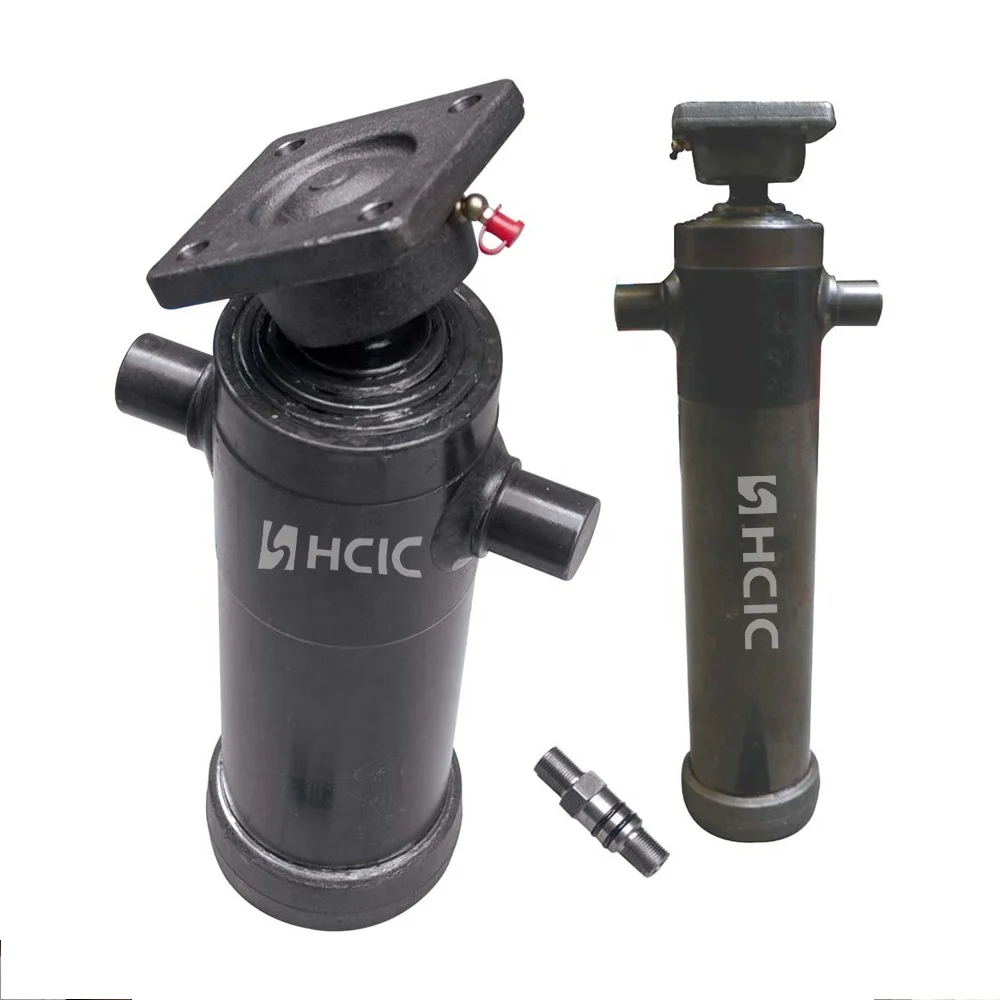

The HTC7T is a multi-stage telescopic cylinder built for North American dump trailer duty. Seven-ton class. Strokes from 60 to 108 inches. One job: lift the bed, dump the load, day after day.
Multi-stage design.The barrel sections nest inside each other, so a long stroke fits in a short retracted package. That is what lets a compact trailer bed raise high enough to clear wet aggregate.
Hard-chromed stages with proprietary honing.Each stage is honed and chromed to keep friction low and corrosion out. On a trailer that sits outside all winter, this is the difference between smooth lifting and a seized stage.
Premium seals and multi-stage wipers.The wipers scrape road grit off each stage before it reaches the seal. Sand and salt kill cheap cylinders fast. They do not get past these wipers.
SAE #8 ports (3/4-16 UNF).Standard North American connection, easy hose matching.
| Part No. | Stroke | Port | Weight | Oil Volume |
|---|---|---|---|---|
| HTC7T (INVERSE) | 35.5" | SAE #8 | 50 lbs | 1.2 gal |
| HTC7T‑60 | 60" | SAE #8 (3/4‑16 UNF) | 68 lbs | 1.6 gal |
| HTC7T‑78 | 78" | SAE #8 (3/4‑16 UNF) | — | — |
| HTC7T‑90 | 90" | SAE #8 | 68 lbs | 1.8 gal |
| HTC7T‑108 | 108" | SAE #8 | 75 lbs | 1.8 gal |
Full dimensional data (A through L per the HCIC drawing) is available on request — send your email and we send the drawing.
Match the stroke to the trailer, not the other way around.
If you are replacing an OEM cylinder, measure the old unit's stroke and mounting, then send us the part number. We cross-reference and confirm fit before production.

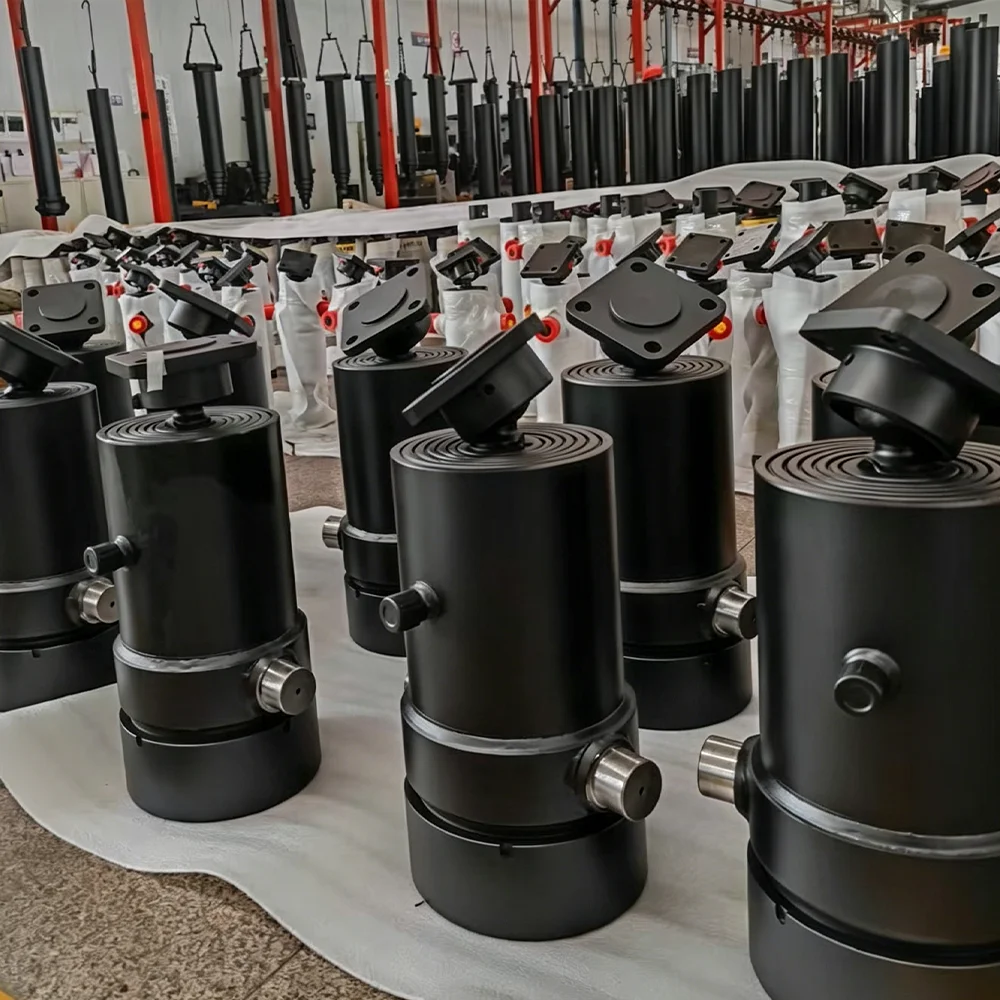

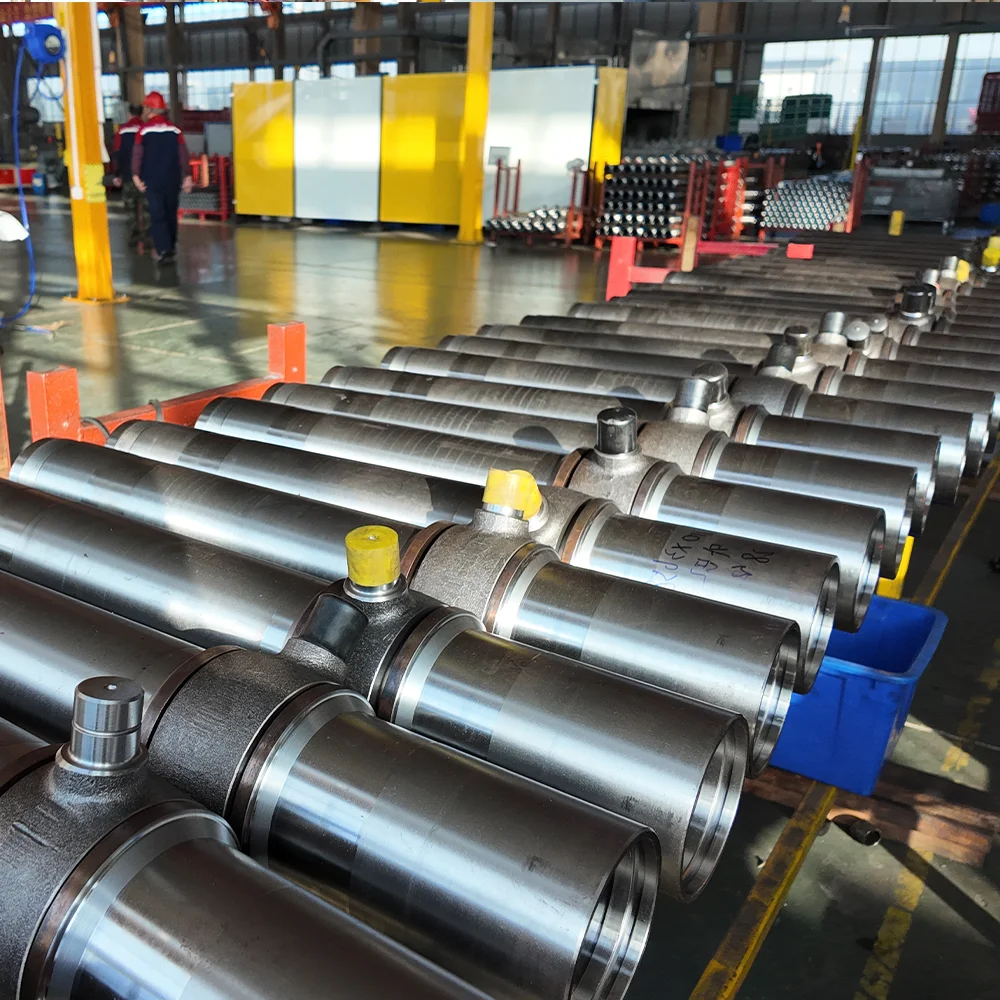

We have built hydraulic cylinders since 1998 — telescopic cylinders for garbage trucks, dump trailers, and heavy equipment. Three factories, 300+ staff, ISO 9001:2015. The HTC line is made for the North American trailer market, and we ship worldwide.
Send us your spec. We reply with a quotation within 24 hours on working days.
