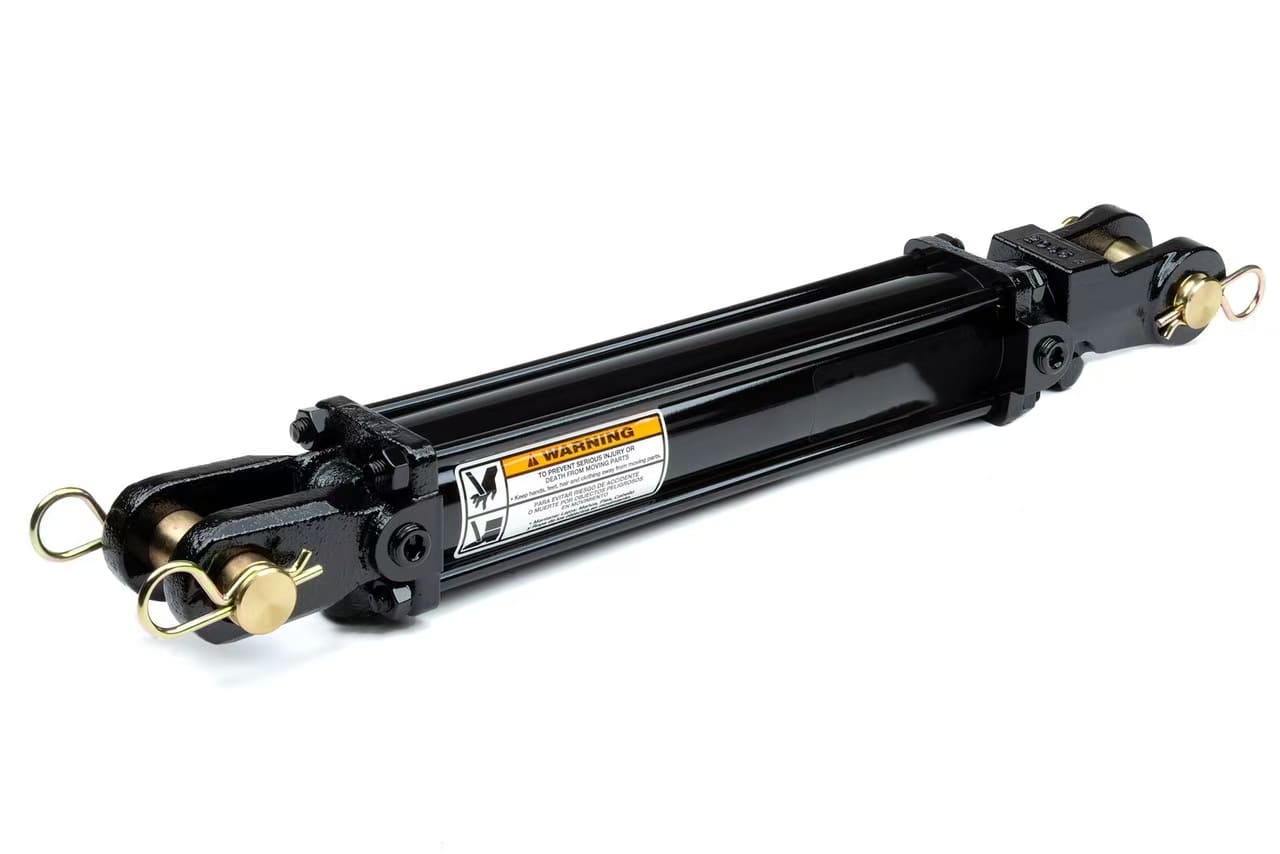

HCIC TC Tie-Rod Hydraulic Cylinder – 2×4in, 1.125in Rod suits farm use. It features clevis mounting, strict testing, easy maintenance, steady performance, and supports reliable light to medium duty hydraulic work daily.
Bore:
2 inStroke:
4 inPSI:
2500Retracted:
14.25 inWarranty:
1 Year LimitedThis HCIC TC Tie-Rod Hydraulic Cylinder – 2×4in, 1.125in Rod, rated at 2500 PSI, has a 2 in. bore X 4 in. stroke. Designed for use in demanding double-acting light and medium duty applications like those found in the agricultural industry tie-rod cylinders are more economical since they are easier to maintain and repair. These high-quality cylinders use clevis mounts for easy hookup. Each cylinder undergoes rigorous testing that exceeds industry standards and ensures Maximum reliability and performance.
| Brand: | HCIC |
| Weight: | 14.00 LBS |
| Bore: | 2 in |
| Stroke: | 4 in |
| PSI: | 2500 |
| Rod Dia.: | 1.125 in |
| Pin Dia. : | 1 in |
| Retracted: | 14.25 in |
| Extended: | 18.25 in |
| Port Size: | 3/8 NPT |
| Column Load: | 7850 lbs |
| Mounting: | Clevis |
