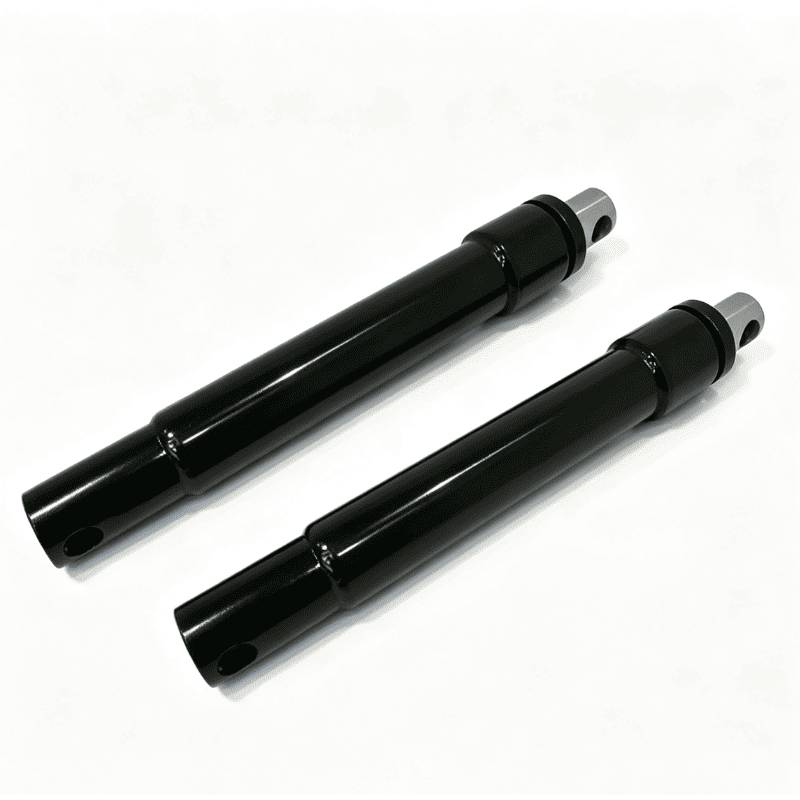

Sub-Zero Snow Plow Cylinder

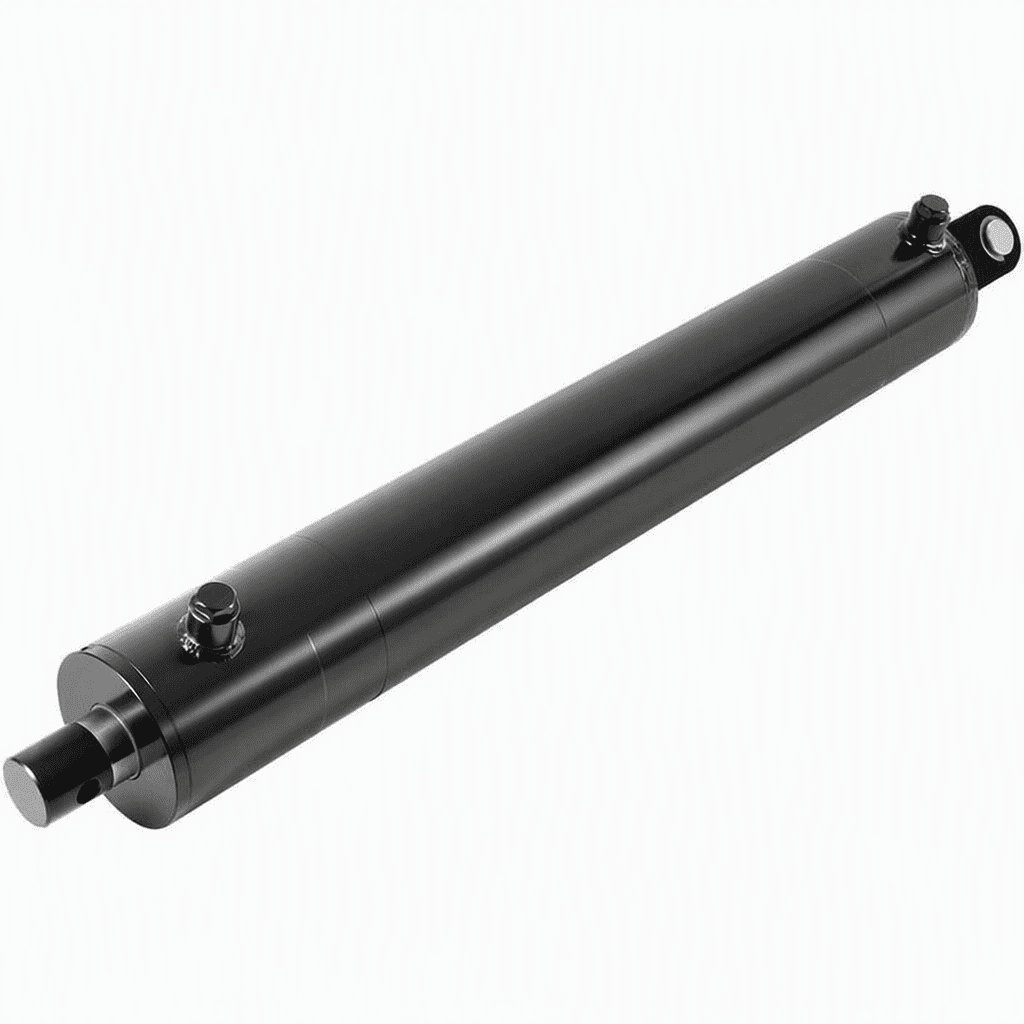

HCIC H-001-4452 hydraulic cylinder is professionally designed for commercial log splitters. Featuring upgraded large-flow ports, it achieves fast retraction to improve wood splitting efficiency. Built with 4140 chrome-plated rod and reinforced cast iron piston, it resists impact and abrasion from hardwood splitting. The dual-lock gland and heavy-duty V-packing seals prevent vibration loosening and leakage. Ideal for firewood production, equipment rental and land clearing work.

I. The Cycle Time War: Precision Hydraulic Engineering for Elevated High-GPM Flow Rates

1.1 Slow Cylinder Retraction = Direct Seasonal Profit Loss

Anyone running a commercial firewood processing operation knows slow cylinder ram retraction bleeds real money each cutting season. Every split cycle wasted waiting for the ram to pull back piles up hours of lost production, costing operators dozens of cords of finished firewood over a single work season. Most stock and aftermarket log splitter cylinders come with restrictive inner port designs that cannot keep up with the output of today’s high-GPM hydraulic pumps, creating constant flow bottlenecks that drag down overall machine throughput day in and day out.

1.2 Oversized Retraction Orifices for Instant Snap-Back Reset

We built the H-001-4452 sub-zero snow plow cylinder around true high-flow porting principles from the very start of the machining phase. We physically widened all orifice openings along the retraction oil path to create that fast, snappy ram pullback every operator wants on the job floor. Even when splitting tough, knotted hickory and dense oak timber, the splitting wedge slides back to its home position before the worker can bend down to load another log onto the splitter cradle, drastically cutting dead space between individual splitting cycles.

II. Deep Technical Specifications

2.1 Core Force & Stroke Dimensions

• Bore Diameter: 4.50 in (114.3 mm): delivers heavy consistent splitting tonnage required for large diameter logs and dense hardwood varieties
• Standard Stroke Length: 24.00 in (609.6 mm); we offer fully custom stroke lengths built to match your splitter frame and on-site processing needs

2.2 Hydraulic Matching & Retraction Capacity

• Retraction Performance: Bench tested and field tuned to operate flawlessly alongside any two-stage pump rated 22 GPM or higher

2.3 Robust Internal Component Materials

• Piston Rod Construction: 1.75 in (44.4 mm) solid 4140 steel substrate with full hard chrome surface coating. This build shrugs off abrasion from wood bark, splinters and repetitive long-term cycling wear
• Piston Body: High ductility cast iron material that never bends or sustains permanent deformation when slamming against tight, solid wood knots during aggressive splitting work

2.4 Mount Structure & Flow Port Configuration

• Mount Configuration: Standard clevis-to-clevis mounting style, with reinforced thick plating at all high-stress points to stop metal fatigue from years of continuous heavy load operation

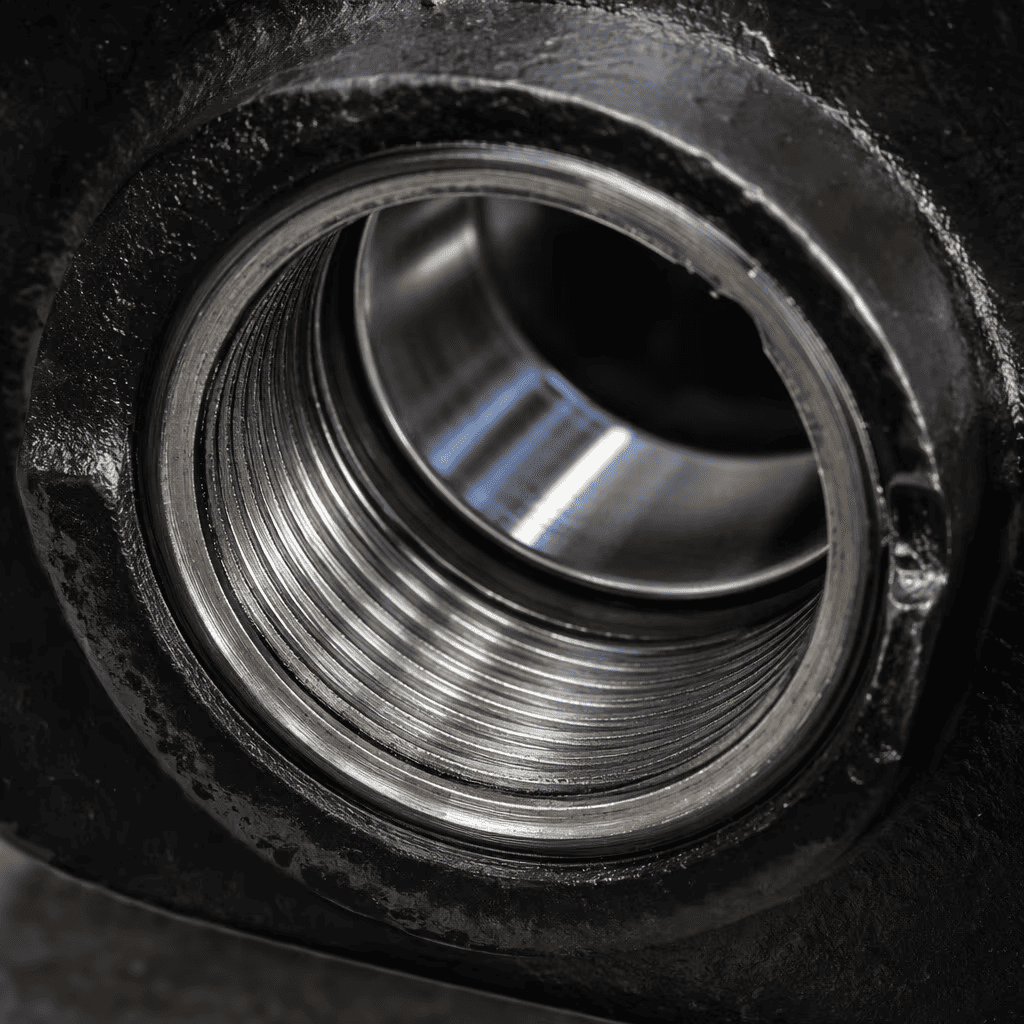

• Fluid Ports: 1/2 inch NPT threaded ports with smoothed inner bore finishes, machined specifically to remove fluid turbulence and maintain steady high-volume hydraulic flow

III. Zero Backlash Structural Integrity: Vibration Resistant Sealing & Gland Assembly

3.1 Vibration Loosening: The Leading Cause of Ram Early Failure

Long hours of constant splitter vibration is the top reason log splitter rams fail ahead of their expected service life. Persistent vibration loosens gland nuts, wears down internal seals and creates slow hydraulic leaks that force unplanned downtime mid-work shift for commercial firewood businesses.

3.2 Dual Lock Gland Design Stops Nut Backing Off

The gland nut on our H-001-4452 uses precision cold rolled threads paired with a physical locking setscrew lock system. This two-point lockout completely prevents the gland nut from spinning loose under the high-frequency shaking generated during repeated heavy log splitting strokes.

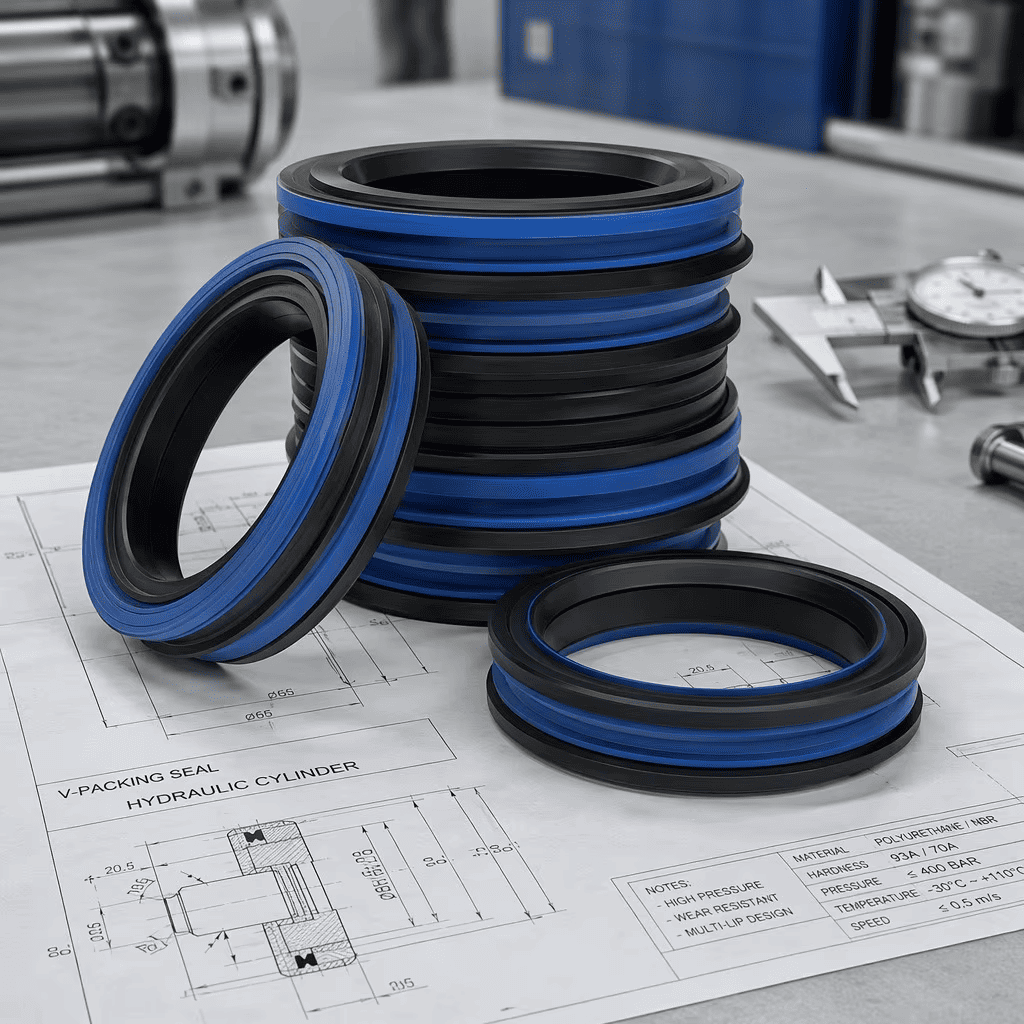

3.3 Heavy-Duty V-Packing Seals Resist High-Pressure Damage

Inside the cylinder barrel sits a custom stacked V-packing seal assembly engineered to handle sudden pressure spikes maxing out at 3,500 PSI when cutting through heavily resistant timber. This custom seal stack will not roll, twist or extrude under sharp pressure surges, lowering your frequency of seal replacement and cutting costly emergency maintenance for your whole fleet of splitting equipment.

IV. Verified Commercial Field Applications

4.1 Bulk Firewood Production Facilities

Engineered for round-the-clock continuous cycling, perfectly suited for large scale, high-volume firewood mass production yards

4.2 Equipment Rental Businesses

Thickened build tolerances withstand rough handling, improper operation and general abuse common with inexperienced rental machine users

4.3 Land Clearing & Timber Harvest Contractors

Handles irregular heavy-load splitting jobs that come with on-site tree removal, brush clearing and raw lumber sorting field work
