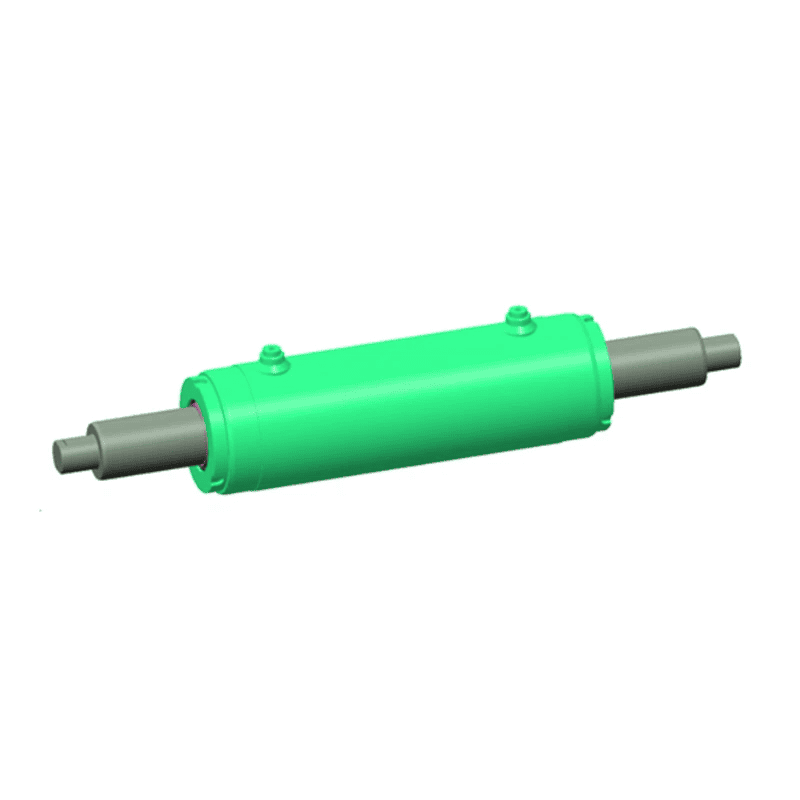

Rotary Lift Hydraulic Cylinder Introduction： Moving Type:Wheel Loader Core Components:piston rod, Guide sleeve, seal ring Structure:General Cylinder Body Material:Steel MOQ:10PCS Working medium:Hydraulic oil Application:Machinery Operating Pressure:25MPa Proof pressure:30MPa

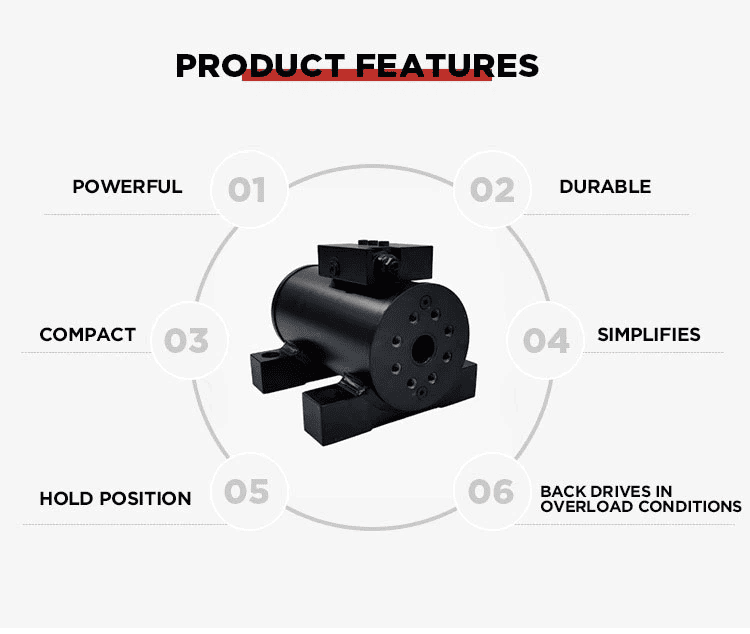

The hydraulic cylinder system includes swing hydraulic cylinder, including spiral swing, double blade, single blade and other forms. The spiral swing type is divided into single spiral swing and double spiral swing. Now the double spiral is more commonly used. The linear motion of the hydraulic cylinder piston is divided into linear motion and rotary motion by the double spiral vice, so as to realize the swing motion. Blade type: the stator block is fixed on the cylinder block, while the blade and rotor are connected together. According to the oil inlet direction, the blades will drive the rotor to swing back and forth.
A telescopic rotary hydraulic cylinder, including the main cylinder, wear has described the main cylinder piston rod, piston rod end connections are described putting gear shaft, middle guide sleeve connection, its characteristics is described in the main cylinder sleeve is equipped with the sleeve, sleeve side stated sets in orthogonal to the direction of the length of the sleeve body, described in the body cavity with rotating cavity and motor, Described in the rotating cavity with wear and the rotation of the push rod meshing gear shaft, rotary department including consistent with push rod modulus gear shaft threaded rod, shaft end of threaded rod is equipped with the oil seal of fixed connection of the bearing, Described oil seal bearing in motor cavity connected with the end of the drive motor, threaded leg length of threaded rod is slightly more than the diameter of the push rod, gear shaft rotating cavity is described and the main cylinder body internal connected, described in the drive motor connected with hydraulic pump, hydraulic pump described the connection with buffer cylinder, buffer cylinder described by piping and described respectively connected to the main cylinder body internal on either side of the guide sleeve.
All parameters can be customized
| Item | Value |
|---|---|
| Condition | New |
| Warranty | 1 Year |
| Applicable Industries | Other, Machinery manufacturing |
| Weight (KG) | 20 |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 1 Year |
| Core Components | piston rod, Guide sleeve, seal ring |
| Standard or Nonstandard | Standard |
| Structure | General Cylinder |
| Power | Hydraulic |
| Body Material | Steel |
| Place of Origin | China |
| Material | 27SiMn |
| Color | Yellow |
| MOQ | 10PCS |
| Application | Machinery |
| Type | Piston Hydraulic Cylinder |
Features of customized hydraulic cylinder designed by the factory:
High-altitude operation machinery sends operators to the designated position in the air through the lifting platform for construction. Due to the high operation height, it has high requirements for safety, reliability, comfort and maneuverability. The cylinder product has realized modularization, serialization and lightweight.
1. The application of standardized design, welding and anti-loosening patented technology makes the product more reliable;
2. Lightweight design minimizes the weight and makes the equipment safer and more efficient;
3. Simple design, convenient disassembly and maintenance;
We’re a professional manufacturer focusing on one-stop telescopic hydraulic cylinder solutions, with years of practical experience tailoring designs for boom truck applications. No matter how complicated your cylinder requirements are, we can complete both custom design and mass production accordingly.
We follow European manufacturing techniques and American industry standards, delivering full custom support covering every step from initial blueprint design right through to final shipment. Our regular product lineup includes rod style cylinders, travel machinery cylinders, welded cylinders, snow plow cylinders, telescopic models, dump truck cylinders, log splitter cylinders, loader cylinders and bucket tilt cylinders, with full custom options open for all clients.
With three decades of hands-on experience in this field, our team has built solid expertise in hydraulic cylinder development and production. We can adjust every product strictly based on your actual working conditions, installation space and global industry norms.
Our product range also covers cylinders for excavators, aerial cranes, concrete pump trucks, boom pump parts, truck cranes, tower cranes, piling machinery, port marine equipment, mining machinery and eco-friendly energy-saving devices, alongside servo cylinders and matched hydraulic system parts. Right now, our products hold strong advantages in both quality and pricing, offering outstanding cost performance compared with most imported alternatives.
Q1. What is your MOQ (minimum order quantity) for hydraulic cylinders?
A: Our standard MOQ is 1 unit for most models, and we also accept small trial orders for new customers to test quality and fit.
Q2. Can you provide custom hydraulic cylinders for our special application?
A: Yes, we specialize in custom hydraulic cylinders. We can design and manufacture according to your required bore, stroke, pressure, mounting, and special environment (corrosion, high temperature, etc.).
Q3.How long is your lead time for standard and custom hydraulic cylinders?
A: Standard models: 7~15 days. Custom cylinders: 15~30 days, depending on complexity and quantity.
Q4. How about your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving the advance payment. The specific delivery time depends onAccording to the item and quantity of your order.
