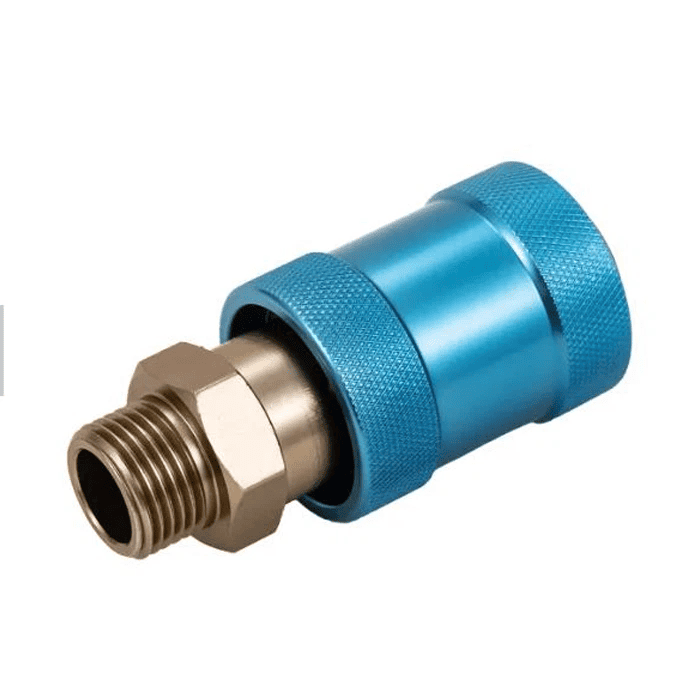

Product name:Hand Slide Valve Port size:G1/4" Working pressure:0.15-0.8Mpa Material:Aluminium Media:Air Brand:HCIC Working medium:Air Water Oil Gas Packing:Box Weight (KG):0.3
Slide valve drive mode has manual and automatic (mechanical, electromagnetic) two kinds. The automatic slide valve is driven by the mechanical equipment which is controlled by it, and the two coordinate the action to make the machine run automatically and continuously.
If the spool valve drive shaft is in the middle position, the piston movement stops. The disc of flat single disc slide valve has large friction on the sliding surface due to the large pressure difference, and the action is not sensitive and easy to wear. It also because of the shortcomings of the structure, can not be adjusted in the small flow range, so when the mechanical equipment under low load operation, the economy will be reduced. Adding a pair of disc to the planar double disc slide valve), the flow regulation performance and the force condition of the valve disc are improved, but there is still a large friction. Flat disc slide valves are mainly used in steam engines. Rotary slide valve has the advantages of quick, accurate and fine tuning, but poor sealing. It is suitable for the occasion of low pressure and temperature.
All parameters can be customized
Parameters of the sample
| Product name:Hand Slide Valve | Media:Air |
| Port size:G1/4" | Brand:HCIC |
| Working pressure:0.15-0.8Mpa | Working medium:Air Water Oil Gas |
| Material:Aluminium | Model:HCIC-08 |

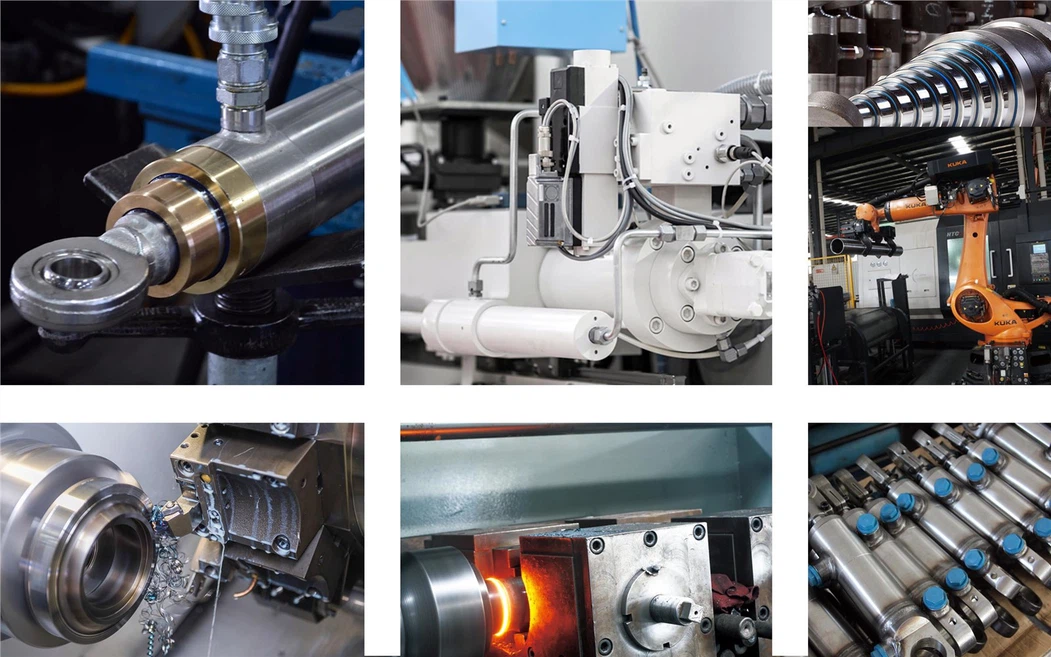

HCIC has a professional product quality test during the production process. These include the cylinder friction test of the hydraulic cylinder, the shock durability test, the drift rate test, the circulation test and the pressure test (the rated pressure is 150%in 5 minutes). The hydraulic cylinder test system is divided into single -acting and dual -action tests. When 100 % complete the test, they will be transferred to the quality inspection department for the final quality inspection link, and finally paste the label to put the market.
Before the official payment of customers, we will provide professional product design, quotation and other services according to customer needs, and our cost -effective is very reasonable, so old customers depend on us very much. After customer payment, we will provide 2 years of product quality tracking services and warranty services to ensure the vital interests of customers.

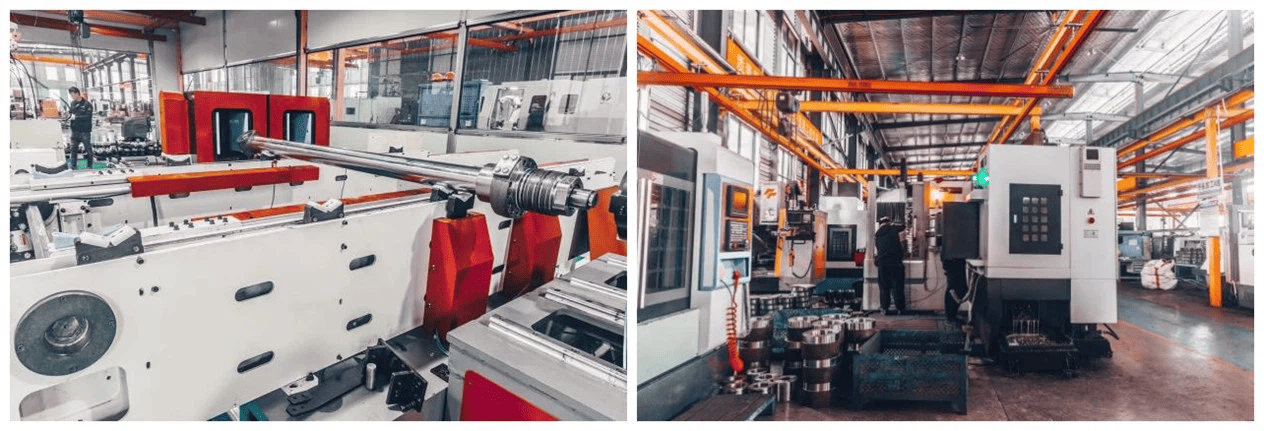

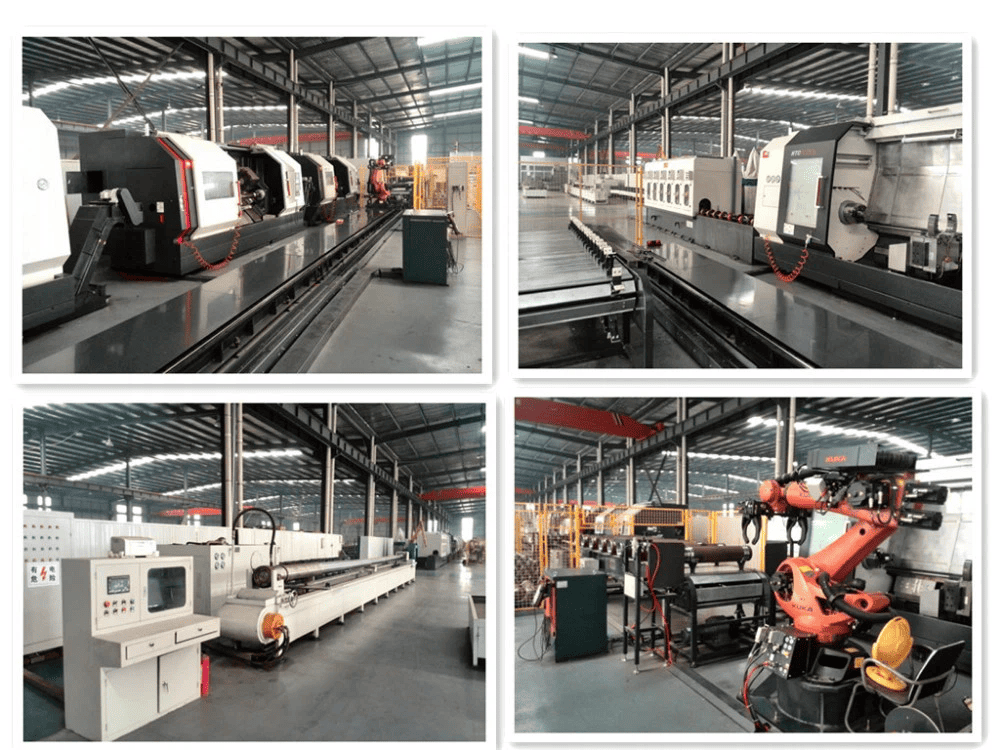

We are the top machinery production and processing factory in China, with 30 years of export experience, and our after-sales service satisfaction ratio is always 100%. Due to our advantages in product quality, price and service, our sales are all from old customers'place the order again and again. We want to cooperate with medium and large buyers, our service will make you satisfied, to achieve a win-win situation.
1.What is your payment terms?
1)T/T 2)L/C
2.What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request .
3.How long is your machine warranty?
Warranty of our product is one year,but artificial damage and incorrect use is not included.
4.What is your delivery time ?
It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.
