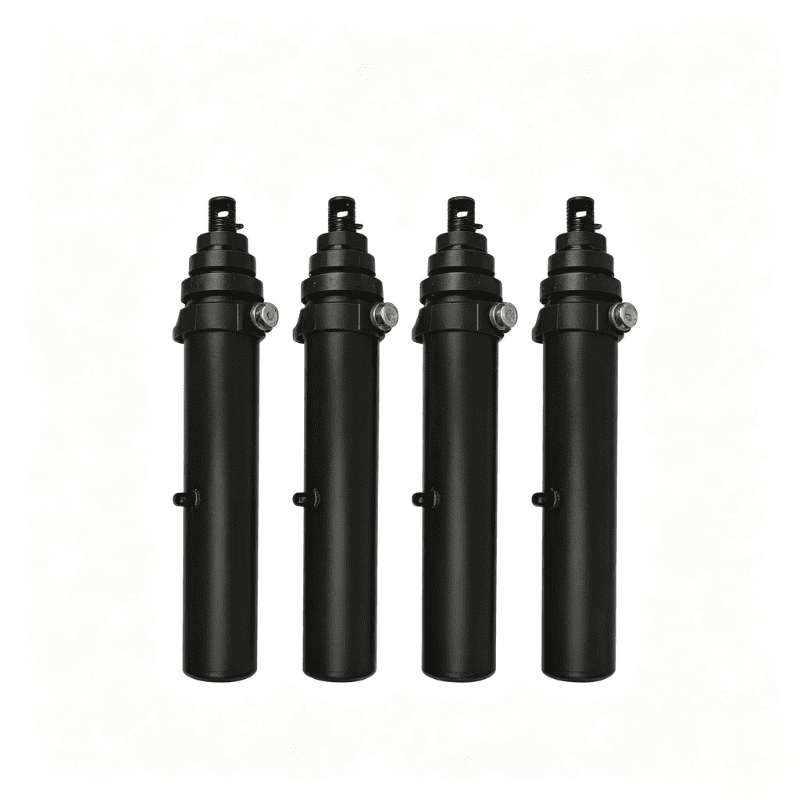

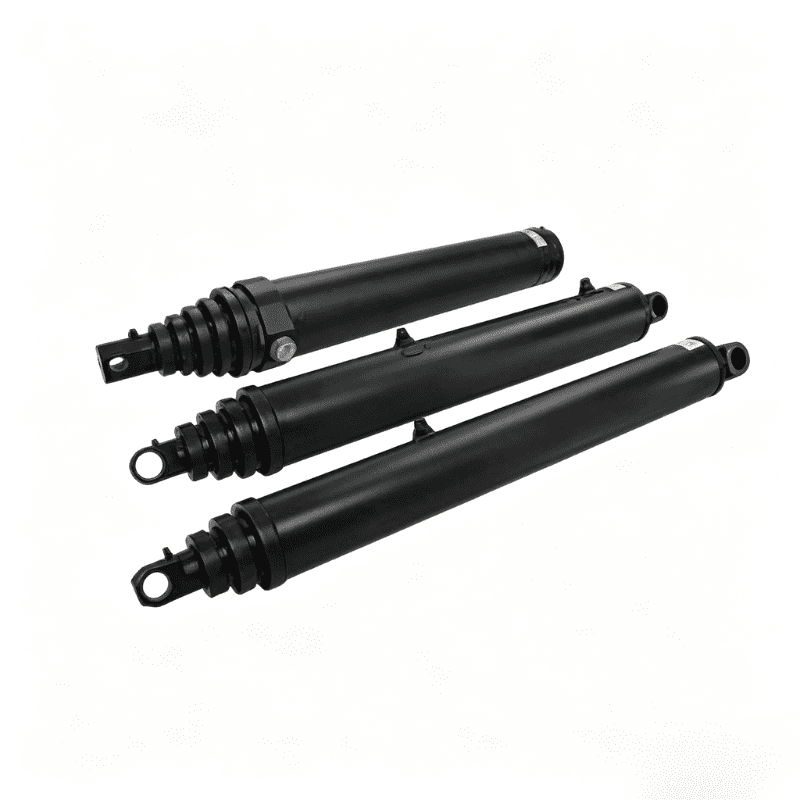

Pin‑Pin Mounting Tipping Cylinder for Trailer

The 63-4402-104 is a 4000 Series pin‑pin mounting tipping cylinder for trailer. Its pin-to-pin mounting format allows the cylinder to connect between two machine mounting points without requiring a separate flange or foot mounting arrangement.

The catalog lists a 108.56 in (2757 mm) extended dimension, a 71.94 in (1827 mm) closed dimension and a 3/4 NPTF port. The cylinder also uses a self-bleeding design, pre-loaded V-packing and a longer bearing length intended to support stable operation in the mounting arrangement shown in the catalog.

This article covers only model 63-4402-104.

---

I. Technical Specifications

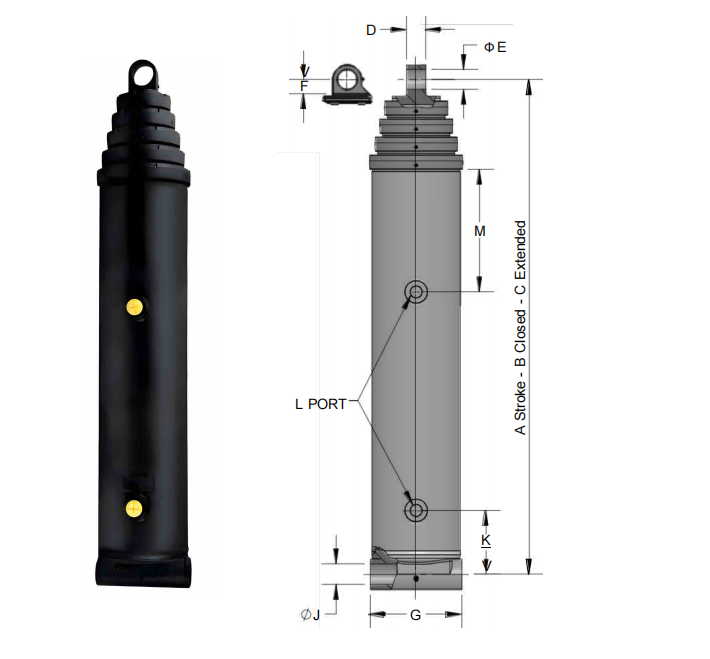

The letters A to M refer to the dimensional drawing in the HCIC catalog. Confirm the full installation drawing, pin dimensions, working pressure and hydraulic circuit requirements before ordering.

---

II. Pin-Pin Mounting Design

A pin-pin hydraulic cylinder is installed between two clevis or lug points. The cylinder body and rod-end connection transfer the machine load through the pins. This layout is common where the actuator must follow the movement of a tipping body, linkage or other articulated structure.

The fit is determined by more than the closed and extended dimensions. The buyer should check:

- Pin-center distances at both ends

- Pin diameter and available bearing width

- Clevis clearance and alignment

- Hydraulic port direction

- Hose movement through the complete stroke

- Mechanical clearance around the head and rod end

The 63-4402-104 should be selected from the approved dimensional drawing rather than from overall length alone.

---

III. Construction Features Listed in the Catalog

3.1 Self-Bleeding Design

The catalog identifies a self-bleeding design. In practical installation work, this can help reduce the amount of trapped air that remains in the cylinder during commissioning. The machine circuit still needs to be filled and purged according to the equipment manufacturer’s procedure.

3.2 re-Loaded V-Packing

The listed sealing arrangement uses pre-loaded V-packing with a self-adjusting wave spring energizer. The catalog also identifies an energized “Z” seal package as an option. The final seal configuration should be confirmed for the hydraulic fluid, temperature range and working conditions of the application.

3.3 Threaded Headnut

The threaded headnut is listed as a feature for added strength and field seal adjustment. It also provides a practical service interface when seal inspection or adjustment is required. Any field adjustment should follow the approved maintenance procedure and should not replace pressure isolation and safe disassembly practices.

3.4 Longer Bearing Length

The catalog lists a longer bearing length for stability. In a pin-pin installation, guidance is important because the actuator follows a moving structure. Correct alignment and proper pin condition remain necessary; a longer bearing length does not make the cylinder suitable for uncontrolled side loading.

---

IV. Working Principle

The 63-4402-104 converts hydraulic pressure into linear movement. When oil enters the appropriate port, pressure acts on the piston area and drives the rod outward or inward. The rod-end and cap-end pins transfer that movement to the connected tipping mechanism.

The usable movement is defined by the closed and extended dimensions in the catalog. The hydraulic valve, pump flow, relief protection and machine geometry determine the actual speed and force available in service.

The cylinder should not be treated as an independent lifting device. Its selection must match the hydraulic circuit and the mechanical structure to which it is pinned.

---

V. Main Product Benefits

- Pin-pin mounting for articulated hydraulic equipment

- 108.56 in / 2757 mm catalog-listed extended dimension

- 3/4 NPTF hydraulic port

- Self-bleeding design listed by HCIC

- Pre-loaded V-packing with self-adjusting wave spring energizer

- Optional energized “Z” seal package listed in the catalog

- Threaded headnut for added strength and field seal adjustment

- Longer bearing length for stability

- Closed and extended dimensions available in both inch and millimetre units

---

VI. Application and Fitment

The catalog places the 4000 Series pin-pin cylinder under hydraulic tipping solutions. The 63-4402-104 can be considered for equipment where the cylinder must be mounted between two pins and the available installation envelope matches the catalog dimensions.

Before confirming fitment, review the complete machine movement. The cylinder must have enough clearance at full retraction and extension, and the pins must remain aligned as the tipping structure moves. Hose routing should also be checked so that the 3/4 NPTF connection is not exposed to twisting or bending beyond the hose manufacturer’s limits.

---

VII. Information Required for a Quotation

Send the following information with your inquiry:

1. Machine type and cylinder function

2. Existing pin-center dimensions

3. Pin diameter and clevis width

4. Required closed and extended lengths

5. Working pressure and pump flow

6. Hydraulic fluid and operating temperature

7. Port orientation and hose routing

8. Required seal option

9. Quantity and delivery destination

10. Existing cylinder drawing or clear photographs

A drawing is especially important when the replacement cylinder must fit an existing tipping mechanism.

VIII. FAQ

---

IX. About HCIC

HCIC manufactures hydraulic cylinders and hydraulic power units for industrial applications. The company’s official website presents standard, purpose-made and custom hydraulic solutions.

For a replacement or OEM inquiry, send the machine drawing and the complete cylinder dimensions. HCIC can review the fitment requirements before confirming the final specification.

---

X. Request a Quotation

For model 63-4402-104, send the existing cylinder drawing, pin dimensions, working conditions and required quantity to HCIC for technical review.
