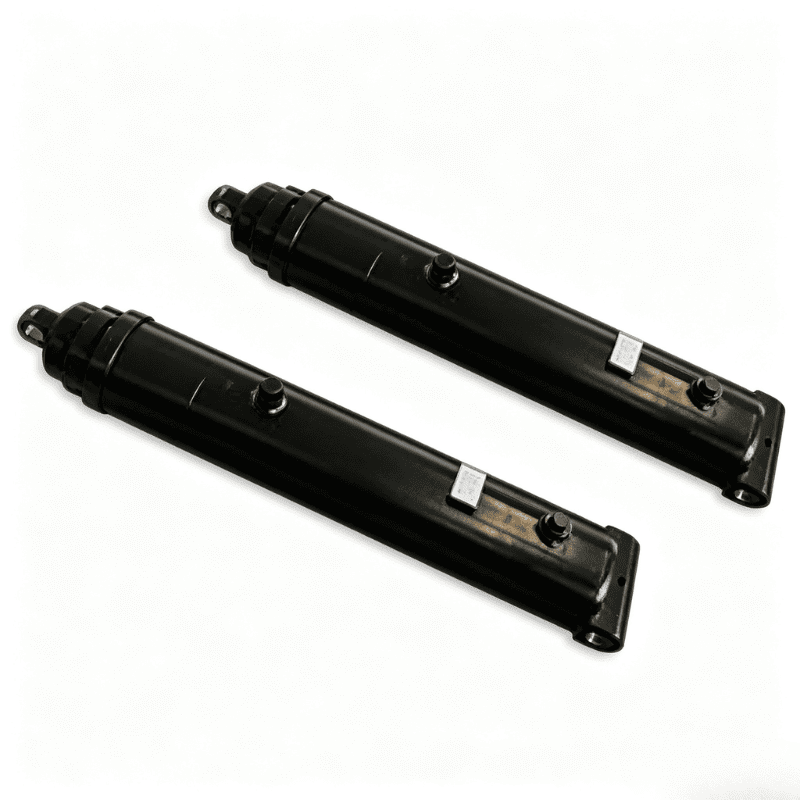

Pin‑Pin Mounting Hoist Cylinder for Dump Truck

The 63-4402-120 is a 4000 Series pin‑pin mounting hoist cylinder for dump truck. Its two-pin mounting arrangement is intended for an articulated machine installation where the cylinder works between fixed mounting points and follows the movement of the connected structure.

The HCIC catalog lists a 125.31 in (3183 mm) extended dimension, an 84.19 in (2138 mm) closed dimension and a 3/4 NPTF port for this model. The catalog also identifies a self-bleeding design, pre-loaded V-packing, a field-adjustable threaded headnut and a longer bearing length for stability.

This article covers only model 63-4402-120.

---

I.Technical Specifications

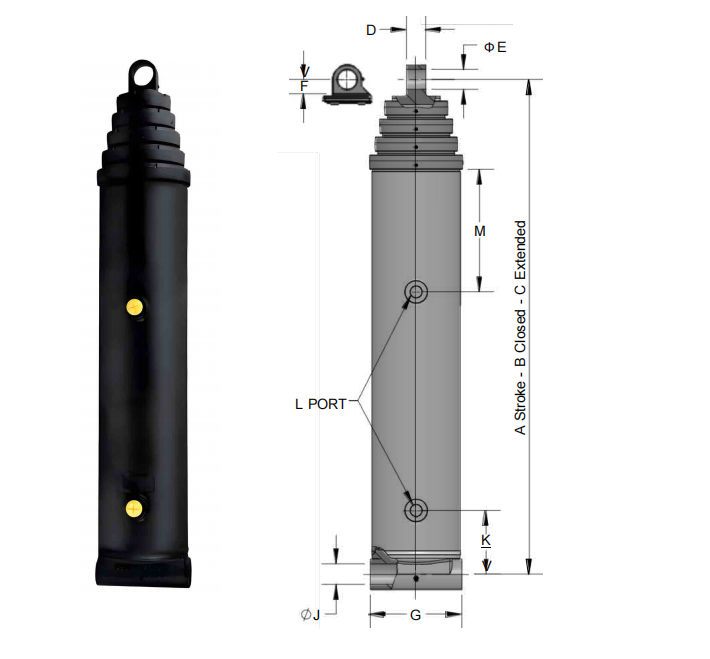

The dimensions use the lettering shown in the HCIC catalog drawing. Confirm the complete drawing, pin details, hydraulic pressure and installation clearances before placing an order.

---

II. Pin-Pin Mounting Arrangement

The 63-4402-120 is installed between two machine pins. One end connects to the cylinder body and the other to the rod-end mounting. As the hydraulic circuit extends or retracts the rod, the pin centers transfer the linear movement into the connected tipping mechanism.

The mounting arrangement requires accurate fitment. Before replacing an existing actuator, check:

- Closed and extended pin-center distances

- Pin diameter and bearing width

- Clevis alignment through the full movement

- Port position and hose bend radius

- Clearance around the headnut and rod end

- Mechanical stops and possible side loads

A correct catalog length does not by itself confirm that the cylinder will fit the machine. The complete mounting drawing should be approved before production.

---

III. Design Features Listed by HCIC

3.1 Self-Bleeding Design

The catalog identifies a self-bleeding design for the 4000 Series pin-pin cylinder. This feature can help the cylinder release trapped air during commissioning when the hydraulic system is filled and operated according to the equipment procedure.

The system still needs suitable filling, air removal and oil-cleanliness practices. Self-bleeding does not remove the need to inspect the reservoir, hoses and connections.

3.2 Pre-Loaded V-Packing

The cylinder is listed with pre-loaded V-packing and a self-adjusting wave spring energizer. The catalog also identifies an energized “Z” seal package as an option. The final seal arrangement should be confirmed according to the hydraulic fluid, temperature and operating conditions.

3.3 Threaded Headnut and Field Seal Adjustment

The threaded headnut is listed for added strength and field seal adjustment. This gives maintenance personnel a defined service interface for seal-related work. Before any service operation, isolate hydraulic pressure, support the connected structure and follow the machine’s safe maintenance procedure.

3.4 Longer Bearing Length

HCIC lists a longer bearing length for stability. This is relevant to an actuator that moves an articulated structure between two pins. Proper pin alignment, clevis condition and machine-side guidance are still required because the cylinder is not intended to compensate for uncontrolled side loading.

---

IV. Working Principle

Hydraulic pressure acts on the piston to create linear rod movement. The cylinder’s body and rod end transmit that movement through the two pinned connections. The hydraulic pump and control valve determine the oil flow, while the circuit’s pressure protection limits the operating conditions.

For model 63-4402-120, the catalog gives the closed and extended dimensional values used to check the available stroke envelope. The machine designer must confirm that the tipping structure can move through its complete range without binding, bottoming out or forcing the cylinder into an unintended load path.

---

V. Main Product Benefits

- Pin-pin mounting for articulated tipping equipment

- 125.31 in / 3183 mm catalog-listed extended dimension

- 3/4 NPTF hydraulic port

- Self-bleeding design listed by HCIC

- Pre-loaded V-packing with self-adjusting wave spring energizer

- Optional energized “Z” seal package listed in the catalog

- Threaded headnut for added strength and field seal adjustment

- Longer bearing length for stability

- Inch and millimetre dimensions for installation planning

---

VI. Application and Fitment

The 4000 Series is presented in the HCIC catalog as a hydraulic tipping solution. Model 63-4402-120 is suitable for consideration where the equipment requires a pin-pin cylinder and the machine interface matches the listed dimensional envelope.

The buyer should verify the load path, pin alignment, operating speed, pressure, oil type and hose routing. The longer extended dimension makes installation planning particularly important: check transport or folded position, full tipping position and all intermediate positions before confirming fitment.

---

VII. Information Required for a Quotation

Provide the following details to obtain a project-specific review:

1. Machine type and tipping function

2. Existing closed and extended pin centers

3. Pin diameter, clevis width and bearing arrangement

4. Required working pressure and pump flow

5. Hydraulic fluid and operating temperature

6. Port orientation and hose routing

7. Seal preference or fluid-compatibility requirement

8. Mechanical stop and clearance information

9. Quantity and destination

10. Existing drawing, sample measurements or photographs

These details allow the cylinder dimensions to be checked against the actual machine rather than against a nominal model name alone.

---

VIII. FAQ

---

IX. About HCIC

HCIC manufactures hydraulic cylinders and hydraulic power units for industrial applications. Its official website presents standard, purpose-made and custom hydraulic solutions.

For a 63-4402-120 replacement or OEM project, send the existing cylinder drawing and machine interface details. HCIC can review fitment and confirm the final configuration before production.

X. Request a Quotation

For model 63-4402-120, send the machine drawing, pin dimensions, operating conditions and required quantity to HCIC for technical review.
