Every gas-powered ride needs a starter to fire up—and the starter solenoid is the heavy-duty electrical switch that sends juice to spin that starter motor. It only kicks in when you twist the ignition key.
Solenoids die eventually, and the signs are hard to miss: you turn the key and hear a click but the engine won’t crank; your battery’s fully charged but there’s zero action when you hit the ignition; or the starter keeps whirring even after you let go of the key. To be sure it’s the solenoid, check for 12-volt power at the solenoid, then test the voltage going to the starter while cranking. Low or no juice? Your solenoid’s toast.
Disconnect your battery’s negative cable to avoid nasty shorts. Throw on work gloves and safety goggles, and work in a clean spot—no gasoline, rags, or other flammable stuff lying around. A tiny spark could turn into a big problem.
1. Find the Solenoid
Modern cars: It’s bolted right to the starter motor, under the vehicle at the spot where the engine and transmission meet. Look for the thick battery cable and thin switch wire hooked up to it.
Classic rides: It’s usually mounted on the firewall near the hood—way easier to reach.
2. Pull the Old Solenoid
Newer vehicles (1980s and up): Lift and secure the car, disconnect the battery, unbolt the solenoid wires, yank out the starter motor, then pop the old solenoid off the starter.
Classics: Disconnect the battery, unhook the wires, and unscrew the solenoid from the firewall. Done in five minutes flat.
3. Slap on the New Solenoid
Newer vehicles: If the solenoid’s built into the starter, just swap the whole starter (reverse the removal steps—don’t forget to torque those bolts right).
Classics: Grab a matching solenoid, screw it to the firewall, and hook the wires back up exactly like they were on the old part.
Reconnect the battery and lower the car.
4. Test It Out
Twist the key—if the engine cranks, you nailed it. If not, recheck the voltage; the problem’s probably somewhere else in your ignition system.
5.Big Mistake to Avoid
Don’t mess up the wiring! Cross those wires, and you’ll get sparks flying, blown fuses, or even a fire that fries your battery. Pro tip: Snap a photo of the original connections before you take anything apart.
Grab top-notch starter solenoids and starters at HCIC. If this job feels like too much, HCIC’s Shop Referral Program can hook you up with qualified mechanics who know their stuff.

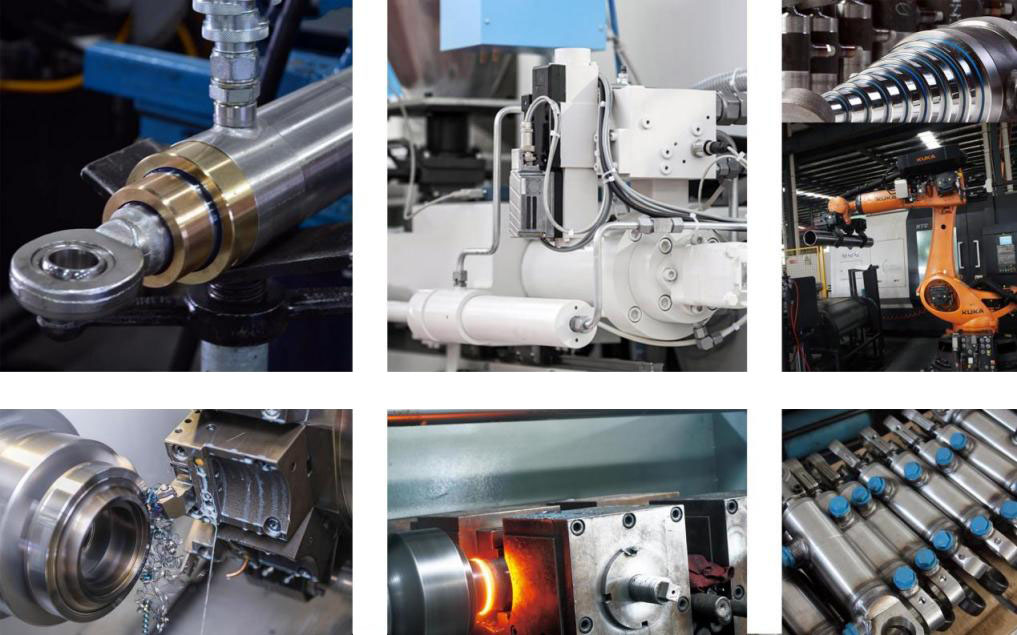

HCIC is a professional hydraulic manufacturer, mainly engaged in hydraulic system design, manufacture, installation, transformation, commissioning and hydraulic components brand sales and technical services.We hope that our product can help to save your cost and improve your quality. For More details please email us "davidsong@mail.huachen.cc" or google search "HCIC hydraulic"
