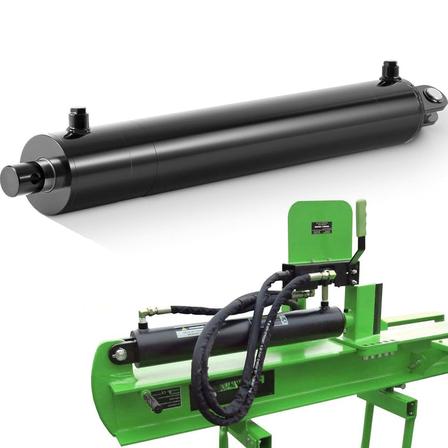

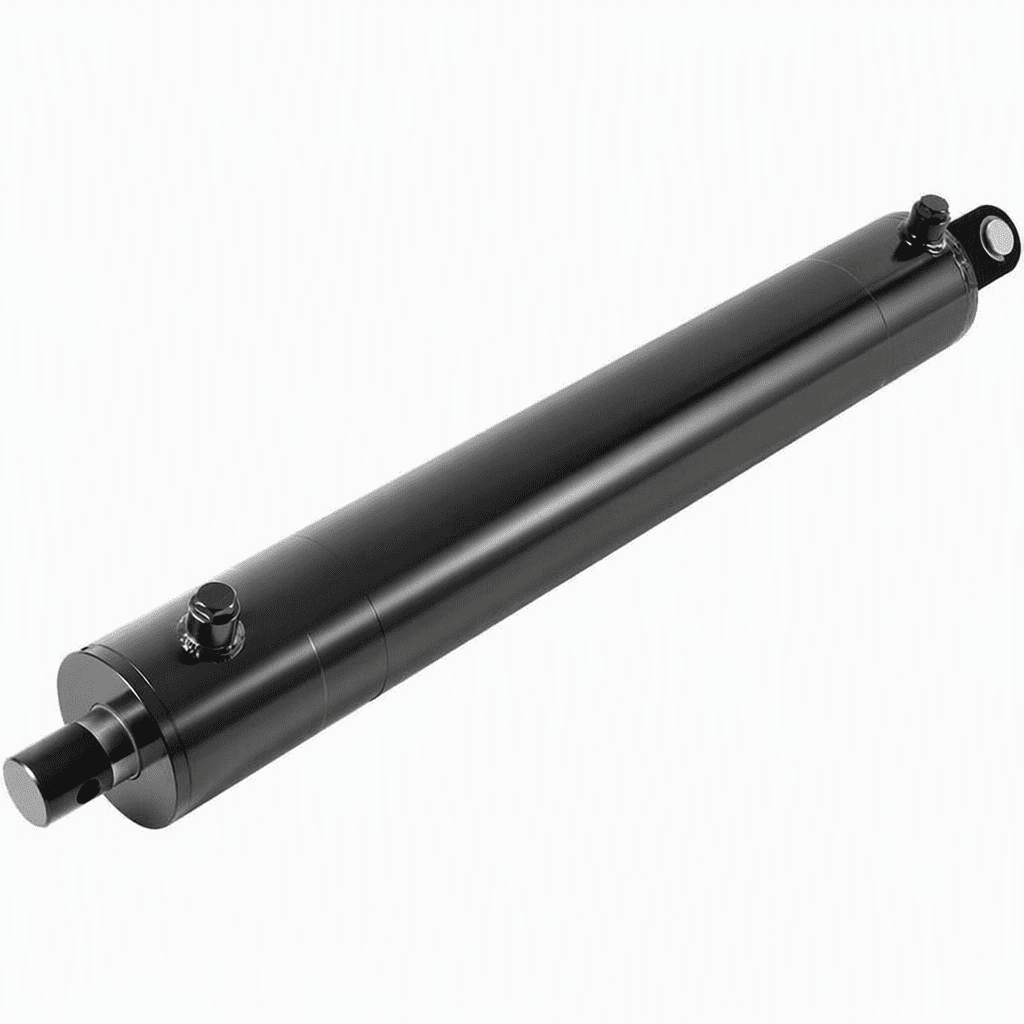

top waiting for slow retraction. The HCIC H-001-4452 Log Splitter Cylinder delivers a sub-10 second cycle time with 3,500 PSI of raw splitting torque. Real speed, real profit.
Bore Diameter:
4.50" (114.3 mm)Stroke Length:
24.00" (609.6 mm)Rod Metallurgy:
1.75" (44.4 mm)Porting:
1/2" NPT )For anyone running a commercial firewood processing business, slow-moving hydraulic cylinders directly eat away your actual earnings. If your splitting ram crawls back slowly after each cut, you waste precious working time every single cycle. Over a full season, these short waiting moments pile up and make you lose dozens of cords of finished firewood. Most standard hydraulic cylinders for log splitters cannot match high-GPM pumps well, the root cause lies in narrow internal oil passages that block the smooth flow of hydraulic fluid.
HCIC H-001-4452 log splitter cylinder uses a proprietary high-flow internal port layout. We enlarge the holes on the retraction side and polish the inner wall of oil channels to deliver an immediate bounce-back reset action. It handles dense, knotted hickory timber with reliable splitting force. Meanwhile, the splitting wedge slides back into place right away, before operators pick up another log to feed in, keeping your whole splitting line running at steady high output.

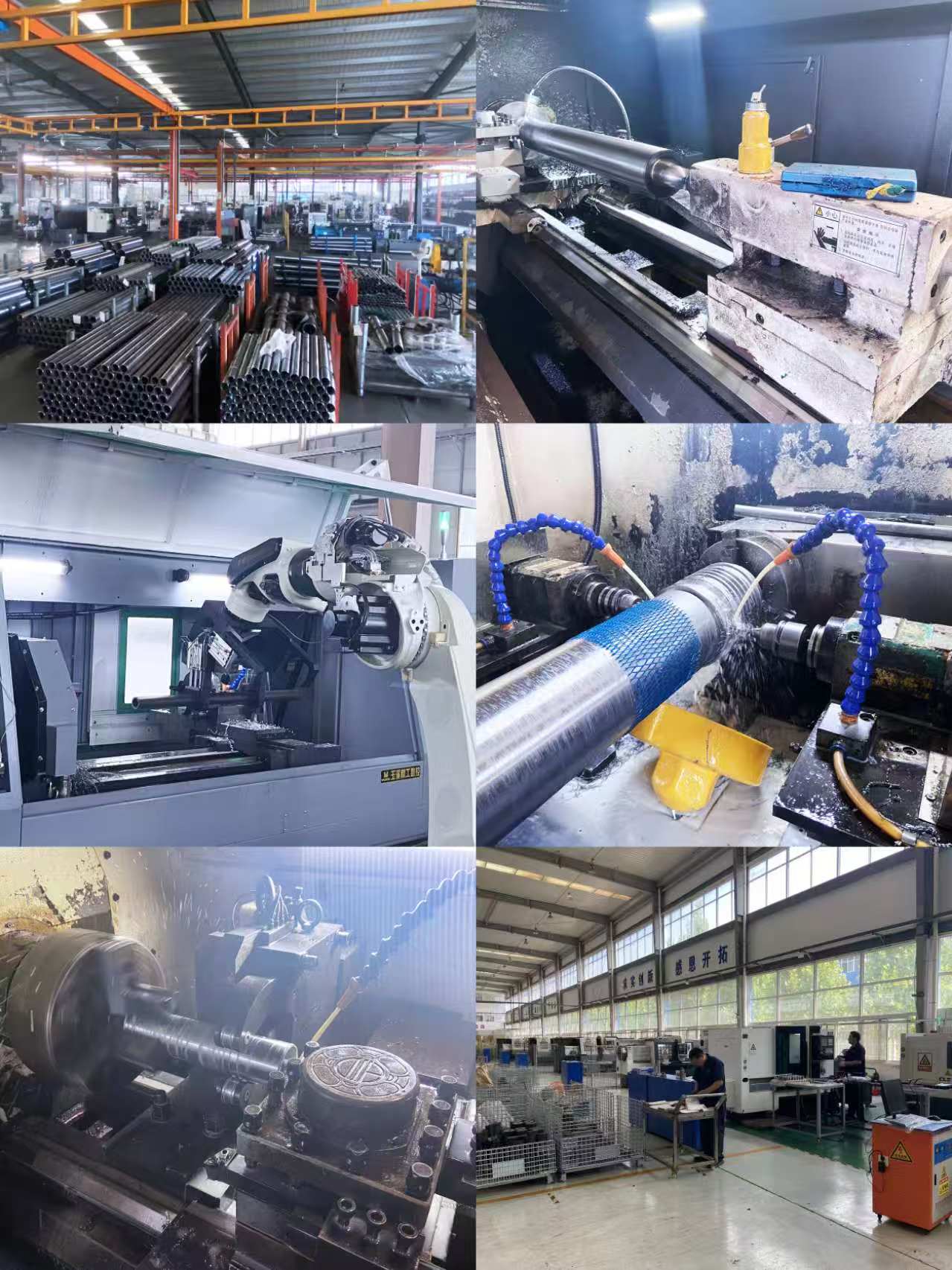

Our Jinan workshop adopts five-axis machining centers to finish six surfaces of workpieces in one clamping. We control component tolerances tightly, laying a solid foundation for our self-developed hydraulic parts.Flow control valves adjust the running speed of executing parts through throttle resistance.
Throttle valve: It maintains roughly steady flow when load pressure has small fluctuations.
Speed control valve: It locks the pressure difference of the throttle opening, so flow volume and component speed stay stable no matter how the load pressure shifts.
| Parameter | Spec |
|---|---|
| Bore Diameter | 4.50" (114.3 mm) |
| Stroke | 24.00" (609.6 mm), custom available |
| Retraction Match | 22+ GPM two-stage pumps |
| Rod | 1.75" hardened 4140 chrome rod |
| Piston Material | High ductile cast iron |

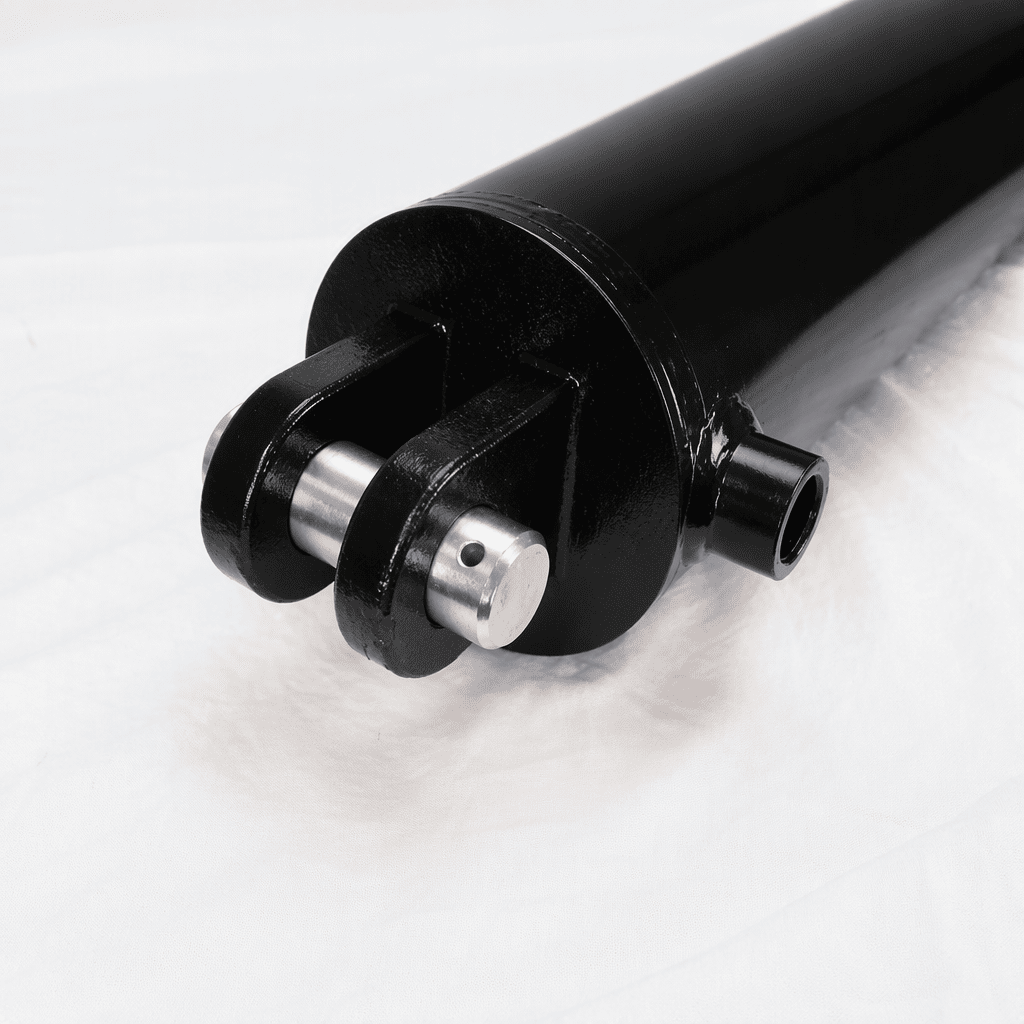

| Mounting | Clevis to clevis, reinforced structure |
| Port | 1/2" NPT high-flow port |
Continuous vibration is the main reason log splitter rams fail ahead of their designed service life. The H-001-4452 cylinder adopts precision rolled threads on gland nuts together with locking set screws. This dual-lock structure stops the gland from loosening during long hours of intense splitting vibration.Inside the cylinder, we install custom V-type combined packing seals. These seals stay intact even when instant pressure spikes hit 3,500 PSI during tough log splitting work. The seal structure will not shift or roll under sharp pressure fluctuations, effectively preventing hydraulic oil leakage and greatly extending the whole cylinder service life.
