Product name:High Pressure Hose Fittings Certification:ISO9001-2000 Part name:Nitrogen Filling Tool Standard or Nonstandard:Standard Application:Oil Material:Cast Iron

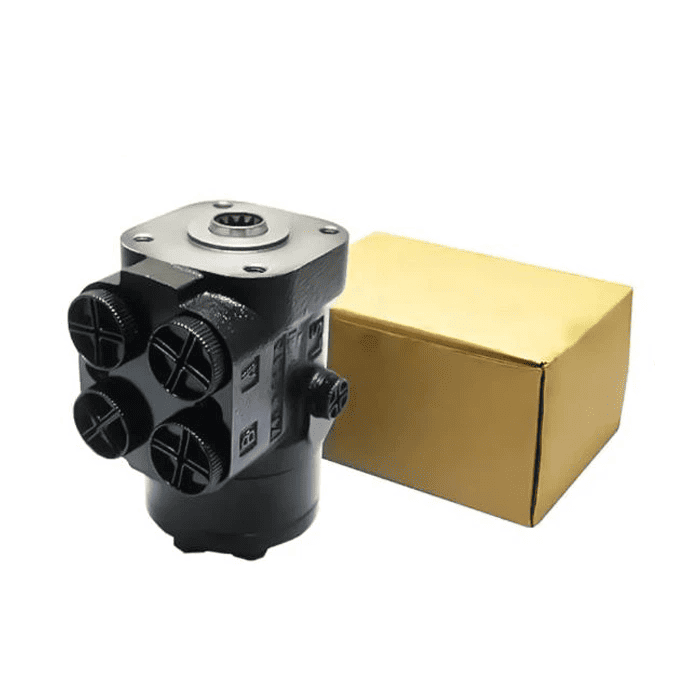

Hydraulic steering gear is hydraulic power steering gear. The steering gear (also known as the steering gear) is a group of gear mechanisms that complete from rotary motion to linear motion (or approximate linear motion), and is also a reduction transmission device in the steering system. It is the most important component in the steering system. The hydraulic steering gear is a cycloidal rotary valve type full hydraulic steering gear composed of a servo rotary valve and a cycloidal rotary stator pair. It is a full hydraulic steering system composed of fuel supply pump, overflow valve (or diverter valve), steering cylinder and other connecting accessories.
1)With good pressure compensation to the change of steering load.
2) The flow and pressure of steering unit keep prior,steering function is reliable.
3) The steering circuit and other circuits work independently of each other, thereby increasing the efficiency of the system.
4)With high steering sensitivity, quick response,starting function is good in cold condition
All parameters can be customized
Parameters of the sample
| Parameters | Type 101-*-****-* | |||||
|---|---|---|---|---|---|---|
| Function code | Displacement (mL/r) | Rated flow (L/min) | Max.input pressure (Mpa) | Max.cont.back pressure (Mpa) | Weight (kg) | Dimension L (mm) |
| 1, 2, 4 | 50 | 5 | 17.5 | 2.5 | 5.70 | 130 |
| 63 | 6 | 5.76 | 132 | |||
| 80 | 8 | 5.84 | 134 | |||
| 100 | 10 | 5.91 | 137 | |||
| 125 | 12.5 | 6.05 | 140 | |||
| 160 | 16 | 6.25 | 145 | |||
| 200 | 20 | 6.45 | 150 | |||
| 1, 4 | 250 | 25 | 6.68 | 156 | ||
| 280 | 28 | 6.86 | 161 | |||
| 315 | 31.5 | 7.06 | 166 | |||
| 400 | 40 | 7.45 | 176 | |||
The function of the hydraulic steering gear is to increase the force transmitted by the steering wheel to the steering transmission mechanism and change the direction of the force transmission. Widely used in agricultural machinery, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, construction machinery and mining machinery and other low speed heavy load vehicles. Through it, the driver can realize the larger steering force control with the smaller steering force, and the performance is safe, reliable, light and flexible.
Before the official payment of customers, we will provide professional product design, quotation and other services according to customer needs, and our cost -effective is very reasonable, so old customers depend on us very much. After customer payment, we will provide 2 years of product quality tracking services and warranty services to ensure the vital interests of customers.
1. 13years experience.
2. Perfect workmanship. Always committed to research and development.
3. Ensure the products meet the quality standards.
4. Ensure the goods will be delivered on time.
5. We will reply you within 2 hours.
6. Provide warm and friendly service and after-sale service.
7. Guaranteed the good quality and best service, as you buy from local supplier.
8. Assorted designs, colors, styles, patterns and sizes are available.
9. Customized specifications are welcome.
1.Whether you could make our brand on your products?
A:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
2.Whether you could make your products by our color?
A:Yes, The color of products can be customized if you can meet our MOQ.
3.How to guarantee the quality of your products?
A:1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
4.How about your delivery time?
A:Generally, it will take 25 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.How do you make our business long-term and good relationship?
a. We keep good quality and competitive price to ensure our customers benefit ;
b. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
