HSG double-acting cylinders for construction, agriculture & sanitation. 16MPa, custom strokes, reliable, low maintenance. HCIC 28yrs, 12-month warranty.
Standard Bore Sizes:
50mm / 63mm / 80mm / 100mmCorresponding Rod Diameter:
28mm / 35mm / 45mm / 55mmRated Working Pressure:
16MPaStandard Thrust Range:

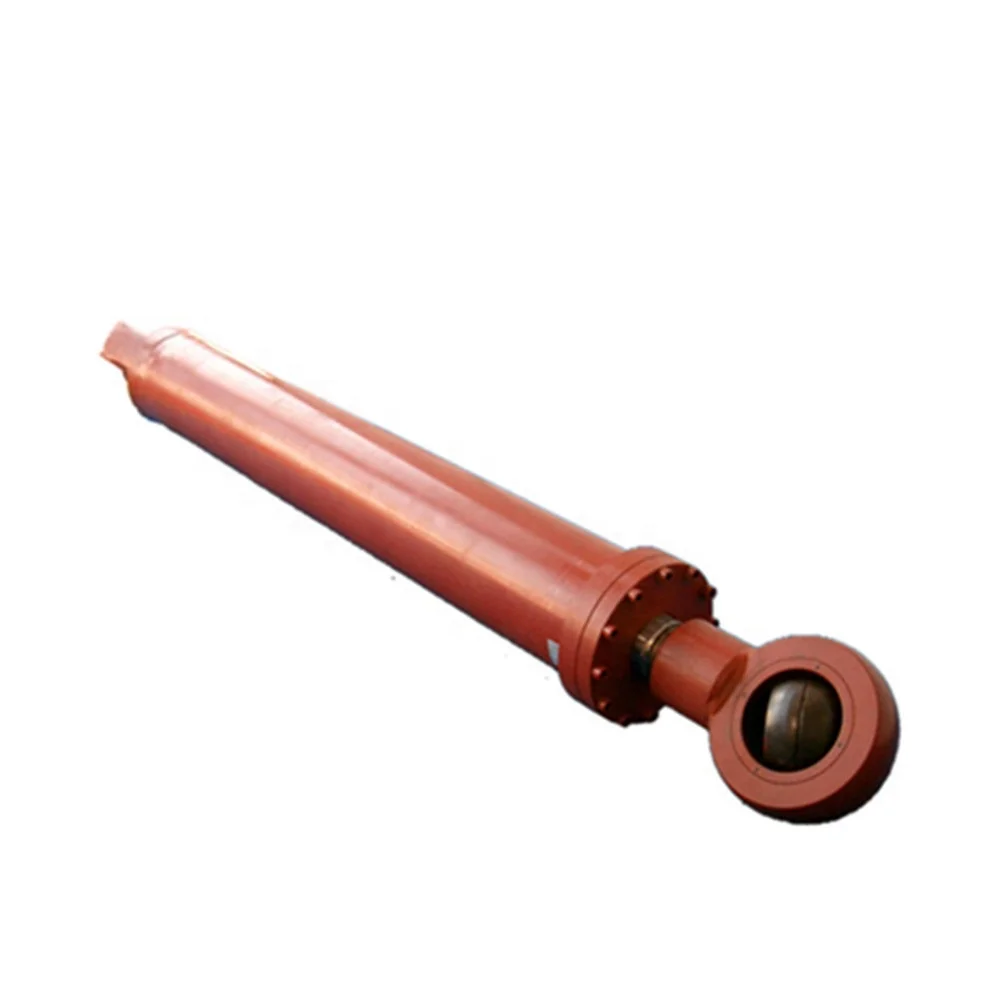

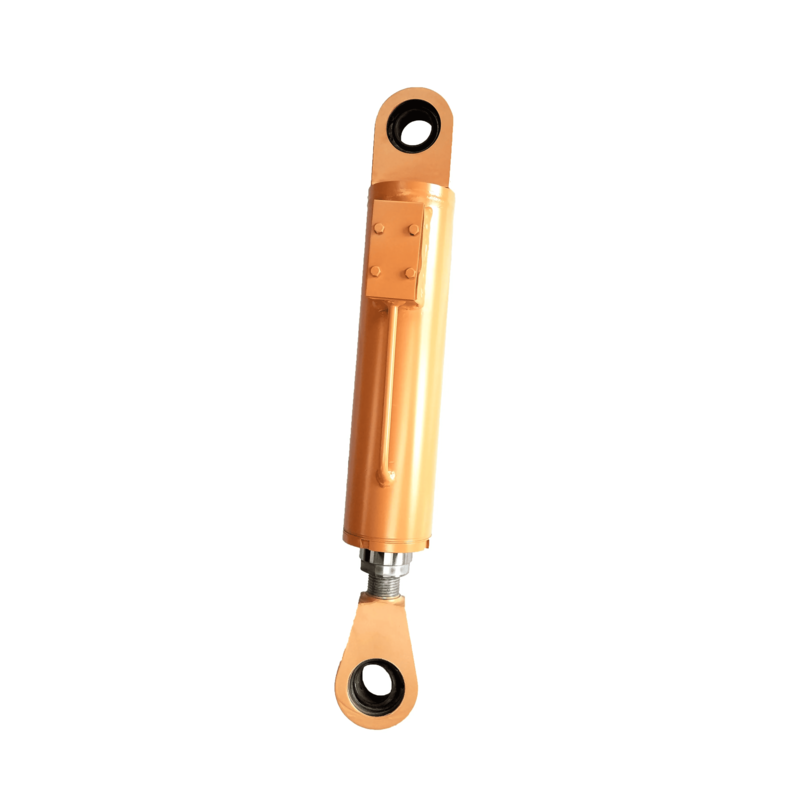

Approx. 31.4kN ~ 125.7kNThe HSG series is the standard double-acting single-piston rod cylinder you’ll find on nearly every construction site. It’s a proven design, works with most equipment, and parts are easy to swap out. Built for linear motion in heavy machinery, it holds up to long hours and high cycles. This line is the go-to standard cylinder for construction, farm, sanitation, and other industrial jobs.
| Item | Specification |
|---|---|
| Series Name | HSG Series Engineering Hydraulic Cylinder |
| Motion Type | Double-acting, single piston rod |
| Standard Bore Sizes | 50mm / 63mm / 80mm / 100mm |
| Corresponding Rod Diameter | 28mm / 35mm / 45mm / 55mm |
| Rated Working Pressure | 16MPa |
| Standard Thrust Range | Approx. 31.4kN ~ 125.7kN |
| Standard Stroke Range | 50mm ~ 3000mm (custom lengths available) |
| Operating Temperature Range | -20℃ ~ 80℃ |
| Mounting Styles | Double clevis / Flange / Rear pin / Middle trunnion |
Each HSG cylinder uses a precision-honed steel tube. This cuts down on friction and helps the seals last much longer. The piston rod is made of high-strength tempered steel with hard chrome plating. It won’t wear down, scratch easily, or rust out in the field. We use high-quality combined seals. No leaks, inside or out, even when pressure or temperature swings. The head and piston are built to spread stress evenly. That means less shock to the cylinder and a longer overall life.
The HSG line works with most standard mounting styles. It fits different equipment designs perfectly:
HSG cylinders work in all kinds of heavy-duty gear across industries:
They hold up great in high cycles, hard impacts, and all kinds of outdoor work sites.
Standard sizes mean we keep these in stock. Fast delivery cuts down on your lead times. Thrust is steady, movement is smooth. That lessens shock on the machine and protects your equipment. High-strength materials and tight machining keep the cylinder rigid and stable for years. Good seals mean almost no leaks. Maintenance is simple, so your operating costs stay low. We can adjust stroke, mount style, and pressure rating to fit your exact job. Every cylinder gets checked before it ships, so you know it’s good to go.
HCIC has 28 years making hydraulic cylinders. We’ve got full CNC lines and proper testing gear, plus ISO9001 certification. The HSG series comes with a 12-month warranty. We handle small trial orders and big bulk runs, too. Our global after-sales team helps customers all over the world. You get stable, reliable solutions every single time.
