HCIC FEE-5TG-E191*4826 front-mounted multi-stage hydraulic cylinder:16MPa pressure,51.3ton lift,custom-built for heavy gear.Buy durable hydraulic parts with HCIC's quality service and tailored design.
Lifting Weight:
51.3tonPressure:
16MPa

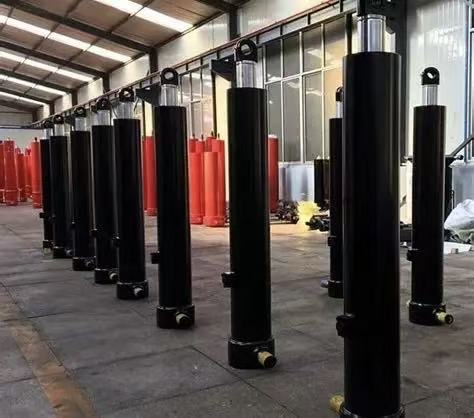

HCIC builds custom hydraulic cylinders for heavy gear. We’ve been at it for years. The FEE-5TG-E191*4826 front-mounted multi-stage cylinder? It’s made for construction cranes, mining trucks—all the big machines that need tough lifting parts.
1.1 16MPa pressure, steady as rock
This cylinder holds 16MPa rated pressure. Mine sites, construction yards—no pressure drops, no stops. Perfect for hydraulic lifting systems that run all day.
1.2 51.3ton lift, no sweat
Lifts up to 51.3 tons. Beats regular cylinders. Your industrial hydraulic machinery gets more lifts done, less idle time.
2.1 Small size, long stroke
HCIC’s telescopic design is compact. Fits in tight spots on cranes, loaders, aerial work platforms. Still has a long stroke for lifting tasks.
2.2 Made to your specs
We don’t do generic. Tell us your work load, temperature, install space. We’ll adjust the cylinder barrel material, seals, stroke length. Matches your hydraulic power unit spot-on.
3.1 Every part tested

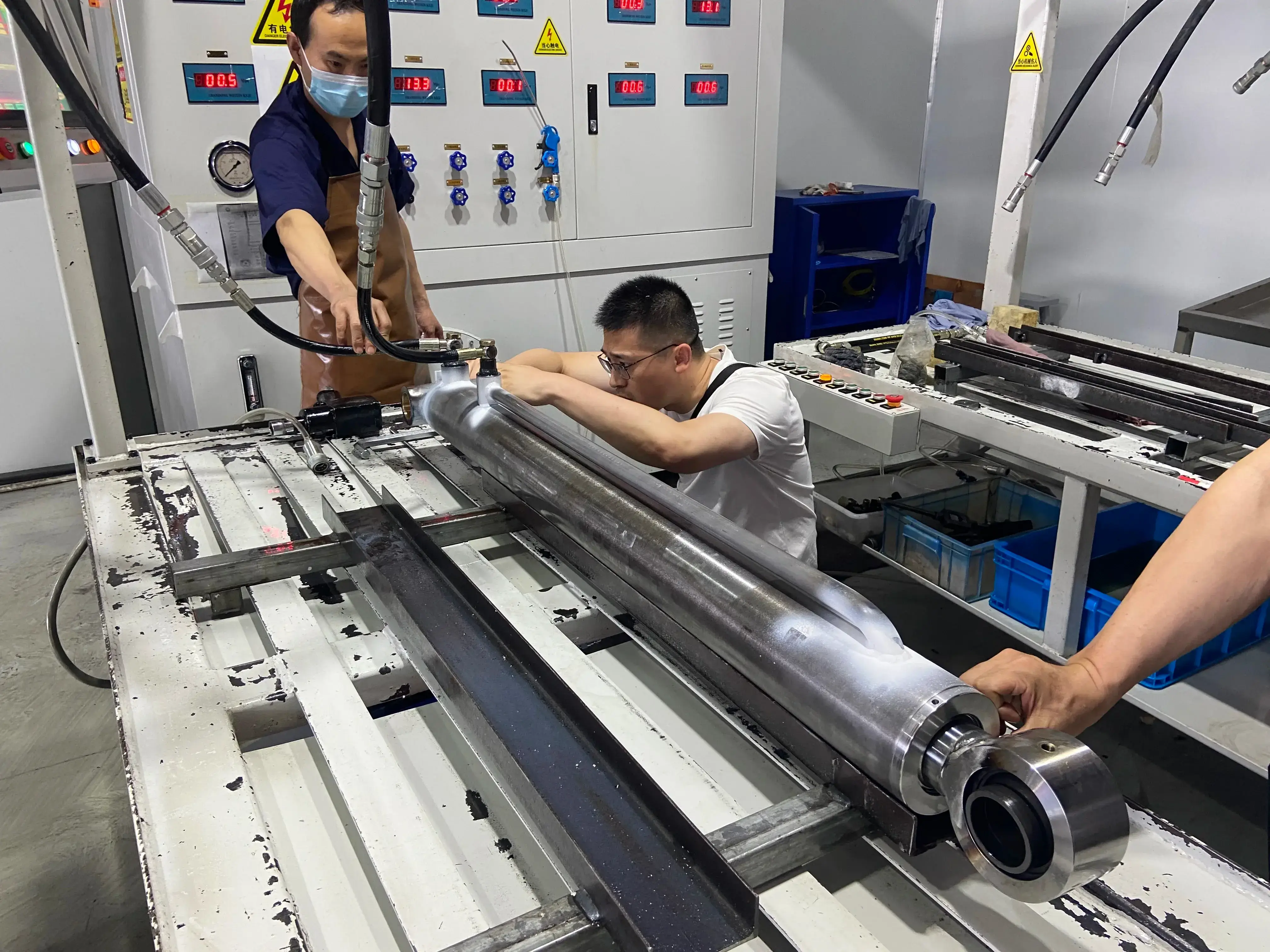

We check every piece—raw steel to final build. Precision machining, durability tests. This heavy-duty hydraulic cylinder lasts for years, not just months.
3.2 We’re here after the sale
HCIC doesn’t just ship and forget. We help with installation, fix problems fast, send genuine parts. Keeps your hydraulic equipment maintenance costs low, machines running longer.
HCIC knows custom hydraulic cylinders. We don’t use fancy words—just build parts that work. The FEE-5TG-E191*4826 is one of those parts. That’s why our clients from all over the world keep coming back.
Click questions to check details about selection, customization, performance and after-sales.
A: Our engineers will calculate the ideal stage number based on your total stroke requirement, installation space (retracted length limit) and load distribution. We balance stroke length, stability and cost to meet your actual equipment needs (common 2-7 stages).
A: The load capacity depends on bore size, stage number and working pressure (max 350 bar). We can customize front-mount multi-stage cylinders with load capacity from 5 tons to 500 tons, fully matching your equipment's lifting/pushing requirements.
A: Yes. We optimize the internal oil passage and seal design for high-speed scenarios (0.1-0.8 m/s telescopic speed). For ultra-high-speed applications, we add buffer structures to avoid impact damage during stage retraction.
A: We integrate flow control valves and balance valves into the cylinder design to achieve precise stage synchronization (error ≤ 2mm). For high-precision projects, we also provide servo-controlled synchronization solutions.
A: We use 45# steel/27SiMn alloy steel for piston rods (hard chrome-plated, thickness 0.05-0.1mm) to resist wear and corrosion. For harsh environments (seawater/dust), we offer stainless steel rod options to extend service life.
A: Yes. We add reinforced guide sleeves and wear rings to each stage, and optimize the front-mount bracket design to resist radial force (max allowable eccentric load 15% of axial load), ensuring stable operation under non-axial load.
A: 1) Replace hydraulic oil every 6 months (ISO VG46/68 anti-wear oil); 2) Clean rod surface before retraction to avoid dust entering; 3) Check seal tightness monthly; 4) Lubricate mountings quarterly. We provide a detailed maintenance manual with each order.
A: We use imported Parker/Trelleborg seals with service life of 2-3 years (or 500,000+ telescopic cycles) under normal use. We also provide seal kits as spare parts for on-site quick replacement.
A: Minor leakage is usually caused by seal wear – replace the corresponding stage seal kit per our video guidance. For severe leakage (cylinder body crack), contact our after-sales team for free repair/replacement within warranty period.
A: Yes. For bulk orders or key projects, we dispatch professional technicians for on-site installation, debugging and maintenance. For small orders, we provide free video/remote guidance to solve problems quickly.
A: MOQ is 1 piece (support trial order for testing). Standard models: 7-10 working days; custom models: 15-25 working days (expedited service available for urgent orders: 7-10 working days).
HCIC is a professional hydraulic manufacturer, mainly engaged in hydraulic system design, manufacture, installation, transformation, commissioning and hydraulic components brand sales and technical services.We hope that our product can help to save your cost and improve your quality. For More details please email us "davidsong@mail.huachen.cc" or google search "HCIC hydraulic"
