Front‑Mount Telescopic Hydraulic Cylinder

4TG‑E149*4280 4‑stage front‑mount telescopic hydraulic cylinder adopts ST52‑3 chrome‑plated tubes. It offers strong lifting force for gravel, sticky soil and rubbish. Suitable for dump, mining and garbage trucks, tested under strict pressure check and backed by 18‑month warranty.

---

I. What Is the HCIC 4TG-E149*4280 Front Mount Telescopic Cylinder?

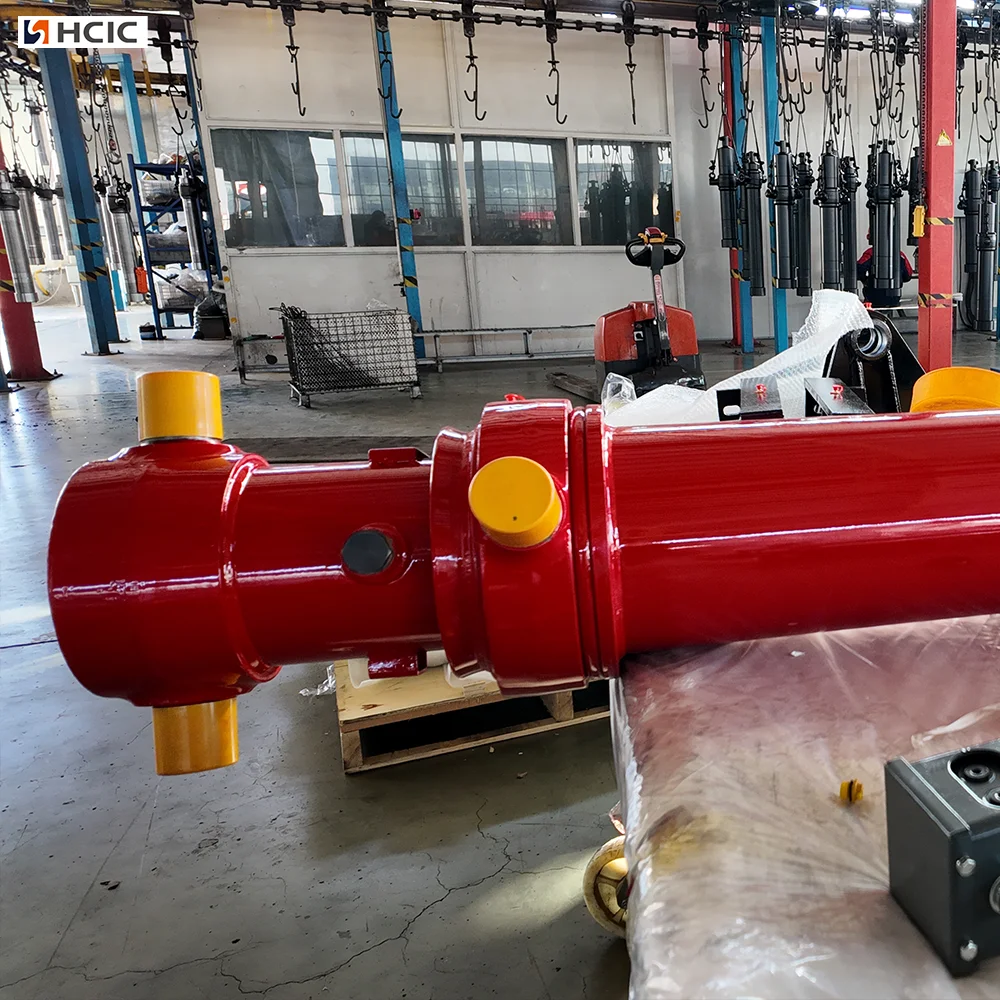

The HCIC 4TG-E149*4280 front mount telescopic hydraulic cylinder is a 4-stage tipping ram built for the heaviest loads in the construction and mining industry. This is not a standard cylinder. It is a front-mount unit, meaning it sits at the head of the dump body, providing maximum leverage for breaking loose sticky loads like wet clay or heavy aggregate.

We build this model in our Jinan plant using high-tensile ST52-3 cold-drawn tubes. Every stage is precision-honed and hard-chromed. When you are tilting a 30-ton load, you don't want "close enough" engineering. You want the stability of the HCIC 4TG-E149*4280 front-mount Telescopic hydraulic cylinder.

II. Technical Specifications

These parameters are verified against the HCIC 2026 technical catalog:

The 28.3-ton tipping capacity is a real-world rating. We test these units on a 1.5x pressure-hold benchmark before crating. If the pressure decays even 0.1 MPa over 5 minutes, the unit stays in the shop.

---

III. Why the 4-Stage Front Mount Design?

3.1 Maximum Breakout Force

The HCIC 4TG-E149*4280 front mount telescopic hydraulic cylinder uses its 4-stage nesting to provide a high initial push. By mounting at the front of the body, the cylinder uses the entire length of the dump bed as a lever. This reduces the hydraulic pressure needed to start the lift, extending the life of your power unit and seals.

3.2 Low Friction + High Corrosion Resistance

We use a proprietary micro-inch honing process on every stage. A mirror finish is not enough—too smooth and the oil film breaks; too rough and the seals shred. We hit the 0.2-0.4μm Ra sweet spot. Combined with a 30-micron hard chrome plating, the **HCIC 4TG-E149*4280 Front Mount Telescopic Cylinder** resists the road salt and landfill grit that kills cheaper imports.

---

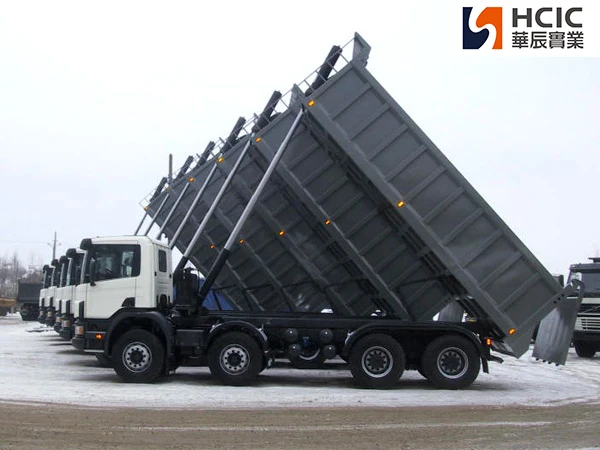

IV. Application Scenarios

- Construction Dump Trucks: Specifically for 8x4 and 6x4 chassis hauling heavy gravel and asphalt.

- Mining Tippers: Where side-loading and uneven ground are the norm.

- Waste Management: For heavy-duty refuse haulers needing a reliable tipping arc.

---

V. FAQ

Can I replace a Hyva or Parker cylinder with this model?

Yes. The HCIC 4TG‑E149*4280 Front Mount Telescopic Cylinder is dimensionally compatible with most international front‑mount standards. Send us your current part number, and we will confirm the pin‑to‑pin fitment.

What is the maintenance interval?

We recommend greasing the mounting pins every week in heavy use. The seals are rated for -30°C to +90°C. For extreme cold, we offer a specialized arctic seal package.

How do you handle shipping to North America?

We ship CIF or DDP from Qingdao port. Standard lead time for this model is 10‑15 working days.

---

VI. About HCIC

HCIC has been a leading hydraulic manufacturer since 1998. With 3 factories and over 300 employees, we own the entire production chain—from steel tube processing to final pressure testing. We back every unit with an 18-month warranty.
