Product Description

I. Introducing the HCIC 5TG-E149*4280 Front Mount Telescopic Cylinder

When your dump truck body is long and your installation space is tight, the **HCIC 5TG-E149*4280 Front Mount Telescopic Cylinder** is the engineered answer. By splitting the 4280 mm stroke into 5 stages instead of 4, we reduce the closed height to 1325 mm. This gives you a more compact footprint while maintaining a massive tipping capacity.

Built in our Shandong factories, the HCIC 5TG-E149*4280 front‑mount hydraulic telescopic cylinder for dump truck is the workhorse for high-volume logistics and heavy infrastructure projects. It is designed to lift fast and hold steady, even when the wind is blowing against a fully extended bed.

II. Technical Specifications

Verified against the HCIC 2026 Engineering Catalog:

Parameter	Value
Model	HCIC 5TG‑E149*4280 Front Mount Telescopic Cylinder
Tipping Capacity	28.3 Tons
Rated Working Pressure	16 MPa (2320 PSI)
Cylinder Stages	5 Stages
Maximum Stroke	4280 mm
Closed Length (E)	1325 mm
Mounting Width (B)	385 mm
Finish	Anti‑corrosion industrial black enamel

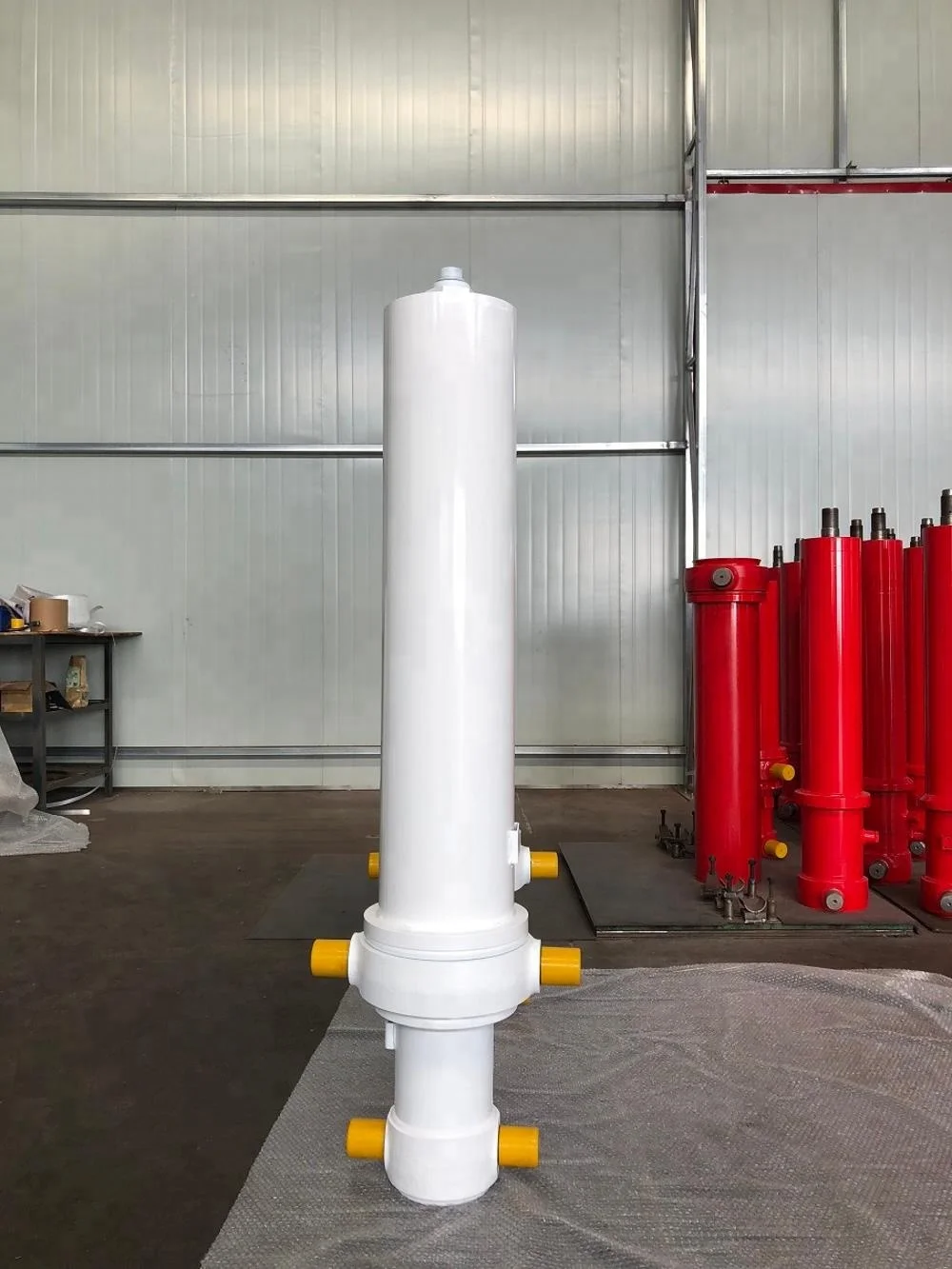

front mount telescopic hydraulic cylinder

The 5-stage design of the **HCIC 5TG-E149*4280 Front Mount Telescopic Cylinder** allows for a shorter retracted length than the 4-stage version, making it ideal for trailers where the front mounting plate is low or the cab clearance is restricted.

III. Core Features & Manufacturing

3.1 Digital Traceability

Every HCIC 5TG-E149*4280 Front Mount Telescopic Cylinder carries a unique serial number in our upgraded ERP system. We can trace the exact steel batch, the heat treatment log, and the technician who verified the final seal torque. This level of accountability is why global fleets trust HCIC.

3.2 Advanced Seal Technology

We use high-grade polyurethane U-cup seals with secondary double-lip wipers. On a 5-stage cylinder like the **HCIC 5TG-E149*4280 Front Mount Telescopic Cylinder**, the rod spends most of its time extended. Our wipers ensure that zero dust or landfill leachate is dragged back into the cylinder, preventing internal scoring.

VI. Application Scenarios

- Semi-Trailer Dumpers: Perfectly suited for 10-12 meter tipping trailers.

- Agricultural Bulk Haulers: Where rapid, stable unloading of grain or fertilizer is required.

- Port Logistics: High-cycle environments where equipment downtime costs thousands per hour.

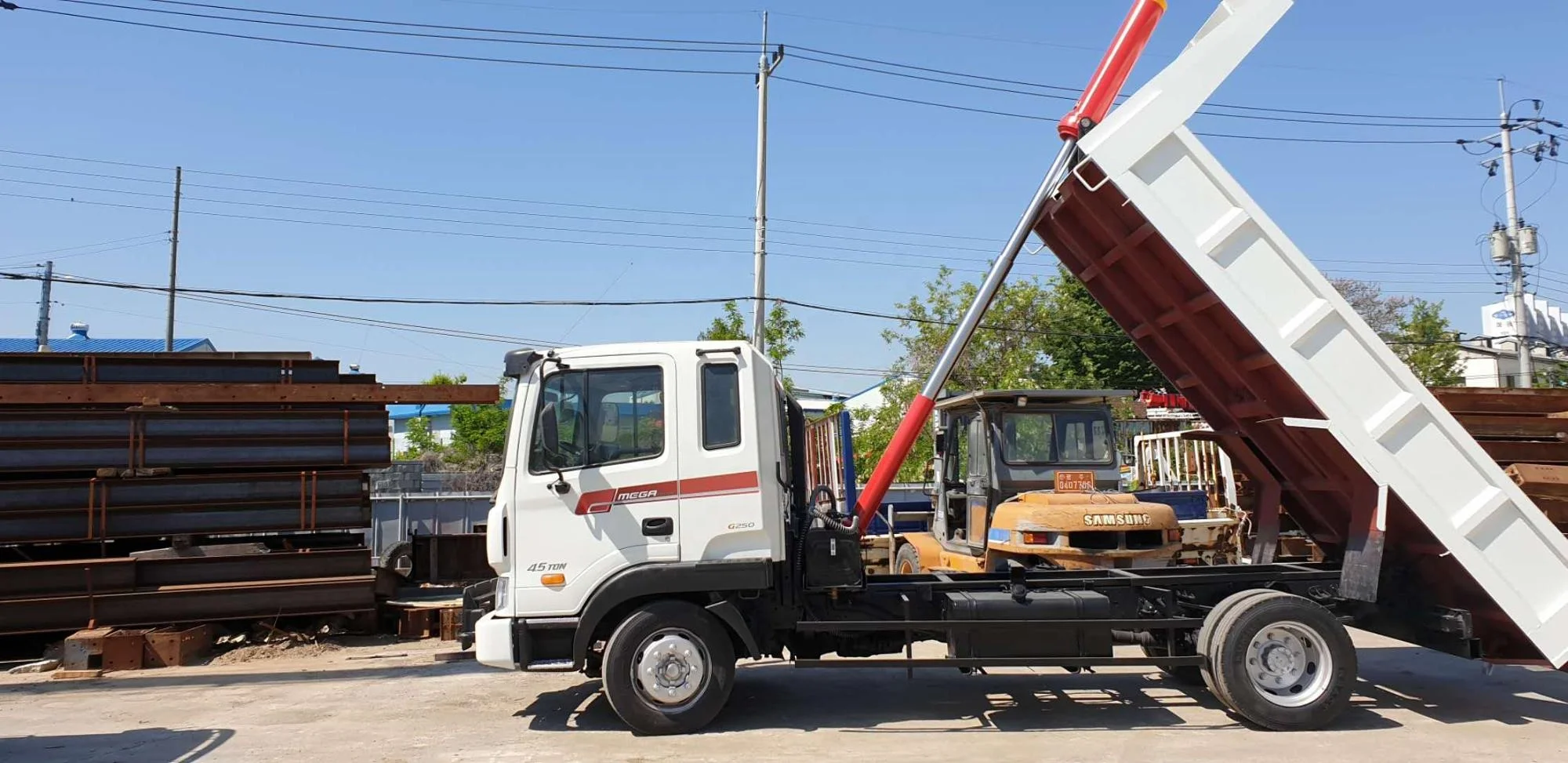

telescopic hydraulic cylinders

V. FAQ

Why choose 5 stages over 4 for the same stroke?

Space. The HCIC 5TG‑E149*4280 Front Mount Telescopic Cylinder has a shorter closed length (1325 mm) than a 4‑stage unit. If you have a low‑profile chassis, the 5‑stage model is the better fit.

What is the maximum operating temperature?

Our standard seals run from -30°C to +90°C. We regularly ship to regions like Canada and the Middle East, so we can adjust the seal compound for your specific climate.

Do you offer replacement seal kits?

Yes. We stock complete seal kits for the HCIC 5TG‑E149*4280 Front Mount Telescopic Cylinder and ship them via air freight within 48 hours.

VI. About HCIC

HCIC is an ISO 9001:2015 certified manufacturer specializing in hydraulic cylinders and power units. Since 1998, we have evolved from a local component maker into a tech-industry-trade integrated enterprise, exporting to over 50 countries. We offer an 18-month warranty on our entire telescopic line.
