Front End Loader Cylinders Introduction： Moving Type:Wheel Loader Power:75kw Machinery Test Report:Provided Dimension:6230*2365*3752 mm Machine Weight:8200 kg Bucket capacity:1.0m3 Core Components:Engine, Motor, Pump, Gearbox Bucket Dumping Height:2650mm) rated loading:2500kg Backhoe Capacity:0.3m3 Digging Depth:52mm Min. ground clearance:300mm
Hydraulic cylinders work by turning hydraulic power into mechanical force to push out steady linear motion during operation. Thanks to their straightforward internal build and reliable running performance, these parts cut down the need for extra auxiliary mechanical structures in real equipment setups. This practical advantage makes installation simpler and daily operation smoother for various machines on site. That’s why hydraulic cylinders have become a core component widely applied across engineering machinery, industrial equipment and many other mechanical fields all year round.
Hydraulic cylinders generate working force based on two key factors: the effective area of the piston and the pressure difference between the two sides. They’re built simple but tough—no complicated parts, so they hold up well in daily use. When you use them for back-and-forth movement, you don’t need to worry about dynamic gaps even if you take off the deceleration components; the motion stays smooth and steady the whole time.
That’s why they’re used everywhere in all kinds of mechanical hydraulic systems—from small equipment to large machinery. A basic hydraulic cylinder has several key parts: the cylinder barrel, cylinder heads, piston, piston rod, and sealing devices. As for buffer devices and exhaust devices, they’re only added when the specific application calls for them, but all the other parts are a must—you can’t run the cylinder without them.
All parameters can be customized
| Front end loader cylinders | ||
|---|---|---|
| Overall Size | Operating Weight | 8200kg |
| Overall Dimension | 6150×2250×3763mm | |
| Wheel base | 2264mm | |
| Min. Ground Clearance | 300mm | |
| Performance | Breakout Force | 38KN |
| Loading lifting capacity | 2500kg | |
| Front Bucket Capacity | 1.0 m3 | |
| Bucket Dumping Height | 2650mm | |
| Bucket Dumping Distance | 1025mm | |
| Digging Height | 3878mm | |
| Backhoe Capacity | 0.3cbm | |
| Max. Digging Depth | 4085mm | |
| Single angle of excavator grab | 190° | |
| Max. pulling force | 39KN | |
| Digging power of excavator grab | 465KN | |
| Digging power of dipper | 31KN | |
| Engine | Brand | Duetz WP4G95E221 |
| Type | Inline Direct Inject Turbocharged | |
| No. of Cylinder-Bore/Stroke | 4-105x130 | |
| Rated Power | 70kw/95HP | |
| Max. torque | 380 N.m/1400~1600rpm | |
| Displacement | 4.5L | |
| Rated Speed | 2200r/min | |
| Min. Fuel Consumption | 230g/Kw·h | |
| Steering system | Model of steering system | BZZ5-250 |
| Steering angle | ±36° | |
| Mini turning radius | 6581mm | |
| Pressure of the system | 12MPa | |
| System Pressure | Loading Hydraulic System | 16MPa |
| Digging Hydraulic System | 18Mpa | |
| Axle | Brand | Carraro(Italy) |
| Driving Axle Load Capacity | 4/18.5T | |
| Rated Dynamic/static load of front axle | 9T/22.5T | |
| Rated Dynamic/static load of rear axle | 7.5T/18.75T | |
| Transmission system | Torque converter | YJ280 |
| Gearbox | TLB14WD | |
| Type | Fixed Shaft Power shift/Electric Control | |
| Max.speed | 38Km/h | |
| Brake system | Service brake | Wet Internal self-regulatic self-balance type |
| Parking brake | Spring brake/hydraumatic terminating brake | |
| Tires | Size | 14-17.5/19.5L-24 |
| Hydraulic system | ||

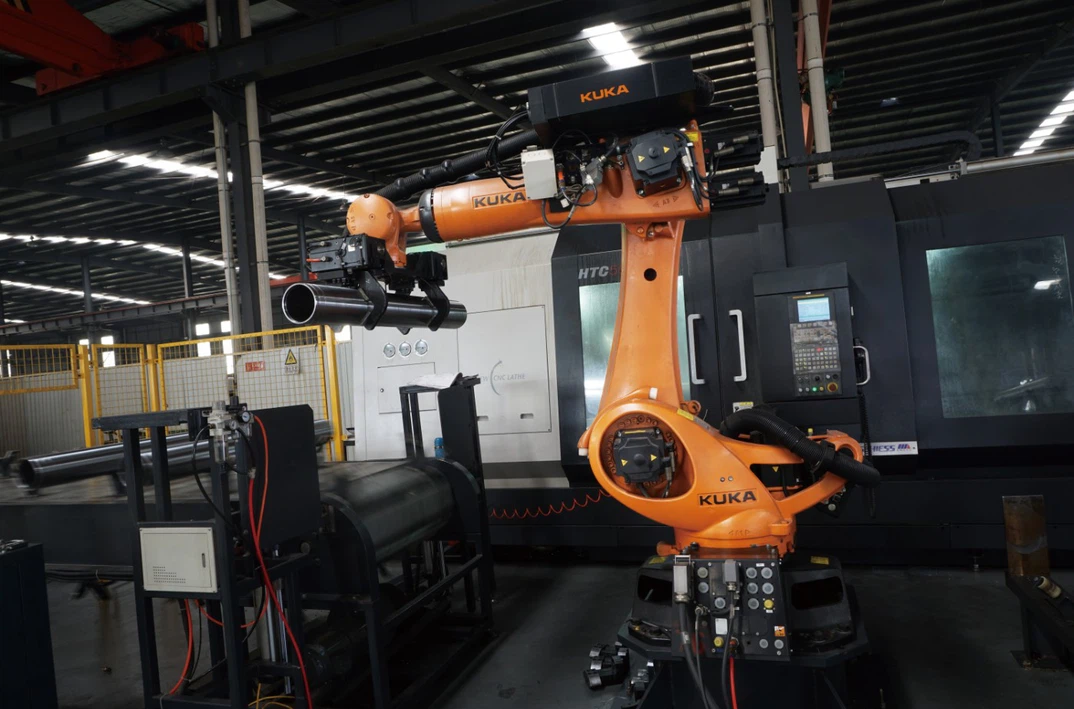

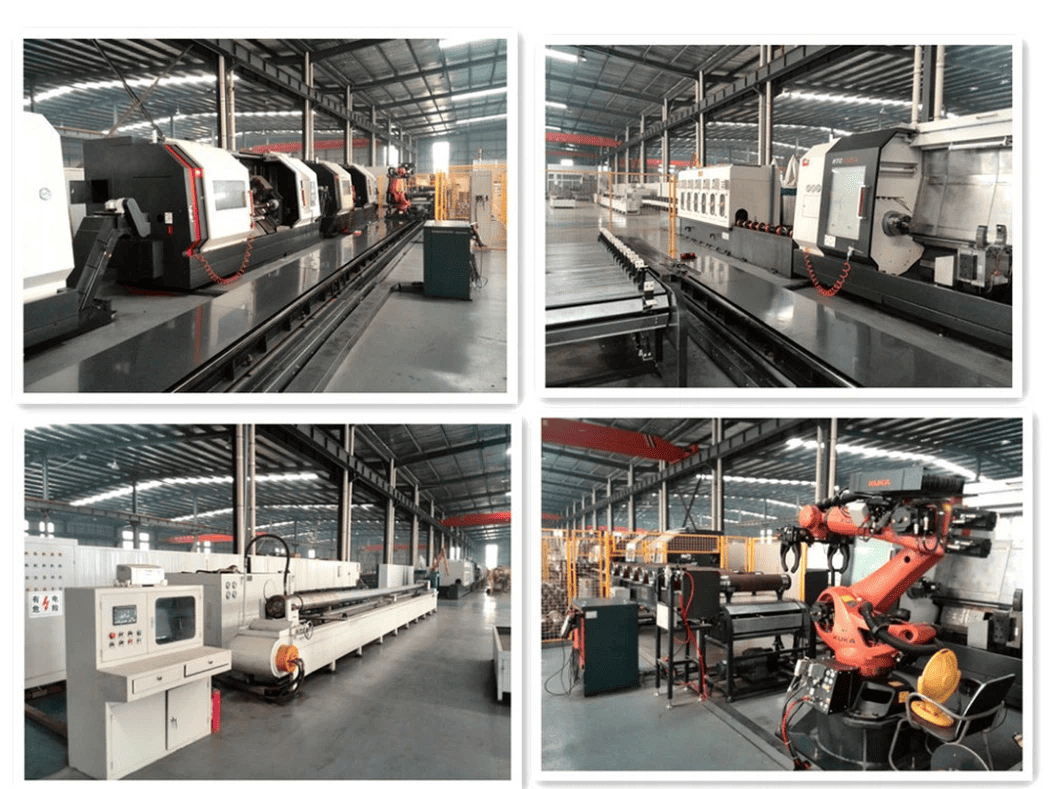

The most acute form of accurate and flexible. In our Jinan factory, we have many control machine tools, automatic exchange tools, and up to five axes, allowing a reasonable processing of all six faces of the workpiece at a time. Our proficient operator's parts of component tolerance requirements have been reduced to a few millimeters, which is a prerequisite for our own development of hydraulic components. If we develop, design, and manufacture most components, then obviously we are the best choice for assembling them. The assembly of hydraulic elements and systems has high requirements for accuracy, accuracy and hygiene. In HCIC, you will find professional and technical personnel who have rich knowledge and experience in hydraulic assembly.
HCIC is a professional hydraulic manufacturer with 25 years of export experience, mainly engaged in the design, manufacturing, installation, transformation, commissioning of hydraulic systems and brand sales services of hydraulic components.
We have more than 30 years of comprehensive experience in manufacturing hydraulic cylinders and hydraulic system design services. Our comprehensive strength is among the best in the world, and 90% of our sales are from regular customers. All the customers are satisfied with our service quality. Our production base is located in Jinan, Shandong Province, China. It is a very cultural city, and there are many large ports nearby.
You can get one-stop service here.
1. Professional engineers for designing and improving before ordering
2. Professional equipment for machining and producing after ordering
3. Professional inspectors for checking the quality before shipping
4. Professional after-sale service for solving the questions when using
5. The dump body be exported to 200 countries including Korea, Japan and the United States
6. KRM143 KRM160S hydraulic tipping hoist and telescopic cylinder
7. Color: painting the color according to customer requirement and metallic paint
8. Our comprehensive strength ranks among the top in the world, and 90% of our sales are from old customers.
After 30 years of accumulation, HCIC has accumulated rich experience in design and production of hydraulic cylinder design. Can be designed and produced according to the actual use and installation requirements of customers and international standards. Our products include: excavator cylinder, aviation crane oil cylinder, concrete pump truck cylinder, arm rack pump oil cylinder, car crane oil cylinder, tower crane tank, pile mechanical oil cylinder, ship port oil cylinder, mining equipment oil cylinder, environmentally friendly energy -saving equipment oil tank, servo servo, servo Products such as oil cylinders, as well as other hydraulic systems. At present, our hydraulic cylinder can compete with most imported products in terms of quality and price, and has obvious cost -effective advantages.
1.What is your payment terms?
1)T/T 2)L/C.
2.What is your shipping way ?
Express (DHL,Fedex,TNT),By air ,Or Sea. We will choose one shipping way to suit customers request .
3.How long is your machine warranty?
Warranty of our product is one year,but artificial damage and incorrect use is not included.
4.What is your delivery time ?
It depends on your order. Normally3- 7days for samples, 30-45days for standard, 30-60 days for customized.
