Excavator Hydraulic Cylinders

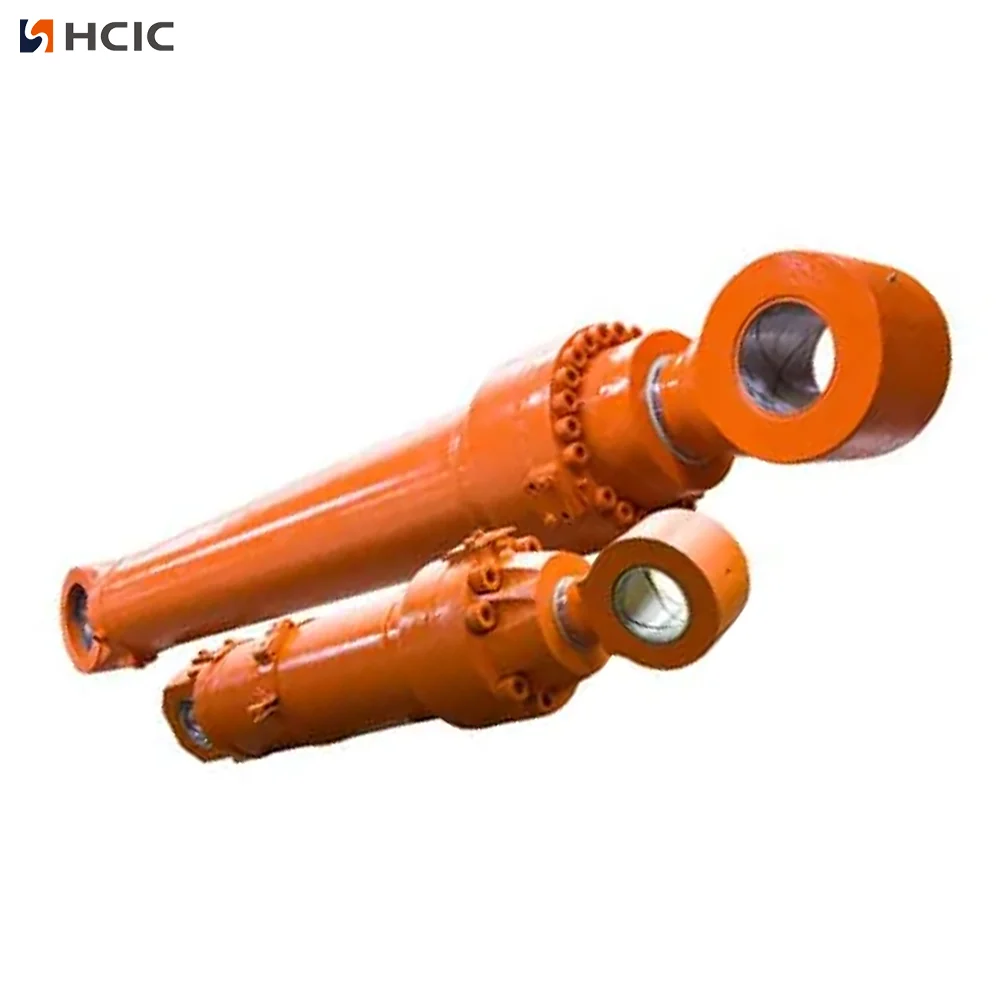

We develop matched boom, arm and bucket hydraulic cylinders for medium and large excavators under HCIC H series. Made from high strength seamless steel pipe with friction welded rod ends, these cylinders cope with violent impact and lateral force in mining, trenching and demolition jobs. The 2.5–3.5mm deep hardened rod layer together with low temperature resistant sealing assemblies stops oil leakage and boom drifting. Each finished cylinder passes rigid pressure and static detection, offering direct OEM replacement parts with stable performance in all kinds of tough construction sites.

I. The Survival Logic: Why Excavator Cylinders are Different

Let’s cut the fluff. A standard industrial cylinder will snap within hours on a mining site. Excavator duty-cycles are brutal—they involve constant shock loads, lateral twisting, and abrasive grit. Most field failures happen at the rod-eye weld or through "boom drift" (slowly sinking under load). The excavator hydraulic cylinders in our H-Series are built to solve these specific mechanical nightmares through superior material density and closed-loop manufacturing.

II. Technical Specifications

III. Deep-Dive into Core Features

• Molecular Friction Welding: We’ve moved past manual MIG welding for rod-eyes. Our excavator hydraulic cylinders utilize automated friction welding. By spinning the rod at high RPMs against the mounting eye, the metals fuse into a single molecular unit. This eliminates the "Heat Affected Zone" (HAZ) that causes cheaper eyes to snap during heavy prying.

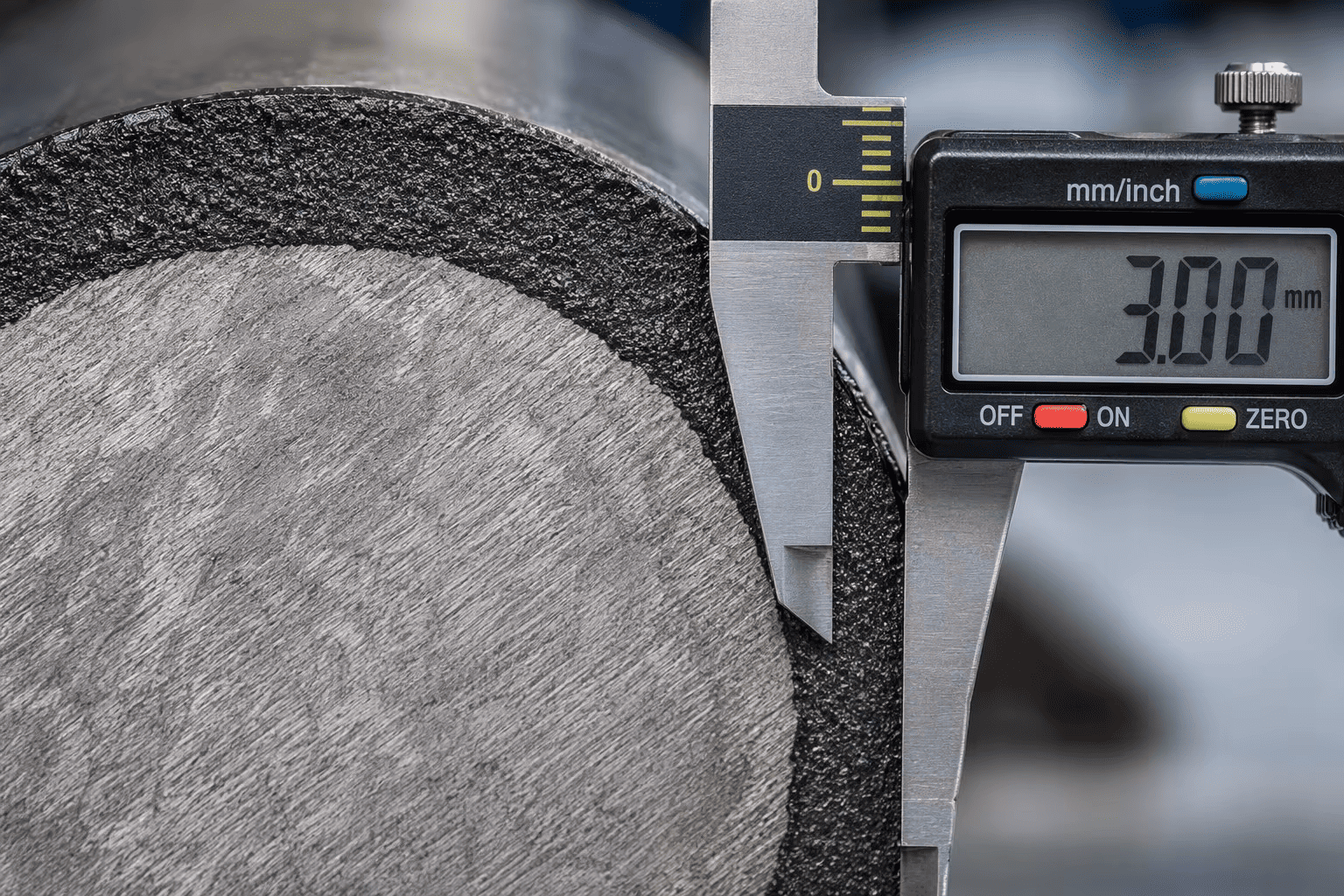

• The 3mm Armor Shell: Most generic rods have thin chrome that chips. We induction-harden our steel to a depth of 3mm before plating. This creates a hard subsurface shell that prevents the base metal from denting when hit by flying rocks, effectively stopping the "seal-shredding" cycle.

• Zero-Drift Sealing: We use high-modulus polyurethane seals with anti-extrusion rings. Every heavy duty excavator ram undergoes a 15-minute static hold test. If the boom drifts even 0.1mm on the test bench, the unit is stripped and rebuilt.

IV. Application Scenarios: Where Integrity is Mandatory

• Quarry & Hard-Rock Mining: Handling high-vibration rock breaking where structural fatigue is the #1 killer.
• Deep Trenching & Civil Works: Maintaining precise bucket control for GPS-guided grading.
• Heavy Demolition: Absorbing the massive lateral bending moments of picking and pulling concrete structures.

V. Technical FAQ

• (1). Q: Why does my bucket cylinder make a "clacking" sound at the end of the stroke?

       A: This is usually a failure of the internal cushioning. Our H-Series excavator hydraulic cylinders include integrated hydraulic dampers that decelerate the piston before impact, protecting your pins and machine frame from cracking.

• (2). Q: Can these cylinders handle extreme cold?

       A: Yes. We use low-temperature seal compounds (Viton/PTFE variants) that remain flexible at -45°C, specifically for our clients in Northern Europe and Canada.

• (3). Q: Are the mounting points compatible with my original pins?

       A: We follow original OEM mounting geometries (Metric and SAE). Our parts are "drop-in" ready for major 20-40 ton class machines.

VI. About HCIC: Engineering the Industry Baseline

At Jinan Huachen Industrial (HCIC), we don't just "weld iron." We provide the documented engineering reliability that global fleet managers depend on. With 25 years of manufacturing expertise and ISO 9001-2015 certification, our focus is on technical transparency. We provide the test logs and the material DNA for every excavator hydraulic cylinder we export. Ready for a reliable lift? Reach out to HCIC’s engineering team today.
