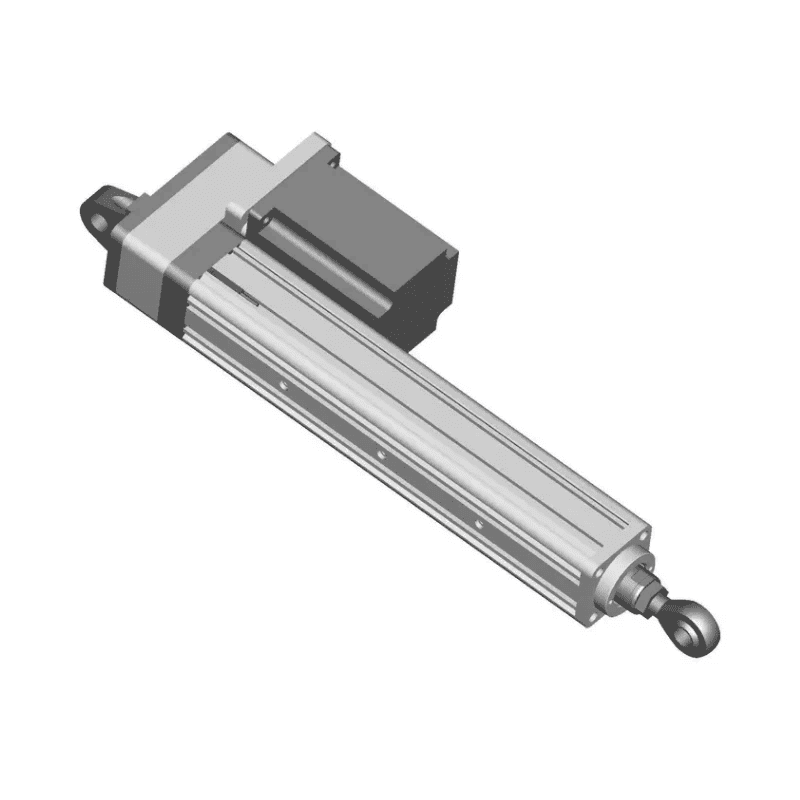

Product IntroductionElectric cylinders are specially designed for continuous motion, low to high load (usually high speed), and can be recycled many times during their service life. These products have extremely high positioning accuracy and controllability, and can achieve precise motion control un......
Maximum Stroke:
30mm-14100mmShaft Diameter:
20mm-320mmBody Material:
SteelStructure:
Piston CylinderWorking medium:
Water Glycol and OilWorking Pressure:
7Mpa~31.5MpaWeight (KG):
50Warranty of core components:
1 YearMounting Style:
Optional&CustomizableStandard or Nonstandard:
NonstandardElectric cylinders are specially designed for continuous motion, low to high load (usually high speed), and can be recycled many times during their service life. These products have extremely high positioning accuracy and controllability, and can achieve precise motion control under the load of several kilograms to 300 tons.
In size, the electric cylinder is smaller. Instead of a hydraulic system, the electric cylinder uses a precision ball or roller screw and is driven by an external motor and transmission. They are lightweight and directly connected to the motors that drive the actuators. Electro-mechanical systems eliminate the need for bulky pumps, accumulators, fuel tanks and pipes, and eliminate the use of hydraulic fluids, providing the advantage of being safer and more environmentally friendly, eliminating the risk of fire, contamination or personal injury associated with leaks and spills. In addition, the electric cylinder is less noisy than the hydraulic drive.
In performance, the electric cylinder is more stable. Its operating speed and power range are improved, and it can provide higher position accuracy. One of the drawbacks of hydraulic systems is that the viscosity of hydraulic oil can change with time and temperature, affecting machine performance. Electric cylinders, on the other hand, can always maintain accurate tolerances in long-term operation, and because their moving parts are based on recognized rolling element bearing technology, their service life can be predicted under a given set of operating conditions.
All parameters can be customized
| Parameters | Specifications |
|---|---|
| Product Name | electric hydraulic lift cylinder |
| Work Press | 7/14/16/21/31.5MPa |
| Material | Aluminum, Cast Iron, 45mnb Steel, Stainless Steel |
| Stage | Up to 6 stage |
| Bore Size | 40mm--320mm, Customizable |
| Shaft Diameter | 20mm--220mm, Customizable |
| Stroke Length | 30mm--14100mm, Customizable |
| Rod Surface Hardness | HRC48-54 |
| Paint Color | Black, Yellow, Blue, Brown, Customizable |
| Mounting | Earring, Flange, Clevis, Foot, Trunnion, Customizable |
| Warranty | 1 Year |
| MOQ | 1 Piece |
| Delivery Time | 7-15 Days, Also depends on specific demands |
| Certification | ISO9001, CE |
Features of customized hydraulic cylinder designed by the factory:
High-altitude operation machinery sends operators to the designated position in the air through the lifting platform for construction. Due to the high operation height, it has high requirements for safety, reliability, comfort and maneuverability. The cylinder product has realized modularization, serialization and lightweight.
1. The application of standardized design, welding and anti-loosening patented technology makes the product more reliable;
2. Lightweight design minimizes the weight and makes the equipment safer and more efficient;
3. Simple design, convenient disassembly and maintenance;
1. OEM manufacturing welcome: products, packaging
2. Sample order
3. We will reply to your inquiry within 24 hours.
4. After delivery, we will track for you every two days until you receive it. When you get the goods, test them and give me a feedback. If you have any questions about the problem, please contact us and we will serve you wholeheartedly.
The piston slips or crawls
Hydraulic cylinder piston slip or creep will make the hydraulic cylinder work unstable. The main reasons are as follows:
(1) Internal astringency of hydraulic cylinder. Improper assembly of internal parts of the hydraulic cylinder, deformation, wear or shape and position tolerance exceeding the limit, action resistance is too large, so that the hydraulic cylinder piston speed changes with the different stroke position, slip or crawl. The reason is mostly due to poor assembly quality of parts, surface scars or sintered iron filings, so that the resistance increases and the speed decreases. For example: piston and piston rod different center or piston rod bending, hydraulic cylinder or piston rod to guide rail installation position deviation, sealing ring installed too tight or too loose, etc. The solution is to repair or adjust, replace damaged parts and remove iron filings.
(2) Poor lubrication or poor machining of hydraulic cylinder aperture. Because the piston and cylinder, guide rail and piston rod have relative movement, if the lubrication is poor or the hydraulic cylinder aperture is out of tolerance, it will aggravate the wear, so that the cylinder center line linearity is reduced. In this way, when the piston works in the hydraulic cylinder, the friction resistance will be large and small, resulting in slippage or crawling. The elimination method is to repair the hydraulic cylinder, and then according to the requirements of the preparation of the piston, repair the piston rod, configuration guide sleeve.
Q1: Can you provide samples before large orders?
A: Yes.
Q2: Can you produce non-standard or customized cylinders?
A: Yes, we have our own factory, we can meet the needs of customers.
Q3: How long is the warranty?
A: We offer a 12-month warranty.
Q4: Can I print my brand on the product?
A: Of course.
Q5:When is your delivery time?
A: 3-5 days if there is stock, 15-25 days if there is no stock.
Q6:How about your quality?
A: Most domestic excavator/loader/engineering vehicle companies are our customers, and we are confident to provide good products for foreign customers.
