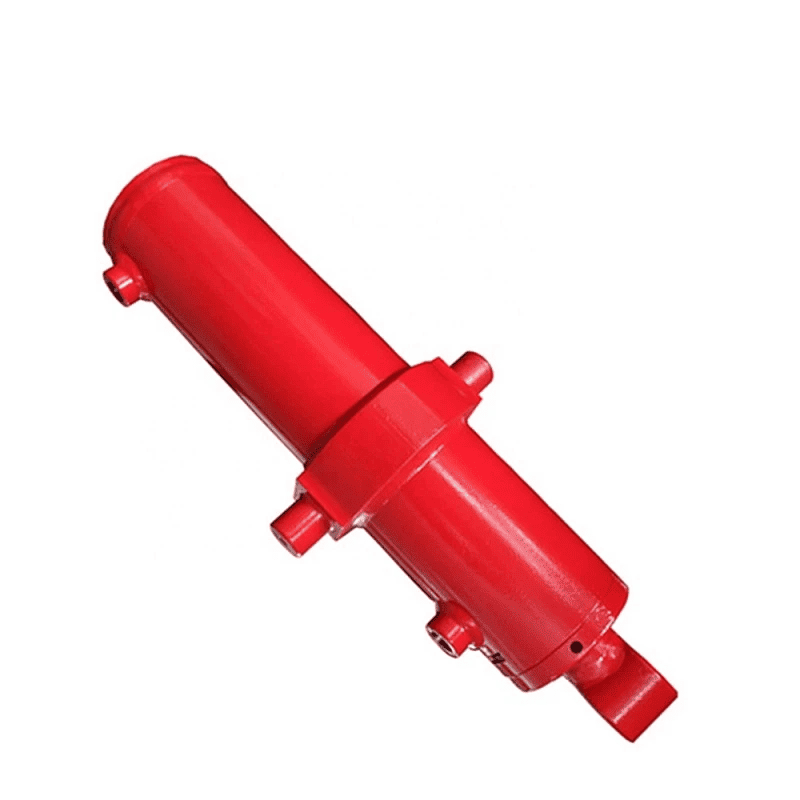

Electric Engine Hoist CylinderIntroduction: Maximum Stroke:50mm-4000mm Shaft Diameter:22mm-110mm Model Number:HCIC-07 Body Material：Steel Customization:Customized logo Core Components:Pressure vessel Working Pressure:16-19Mpa Working Capacity:3-100tons Cylinder Tube:Seamless Honed Tubes Seal kits:Parker/Hallite Power:Hydraulic
The structure of the hydraulic cylinder has a variety of structures, and there are many classification methods: according to the exercise method, it can be divided into a straight line movement and rotary swing type; according to the actual situation of liquid pressure, it can Forms can be divided into piston, plunger, multi -level telescopic sleeve type, gear rack type, etc.; according to the installation form, it can be divided into trolley, earrings, bottom, hinge shafts, etc.
1. Applicable to machine tool industry
2. Suitable for family use
3. Applicable to metallurgical industry
4. Applicable to engineering industry
5. Applicable to agricultural machinery
6. Applicable to the automobile industry
7.Applicable to light textile industry
The output force of the hydraulic cylinder is proportional to the effective area of the piston and the pressure difference between the two sides. Its structure is simple and reliable. When it is used to achieve reciprocating exercise, the disassembly deceleration device has no dynamic gaps, and the movement is stable. Therefore, it is widely used in various mechanical hydraulic systems. The hydraulic cylinder is basically composed of cylinder and cylinder heads, piston and piston rods, sealing devices, buffer devices and exhaust devices. The buffer device and exhaust device depends on the specific application, and other devices are essential.
All parameters can be customized
| Model | Working Pressure | Bore Diameter (mm) | Piston Rod Diameter (mm) | Stroke Length (mm) | Minimum Stroke (mm) |
|---|---|---|---|---|---|
| HSGL-40/dE | 16 Mpa | 40 | 22 | 1000 | Unlimited |
| HSGL-50/dE | 50 | 28 | 1000 | ||
| HSGL-63/dE | 63 | 35 | 2000 | ||
| HSGL-80/dE | 80 | 45 | 2000 | 30 | |
| HSGL-80/dE | 80 | 45 | 3000 | 30 | |
| HSGL-90/dE | 90 | 50 | 3000 | 40 | |
| HSGL-100/dE | 100 | 55 | 3000 | 40 | |
| HSGL-110/dE | 110 | 63 | 3000 | 40 | |
| HSGL-125/dE | 125 | 70 | 3000 | 35 | |
| HSGL-140/dE | 140 | 80 | 3000 | 45 | |
| HSGL-150/dE | 150 | 85 | 3000 | 50 | |
| HSGL-160/dE | 160 | 90 | 3000 | 40 | |
| HSGL-180/dE | 180 | 10 | 3000 | 45 | |
| HSGL-200/dE | 200 | 110 | 4000 | 45 | |
| HSGL-220/dE | 220 | 125 | 4000 | 50 | |
| HSGL-250/dE | 250 | 140 | 4000 | 55 |

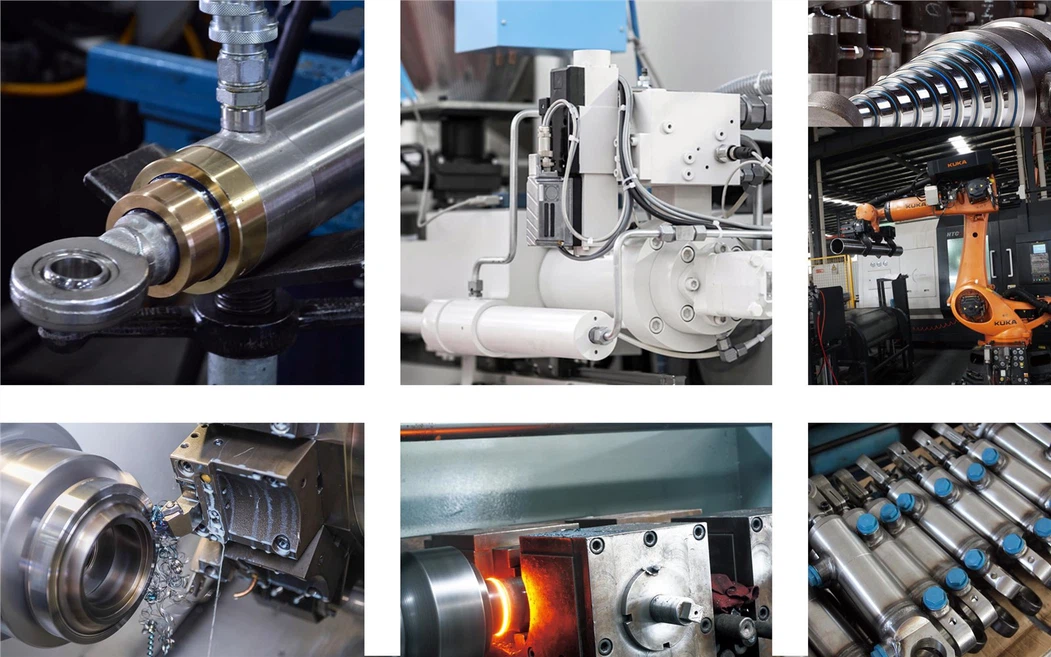

HCIC has a professional product quality test during the production process. These include the cylinder friction test of the hydraulic cylinder, the shock durability test, the drift rate test, the circulation test and the pressure test (the rated pressure is 150%in 5 minutes). The hydraulic cylinder test system is divided into single -acting and dual -action tests. When 100 % complete the test, they will be transferred to the quality inspection department for the final quality inspection link, and finally paste the label to put the market.

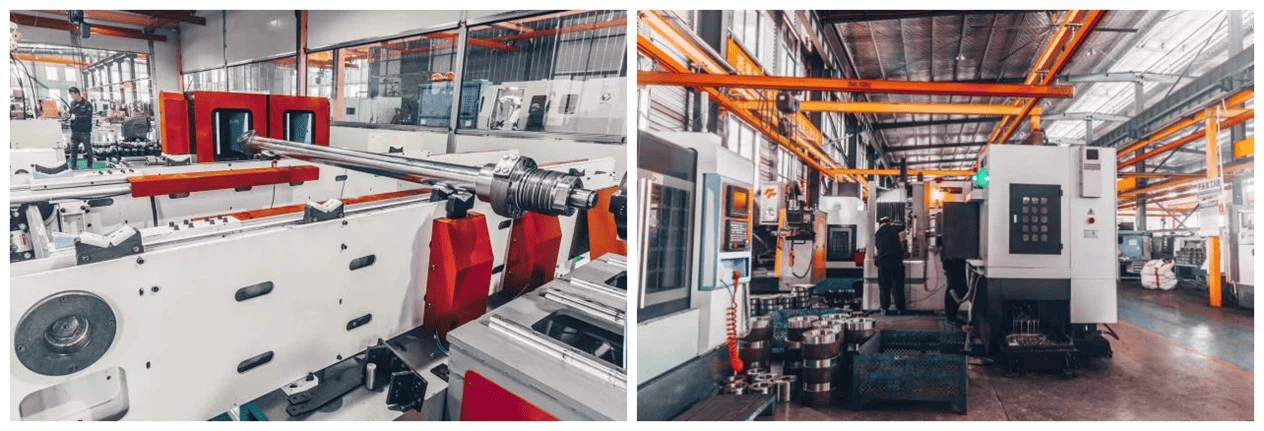

Our Service HCIC is a well -known hydraulic system manufacturing enterprise in China. Our main businesses include the design, manufacturing, reconstruction, commissioning, installation, and technical service support of hydraulic equipment. We are also one of the most recognized suppliers of the large OEM equipment manufacturers in the domestic hydraulic industry. They have absolute core technology and service skills. We mainly serve North America, Europe, Asia and other regions, providing high -quality products and reasonable prices. We are based on a flexible delivery plan and provide competitive after -sales service. Please rest assured, we support our products.
1. 13years experience.
2. Perfect workmanship. Always committed to research and development.
3. Ensure the products meet the quality standards.
4. Ensure the goods will be delivered on time.
5. We will reply you within 2 hours.
6. Provide warm and friendly service and after-sale service.
7. Guaranteed the good quality and best service, as you buy from local supplier.
8. Assorted designs, colors, styles, patterns and sizes are available.
9. Customized specifications are welcome.
1. Are you a manufacturer?
Yes, we have been in this sector for nearly 30 years. We are professional hydraulic power unit/pack and hydraulic cylinders manufacturer with 30 experiences.
2. Do your products come with a warranty?
Yes, we have one year warranty period during which we can send you replacement free of charge if there is quality problem.
3. Can I customize our products from your factory?
Yes, we can make products according to your requirements. Please kindly send me your specifications and drawings.
4. Can you give me a discount?
Discount is available according to different conditions. The larger the order, the more discount you can enjoy.
5. Can you help me to install or give me advice about what kind of hydraulic cylinder or power pack should I use for specific machine?
Yes, we have three engineers who are always ready to help you. If you do not know what kind of hydraulic power pack/unit or hydraulic cylinders should be used in your machine, please just contact us, our engineers will help you to design the exact products you need with their expertise.
6. How do you ship the finished products?
--By sea
--By plane
--By couriers. DHL, UPS, TNT and so on.
7. How many days will samples be finished? And how about the mass production?
--Generally 5-7days for samples making.
--The lead time of mass production will depend on quality, production art and so on. Generally 35days.
