Double-Ended Steering Cylinders

I. Stop Fighting the Wheel: Why Single-Rod Systems Fail

Let’s be blunt. If your articulated loader or heavy-duty forklift starts "wandering" when you’re carrying a full load, your steering geometry is fighting a losing battle. Standard single-rod cylinders have a massive flaw: they push harder than they pull. This unequal force creates that "lazy turn" in one direction and a twitchy response in the other. At HCIC, we’ve perfected the double-ended steering cylinders for one reason—perfect symmetry. We provide the 1:1 force ratio required to keep your machine on a straight line, even when the ground is a muddy mess.

II. Technical Specifications

III. Engineering for Absolute Control: Core Features

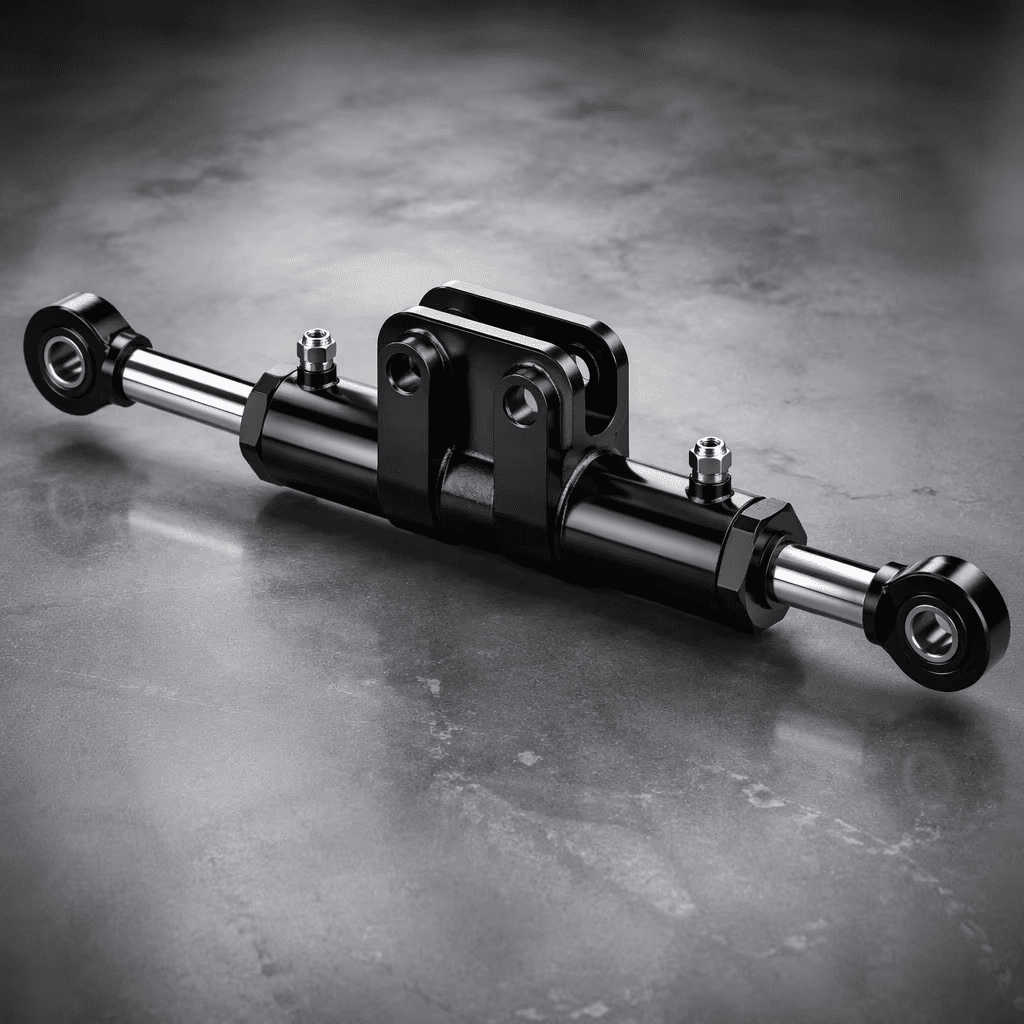

• The Symmetrical Advantage: Since the piston rod exits both ends of the barrel, the oil volume and surface area are identical on both sides. No more compensating for different turn speeds. Your double-ended steering cylinders react with the same bite whether you’re cutting left or right.

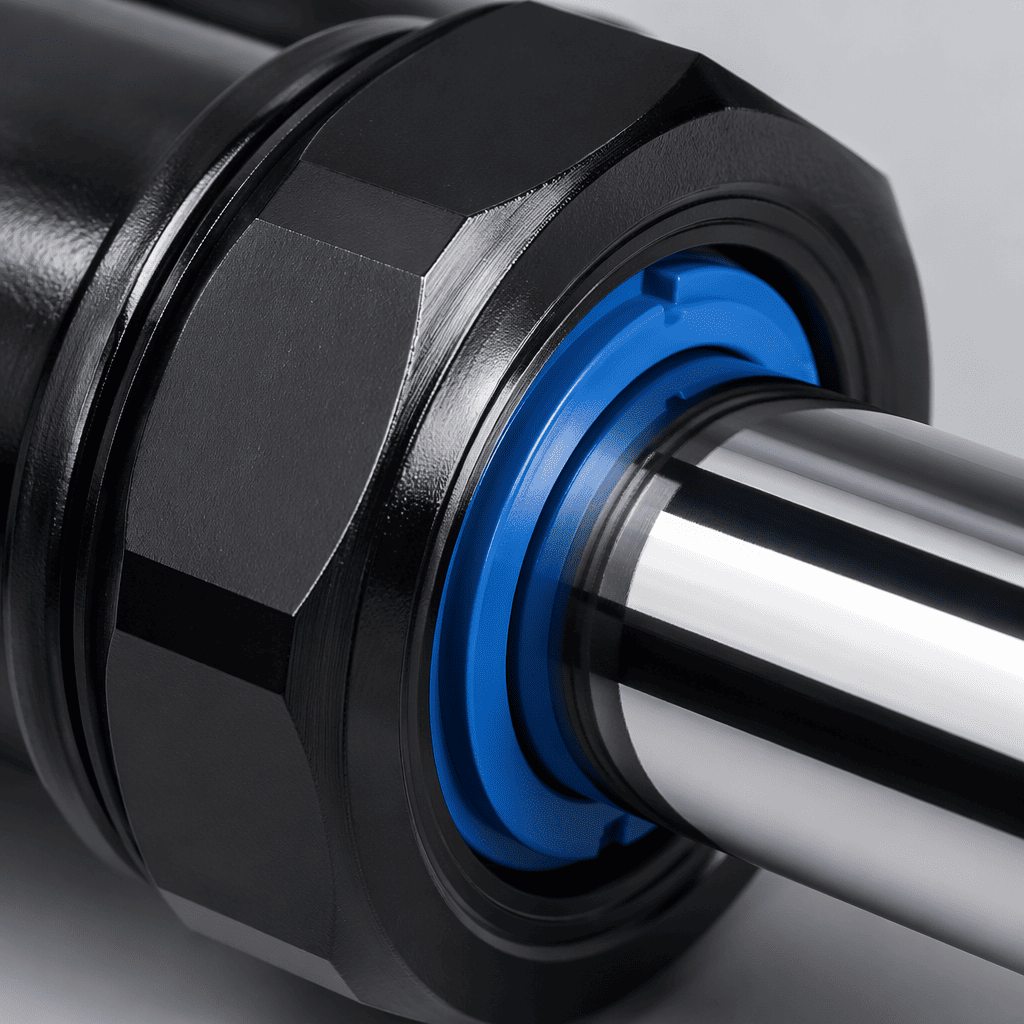

• Anti-Wear Sealing: Steering means constant micro-movements. We’ve ditched standard U-cups for specialized PTFE glide rings. They stop the "stick-slip" shudder that shreds cheaper seals and ruins operator comfort.

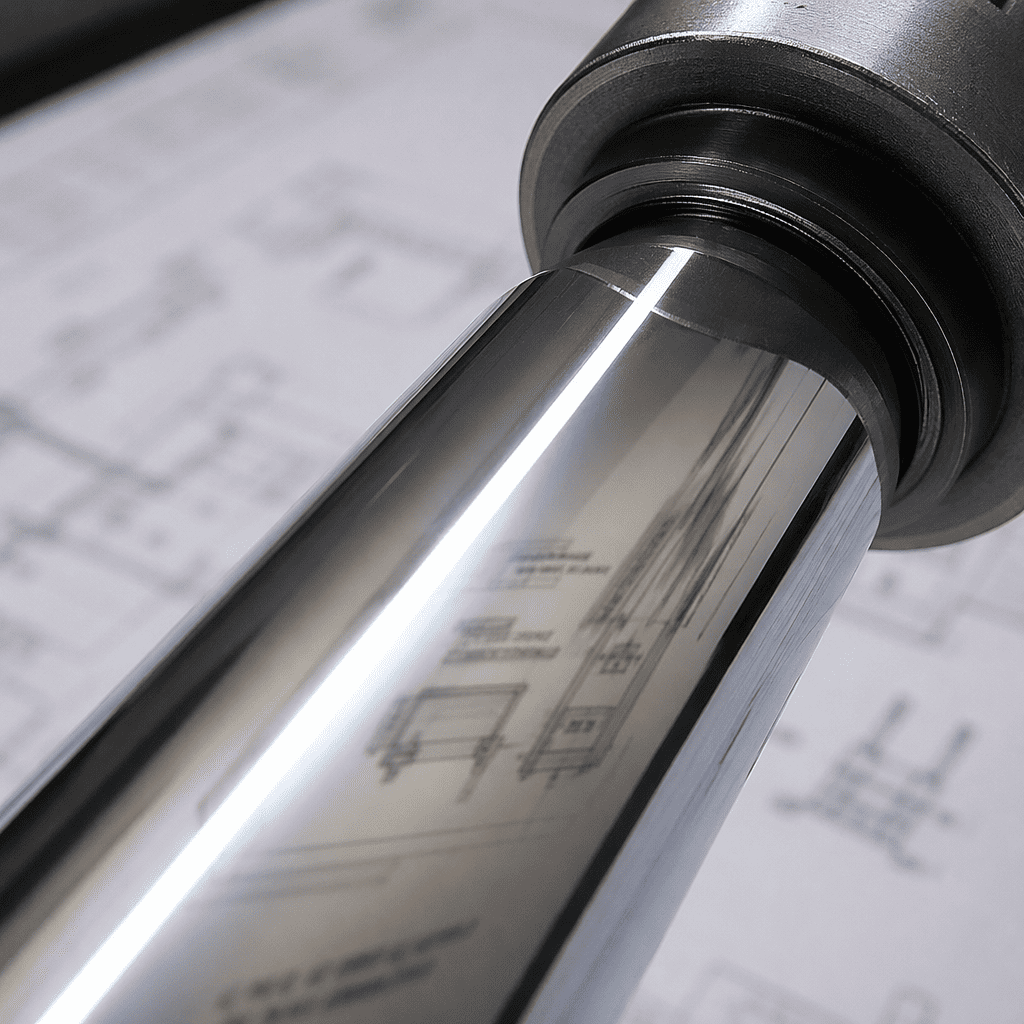

• Induction Hardened Thru-Rods: Our rods take the raw abuse of rock strikes and flying grit. We induction harden the steel before the chrome layer is even applied. This gives the rod a "memory" to stay perfectly straight under massive lateral loads.

IV. Application Scenarios: High-Stakes Precision

Our heavy-duty thru-rod steering rams are currently standard-issue for:

• Articulated Loaders: Preventing tire-scrubbing during tight maneuvers in quarries.
• Material Handling: Reach stackers and heavy forklifts that need micron-level positioning.
• GPS-Guided Agriculture: High-clearance sprayers that depend on GPS signals to track straight between crop rows.

V. Steering FAQ

Q: My machine drifts to one side. Is it the cylinder?

A: Usually, it’s an internal bypass leak. If the piston seal is scuffed, oil "slips" across the piston, causing that annoying wander. We use sub-micron honing to ensure the seal seats perfectly, killing drift before it starts.

Q: Why not just use two single-rod cylinders?

 A: You can, but it’s a plumbing nightmare. One double-ended steering cylinder replaces two standard rams, simplifying your hose runs and reducing leak points by 50%.

Q: Can you match my existing mounting points?

A: Absolutely. Our engineering team specializes in custom clevis and spherical bearing ends. Send us your CAD or a rough sketch, and we’ll match the bolt centers exactly.

VI. Conclusion:

Take the Slop Out of Your FleetA machine that won’t track straight is a safety risk and a tire-killer. HCIC provides the documented quality and engineered balance that global OEMs demand. Stop buying "good enough" iron from vendors who don't understand steering geometry. Upgrade to an HCIC double-ended steering cylinder and feel the difference in the cab. Contact our technical lead for a custom spec sheet today.
