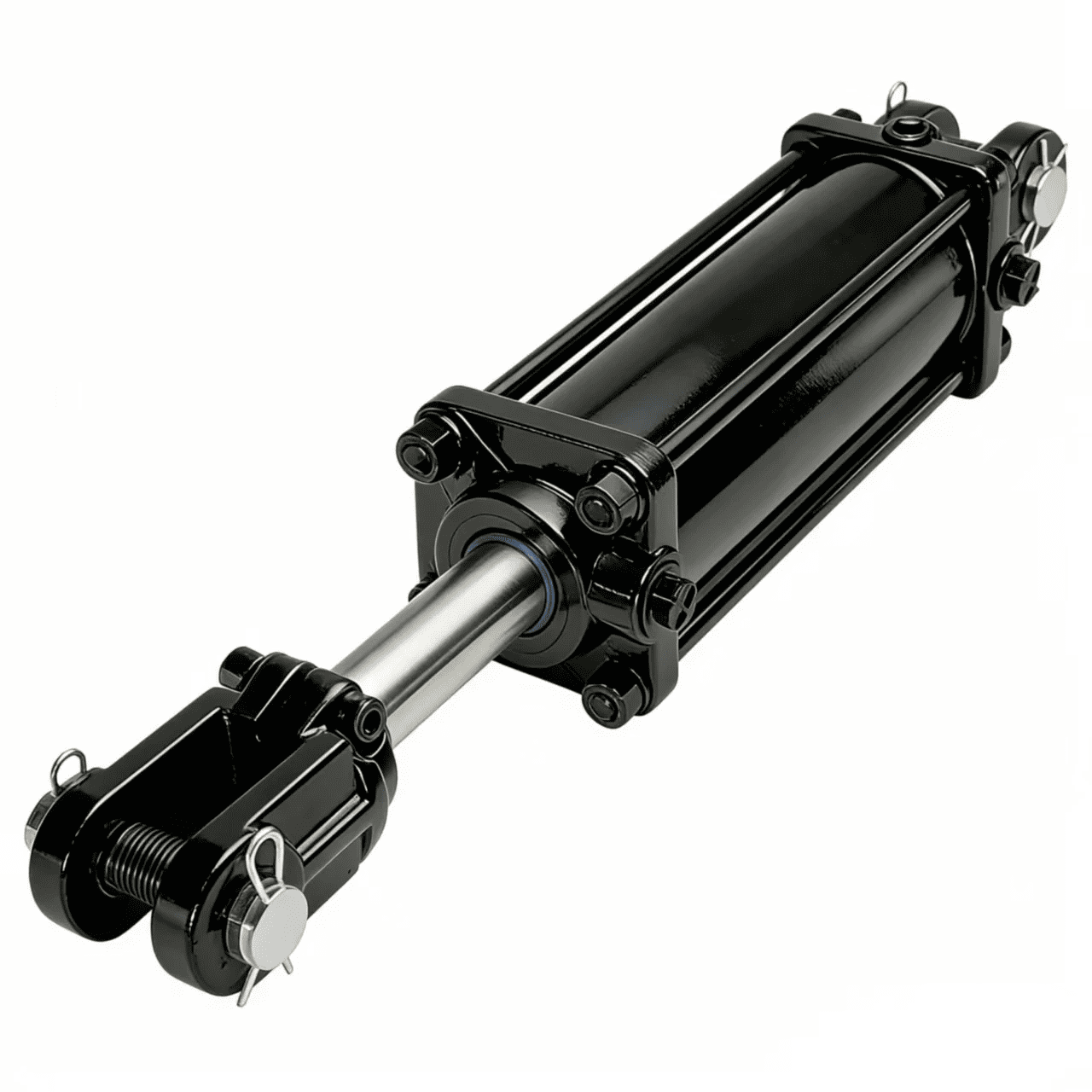

This HCIC Standard Clevis Welded Cylinder has a 4" bore, a 36" stroke, and a 2" diameter rod. Double-Acting SAE 8 (-08) ORB(F) working ports 2,500 PSI maximum working pressure Clevis mounts 1" mounting pins included Gloss black paint is durable and resists fading
Cylinder Type:
WeldedAction:
Double-ActingBore (ID):
4"Stroke:
36"Rod (OD):
2"| Parameter | Specification |
|---|---|
| Cylinder Type | Welded |
| Action | Double-Acting |
| Bore (ID) | 4" |
| Stroke | 36" |
| Rod (OD) | 2" |
| Mounting Type | Clevis |
| Work Ports | SAE 8 (-08) ORB(F) |
| Max Working Pressure | 2,500 PSI |
| Retracted Length | 46.25" (pin to pin, center on center) |
| Extended Length | 82.25" (pin to pin, center on center) |
| Cylinder Length (Retracted) | 48.38" (edge to edge) |
| Column Load | 37734 lbs |
Our standard MOQ is 1 unit for most models, and we also accept small trial orders for new customers to test quality and fit.
Yes, we specialize in custom hydraulic cylinders. We can design and manufacture according to your required bore, stroke, pressure, mounting, and special environment (corrosion, high temperature, etc.).
Standard models: 7~15 days. Custom cylinders: 15~30 days, depending on complexity and quantity.
We accept T/T, L/C, and Western Union. For new customers, 30% deposit and 70% balance before shipment is standard.
Yes, we can provide samples. Sample cost and shipping will be charged, and they can be refunded or deducted from your first formal order.
