Dimension(L*W*H):2700 * 2300 * 2300 Table Size (mm):1000x500 Number of Axes:3, 4, 5 Table Travel (X) (mm):800 Table Travel (Y) (mm):500 Table Travel (Z) (mm):500 Positioning Accuracy (mm):±0.008 Repeatability (X/Y/Z) (mm):±0.005 Range of Spindle Speed(r.p.m):8000 - 15000 r.p.m Spindle Motor Power(kW):7.5 Max. Table Load(kg):600 kg Feed Speed(mm/min):1 - 10000 mm/min Rapid Feed Speed(m/min):36 \ 36 \ 32 Min. Time of Tool Change(s):2 Tool Magazine Capacity:16, 12, 24, 30 Key Selling Points:Competitive Pric
We are HCIC, a powerful supplier of automotive testing equipment and automation equipment in China. We have been established for nearly 30 years, during which we have independently developed and improved a total of 10,000 sets of various types of equipment. We have 8 factories and 2 R&D bases in China, with more than 700 employees.

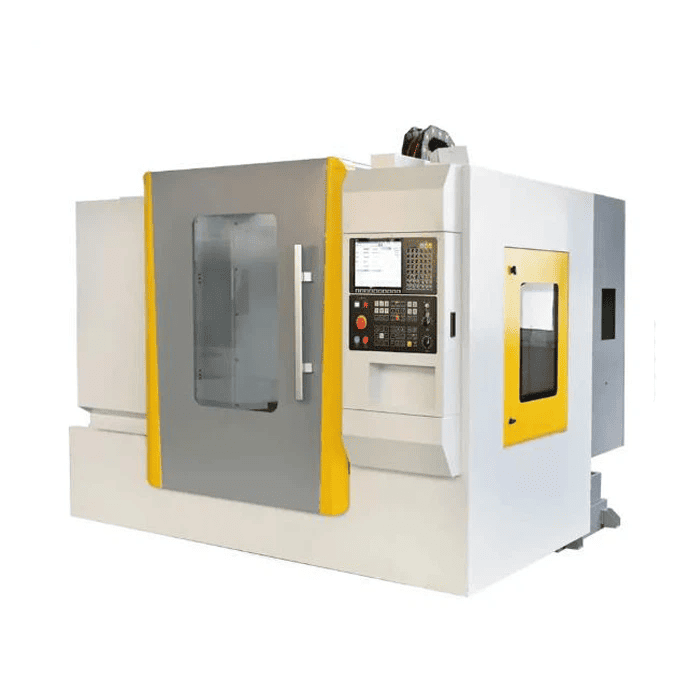

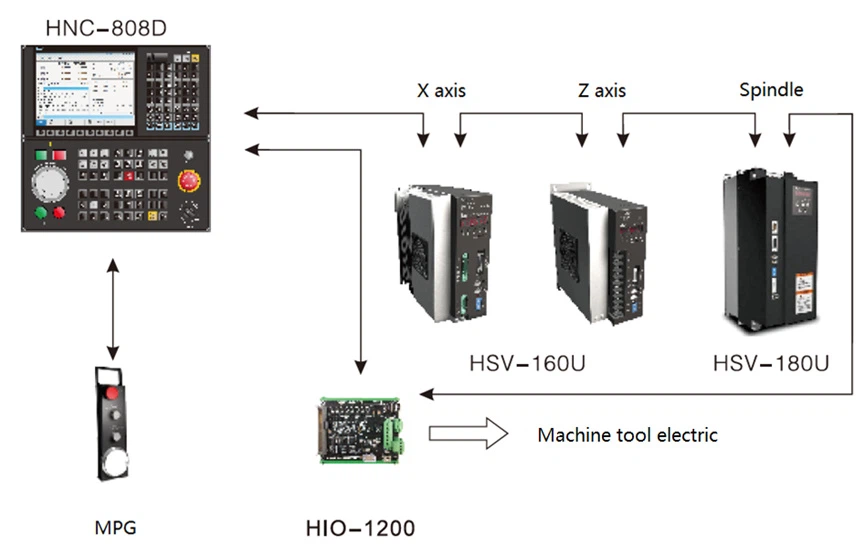

This controller is very suitable for the hot Sale Small New VMC 3 axis 4 axis 5 axis CNC Machine Tool VMC 840 VMC850 Machining Center Vertical Milling CNC Machine Centre
1. 2-4 axis control
2. 10.4” color LCD screen
3. Supporting NCUC, etherCAT bus protocol
4. Supporting 16,000,000PPR high-precision encoder
5. Supporting TCP\IP, Ethernet communication protocols
6. Smart function:
7. Big data of CNC machine tool
8. Broken tool inspection
9. Temperature compensation
All parameters can be customized
Parameters of the sample
| ITEM | HC850P 3-axis linear guide vertical machining center | HC850A 3 linear guides vertical machining center | HC850B 3 hard guideways vertical machining center |
|---|---|---|---|
| HIWIN/PMI 45 ball linear guide | HIWIN/PMI 35 ball linear guide | ||
| Table size | 1000*500 mm | 1000*500 mm | 1000*500 mm |
| Travel of X/Y/Z axis | 800*500*600 mm | 800*500*500 mm | 800*500*500 mm |
| Screw lead | φ40*16 | φ36*16 screw lead | φ40*10 screw lead |
| Spindle | BT40-150-8000 | BT40-140-10000 | BT40-150-8000 |
| Disc type magazine | 24 tools | 24 tools | 24 tools |
Cylinder is the most important part of construction machinery. The traditional processing method is: broaching cylinder block - fine boring cylinder block - grinding cylinder block. The rolling method is as follows: cylinder drawing cylinder block - fine boring cylinder block - rolling cylinder block. The process is three parts, but the time comparison: grinding cylinder block 1 meter is about 1-2 days, and rolling cylinder block 1 meter is about 10-30 minutes. Investment comparison: grinder or honing machine (tens of thousands to millions), hob (tens of thousands to tens of thousands). After rolling, the surface roughness of the hole is from Ra3.2 to 6.3 μ M decreases to Ra0.4 ～ 0.8 μ m. The hardness of the hole increases by about 30%, and the fatigue strength of the inner surface of the cylinder increases by 25%. If only the influence of the cylinder is considered, the service life of the cylinder can be increased by 2-3 times. The efficiency of drilling and rolling process is about 3 times higher than that of grinding process. The above data show that the rolling process is effective and can greatly improve the surface quality of the cylinder.
HCIC is a well -known hydraulic system manufacturing enterprise in China. Our main businesses include the design, manufacturing, reconstruction, commissioning, installation, and technical service support of hydraulic equipment. We are also one of the most recognized suppliers of the large OEM equipment manufacturers in the domestic hydraulic industry. They have absolute core technology and service skills. We mainly serve North America, Europe, Asia and other regions, providing high -quality products and reasonable prices. We are based on a flexible delivery plan and provide competitive after -sales service. Please rest assured, we support our products.
1. 13years experience.
2. Perfect workmanship. Always committed to research and development.
3. Ensure the products meet the quality standards.
4. Ensure the goods will be delivered on time.
5. We will reply you within 2 hours.
6. Provide warm and friendly service and after-sale service.
7. Guaranteed the good quality and best service, as you buy from local supplier.
8. Assorted designs, colors, styles, patterns and sizes are available.
9. Customized specifications are welcome.
