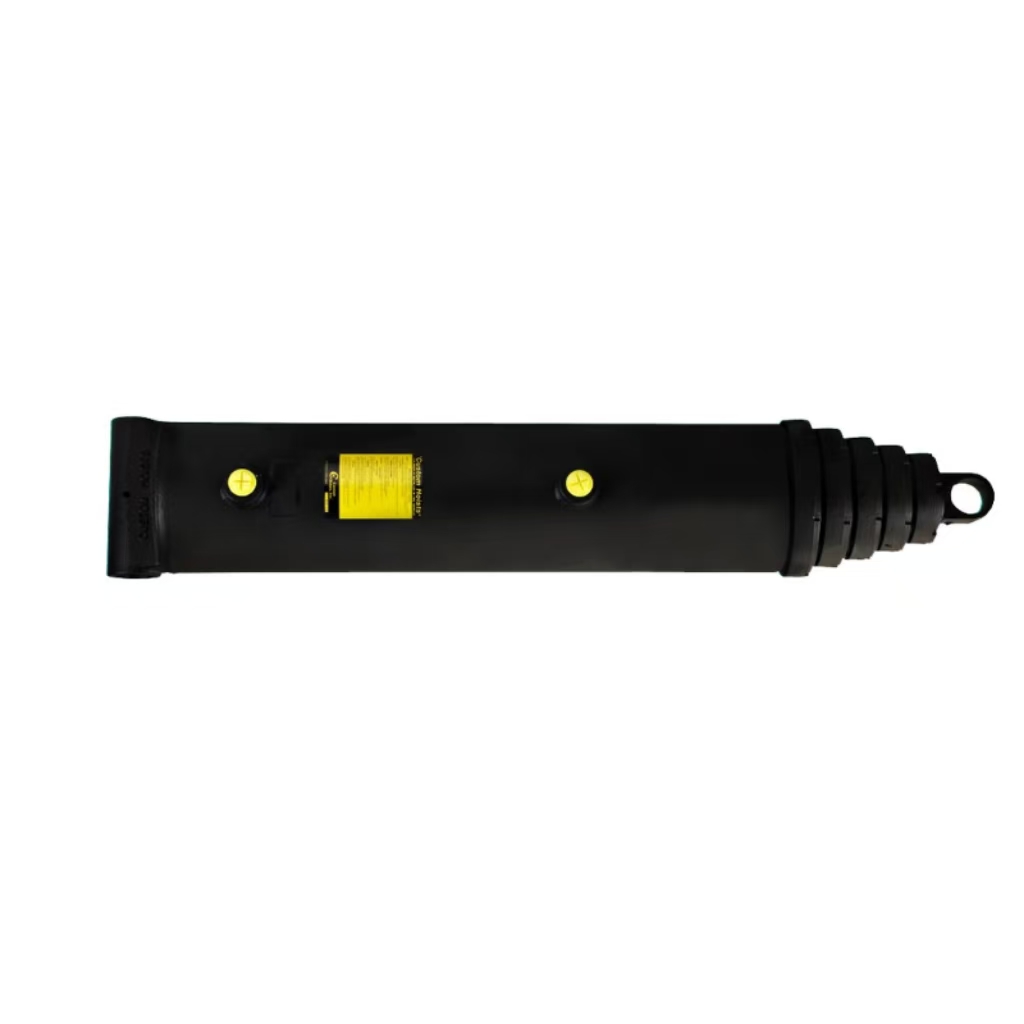

Built for strength and easy service, this CH Single Acting Telescopic Cylinder features cross-tube mounting, polished steel stages, and a primer finish. V-packing seals under high and low pressure, while external packing nuts add support and simplify maintenance.
Body o.d.:
9.5 inStroke:
279.25 inPSI:
2000Retracted:
77.5 inCross-tube mounting is standard
Custom and trunnion designs are available
Rebuildable
V-packing provides high-pressure and low-pressure sealing
External packing nuts provide added support for tubes and simplify servicing
Polished steel stages
Primer finished
Volumes listed are at full extension
| Weight: | 746.00 LBS |
| Bore: | 8 in |
| Stroke: | 279.25 in |
| Body o.d.: | 9.5 in |
| PSI: | 2000 |
| Rod Dia.: | NA |
| Pin Dia.: | NA |
| Retracted: | 77.5 in |
| Extended: | 356.75 in |
| Port Size: | 1.0 NPTF |
| Column Load: | 100,520 @ 2000 PSI |
| Mounting: | Cross-tube |
| Stages: |
Five |
This specific CH model boasts 8-inch bore dimension paired with 279.25-inch cumulative effective stroke, with a retracted overall length of 77.5 inches and fully extended dimension hitting 356.75 inches. Rated continuous operating pressure is fixed at 2000 PSI, and every finished cylinder passes factory hydrostatic burst test at 5000 PSI before shipment to eliminate hidden leakage risk. Weighing 746 LBS per unit, the 9.5-inch outer diameter main barrel adopts thickened seamless steel pipe to defend against lateral impact from uneven mining and off-road hauling roads. Rod diameter and pin diameter are marked NA because this single-acting telescopic design relies on sequential barrel extension instead of an exposed piston rod for load lifting.
