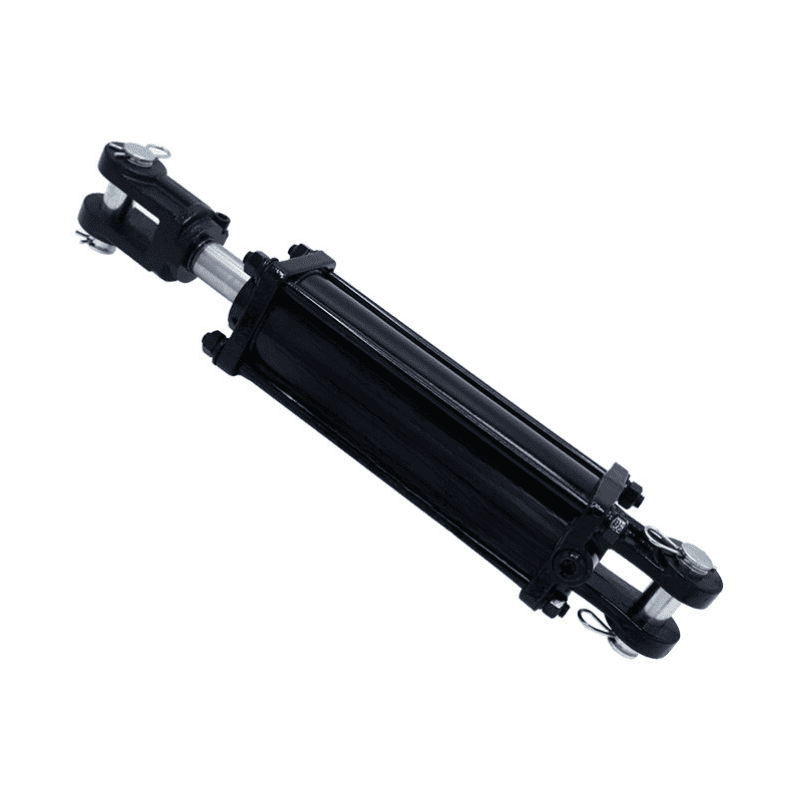

Field maintenance shouldn't be a nightmare. The Agricultural Tie Rod Hydraulic Cylinder meets all ASAE standards with Grade 8 integrity. Zero leaks, zero slop.
Bore Size:
3.00" (76.2 mm)Stroke Length:
8.00" (203.2 mm)Ports::
#8 SAEFarmers all know planting seasons never wait for equipment breakdowns. Once a cylinder fails while you’re working the fields, fully welded sealed cylinders force you to ship parts off to repair stores and waste precious working days. Our H-001-2134 agricultural tie rod hydraulic cylinder lets your in-house maintenance staff replace worn seals right on your farm. Common hand tools from your workshop are all you need, and the whole seal replacement job wraps up in under sixty minutes.
This H-001-2134 cylinder serves as the primary hydraulic component across all our farm equipment products. Our factory adjusted tie rod tension values through dozens of field load tests to fix gland gap leakage, a widespread flaw seen in low-cost imported hydraulic cylinders sold on the market. The sealing structure remains stable and leakproof after 10,000 tillage operation cycles. We do not merely match mounting dimensions for compatibility; we design the whole assembly to hold steady against continuous vibration and heavy loads out in farm fields year after year.
| Item | Data |
|---|---|
| Bore | 3.00" (76.2 mm), micro-honed barrel |
| Stroke | 8.00" (203.2 mm), standard AG size |
| Industry Standard | Matches ASAE S201.4 |
| Tie Rod | Grade 8 high tensile bolt |
| Rod Surface | Dual hard chrome, HV900+ |
| Oil Port | #8 SAE O-ring, 3/4-16 thread |
| Inner Buffer | Tapered stroke cushion |
(1). Most generic tie rod hydraulic cylinders only use a single lip seal for internal sealing. This simple layout cannot handle sudden pressure spikes produced during field farming work. We fitted the H-001-2134 model with a two-stage buffer sealing system tailored to real farm operating environments.
(2). The primary sealing part uses high-pressure resistant U-cup seals. This component maintains reliable dynamic sealing under regular working pressure of agricultural hydraulic circuits.
(3). A separate secondary buffer ring sits behind the main seal. When tillage tools collide with rocks, hard soil clods or underground roots during land preparation work, this buffer ring absorbs instantaneous pressure peaks. This design stops hydraulic oil from spraying out as mist along the piston rod, keeps tractor chassis clean and prevents hydraulic fluid from polluting farmland soil.
We are the top machinery production and processing factory in China, with 30 years of export experience, and our after-sales service satisfaction ratio is always 100%. Due to our advantages in product quality, price and service, our sales are all from old customers'place the order again and again. We want to cooperate with medium and large buyers, our service will make you satisfied, to achieve a win-win situation.
