620 Power Hoist

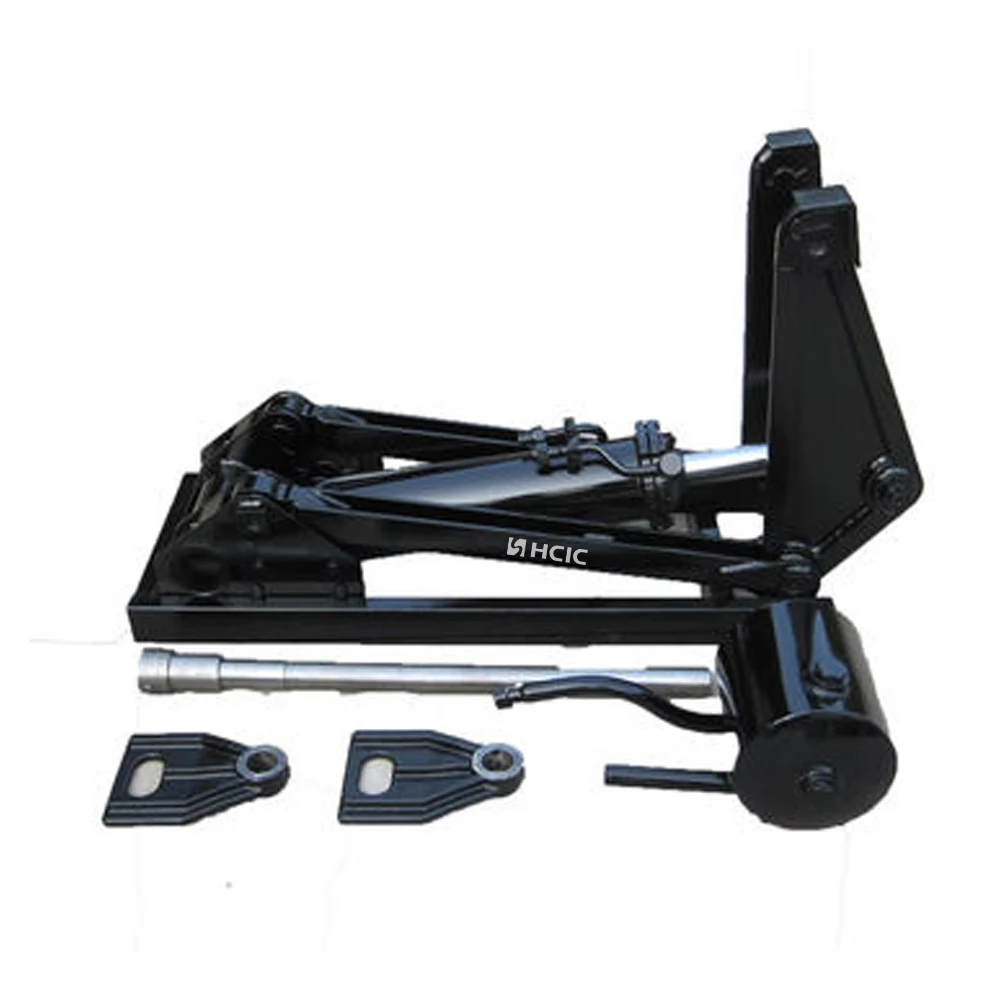

As a professional manufacturer, we offer reliable custom hydraulic solutions. The HCIC Model 620 American scissor hoist fits 20–25ft dump bodies, ideal for dump truck hauling, demolition and farm tipping. Featuring a 37.5” leverage structure and 6” bore cylinder, it delivers strong breakout force and stable lifting performance. Its zero-twist pivot, hardened pins and robotic welding prevent frame torsion and ensure long-lasting durability for heavy-duty truck use.

I. The Geometry of Breakout Force: Why Model 620 Wins

The Leverage Advantage Buying iron is easy, but buying leverage is an engineering problem. The Model 620 Power Hoist is designed around a specific 37.50-inch mounting distance (Dimension B). This isn't a random number; it’s the calculated pivot point needed to maximize breakout force during the first 10 degrees of lift. In heavy-duty haulage, this is where standard cylinders stall. Our 6-inch cylinder bore (Dimension D) works in tandem with the "amplifying frame" to convert hydraulic pressure into linear torque that keeps your dump bed from twisting under an off-center load.

II. Model 620 Technical Parameters

III. Engineering the "Zero-Twist" Pivot: Core Features

• The 37.5" Leverage Arch: Unlike short-frame units, the Model 620 uses a widened arch design. This geometry forces the dump body to stay perfectly squared with the chassis, effectively killing the frame-flex that causes rollovers on uneven job sites.

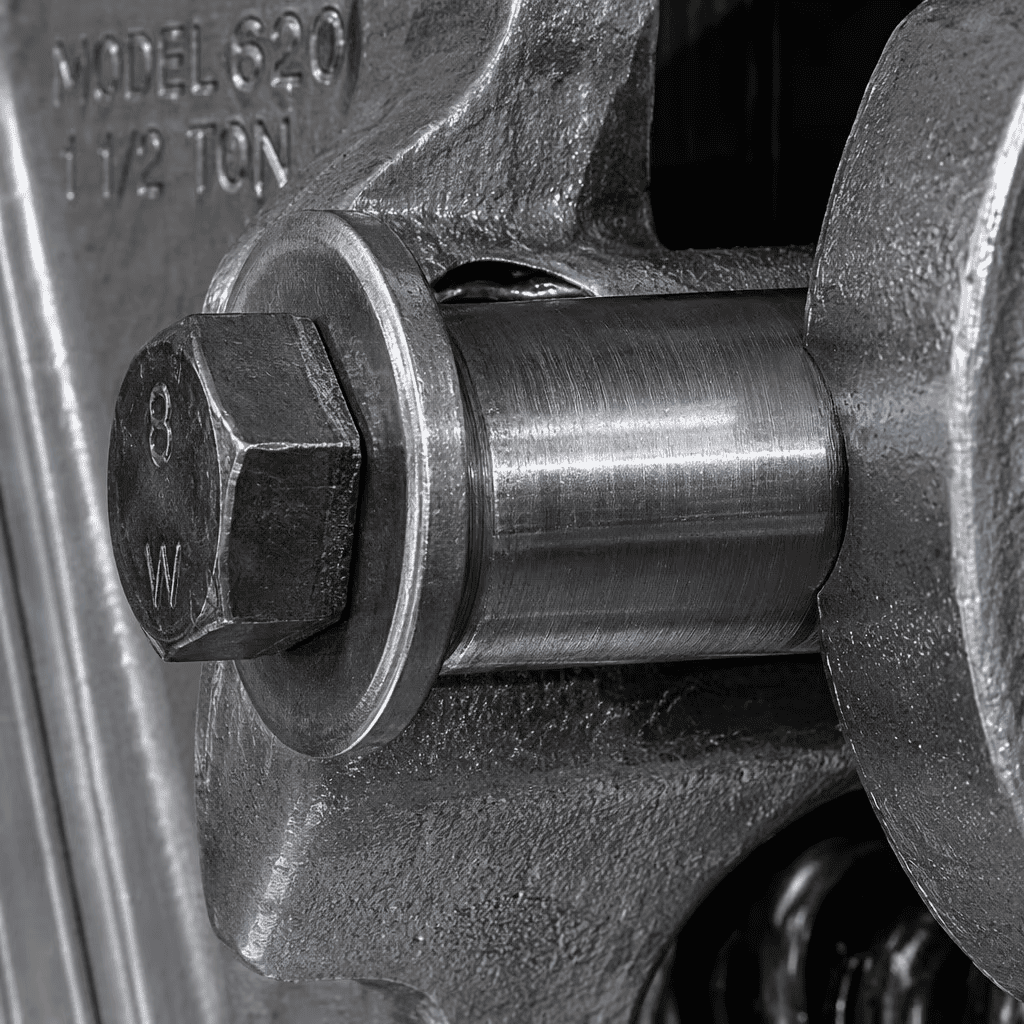

• Induction-Hardened Pinion Glands: We’ve eliminated the soft-metal pivot points found in budget units. Our American type scissor hoists feature induction-hardened pins (HV600+) that resist the "ovality" wear caused by high-tonnage shifting loads.
• Robotic Pulse-Welding: We don't trust manual welds for high-torque applications. Our frames are fused using pulsed-robotic systems that guarantee deep penetration on the 0.5" thick steel plate junctions. Period.

IV. Application Scenarios: Where the 620/625 Dominates

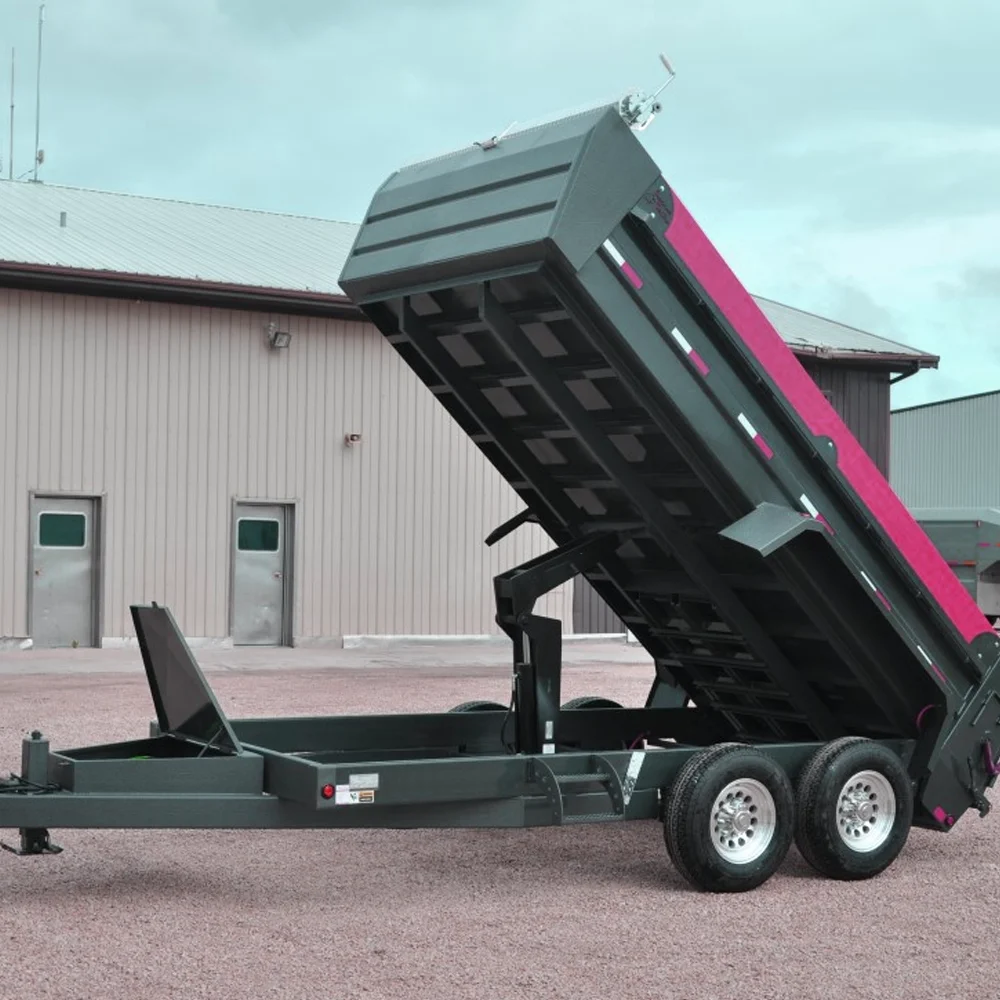

• 20-25 Foot Dump Bodies: Ideal for long-chassis vocational trucks where stability is a massive safety concern.
• Demolition Haulage: Handling jagged concrete and steel rebar where the load center of gravity is constantly shifting.
• Heavy Ag-Tipping: Large grain bodies operating in soft soil conditions that demand a self-stabilizing lift mechanism.

IV. Scissor Hoist FAQ

Q: Why is my hoist "stuttering" during the final extension phase?

A: This is usually aeration or a mismatched flow rate. For a 6.00" bore American type scissor hoist, your pump needs to deliver a consistent 15-20 GPM. If the flow is too low, the oil cavitates at the 25.00" stroke mark, causing that jumpy motion.

Q: Can I use standard Grade 5 bolts for the mounting angles?

A: Absolutely not. The shear forces on a Model 625 are immense. You must use Grade 8 (or Metric 10.9) flange bolts. Grade 5 will stretch, leading to "pivot slop" and eventually cracking the mounting lugs.

Q: My "E" dimension doesn't match the catalog. Did I mount it wrong?

A: The "E" dimension is the maximum extension based on our pivot geometry. If your dump hinge is located too far aft, you will limit the effective extension. Always verify your rear-hinge-to-pivot offset before drilling the chassis.

V. Conclusion: Reliability is a Measured Metric

At HCIC, we don't sell "good luck." We sell 37.5 inches of documented mechanical leverage. If you’re tired of seeing your truck frames twist under a full load, it's time to move to the 620/625 standard. Ready for the full CAD integration file for your specific chassis? Contact our engineering team today.
