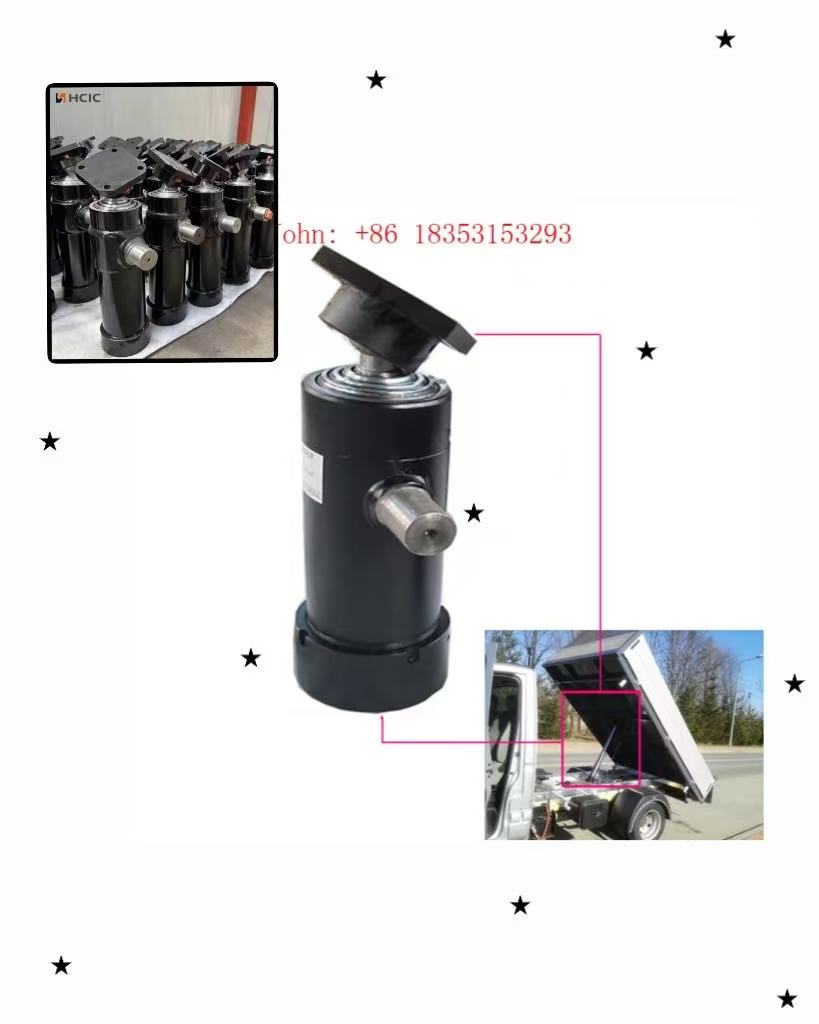

5TG-E109-1200 telescopic hydraulic cylinder for small trailers|16-year factory,ISO/CE certified-buy direct from manufacturer!
Max Stroke:
1200mmTrailer Box Length:
3.2M-3.5MLifting Capacity:
2.5tons-5.5tonsPower Pack:
DC12V/24VIf you’re in the small trailer business, you know how important a good telescopic cylinder is. It’s the heart of your trailer’s lifting system, and if it lets you down, your whole workday gets messed up. That’s why we built the 5TG-E109-1200 – a cylinder that’s not just a part, but a workhorse that fits your trailer like a glove.
We didn’t just pick random numbers for this cylinder. We designed it specifically for small trailers with a box length of 3.2 to 3.5 meters – that’s the sweet spot for most light-duty hauling jobs:
I’ve seen too many customers waste money on “universal” cylinders that don’t fit right. This one? It’s tailor-made for your 3.2-3.5m trailer, so it lifts smooth and steady, no matter what you’re hauling.
I’ve been in the hydraulic cylinder business for over 20 years, and I can tell you – this 5TG-E109-1200 is built different. Here’s what makes it stand out when you’re out on the road:
Ever had a cylinder that jams halfway up? Or worse, drops the load a little when you least expect it? This one uses tight-tolerance machined parts for the multi-stage design, so it slides in and out like butter. I’ve tested it myself on rough roads – not a single stutter, even when fully loaded.
Small trailers don’t get pampered. They’re on dirt roads, in the rain, hauling heavy loads day in and day out. This cylinder’s made from thick alloy steel that resists wear and rust – I’ve had customers tell me theirs has been going strong for 3+ years with zero issues. And with a 5.5-ton max lift, it’s stronger than most cylinders in its class – perfect for when you need to haul that extra bit of weight.
I’ve shipped these cylinders to customers in Scandinavia (where it’s freezing) and Australia (where it’s scorching), and they hold up. We test every single one for pressure and fatigue before it leaves the factory – no cutting corners. Rain, dust, extreme temps – this cylinder doesn’t care. It just keeps working.
We’re not some fly-by-night factory. We’ve been making hydraulic cylinders for 26 years, and we’ve got the certifications to prove we know what we’re doing: ISO9001 for quality control, CE for safety. Every 5TG-E109-1200 is checked and double-checked before it hits the crate – I personally sign off on the final inspection for big orders.
And if something does go wrong (which it almost never does), we’ve got your back. We offer a 1-year warranty on this cylinder. If it’s a manufacturing defect – not something you broke by overloading or rough use – we’ll fix it or send you a new one, free of charge. No forms, no waiting – just give us a call, and we’ll sort it out.
Click on the questions below to get answers for your trailer cylinder selection, installation, maintenance and purchase.
A: Suitable for small dump trailers, utility trailers, light-duty cargo trailers, and small tow-behind trailers. Works with most standard small trailer lifting systems.
A: Provide your trailer's model, lifting load capacity, and existing cylinder's bore/stroke/installation type. We’ll help verify compatibility for free.
A: Yes. Designed for light to medium loads (match your trailer's rated lifting capacity). The multi-stage design provides sufficient stroke for stable cargo dumping/lifting.
A: Absolutely. Equipped with anti-rust coating and sealed telescopic stages, it resists rain, dust, and road debris—ideal for outdoor trailer operations.
A: Standard 2-3 stages (customizable). Multi-stage design saves space when retracted and provides long stroke when extended, perfect for small trailer limited space.
A: Yes. Adopts precision-machined stages and high-quality guiding sleeves. 100% dynamic retraction testing before shipment to avoid jamming or uneven movement.
A: Normal service life is 3-5 years (depending on usage frequency). The chrome-plated piston rods and corrosion-resistant seals extend durability even with regular outdoor use.
A: Yes. Choose low-temperature resistant seals (optional). It maintains stable performance in temperatures as low as -20°C, suitable for year-round use.
A: Yes. Comes with a detailed installation manual and matching mounting hardware. No professional tools needed—most users finish installation in 1-2 hours.
A: Absolutely. We offer free online installation guidance (video call/step-by-step photos) and a professional technical team to answer your questions 24/7.
A: Simple maintenance: 1) Clean the piston rod regularly to avoid debris scratching; 2) Refill recommended hydraulic oil every 6 months; 3) Check seals for wear annually.
A: Yes. We provide replacement seal kits and a maintenance guide. Replacing seals is a straightforward process that doesn’t require disassembling the entire cylinder.
A: Yes. We offer custom telescopic cylinders—adjust stage quantity, stroke length, and retracted length to fit your trailer's space constraints perfectly.
A: Yes. Provide your old cylinder's specifications (bore, stroke, mounting type) or trailer model, and we’ll supply a direct replacement with 100% compatibility.
A: MOQ is 1 piece. You can buy a single unit for replacement or a few for your trailer fleet—flexible for both individual and small business needs.
A: Standard models: 3-7 working days (in stock). Custom models: 15-30 working days. We’ll confirm the exact delivery date after order placement.
A: Small orders: DHL/FedEx/UPS (fast delivery, 3-5 days to most countries). Bulk orders: Sea freight (cost-effective). We’ll choose the best shipping method for you.
A: Samples are available with a small handling fee. The fee will be fully deducted when you place a bulk order later—low risk for you to test quality.
A: Support PayPal, Credit Card, T/T, Western Union. For small orders, 100% payment in advance; for bulk orders, 30% deposit + 70% balance before shipping.
A: 12-month warranty. If there’s any quality issue (non-human damage) during the warranty period, we’ll send replacement parts for free or arrange a full refund.
We’ve sent these 5TG-E109-1200 cylinders to small trailer companies, farmers, and logistics firms in Europe, Asia, Africa, and the Americas – over 60 countries total. Last month, a customer in Germany told me he’s using them on his fleet of 20 small trailers and hasn’t had a single failure in 18 months. That’s the kind of feedback that makes us proud.
Whether you’re building new trailers or upgrading old ones, this cylinder is the missing piece. It’s not just a part – it’s a promise that your trailers will keep working, day in and day out.
Click the questions below for instant answers.
A: This 4TG-E90-1000 combo is designed for dump trailers, utility trailers, and small cargo trailers. It matches most standard light-to-medium duty trailer lifting systems.
A: Yes. Provide your original cylinder model, power unit specs, mounting type and trailer load, we’ll confirm 100% compatibility for direct replacement.
A: Standard models match common trailer wiring setups. For special wiring systems, we can adjust the custom power unit to fit your trailer’s circuit.
A: The standard stroke is 1000mm. We offer custom stroke adjustments for your unique trailer installation space.
A: Yes. We provide fully custom power units, including voltage, tank capacity, control mode and pressure settings to match your 4TG-E90-1000 cylinder.
A: Yes. Built with high-strength materials and sealed components, this combo withstands frequent dumping and harsh outdoor working conditions.
A: Yes. Choose our low-temperature seal and oil options. The 4TG-E90-1000 combo runs stably in low-temperature winter conditions.
A: Yes. The combo comes with a detailed installation manual and mounting hardware. Basic hand tools are enough for on-trailer installation.
A: Yes. We provide free online installation guidance, including video support and step-by-step troubleshooting for the cylinder and power unit.
A: Regular maintenance: Clean cylinder rods, replace hydraulic oil every 6 months, inspect power unit cables and seals for wear annually.
A: MOQ is 1 unit. You can order 1 set for replacement or bulk sets for trailer fleet maintenance.
A: Standard combo: 7–15 working days. Custom power unit versions: 15–30 working days, confirmed after design approval.
A: Small orders: Express (DHL/FedEx/UPS). Bulk orders: Sea freight. We arrange safe and cost-effective shipping for global customers.
A: We provide a 12-month warranty for the entire combo. Non-human damage quality issues are covered with free parts or repair.
A: Yes. We supply all replacement parts, including seals, hydraulic oil, power unit accessories and cylinder components.
HCIC is a professional hydraulic manufacturer, mainly engaged in hydraulic system design, manufacture, installation, transformation, commissioning and hydraulic components brand sales and technical services.We hope that our product can help to save your cost and improve your quality. For More details please WhatsApp "+17864126751" or google search "HCIC hydraulic"
