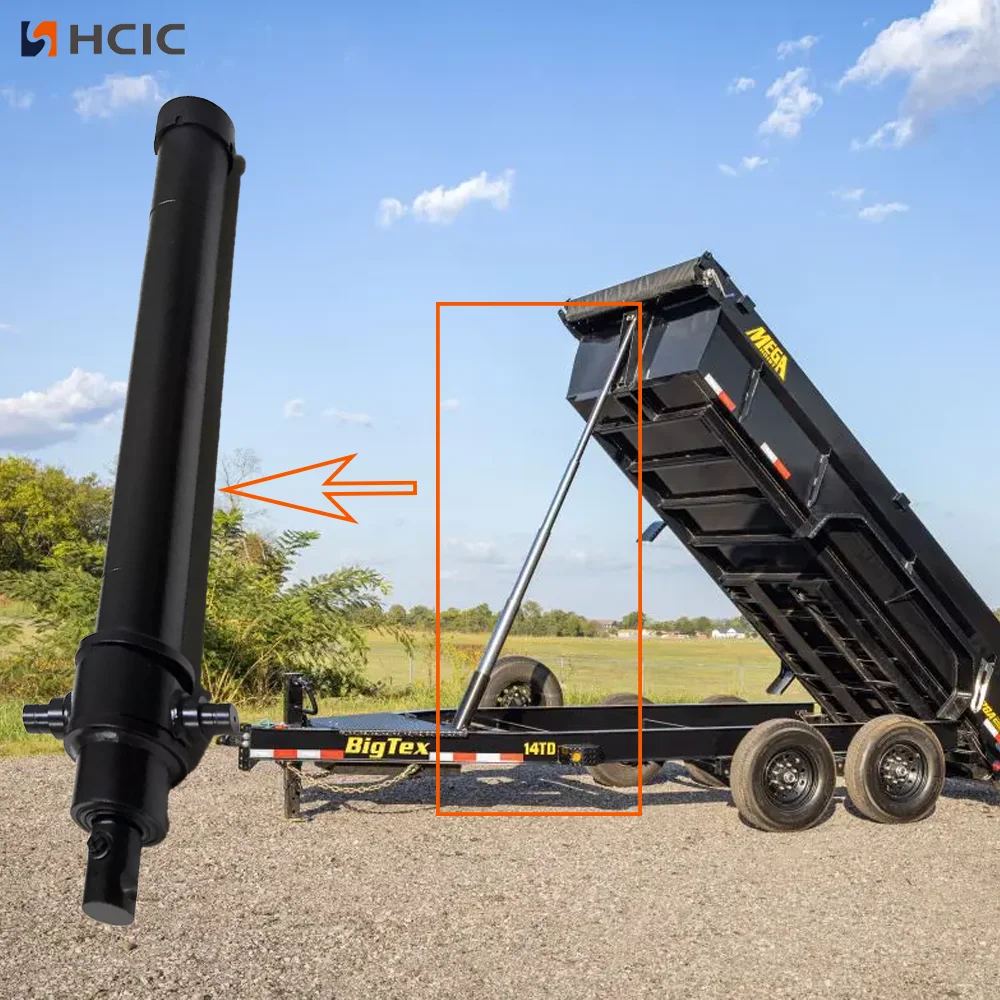

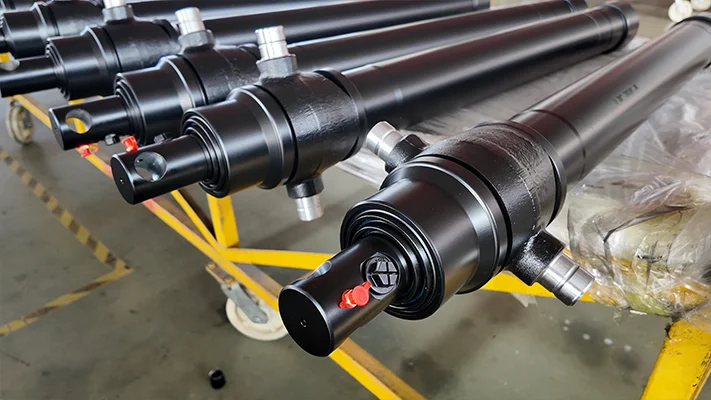

4-Stage Underbody Telescopic Tipping Cylinder for Heavy Dump Trailers

Commercial trailer builders designing heavy-duty tri-axle grain haulers, aggregate tippers, and quarry dump trailers face a brutal geometry problem: road clearance regulations demand an ultra-low loading deck height, leaving virtually zero vertical clearance beneath the subframe. Yet, when hauling 15 tons of compacted gravel or wet topsoil, initial bed breakout requires immense hydraulic force. The 4TG-E90x1055 4-Stage Underbody Telescopic Tipping Cylinder for Heavy Dump Trailers resolves this exact engineering conflict by squeezing four precision-nested stages into an ultra-short 389 mm (15.31") closed retracted envelope.

By nesting a large Ø90 mm primary sleeve inside the base barrel, the cylinder generates massive starting thrust directly beneath the load center. The 4TG-E90x1055 4-Stage Underbody Telescopic Tipping Cylinder for Heavy Dump Trailers provides an effective 1,055 mm (41.54") stroke rated up to 18 MPa (2,610 psi), delivering 8.0 to 15.0 metric tons of tipping capacity while maintaining legal underbody road clearance over rough quarry trails.

---

I. Hydraulic Dissection: The Ø90/75/60/45 mm Multi-Stage Cascade

Understanding the force curve of a four-stage underbody hoist prevents costly hydraulic sizing errors in commercial trailer design:

• Ø90 mm First Stage (Initial Breakout): With the largest effective piston area, this primary sleeve generates over $114 of pure vertical thrust at 18 MPa, breaking the bed loose from chassis rubber pads even when aggregate is frozen or compacted.
• Ø75 mm & Ø60 mm Middle Stages (Steady Elevation): As the bed tilts through 20° to 35°, the center of gravity shifts rearward toward the pivot pins. The intermediate sleeves take over smoothly, accelerating bed lift while reducing fluid volume demand.
• Ø45 mm Final Stage (Steep Cleanout Angle): The slender 45 mm sleeve delivers the final push to achieve a steep 50° dump angle, ensuring sticky asphalt, clay, or compost slides off the floor cleanly.

Because the 4TG-E90x1055 4-Stage Underbody Telescopic Tipping Cylinder for Heavy Dump Trailers features micro-honed internal stop rings, sleeve transition shocks are dampened, protecting pump components and PTO gears from sudden hydraulic pressure spikes.

---

II. Heavy Aggregate Field Forensics: Surviving Asymmetrical Discharge

When dumping heavy rip-rap or wet manure, material rarely discharges symmetrically. If the tailgate catches on a boulder on one side, thousands of foot-pounds of dynamic twisting torque transfer straight into the hoist cylinder.

To prevent sleeve scoring and guide-ring extrusion, the 4TG-E90x1055 must be mounted inside a matched spherical gimbal cradle. The dual-axis articulation allows the bottom ball and upper trunnion to swivel up to ±6° in all directions, isolating the four extended chrome stages from fatal bending loads.

---

III. Reservoir Sizing & Plumbing Requirements

Because a multi-stage telescopic cylinder displaces a significant volume of oil during full extension, hydraulic tank volume is a critical failure point.

---

IV. FAQ

---

V. Technical Disclaimer & Frame Verification

Specifications listed above represent official HCIC 2026 Product Catalog standards (Page 18, Underbody Tipping Cylinder Series). Because trailer subframe crossmember layouts and overhang geometries differ between manufacturers, always verify chassis rail clearance, pivot pin centerlines, and hydraulic pump flow ratings prior to welding mounting brackets.

---

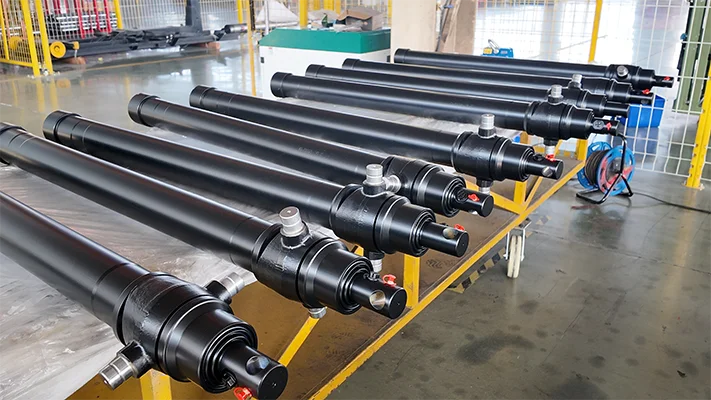

VI. Direct OEM Fleet Sourcing for 4TG-E90x1055

Building high-capacity dump trailers or replacing an underperforming underbody hoist?

Submit your trailer chassis blueprints, gross payload ratings, and annual production requirements to the HCIC engineering team. We supply full 3D STEP models within 24 hours, custom mounting gimbal cradles, and factory-direct volume supply agreements to optimize your manufacturing throughput.
